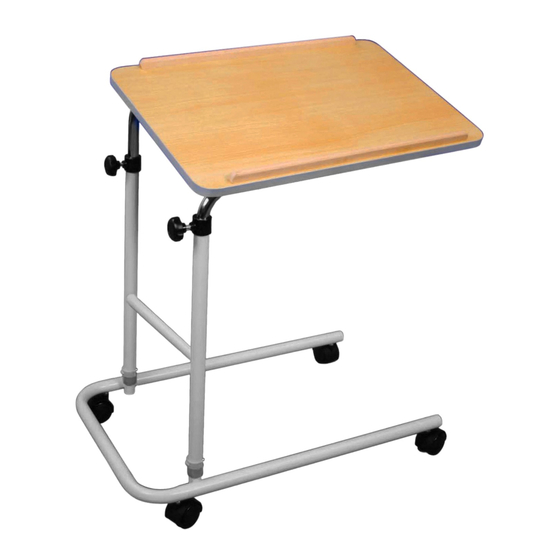

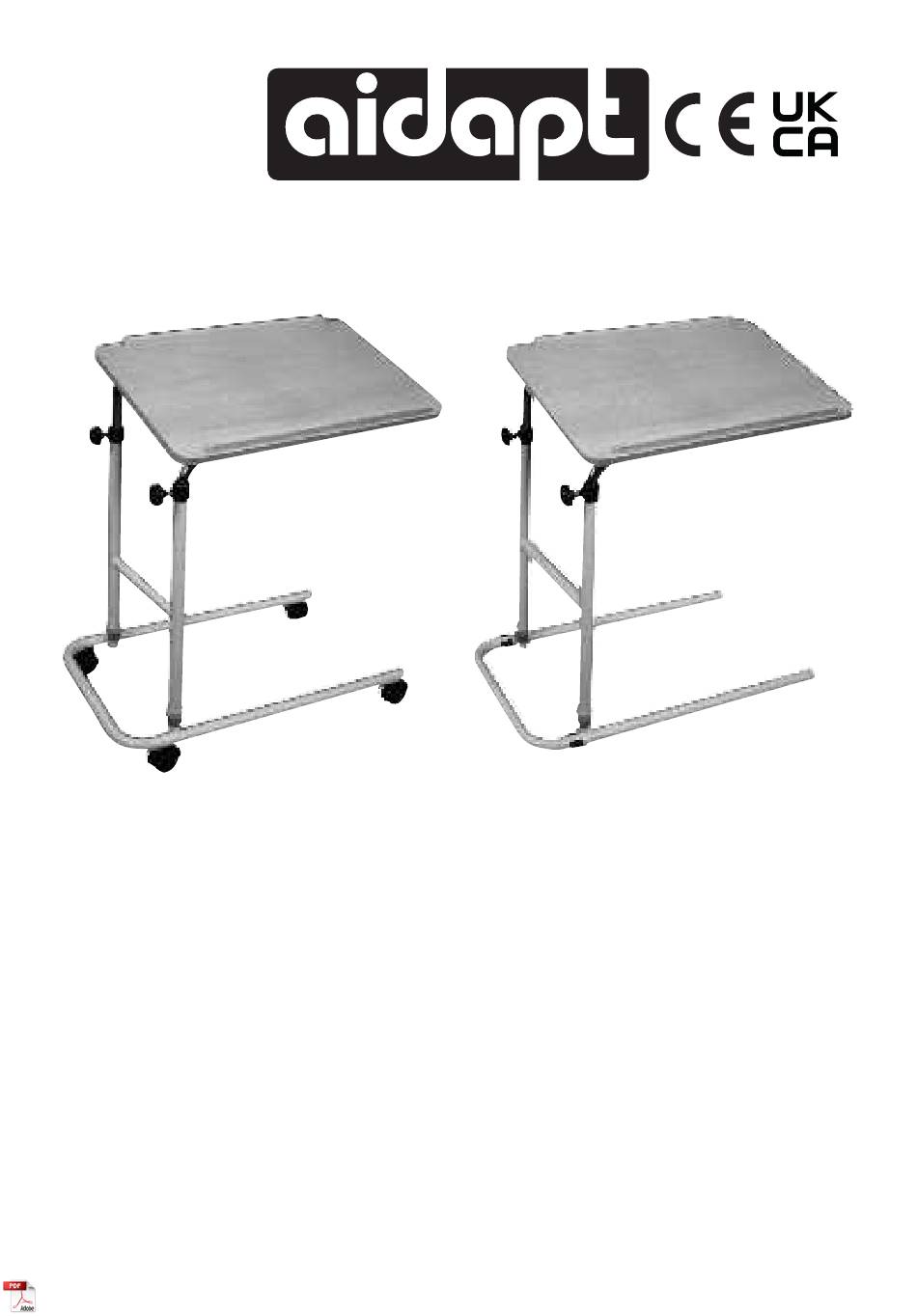

Canterbury Multi Use Table
VG832
VG866
With Four
NO
Braked Castors
Castors
Fixing and Maintenance Instructions
This file is available to view and download as a PDF at
www.aidapt.co.uk. Sight impaired customers can use a
free PDF Reader (such as adobe.com/reader) to zoom in
and increase the text size for improved readability.
Advertisement
Related Manuals for aidapt VG832
Summary of Contents for aidapt VG832
- Page 1 Fixing and Maintenance Instructions This file is available to view and download as a PDF at www.aidapt.co.uk. Sight impaired customers can use a free PDF Reader (such as adobe.com/reader) to zoom in and increase the text size for improved readability.
-
Page 2: Before Use
Please see our website user manual if you require a larger font. Please ensure this equipment is installed by a competent person. VG832 – Canterbury Multi Use Table with 4 Braked Castors Max Weight Load 15kg VG866 – Canterbury Multi Use Table with NO Castors Max Weight Load 15kg DO NOT exceed the weight limit stated –... - Page 3 ASSEMBLY INSTRUCTIONS Please examine your product for any visible damage before using/installing. If you see any damage or suspect a fault, please do not use, but contact your supplier. fig. 1 fig. 2 fig. 3 1. Place the U Base Frame (A) on a stable surface, 2.
- Page 4 ASSEMBLY INSTRUCTIONS (CONTINUED) fig. 6 fig. 7 5. Place the Table Top (B) on a stable surface. Take 6. Push down on the L Tube (E) to lock into place an L Tube (E), find the side with the 2 screws in (see fig.
- Page 5 ASSEMBLY INSTRUCTIONS (CONTINUED) fig. 10 fig. 11 9. Loosely attach the two Thumb Wheels (D) to the 10. Raise or lower the table top to the desired spigots at the top of the H Frame (C) (see fig. 10) height and tighten Thumb Wheels (D) by turning clockwise (see fig.
-
Page 6: Technical Information
The information given in this instruction booklet must not be taken as forming part of or establishing any contractual or other commitment by Aidapt Bathrooms Limited or its agents or its subsidiaries and no warranty or representation concerning the information is given. -
Page 7: Service / Warranty
If your product arrives damaged, you must contact the retailer from whom you bought it. The retailers contact details will be on the invoice that arrived with the product, or on the email you received when you placed the order. Do not contact Aidapt Bathrooms Ltd, only your retailer can arrange a replacement or refund. - Page 8 Aidapt Bathrooms Ltd, Lancots Lane, Sutton Oak, St Helens, WA9 3EX Telephone: +44 (0) 1744 745 020 Fax: +44 (0) 1744 745 001 Web: www.aidapt.com Email: sales@aidapt.co.uk...
