Parts List - aidapt VG811C Usage And Maintenance Instructions

VG811C
VG811BL
VG811BR
VG811C
Maximum User Weight 140 kg (22 st.)
DO NOT EXCEED THE WEIGHT LIMIT- Doing so could put the user at risk.
N.B. It is recommended that this equipment is installed by a competent person and a risk assessment is
undertaken as to the suitability for the user. Do not use on uneven surfaces.

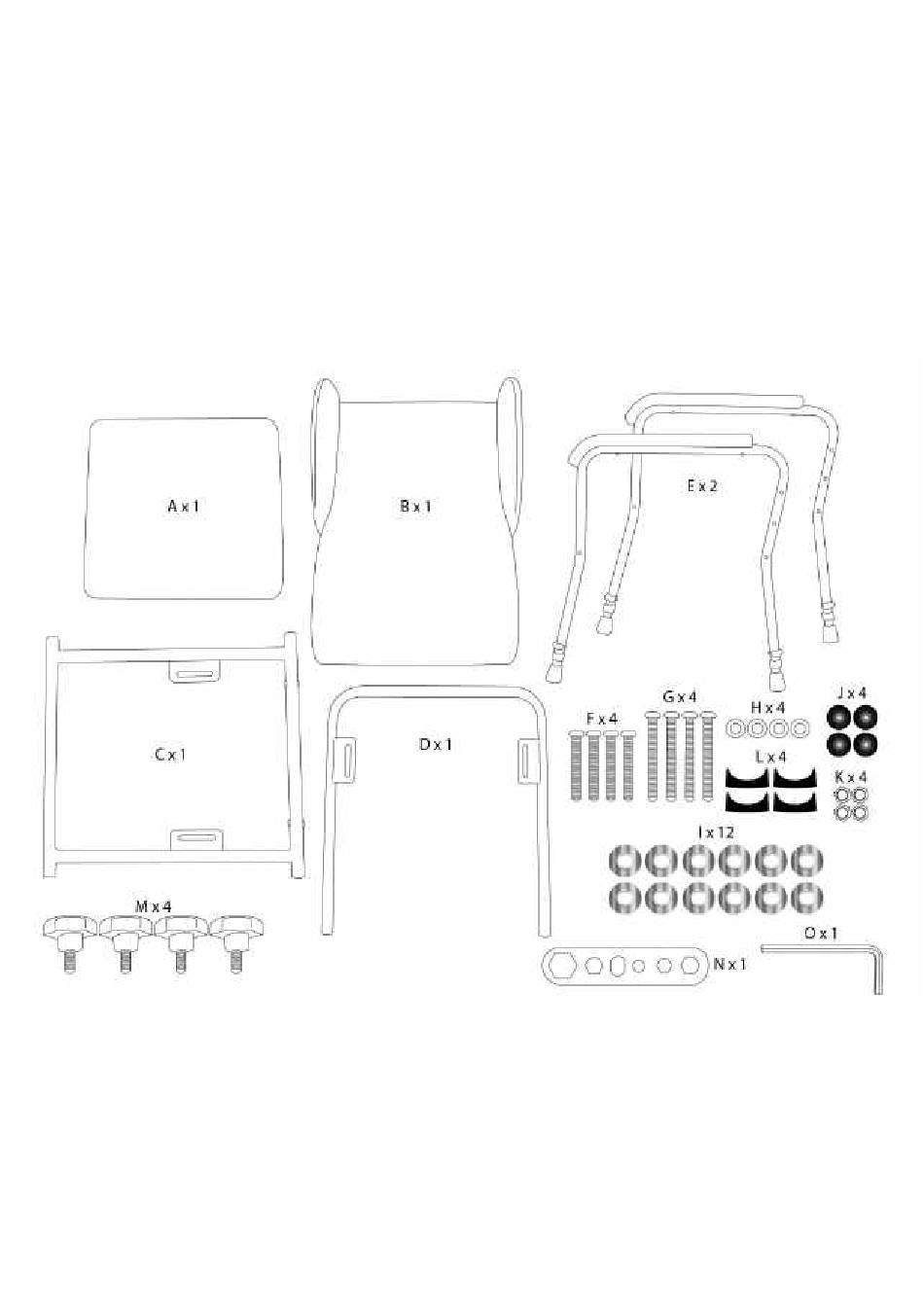

PARTS LIST

Ensure all parts are present before assembly. Contact your supplier if any parts are missing.
A: Padded Seat
B: Padded Back Rest
C: Seat Frame
D: Rear Seat Frame
E: Chair Sides
F: Bolt (Short)
G: Bolt (Long)
December 2021
Wing Backed Chelsfield Chair (Cream)
Wing Backed Chelsfield Chair (Blue)
Wing Backed Chelsfield Chair (Brown)
Plain Backed Longfield Chair (Brown)
H: Washer
I: Curved Washer
J: Bolt Cover Cap
K: Nut
L: Plastic Spacer
M: Thumb Wheels
N: Spanner
O: Allen Key
2
