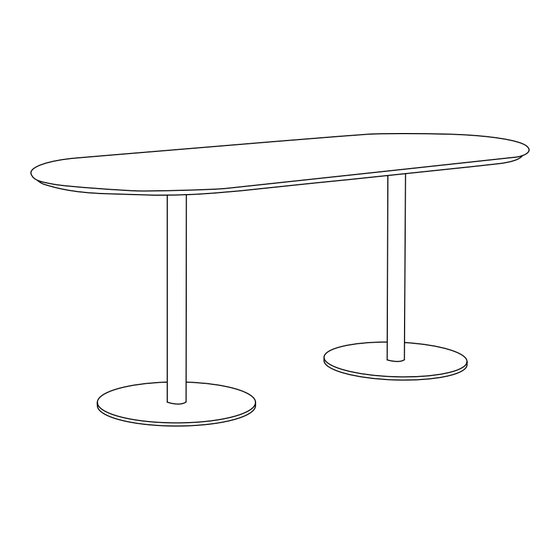

- Page 1 Arrow Assembly Instructions Single Tables AO60**/AO70**/AO80**/AO90RS/AO100RS/AO110RS/AO120RS Dual Base Tables AO180PS/AO180SS jardan.com.au...
- Page 2 Place the table frame in final location. AO60** / AO70** / AO80** AO90RS / AO100RS / AO110RS / AO120RS Place the tabletop on top of the frame top plate. Use all supplied M6 Screws to fix tabletop to table frame. jardan.com.au...
- Page 3 Requires more than one person for assembly. Place the two supplied table base frames, roughly spaced in final location. Use supplied M8x25 Counter Sunk screw to fix dual top plate to both base frames. Ensure all screw are securely fastened to the frame. jardan.com.au...
- Page 4 Arrow Assembly Instructions - Dual Base Tables Place the tabletop on the assembled table frame and align the holes to the support plate. Use supplied M6x16 Counter Sunk screws to fix frame to tabletop. jardan.com.au...
-
Page 5: Care And Maintenance
Our philosophy is simple, we only make furniture that lasts. Over their lifetime our products will need a little care and attention to ensure they can be enjoyed by generations to come. The following information will help you care for your Jardan products in the best possible way.
