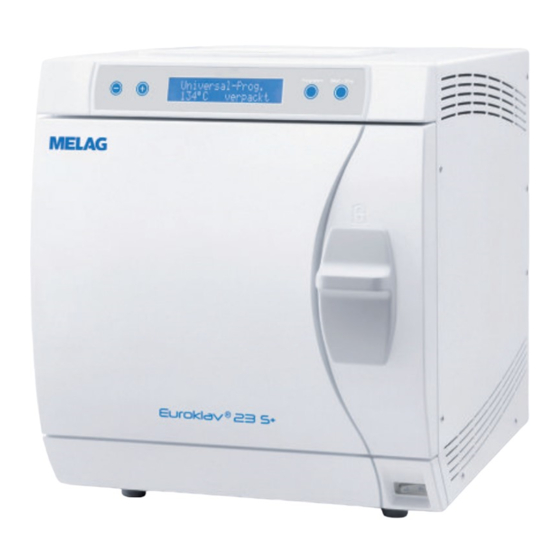

MELAG Euroklav 23 S+ User Manual

Steam sterilizer
Hide thumbs Also See for Euroklav 23 S+:
Table of Contents

Advertisement

Quick Links

Download this manual

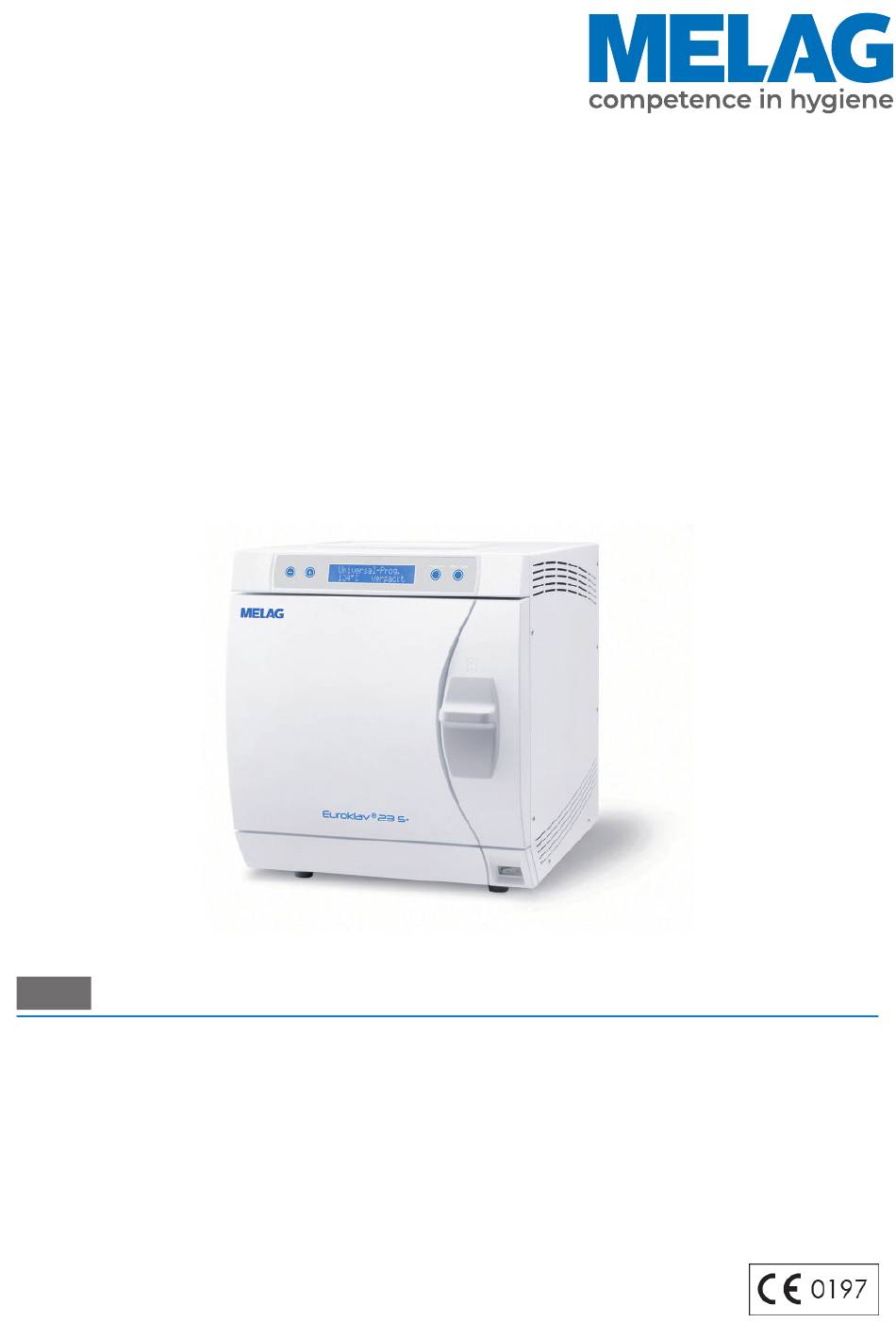

User Manual
Euroklav
Steam sterilizer
from software version 5.20
EN
Dear customer,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world's leading manufacturer in the instrument reprocessing and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing
hygiene"
and
"Quality – made in
agement system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in ac-
cordance with EN ISO 13485. This guarantees that all MELAG products are manufactured and tested in accordance with
strict quality criteria.
The MELAG management and team.
®
23 S+
Germany", we guarantee that these demands will be met. Our certified quality man-
"competence in

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Euroklav 23 S+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MELAG Euroklav 23 S+

Summary of Contents for MELAG Euroklav 23 S+

  • Page 1 5.20 Dear customer, We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice- based use.

  • Page 3: Table Of Contents

    Contents Contents 1 General guidelines ................................ 5 Symbols used.................................. 5 Formatting rules ................................... 5 2 Safety..................................... 6 3 Performance specifications .............................. 8 Intended use .................................. 8 Sterilization procedure ................................. 8 Type of the feed water supply .............................. 8 Safety equipment ................................. 9 Overview of the sterilization programs .......................... 9 Program sequences ................................ 10 Overview of programs ................................ 11 4 Description of the device.............................. 13 Scope of delivery................................ 13...
  • Page 4 Contents Deleting logs in the internal log memory .......................... 35 Reading logs correctly................................ 36 9 Function tests .................................. 38 Automatic functional checks............................... 38 Manual functional checks.............................. 38 Bowie & Dick test ................................ 38 Checking the quality of the feed water .......................... 39 Checking the preheating temperature of the chamber....................... 39 10 Maintenance.................................. 40 Servicing intervals ................................ 40 Cleaning ..................................... 40...

  • Page 5: General Guidelines

    Make sure that you always have access to digital or printed version of the user manual. Should the manual no longer be legible, is damaged or has been lost, you can download a new copy from MELAG download centre at www.melag.com. Symbols used...

  • Page 6: Safety

    Check the device after unpacking for any damage suffered during transport. The device should only be setup, installed and commissioned by MELAG authorized persons. The connections for electrical provision and water supply and discharge must be setup by trained per- sonnel.
  • Page 7 (MELAG) and the relevant authority of the member state, in which the user and/or patient resides.

  • Page 8: Performance Specifications

    3 Performance specifications 3 Performance specifications Intended use The steam sterilizer is designed for use in a general medical environment in which the instruments used and their packaging do not require a type “B” steam sterilizer with cycles. According to EN 13060, this steam sterilizer is a sterilizer with the cycles of type “S”. As a universal steam sterilizer, it is suitable for the sterilization of unwrapped or wrapped solid instruments, simple hollow items and smaller quantities of textiles.

  • Page 9: Safety Equipment

    3 Performance specifications Safety equipment Internal process monitoring An process evaluation system is integrated in the electronics of the steam sterilizer. It compares the pro- cess parameters (such as temperature, time and pressure) during a program run. It monitors the parame- ters in terms of their threshold values during control and regulation and guarantees safe and successful sterilization.

  • Page 10: Program Sequences

    3 Performance specifications Program sequences Regular sterilization program After program start, you can follow the program run on the display. It shows the chamber temperature and pressure as well as the time until the end of sterilization / the drying. Program phase Description 1.

  • Page 11: Overview Of Programs

    3 Performance specifications Overview of programs MAIN menu Function Initial state (see next page) Press 1x hh:mm:ss AIN6: Conductivity Press simultaneously to reach the SETUP 0.00 bar 89°C 10 µS/cm menu function Release Select by holding the '-' key depressed Press 2x Unlock the door with the '+' key Universal-Program...
  • Page 12 Functions of the SETUP menu hh:mm:ss Initial state 0.00 bar 89°C Press both keys simultaneously No output medium MELAprint SETUP menu MELAflash Applies only to Vacuklav 23 B+/ 31 B+, Euroklav S+/ VS+, Vacuvet 23 B+, Function: MELAnet graphic data (MELAnet Box) DAC Professional Computer Applies only to Euroklav S+/ VS+...

  • Page 13: Description Of The Device

    4 Description of the device 4 Description of the device Scope of delivery Please check the scope of delivery before setting up and connecting the device. Standard scope of delivery ▪ Euroklav 23 S+ ▪ User manual ▪ Technical manual ▪...

  • Page 14: Symbols On The Device

    4 Description of the device Rear panel Spring safety valve Sterile filter One-way outlet Feed water inflow via the internal storage tank Hose bridge for internal feed water supply Power cable View of the interior Fixing for MELAdem 40 Sterilization chamber Door locking pin Chamber sealing face 2x Device fuse...
  • Page 15 - it must be delivered to the vendor to be disposed of. MELAG devices are synonymous for long-term quality. When you eventually need to decommission your MELAG device, we offer a special disposal service. Simply contact your stockist.

  • Page 16: Operating Panel

    4 Description of the device Operating panel The operating panel consists of a two-row alphanumerical LC display and four membrane keys. 14:27:12 0,02bar 25 °C 2-row LC display for display of the program status and parameters Time (h:min:s) Chamber pressure (bar) and (steam) temperature (°C) Function keys '-' and '+' for the selection, setting and display of special functions: printing, date / time, preheating, total batches, conductivity, acknowledge malfunction, '+' key for unlocking the door...

  • Page 17: First Steps

    Record of installation and setup The record of installation and setup is to be completed by the responsible stockist and a copy sent to MELAG as proof of the correct setup, installation and initial commissioning. This is a constituent part of any guarantee claim.

  • Page 18: Wastewater Connection

    5 First steps Repeated pressing of the 'S' key enables you to leave the menu entirely and return to the display basic state. Wastewater connection The wastewater can either be collected in the internal storage tank on the wastewater side (left) and be re- moved manually or be let out automatically via the one-way outlet.
  • Page 19 5 First steps Navigate in the Function menu using the '+' or '-' keys until the display shows: Function Date / time Press the 'P' key to confirm. Ê The current hour is displayed. Choose one of the following setting possibilities using the '+' or '-' keys: hour, minute, second, day, month, year.

  • Page 20: Loading The Steam Sterilizer

    6 Loading the steam sterilizer 6 Loading the steam sterilizer Preparing the sterilization material Cleaning and disinfection must always have been performed correctly and appropriately before steriliza- tion. Only in this way is it possible to guarantee the subsequent sterilization of the sterilization material. The materials used, cleaning agents and reprocessing procedure are of decisive significance.

  • Page 21: Loading The Steam Sterilizer

    Insert trays or cassettes in the chamber only with their appropriate mount. Use perforated trays such as those from MELAG. Only in this way can condensate drain off. The use a non-perforated base or half-shell to accommodate the sterilization material can result in poor drying results.
  • Page 22 Ensure that the perforations are not covered when stacking the containers. Tip: MELAG sterilization containers fulfil the requirements of EN 868-8 for successful sterilization and dry- ing. They have a perforated lid and base and are fitted with disposable paper filters.
  • Page 23 Max. weight per component 2 kg / 0.6 kg Maximum total weight** 4 kg / 0.6 kg For MELAG mounts, trays, sterilization containers, see Accessories and spare parts [} page 58] This applies solid loads (e.g. instruments) including the weights of mounts, trays and sterilization containers.

  • Page 24: Sterilization

    This will shorten the cycle times and reduce the condensate formation on the chamber wall. PLEASE NOTE The steam sterilizer must remain continually activated for the automatic preheating. MELAG recommends activating the automatic pre-heating function.

  • Page 25: Starting The Program

    NOTICE Unsupervised operation of electrical devices, including this steam sterilizer at the operator’s risk. MELAG accepts no liability what so ever for any damage resulting from unsupervised operation. After having selected a program via the program selection key 'P', the display will show both the selected program and sterilization temperature as well as whether the program is suitable for wrapped or un- wrapped sterilization material.

  • Page 26: Program Run

    7 Sterilization Program run After starting the program, you can follow the program run in the display. It shows the chamber tempera- ture and pressure as well as the time until the end of sterilization or the drying time which has passed. 1.

  • Page 27: Manual Program Abort

    7 Sterilization Manual program abort You can abort a current program in all phases. If you end a program before drying begins, the sterilization material remains unsterile. WARNING Hot steam can be released from the device when opening the door after a program abort. This could result in burns.

  • Page 28: Removing The Sterile Material

    7 Sterilization Program abort after the start of drying You can abort the program during the drying phase via the 'S' key without the steam sterilizer registering a fault. Should you abort a program after drying has started, the sterilization is having been completed successful- ly.

  • Page 29: Storing Sterile Material

    7 Sterilization Comply with the following specifications when removing the sterilized equipment: Never use force to open the door. This could damage the device or result in the emission of hot steam. Use a tray lifter to remove the tray. Never touch the sterilized equipment, the chamber, the mount or the inside of the door with bare hands.

  • Page 30: Logging

    8 Logging 8 Logging Batch documentation The batch documentation serves as proof of the successful conclusion of the program and represents an obligatory part of quality assurance. The device internal log memory saves such data as the program type, batch and process parameters of all the programs completed. To obtain the batch documentation, you can output the internal log memory and transfer its data to various output media.
  • Page 31 8 Logging In its delivery state, an option for log output is not set on the steam sterilizer. PLEASE NOTE Further information about the log printer (e.g. the duration of the readability of the log printouts) is specified in the appendant user manual. Using a computer as an output medium (without a network connection) In order to be able to use a computer as an output medium, the computer must be connected to the steam sterilizer via the serial interface.
  • Page 32 8 Logging Press the 'P' key again. If an output medium has yet to be chosen, the display will show the Log output – No output medium notification. Navigate using the '+' or '-' keys until the display shows: Output medium Computer Press the 'P' key to confirm.

  • Page 33: Outputting Logs Immediately And Automatically

    8 Logging Mark the editor and confirm with “OK”. Ê You can then open files with this ending via a double-click in Windows Editor. Alternatively, you can open all text logs with the documentation software MELAtrace/MELAview (from MELAview 3). Outputting logs immediately and automatically Text logs If you want to output the associated text log on an output medium automatically and immediately after the end of a program, use the following function: Immediate output YES.

  • Page 34: Subsequent Log Output

    8 Logging PLEASE NOTE If immediate output is unable to output a log, for example, because the output medium activated is not connected, a warning will appear. MELAG recommends using the immediate log output function. Graphic logs For log output immediately after program end, comply with the following: In SETUP menu Function: Log output MELAnet+graphic data must be selected as the...

  • Page 35: Displaying The Log Memory

    8 Logging Navigate using the '+' or '-' key until the display shows: Output stored cycles Press the 'P' key in order to start the output of the selected program. The display will show the message during the output: Output. Ê If output has been performed, the display will show: Output stored cycles.

  • Page 36: Reading Logs Correctly

    8 Logging Press the 'P' key to leave the menu after deletion. The display will show Function: Log output. Repeated pressing of the 'S' key enables you to leave the menu entirely and return to the display initial state. Reading logs correctly Log type File ending Explanation...
  • Page 37 8 Logging Example for a text log of a successfully completed program Steam sterilizer type ---------- started program current date time at program start daily batch number serial number preheating temperature conductivity of the feed water VALUES OF THE PROGRAM STEPS program sequence phases with the accompanying values for pressure, temperature and time (relative to the program start)

  • Page 38: Function Tests

    9 Function tests 9 Function tests Automatic functional checks The electronic parameter control subjects the interaction of the sterilization-relevant parameters pressure, temperature and time to constant automatic monitoring. The steam sterilizer process evaluation system compares the process parameters during the program with each other and monitors them in terms of their threshold values.

  • Page 39: Checking The Quality Of The Feed Water

    9 Function tests Checking the quality of the feed water You can access the water quality on the display at any time during a current program when the steam ster- ilizer is switched on. AIN6: Conductivity 15 µS/cm To do so, hold the '-' key depressed until the display shows Conductivity. Ê...

  • Page 40: Maintenance

    Comply with all information regarding cleaning of the part affected. Sterilization chamber, chamber sealing face, mount, trays To maintain the value of your device and to avoid stubborn contamination and deposits, MELAG recom- mends weekly cleaning of the surfaces (e.g. with the MELAG chamber cleaning set).
  • Page 41 10 Maintenance Finally, wipe the cleaned surfaces with a dry, non-fuzzing microfibre cloth. Housing parts Where necessary, clean the housing parts with a neutral fluid cleaner or spirit. Internal storage tank Should you use the internal storage tank for the feed water supply, perform regular checks and cleaning. Interval Measure Each time you fill up...

  • Page 42: Avoiding Staining

    10 Maintenance Avoiding staining Only proper cleaning of the instruments prior to sterilization enables you to avoid residue from being re- leased from the load under steam pressure during sterilization. Loosened dirt residue can clog the filter, fit- tings and valves of the device and deposit themselves on the instruments and in the sterilization chamber as deposits and stains.

  • Page 43: Replacing Or Sterilizing The Sterile Filter

    10 Maintenance Insert the door seal in the groove of the round blank. PLEASE NOTE Make sure that the broad seal face faces the chamber. The door can only be shut correctly and the chamber sealed, if the door seal sits correctly in the groove. Replacing or sterilizing the sterile filter The sterile filter must be replaced regularly within the scope of the maintenance.
  • Page 44 10 Maintenance Exert a little pressure on the sterile filter and turn to insert it into the holding sockets. Sterilizing the sterile filter Remove the sterile filter by turning and pulling it from the holding sockets simultaneously. Slide a into the steam sterilizer and place the sterile filter vertically on the tray.

  • Page 45: Cleaning The Filter In The Chamber

    10 Maintenance Cleaning the filter in the chamber Unscrew the two fixing screws on the metal cover in the sterilization chamber (using e.g. a coin) and remove the metal cover. Unscrew the “condensate return” (pos. a) and “vacuum / flow” (pos. b) filters anti-clockwise out of the opening to check and clean.

  • Page 46: Pause Times

    11 Pause times 11 Pause times Frequency of sterilization Pause times between individual programs are not necessary. After the end/abort of the drying time and re- moval of the sterile material, you can load the steam sterilizer again and start a new program. Operating pauses Depending on the duration of the operating pauses, the following measures must be maintained: Duration of the operating pause...

  • Page 47: Transport

    11 Pause times Transport Transport within the practice NOTICE Failure to observe these provisions can result in damage to the device and malfunction. Comply with the following provisions when transporting within a room or the practice: When using a water treatment unit and/or an outlet hose, close the water inflow and remove the hose connections on the rear of the device.

  • Page 48: Malfunctions

    Should the following table not contain the relevant event, or your efforts do not redress the problem, you can contact your nearest stockist or a local authorized MELAG customer service provider. Please have your device serial number and a detailed description of the malfunction contained in the notification to...

  • Page 49: Warnings

    The installed flow authorized customer services/stockist monitor does not close. technician. When using a MELAG water treatment unit: The warning will be displayed after a MELAdem 40/53/53 C: program start. The installed flow Check the water treatment unit and open monitor does not close.
  • Page 50 12 Malfunctions Event Possible causes What you can do Insufficient quality of Feed water conductivity too high. Start no longer possible. feed water / start not See event: Poor feed water / replace the Conductivity ≥ 65 µS/cm possible cartridge or module. Please wait, the This display appears during the The steam sterilizer starts automatically...

  • Page 51: Fault Messages

    12 Malfunctions Fault messages Event Possible causes What you can do The overheat protection has tripped. Press the overheat protection reset button on the fore side of the steam sterilizer at the bottom right- hand side (behind the panel) back in. The steam sterilizer is overloaded.
  • Page 52 12 Malfunctions Event Possible causes What you can do The overheat protection of the tubular Allow the steam sterilizer to cool for approx. 2 min heating element has triggered. and then restart the program. PLEASE NOTE: This notification can be issued if a program is started immediately after a malfunction or a program abort.
  • Page 53 12 Malfunctions Event Possible causes What you can do The steam sterilizer was switched off at Replace or sterilize the sterile filter as follows: the power switch during a program run. Remove the sterile filter from the rear panel of the steam sterilizer and sterilize it in the Gen- tle-Program without continuing loading.
  • Page 54 12 Malfunctions Event Possible causes What you can do see event F23 The door seal and/or the seal face on Check the door seal and the seal face on the the sterilization chamber is soiled or the sterilization chamber for soiling and foreign bodies door seal is defective.

  • Page 55: Opening The Door In An Emergency Following A Power Outage

    12 Malfunctions Opening the door in an emergency following a power outage WARNING The steam sterilizer must be completely pressure free. Failure to observe this provision can result in scalding / injury. No steam may be permitted to leave from between the sterile filter and the rear panel of the steam sterilizer.

  • Page 56: Replacing The Device Fuses

    12 Malfunctions Replacing the device fuses If the device fuses have been tripped, proceed as follows to change them: Switch off the steam sterilizer at the mains and remove the plug from the socket. Open the door manually, see Opening the door in an emergency following a power outage [} page 55].

  • Page 57: Technical Data

    Depending on the load, the weight can increase by up to 4 kg. When using a water treatment unit, take into account its additional weight. When using a water treatment unit Optional: automatically via the one-way drain with the MELAG upgrade kit for the tank drain...

  • Page 58: Accessories And Spare Parts

    14 Accessories and spare parts 14 Accessories and spare parts You can obtain the specified articles and an overview of further accessories from your stockist. Category Article Art. no. Mounts Mount A Plus 82630 for 5 trays or 3 sterilization containers Mount D 46840 for 2 high cassettes or 4 trays...

  • Page 59: Glossary

    Insurance). The regulation 1 governs the prin- ployee of a customer service provider or stockist ciples of prevention. who has been trained and authorised by MELAG to perform maintenance and installation work on DIN 58953 MELAG devices. Only they may carry out this Standard –...
  • Page 60 Glossary Heat-up phase Soft sterilization packaging The time required after the steam sterilizer has e.g. a paper bag or transparent sterilization pack- been switched on / after the start of a sterilization aging program, to heat the double-jacket steam genera- tor before the sterilization procedure starts.
