Technical Manual

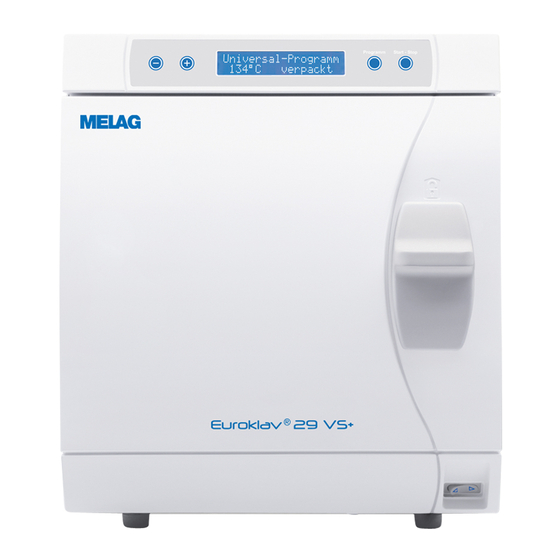

Euroklav 29 VS+ (100 V)
Steam sterilizer
from software version 5.20
EN
Read this manual carefully and in the correct order before setting up and commissioning the device. The instructions
include important safety information. You also receive a user manual with the device. Please store this manual and the
user manual carefully and in close proximity to the device. They represent a component of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MELAG Euroklav 29 VS+
Summary of Contents for MELAG Euroklav 29 VS+

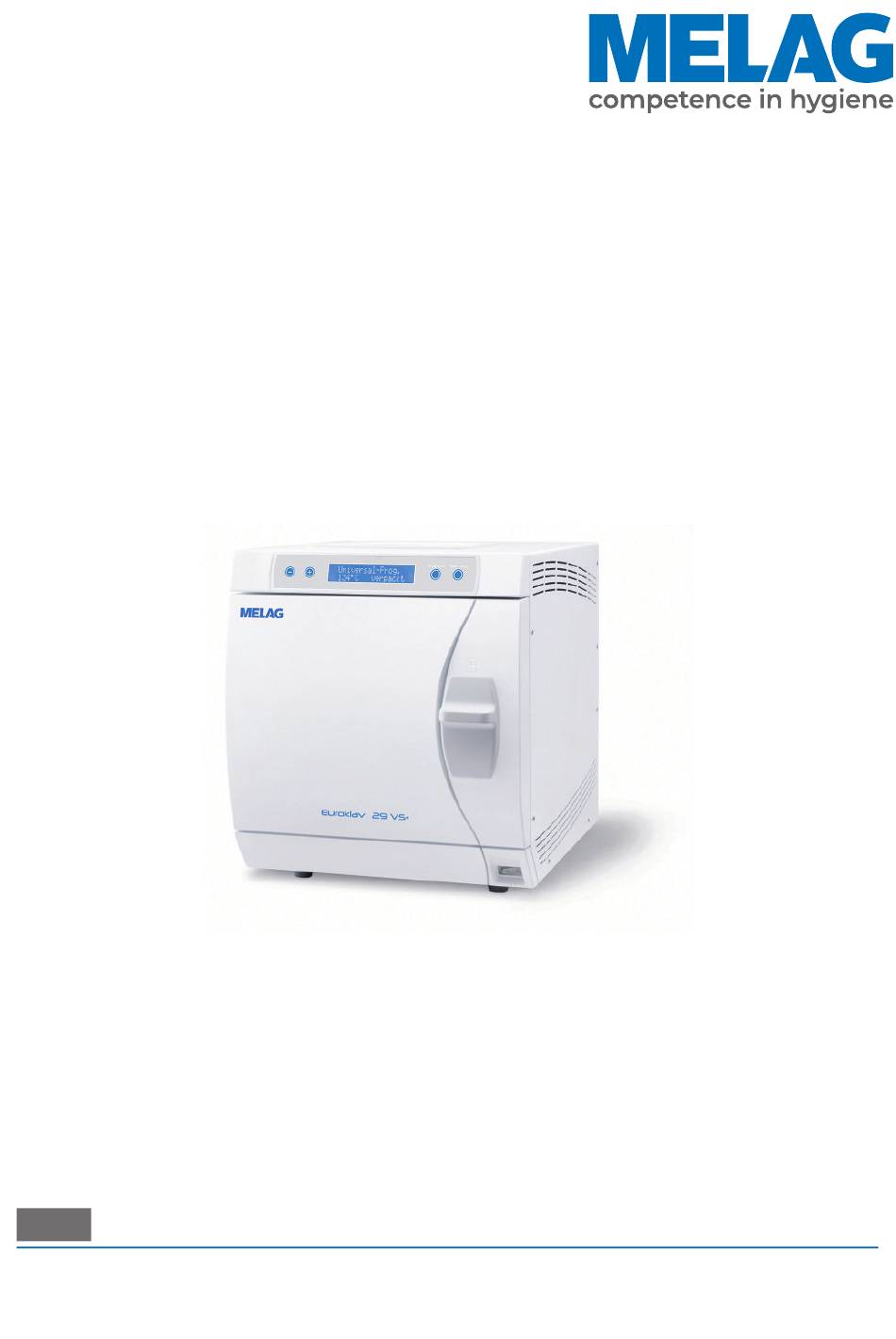

- Page 1 Technical Manual Euroklav 29 VS+ (100 V) Steam sterilizer from software version 5.20 Read this manual carefully and in the correct order before setting up and commissioning the device. The instructions include important safety information. You also receive a user manual with the device. Please store this manual and the user manual carefully and in close proximity to the device.
-
Page 3: Table Of Contents
Contents Contents 1 General guidelines ................................ 4 Symbols used .................................. 4 Formatting rules................................... 4 2 Installation requirements.............................. 5 Installation location ................................ 5 Electromagnetic environments ............................ 5 Space requirements................................ 6 On-site requirements ................................ 7 System and network safety.............................. 9 3 Setup and installation ................................ 11 Removing from the packaging ............................ 11 Aligning the door seal sealing lips ............................. 11 Installation examples ................................. 13 Aligning the steam sterilizer............................... 16 Translation of the program names............................. 16... -
Page 4: General Guidelines
They represent a component of the product. Should the manual no longer be legible, is damaged or has been lost, you can download a new copy from MELAG download centre at www.melag.com. Symbols used Symbol... -
Page 5: Installation Requirements
The steam sterilizer should only be setup, installed and commissioned by persons authorised by MELAG. The steam sterilizer is not suitable for operation in explosive atmospheres. The steam sterilizer is conceived for use outside the patient area. The device should be located a minimum of 1.5 m radius away from the treatment area. -
Page 6: Space Requirements
2 Installation requirements Space requirements View from the front, the right and above Dimensions Euroklav 29 VS+ Width 42.5 cm Height 49 cm Depth 62 cm Clearance between the device feet 32.5 cm Clearance from rear device foot up to the rear panel 12.5 cm Min. -
Page 7: On-Site Requirements
2 Installation requirements The space requirements of the steam sterilizer corresponds to its dimensions plus an additional 10 cm to the left and rear and an extra 5 cm to the right. The area above the steam sterilizer should be freely accessible in order to enable easy filling of the storage tank and good ventilation. PLEASE NOTE The steam sterilizer is not suitable for installation in a cupboard device. - Page 8 EN 1717 for MELAdem) in accordance with EN 1717 to protect against backflow into the drinking water supply. Leakage water detector MELAG recommends the installation of a leakage water detector with a cut-off valve (e.g. MELAG water stop). PLEASE NOTE Fit the outlet hose at a constant decline without kinks or sagging. In case of deviations to the installation arrangements, consult with MELAG.
-
Page 9: System And Network Safety
NOTICE When performing a device software update, use only the update data authorized by MELAG for the corresponding device type. Operating the device with memory media To prevent data loss, only use memory media to save the log data with the following characteristics: Functional capability (without malware etc.) - Page 10 2 Installation requirements Operating the device in the local network (LAN) NOTICE Do not connect the device to a public network (e.g. the internet). An Ethernet/IP-based network connection (LAN) is required to operate the device in a local network. In its delivery state, the MELAnet Box IP address is 192.168.40.100.
-
Page 11: Setup And Installation
WARNING Improper installation may lead to a short-circuit, fire, water damage or electrical shock. This could result in serious injury. Only have the device set up, installed and commissioned by people authorised by MELAG. Removing from the packaging CAUTION Danger of injury from incorrect carrying. - Page 12 3 Setup and installation Press your thumb between the two sealing lips and separate the sealing lips once around with your thumb. PLEASE NOTE Note the differences in the widths of the sealing surfaces when inserting the door seal. The door can only be shut correctly and the sterilization chamber sealed, if the door seal sits correctly in the groove.
-
Page 13: Installation Examples
On the following pages, you will find examples of the recommended installation types for the feed water supply. The connection of a different water treatment unit with the same water quality is possible after consultation with MELAG. Example 1 - Standard delivery state Direct feed water inflow from the internal storage tank. - Page 14 3 Setup and installation Example 2 - one-way drain via siphon Direct feed water inflow from the internal storage tank. The steam sterilizer is supplied with feed water directly from the internal storage tank via a hose bridge. A float switch integrated in the device notifies the absence of feed water. Programs can only be started after feed water has been filled.
- Page 15 3 Setup and installation Example 3 - MELAdem 40 Feed water inflow from the MELAdem 40 ion exchanger. Connection of the MELAdem 40 ion exchanger with MELAjet. The MELAdem 40 can be connected directly to the steam sterilizer feed water inflow; this generates demineralized water from normal tap water. 11.1 10.1 11.2...
-
Page 16: Aligning The Steam Sterilizer
3 Setup and installation Aligning the steam sterilizer To enable fault-free operation, the steam sterilizer must be setup level using a spirit level placed on the chamber flange. Then extend the fore device feet by three revolutions to effect a slight rearwards slope of the steam sterilizer. -
Page 17: Settings And Adjustment
4 Settings and adjustment 4 Settings and adjustment Settings on the device Date and time Check the date and time and set if necessary. Consult the user manual. Feed water inflow The feed water supply is effected either via the internal storage tank or via a separate water treatment unit (e.g. -
Page 18: Technical Tables
5 Technical tables 5 Technical tables Feed water quality Minimum requirements placed on the feed water quality based on EN 13060, Appendix C Substance / property Feed water Evaporation residue ≤ 10 mg/l Silicon oxide, SiO ≤ 1 mg/l Iron ≤ 0.2 mg/l Cadmium ≤ 0.005 mg/l Lead ≤ 0.05 mg/l Heavy metal traces apart from iron, cadmium, lead ≤ 0.1 mg/l... -
Page 19: Pressure-Time Chart
5 Technical tables Pressure-time chart Universal-Program Fig. 1: Pressure-time chart for the Universal-Program, 134 °C and 2.1 bar Quick-Program S Fig. 2: Pressure-time chart for the Quick-Program S, 134 °C and 2.1 bar... - Page 20 5 Technical tables Gentle-Program Fig. 3: Pressure-time chart for the Gentle-Program, 121 °C and 1.1 bar Prion-Program Fig. 4: Pressure-time chart for the Prion-Program, 134 °C and 2.1 bar...
-
Page 21: Empty Chamber Test
5 Technical tables Empty chamber test The coldest point in the sterilization chamber during the empty chamber test lies directly on the temperature sensor (see circular marking in the following figure). The temperature in the rest of the sterilization chamber is almost the same all over. Schematic side and fore view of the sterilization chamber... - Page 22 Certificate of Suitability According to the recommendations of the Commission for Hospital Hygiene and Infection Prevention at the Robert Koch Institute Manufacturer: MELAG Medizintechnik GmbH & Co. KG Address: Geneststraße 6-10 10829 Berlin Country: Germany Product: Euroklav 29 VS+ Type of device:...
- Page 24 MELAG Medizintechnik GmbH & Co. KG Geneststraße 6-10 10829 Berlin Germany Email: info@melag.com Web: www.melag.com Original instructions Responsible for content: MELAG Medizintechnik GmbH & Co. KG We reserve the right to technical alterations Your stockist...
