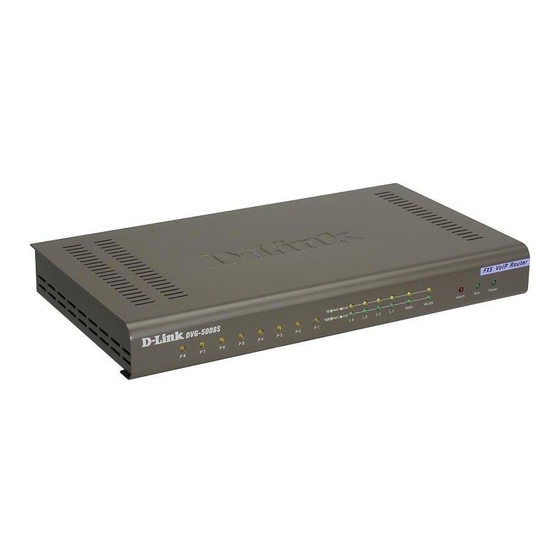

D-link FXS Voice Gateway User Manual
DVG-5008S
VOIP Gateway
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVG-5008S and is the answer not in the manual?

Questions and answers

Related Manuals for D-Link DVG-5008S

Summary of Contents for D-Link DVG-5008S

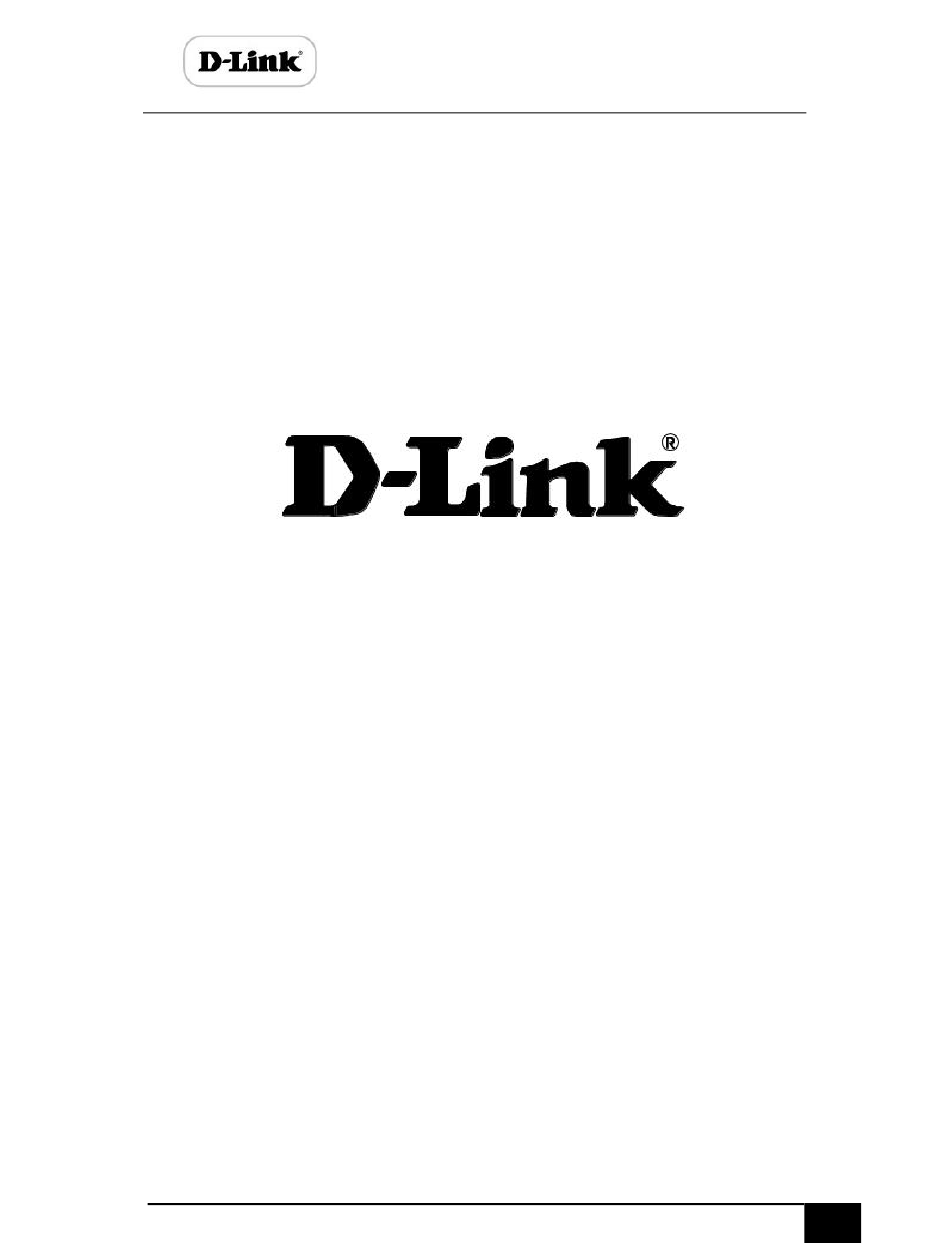

  • Page 1 D-link FXS Voice Gateway User Manual DVG-5008S VOIP Gateway User Manual...
  • Page 2 D-link FXS Voice Gateway User Manual Revision Records File Name The FXS VoIP Gateway User Manual Document Version Firmware Version 2.18.02.05 Date 2016/05/06 Revised by Technical Support Department...

  • Page 3: Table Of Contents

    D-link FXS Voice Gateway User Manual Contents Chapter1: Introduction......................7 Welcome..........................7 About this manual ......................7 Intended audience......................7 Chapter2: Know your Gateway ....................8 Overview..........................8 Equipment Appearance ..................... 8 Ports and Connectors ......................9 Network Applications ...................... 10 Functions and Features ....................
  • Page 4 D-link FXS Voice Gateway User Manual Local IVR Operation ......................16 Inquire IP address ....................16 Factory Reset ......................16 Configure LAN Port’s IP Address................17 Chapter4: Web Configuration ....................18 Getting start ........................18 Network connection ......................18 Get Web access ....................... 19 ............................
  • Page 5 D-link FXS Voice Gateway User Manual Port Configuration ......................37 Advanced ......................... 40 FXS/FXO Parameters .................... 40 Media Parameter ....................43 SIP Parameter......................45 Fax Parameter ....................... 50 Digit Map ........................ 51 Feature Codes......................54 System Parameter....................56 Action URL......................58 Call &...
  • Page 6 D-link FXS Voice Gateway User Manual Maintenance........................71 TR069........................71 SNMP........................72 Syslog........................74 Provision ......................... 76 Cloud server ......................77 Security..........................77 WEB ACL ........................77 Telnet ACL........................ 78 Passwords ........................ 78 Tools ..........................79 Firmware upload ..................... 79 Data Backup......................

  • Page 7: Chapter1: Introduction

    D-link FXS Voice Gateway User Manual Chapter1: Introduction Welcome Thanks for choosing D-LINK FXS VoIP Gateway (hereafter named “GATEWAY”, “DEVICE”)! We hope you will make optimum use of this flexible, rich-features multi-ports VoIP to FXS gateway. Please read this document carefully before install your gateway.

  • Page 8: Chapter2: Know Your Gateway

    Chapter2: Know your Gateway Overview D-LINK FXS VoIP gateway is the gateway that provide voice service based on IP network. It’s a cost-effective and flexible solution for SOHO (Small Office-Home office), remote office and branch enterprise, as well as Medium sized enterprise.

  • Page 9: Ports And Connectors

    D-link FXS Voice Gateway User Manual Ports and Connectors Port Name Connector Description DC12V 2.0A DC Jack to connect 12VDC,2A Power adapter FXS ports to connect standard analog phone or FAX machine or RJ11 a PBX LAN0~LAN2 to connect with local PC, WAN port to connect the...

  • Page 10: Network Applications

    D-link FXS Voice Gateway User Manual Network Applications Network Applications Functions and Features Protocol standard supported SIP V2.0 (RFC 3261,3262,3264) • SDP (RFC 2327) • REFER (RFC 3515) • RTP/RTCP (RFC 1889,1890) • STUN (RFC 3489) • ARP/RARP (RFC 826/903) •...

  • Page 11: Voice And Fax Parameters

    D-link FXS Voice Gateway User Manual Voice and Fax parameters G.711A/U law, G.723.1, G.729AB,iLBC,AMR • Comfortable Noise Generation (CNG) • Voice Activity Detection (VAD) • Echo Cancellation (G.168) • Adaptive Dynamic Jitter Buffer • Voice and fax gain control •...

  • Page 12: Chapter3: Basic Operations

    D-link FXS Voice Gateway User Manual Chapter3: Basic Operations Phone Call Dial mobile phone or Extension Number Dial the number directly and wait for 3 seconds (Default “No dial timeout”); Dial the number directly and press #. Direct IP Calls THE GATEWAY with FXS port allow two parties directly call through IP address.

  • Page 13: Call Hold

    D-link FXS Voice Gateway User Manual Call Hold Place a call on hold by pressing the “flash” button on the analog phone (if the phone has that button).Press the “flash” button again to release the previously held Caller and resume conversation.

  • Page 14: Attended Transfer

    D-link FXS Voice Gateway User Manual Attended Transfer Attended transfer allows users to confirm the third party response and decide whether to answer the calls and then transfer this call to the third party. Assume that Caller A and B are in conversation. Caller A wants to Attend Transfer B to C: Caller A presses FLASH on the analog phone for dial tone;...

  • Page 15: Call Features

    D-link FXS Voice Gateway User Manual Call Features The GATEWAY (FXS) support all traditional and senior phone function. Table 2.5-1 Feature Codec Feature Codec Operation Instructions *158# View the LAN port IP address *159# View the WAN port IP address...

  • Page 16: Sending And Receiving Fax

    D-link FXS Voice Gateway User Manual *91# Disable Busy Call Forward *92* Enable No Answer Call Forward *93# Disable No Answer Call Forward *78# Enable DND *79# Disable DND *200# Access Voice mail Switch between incoming calls, If not in session,...

  • Page 17: Configure Lan Port's Ip Address

    D-link FXS Voice Gateway User Manual Configure LAN Port’s IP Address Before configuration, please ensure: The device is power on; Device is connecting to network; Telephone is connected to FXS port of device. Configure dynamic IP address by DHCP: Offhook; Dial “*150*2#”; Onhook;...

  • Page 18: Chapter4: Web Configuration

    D-link FXS Voice Gateway User Manual Chapter4: Web Configuration Getting start Device is connecting to network properly, refer to chapter 3 “basic Operation”. Offhook and dial*158# to inquire device IP address. Network connection Device LAN port default IP address is 192.168.11.1, WAN port default obtain IP address by DHCP.

  • Page 19: Get Web Access

    D-link FXS Voice Gateway User Manual Connect to private network (behind NAT) Get Web access Open web browser, then input IP address of device, Press“Enter”, it pop up logging on identity authentication interface. The GATEWAY Login Interface Default username and password: admin/admin, click “OK” to entry into web interface.

  • Page 20: Navigation Tree

    D-link FXS Voice Gateway User Manual Navigation Tree The GATEWAY series voice gateway web configuration interface mainly includes navigation tree and the right configuration interface. Choose navigation tree in order to entry into the configuration interface.

  • Page 21: State And Statistics

    D-link FXS Voice Gateway User Manual When device is in bridge mode, navigation tree won’t display "routing configuration" items and the following "DHCP service", "DMZ host", "forward rules" and "static routing" and "ARP" etc. State and Statistics System Information You can view the information of Device ID, MAC address, IP addresses, version information...
  • Page 22 D-link FXS Voice Gateway User Manual Figure 4.3-1 System Information System information as follow: System Information Description An unique ID of each device, this ID is use for cloud server authentication and warrantee Device ID purpose MAC address WAN port hardware address. The device ID in HEX format.
  • Page 23 D-link FXS Voice Gateway User Manual Shows WAN IP address of the gateway , DHCP mode: all the field values for the Static IP mode are not used (even though they are still saved in the Flash memory.) The GATEWAY acquires its IP address from the first DHCP server it discovers from the LAN it is connected.

  • Page 24: Registration Information

    D-link FXS Voice Gateway User Manual FS Version File system version Hint Language Hit language of the gateway Registration Information Port and Port group registration information Primary/Secondary User status: Registered: the port is register to SIP server successfully Unregistered: failed to register to SIP server...

  • Page 25: Rtp Session Statistics

    D-link FXS Voice Gateway User Manual RTP Session Statistics Figure 4.3-4 RTP Session Statistics The picture show above is real-time RTP conversation flow data information, includes: Port, voice codec, packet period, local port, peer IP, peer port, sent packets, receive packets, lost packets, jitter and duration.
  • Page 26 D-link FXS Voice Gateway User Manual Figure 4.5-1Route Mode Bridge Mode...

  • Page 27: Vlan Parameter

    D-link FXS Voice Gateway User Manual “Link Speed & Duplex” used to select Ethernet port work mode, include 5 kinds of choice, “Auto Detect”、“10Mbps half-duplex”、“10Mbps full-duplex”,“100Mbpshalf- duplex”,“100Mbps full-duplex”, default is “Auto Detect”. When select “Obtain IP address automatically”, the GATEWAY will obtain IP address by DHCP.
  • Page 28 D-link FXS Voice Gateway User Manual The IEEE 802.1Q standard defines architecture for Virtual Bridged LANs, the services provided in Virtual Bridged LANs and the protocols and algorithms involved in the provision of those services. No Quality of Service mechanisms are defined in this standard, but an important requirement for providing QoS is included in this standard, e.g.
  • Page 29 D-link FXS Voice Gateway User Manual Figure 4.5-3 VLAN parameter configuration Table 4.5-1VLAN parameter configuration Fill out an ID to describe a data VLAN group, ID 0 used Data 802.1Q VLAN ID(0-4095) to management VLAN, can’t use to service configure.

  • Page 30: Mac Clone (Routing Mode)

    D-link FXS Voice Gateway User Manual Management 802.1Q VLAN ID(0- Fill out an ID to describe a data VLAN group, ID 0 used 4095) to management VLAN, can’t used to service configure. Management 802.1p Priority 802.1 protocol to control network traffic priority, Management Priority from 0-7.

  • Page 31: Dhcp Server (Routing Mode)

    D-link FXS Voice Gateway User Manual DHCP Server (Routing mode) Under route mode, the GATEWAY network part as a small router to configure DHCP service, that the GATEWAY as a DHCP server in network. Start and end address of address pool determine the range of IP address automatically assigned to other devices;...

  • Page 32: Dmz Host (Routing Mode)

    D-link FXS Voice Gateway User Manual DMZ Host (Routing mode) DMZ (Demilitarized Zone) connect web, e-mail etc. server allowed external to access to this area. Make the internal network located the back of the zone of confidence and not allow any access, separation of inside and outside the network, protect user information.

  • Page 33: Static Route Table

    D-link FXS Voice Gateway User Manual Single or a few port foreign communication on some protocol. When the conflicts exist between forward rule and DMZ host, the configuration of forwarding rules is preferred. Forward rule configuration interface as follows: Forward rule configuration interface...

  • Page 34: Arp

    D-link FXS Voice Gateway User Manual configuration Static route interface ARP is address resolution protocol. After configuring ARP, users can get physical address through device IP address. Under TCP/IP network environment, each host is assigned a 32-bit IP address. But the message transmission needs to know the purpose the physical address of the party. ARP is a tool that converts IP address into MAC address.
  • Page 35 D-link FXS Voice Gateway User Manual In SIP network, the media always using end-to-end to hand the consultation. In some particular situation or business processing, such as “Music On Hold”, SIP server will actively participate in the media negotiation. Simple SIP server is responsible only for establishment, maintenance and cleaning conversation, don't interfere in call.
  • Page 36 D-link FXS Voice Gateway User Manual SIP Server Configuration Interface SIP parameter description: Primary SIP Server SIP Server IP address or Domain name provided by VoIP service provider. Address Primary SIP Server port Service port, default is 5060 Register Expires...

  • Page 37: Port Configuration

    D-link FXS Voice Gateway User Manual while limiting the state. Every once in a while send request for registration to the terminal server, default is 1800s. Heartbeat Heartbeat message detect the connection status between device and SIP server. Secondary SIP Server Backup SIP Server’s IP address or Domain name provided by VoIP service...
  • Page 38 D-link FXS Voice Gateway User Manual Port configuration interface Port parameters introduce as follows: Port Port number, Disable port Disable port temporally It is use to control the volume of conversation, Adjust "TX gain" will affect Tx Gain the end users voice size, the default value is 0.
  • Page 39 D-link FXS Voice Gateway User Manual Its value range from-10 – 10 dB It is use to control the volume of conversation, Adjust "RX gain" will affect the end users voice size, the default value is 0. Rx Gain Its value range from -10 – 10 dB...

  • Page 40: Advanced

    D-link FXS Voice Gateway User Manual If call waiting enabled, it will send a special tone if another caller tries to Call Waiting reach you when you are using your telephone Play Call Waiting Enable call waiting tone, caller will hear special tone.
  • Page 41 D-link FXS Voice Gateway User Manual With the help of dialing timeout, you can limit the time while users typing the digits from an extension. If the timeout expire while the Timeout for dialing user is typing in the extension then the GATEWAY will consider the extension as complete and it will try to send to SIP server.
  • Page 42 D-link FXS Voice Gateway User Manual The call display format send to analog phone, can be “Display Name Message Format and CID”, “CID only”, or “Display Name only”; default to “Display Name and CID” After enable this configuration, The THE GATEWAY send caller to...

  • Page 43: Media Parameter

    D-link FXS Voice Gateway User Manual Media Parameter Media parameter mainly include: RTP start port, DTMF parameter, Preferred Vocoder. Configuration Interface as follow： Media Parameter Configuration Interface Media parameter description: Use Random Port Enable the gateway to use random RTP port...
  • Page 44 D-link FXS Voice Gateway User Manual Enable gateway to send flash event to remotely instead of handling it Send Flash Event locally THE GATEWAY supports G729、G711U、G711A、G723. while it make Coder Name outgoing call, G.729 will used as figure 4.8.2 displayed...

  • Page 45: Sip Parameter

    D-link FXS Voice Gateway User Manual SIP Parameter...
  • Page 46 D-link FXS Voice Gateway User Manual SIP Parameter Configuration Interface SIP parameter description： Voicemail message indicator, it is to be realized in the way SUBSCRIBE for MWI of NOTIFY MWI Subscription Expires MWI subscription expires time, default to 3600 Voicemail User ID...
  • Page 47 D-link FXS Voice Gateway User Manual Enable anonymous call, “anonymous” will include in SIP Anonymous Call message Enable this function, reject all anonymous call. Disable by Reject Anonymous Call default # as ending Dial Key Dial-up, use # as a end descriptor.
  • Page 48 D-link FXS Voice Gateway User Manual Domain Re-resolution Default 0: forbidden Interval DNS cache Cache the DNS query result Early Media Support receive Early Media PRACK(RFC3262) Support reliable transmission of provisional response PRACK Only for 18x with Send PRACK only when there’s SDP in 18x response...
  • Page 49 D-link FXS Voice Gateway User Manual Voice mail instructions : Here the GATEWAY work with DVX as the example, introduces how voicemail work in the GATEWAY. 1）the GATEWAY register to DVX server. Corresponding extension number enable voice mail function in DVX and set password. As below：...

  • Page 50: Fax Parameter

    D-link FXS Voice Gateway User Manual Voicemail Setting In SIP Parameter 3）Enable voice mail in the GATEWAY and DVX will ask you to leave a message after ringing 15 seconds, then DVX will record and display your message. Voicemail Setting 4）the GATEWAY dial *200#, then dial voicemail account and then ask password for...

  • Page 51: Digit Map

    D-link FXS Voice Gateway User Manual Fax mode support T.38, T.30(Pass-through),Modem, Adaptive. Fax Mode Fax sound detection mode: Caller, Callee, Automatic. Tone Detection by Enable support of “a=X-fax” expansion “a=X-fax” expansion Enable support of “a=fax” expansion “a=fax” expansion “a=X-modem” Enable support of “a=X-modem” expansion expansion Enable support of “a=modem”...
  • Page 52 D-link FXS Voice Gateway User Manual Digit Map includes a series figure characters, when the dial-up sequence and one received a character string matching, it means the number has received neat. Digital string contains characters allowed：data0~9, letterA~D,“#”,“*”, letter T, letter x and “.”. "|" parts of each string is a choice of dial-up solutions;...
  • Page 53 D-link FXS Voice Gateway User Manual .: Match 0 or more times. 8. Modifiers +: Match 1 or more times. 9. Modifiers ?: Match 0 or 1 times. Example: Assume we have the following digit maps: 1. xxxxxxx | x11 and a current dial string of "41".

  • Page 54: Feature Codes

    D-link FXS Voice Gateway User Manual Feature Codes Feature codec includes device function and call function. Feature codec as follow: Feature Code Configuration Interface...
  • Page 55 D-link FXS Voice Gateway User Manual Inquiry LAN port IP address Dial*158# to obtain device WAN port IP address Inquiry WAN port IP address Dial*159# to obtain device WAN port IP address Inquiry Phone Number Dial*114# to obtain port account...

  • Page 56: System Parameter

    D-link FXS Voice Gateway User Manual If the call transfer to 801, first hook flash and then dial the * Blind Transfer 87 * 801# Call Forward Unconditional *72*+ phone number#, transfer the call from the phone Activate number Call Forward Unconditional...
  • Page 57 D-link FXS Voice Gateway User Manual System Configuration Interface Hint Language IVR language NAT Traversal Disable, STUN, static NAT, dynamic NAT Refresh interval Default to 60 STUN Server Address STUN server IP address or domain STUN Server Port STUN server port...

  • Page 58: Action Url

    D-link FXS Voice Gateway User Manual Primary NTP server Primary NTP server IP address, system default is us.pool.ntp.org address Primary NTP server port Default is 123 Secondary NTP server Default is 18.145.0.30 address Secondary NTP server port Default is 123...

  • Page 59: Call & Routing

    D-link FXS Voice Gateway User Manual Action URL Call & Routing Wildcard Group Port Group Port group parameter include: Index, description etc. Port group configure interface as follow:...
  • Page 60 D-link FXS Voice Gateway User Manual Port group configuration interface Index Port group Number, It uniquely identifies a route, range from 0-7 Port group description, its purpose is so you can identify the port Description group with a meaningful name Port group display, which will be used in SIP message, example: INVITE sip:bob@biloxi.com SIP/2.0...

  • Page 61: Ip Trunk

    D-link FXS Voice Gateway User Manual next number is the minimum priority number, and move in cycles like this  Descending: when system selects ports’ priority, it always begin to select from the maximum priority number  Cyclic descending: when system selects ports’ Priority, it...

  • Page 62: Routing Configuration

    D-link FXS Voice Gateway User Manual The description of IP trunk, its purpose is so you can identify the IP trunk Description with a meaningful name Remote Address Peer IP address or domain name Remote Port Peer SIP port Default is disable, if enable, THE GATEWAY will send “OPTION” to peer...

  • Page 63: Tel-Ip/Tel Routing

    D-link FXS Voice Gateway User Manual Index Routing priority: 0-127, 0 is the highest priority. its purpose is so you can identify theIP0->Tel routing with a meaningful Description name Calls from IP Trunk/SIP Server, any means any IP Caller number Prefix, its length normally less or equal to caller number, which helps to matching routing exactly.

  • Page 64: Ip - Ip Routing

    D-link FXS Voice Gateway User Manual Index Routing priority :0-127, 0 is the highest priority. its purpose is so you can identify the routing with a meaningful Description name Calls From Tel-IP call select port or port group Caller number Prefix, its length normally less or equal to caller number, which helps to matching routing exactly.

  • Page 65: Manipulation Configuration

    D-link FXS Voice Gateway User Manual Caller number Prefix, its length normally less or equal to caller number, which helps to matching routing exactly. if caller Caller Prefix number is 2001, the caller prefix can be 200 or 2. “any” means match any caller number like “bob1”,”29801”...
  • Page 66 D-link FXS Voice Gateway User Manual Calls From This call come from IP trunk or SIP server. Caller number Prefix, its length normally less or equal to caller number, which helps to matching routing exactly. Caller Prefix if caller number is 2001, the caller prefix can be 200 or 2.

  • Page 67: Tel-Ip/Tel Caller

    D-link FXS Voice Gateway User Manual Tel-IP/Tel Caller Tel-IP Caller Configuration parameters are the same with “IP->Tel Callee”.

  • Page 68: Tel-Ip/Tel Callee

    D-link FXS Voice Gateway User Manual Tel-IP/Tel Callee Figure 4.10-3 Tel-IP Callee Configuration parameters are the same with “Tel->IP Caller”. Routing rule examples Route any calls from any IP to specific port From web management access, Call & Routing -> IP-Tel Routing, click “Add” to create a new...

  • Page 69: Route Any Calls From Any Ip To Specified Port Group

    D-link FXS Voice Gateway User Manual In the example above, all calls will be routed to port 0 when the routing rule is matched. Route any calls from any IP to specified port group Create port group Before we can route calls to a port group, create the port group first as below. From Call &...

  • Page 70: Route Any Calls From Any Port To Specific Sip Ip Trunk

    D-link FXS Voice Gateway User Manual Port 0 to port 4 are assigned to port group 7. Route any calls to port group From Call & Routing -> IP-Tel Routing, click “Add” to create a new routing rule. As above show, when this routing rule is matched, the call will be routed to port group 7.

  • Page 71: Maintenance

    D-link FXS Voice Gateway User Manual As above, the SIP IP trunk is created, and the remote end IP address is 172.16.125.125, the SIP port is 5060. Create Tel -> IP routing rule From Call & Routing -> Tel-IP Routing, click “Add” to create a new Tel to IP routing rule.

  • Page 72: Snmp

    D-link FXS Voice Gateway User Manual Username/password: ACS authentication only if needed, e.g. device ID as username/password TR069 parameters SNMP SNMP Parameter SNMP enable: to disable or enable the SNMP feature • SNMP version: the gateway support SNMP v1 and v2 •...
  • Page 73 D-link FXS Voice Gateway User Manual SNMP User configuration This configuration only available on SNMP v3.

  • Page 74: Syslog

    D-link FXS Voice Gateway User Manual Group configuration Group: community group name which consist of character string. Community: let community join the community group which configured above Trap configuration Trap configuration enable to configure Trap server IP and port. This setting available for SNMP v2c and v1.
  • Page 75 D-link FXS Voice Gateway User Manual ECC, detail information of call control module RE, the common communication module for SCP and SIM SCP, the communication protocol between gateway and cloud server The media log is include following traces which defined in system by default...

  • Page 76: Provision

    D-link FXS Voice Gateway User Manual Syslog Parameter Configuration Enable send CDR, and then send communication information to syslog server. Provision Gateway can be managed by provisioning server for upgrading firmware, configuring parameters. For this purpose, provisioning server must be configured on the gateway.

  • Page 77: Cloud Server

    D-link FXS Voice Gateway User Manual Cloud server Register the gateway with cloud server for being managed by cloud server. Cloud server Server Address The cloud server IP address or domain port Cloud server listening port Password Password for register with cloud server...

  • Page 78: Telnet Acl

    D-link FXS Voice Gateway User Manual Telnet ACL ACL for telnet enable you to configure IP list/users who allow to access the telnet page of device. IP lists can’t be null once ACL enable. ACL for telnet Passwords Includes WEB username and password, Telnet username and password modify.

  • Page 79: Tools

    D-link FXS Voice Gateway User Manual Passwords configuration Tools Firmware upload Firmware upload steps: Step 1. Check current running version on gateway, to get firmware version on web page System Information Firmware version Step 2. Prepare firmware package. The most important is that the package must be match with existing version.

  • Page 80: Data Backup

    D-link FXS Voice Gateway User Manual Firmware upload Step 4. Keep waiting until it prompt ‘Software loaded successfully!’ Firmware upload success Step 5. Reboot gateway. Refer to web page Maintenance-> Device Restart Restart gateway Data Backup process data backup: 1) Click “Data Backup”...

  • Page 81: Data Restore

    D-link FXS Voice Gateway User Manual Data Backup Data Restore The processes of data restore: Click “Data Restore” Browse file, select data file. Click “Restore” and then import successfully, the device will restart automatically. Data restore Ping Test Send test data packets to IP, check each other whether have response and statistical response time.

  • Page 82: Tracert Test

    D-link FXS Voice Gateway User Manual Figure 4.14.4 Ping Test Tracert Test Tracert is trace router and used to tracking routing. Tracert sends a sequence of Internet Control Message Protocol (ICMP) echo request packets addressed to a destination host. Determining the intermediate routers traversed involves adjusting the time-to-live (TTL), aka hop limit, Internet Protocol parameter.

  • Page 83: Outward Test

    D-link FXS Voice Gateway User Manual values returned for each router along the path are the delay (aka latency) values, typically measured in milliseconds for each packet. Tracert introduce： Click tracert test. Fill IP address or domain connected, click start.

  • Page 84: Network Capture

    D-link FXS Voice Gateway User Manual Figure 4.14.6 Outward Test Test results OK: the analog phone set and phone line are working well FAIL: analog phone doesn't connect to FXS port or something wrong phone set Network Capture Network capture is a very important diagnostic tool for maintenance. This section is describes how to enable network capture.
  • Page 85 D-link FXS Voice Gateway User Manual  Click “Start’ to enable PCM capture  Dialing out through gateway, start talking a short while then hangup the call.  Click ‘Stop’ to disable network capture  Save the capture file to local computer The capture is named to ‘capture(x).pcap’, x is serial number of capture and will be...
  • Page 86 D-link FXS Voice Gateway User Manual  Click “Start’ to enable syslog capture  Dialing out through gateway, start talking a short while then hangup the call.  Click ‘Stop’ to disable syslog capture  Save the capture to local computer The capture is named to ‘capture(x).pcap’, x is serial number of capture and will be...
  • Page 87 D-link FXS Voice Gateway User Manual Getting start to DSP capture DSP capture is help to analysis voice stream inside DSP chipset. The DSP chipset will handle RTP from IP network as well as voice stream from analog phone. To enable DSP capture: ...

  • Page 88: Factory Reset

    D-link FXS Voice Gateway User Manual Configurable capture options Getting start to custom capture This menu provides more options to capture specific packets as actually needs. Factory Reset Click “Apply” to restore the factory settings. Factory Reset...

  • Page 89: Device Restart

    D-link FXS Voice Gateway User Manual Device Restart Click the “Save” button in the Configuration page to save the changes to the equipment configuration. The following screen confirms that the changes are saved. If the changes need restart, reboot or power cycle the equipment to make the changes take effect.

  • Page 90: Charpter5. Glossary

    D-link FXS Voice Gateway User Manual Charpter5. Glossary DNS：Domain Name System • SIP：Session Initiation Protocol • TCP：Transmission Control Protocol • UDP：User Datagram Protocol • RTP：Real Time Protocol • PPPOE：point-to-point protocol over Ethernet • VLAN：Virtual Local Area Network • ARP：Address Resolution Protocol •...
  • Page 91 D-link FXS Voice Gateway User Manual...
