Sundstrom SR 574 Operation Instructions Manual

Welding shield
Hide thumbs Also See for SR 574:

Advertisement

Quick Links

Download this manual
Operation instructions
SR 574
Welding shield
Utgåva: 01
OI06T-061318 SR 574
1
2023-09-29

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR 574 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sundstrom SR 574

Summary of Contents for Sundstrom SR 574

  • Page 1 Operation instructions SR 574 Welding shield Utgåva: 01 OI06T-061318 SR 574 2023-09-29...
  • Page 2 Information The user manual for SR 574 must be read before use. Sundström welding visor SR 574 is intended to be used together with Sundström screen SR 570 and with Sundström fan units SR 500/700. SR 574 in combination with SR 570 and fan is especially intended for protection against particles, harmful gases, radiation and splashes during welding, cutting, grinding and similar work.

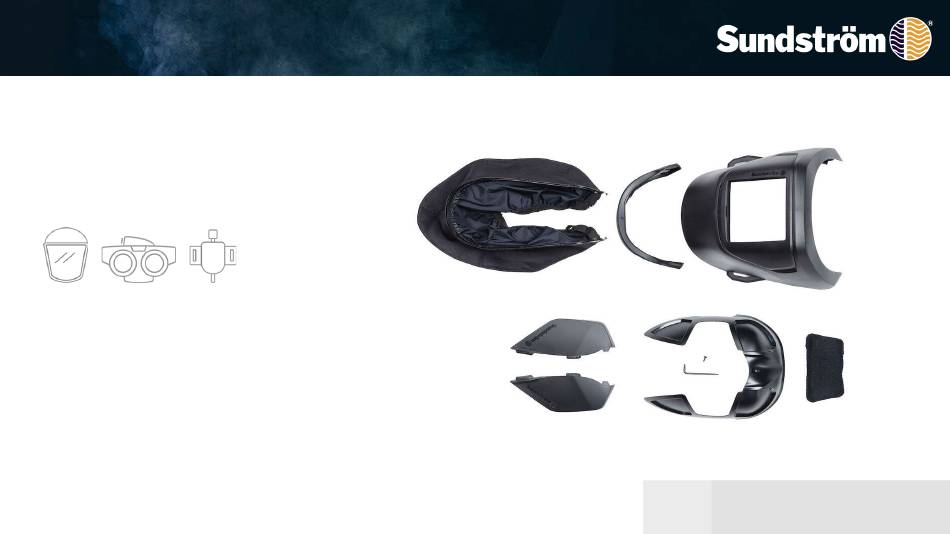

  • Page 3 Unpacking SR 574 Packing list: • Welding shield • Bump cap • Neck comfort band • Valve cover • Cleaning wipe • Ear cover, right+left • Face seal, flame retardant • Instruction of use OI06T-061318 SR 574 2023-08-29...
  • Page 4 1.1 Unscrew the screw on the 1.3 Press the bump cap until inside of the screen. you hear a klick. 1.2 Place the bump cap on the screen. 1.4 Control that the Bump cap is correctly fitted. OI06T-061318 SR 574 2023-08-29...
  • Page 5 1.5 Screw back the screw on the inside of the screen. OI06T-061318 SR 574 2023-08-29...
  • Page 6 2. Mounting of welding visor to screen Release and remove the Fit the vent cover SR 574. visor. Release and remove vent cover SR 570. OI06T-061318 SR 574 2023-08-29...
  • Page 7 Fit the visor back. Release and remove the covers. Release and remove the ear The visor correctly mounted. covers. OI06T-061318 SR 574 2023-08-29...
  • Page 8 Fit the ear covers back. 2.10 Turn the brackets on the welding shield. Ear covers 2.11 2.9 Fit the welding shield. mounted correctly. OI06T-061318 SR 574 2023-08-29...
  • Page 9 2.12 The welding shield can be raised in two positions. Position A for short-term raising 2.13 Position B for locking-position. OI06T-061318 SR 574 2023-08-31...
  • Page 10 3. To change the protective lens holder and protective lens. 3.1 Remove the old protective 3.3 Fit a new protective lens. lens holder. 3.4 Control that the 3.2 Remove the old protective protective lens is mounted lens. correctly. OI06T-061318 SR 574 2023-08-30...
  • Page 11 4. Changing the welding glass. 4.1 Remove the spring from 4.3 Reassamble the spring to its position. its position. 4.4 Reassamble 4.2 Place the welding glass protective lens holder to according to the picture. its position. OI06T-061318 SR 574 2023-08-30...
  • Page 12 Clean welding visor and glass with Sundström SR 5226 cleaning wipres or with a mild soap solution. If necessary, spray the welding shield with 70% ethanol or isopropanol solution for disinfection. Note! Never use a solvent for cleaning! SR 5226 OI06T-061318 SR 574 2023-08-30...

  • Page 13: Maintenance Schedule

    6. Maintenance schedule 6.1 Recommended minimum requirements on maintenance routines so you will be certain that the equipment will always be in usable condition. OI06T-061318 SR 574 2023-08-30...
