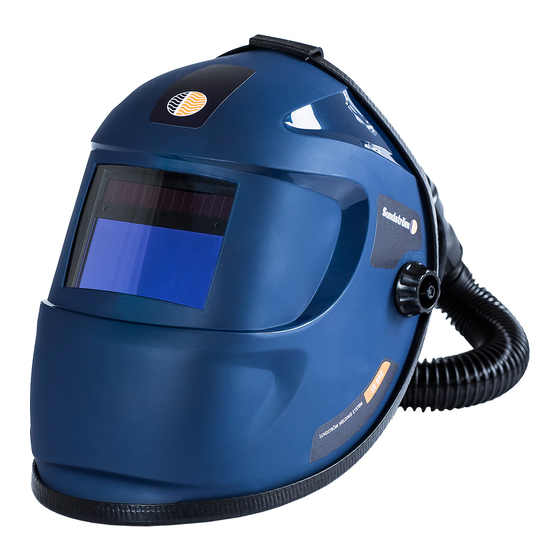

Sundstrom SR 592 Operation Instruction Manual

Welding shield
Hide thumbs Also See for SR 592:

Advertisement

Quick Links

Download this manual
Operation instruction
SR 592
Welding shield
Revision: 03
OI06H-4418 SR 592
1
2020-12-04

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR 592 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sundstrom SR 592

Summary of Contents for Sundstrom SR 592

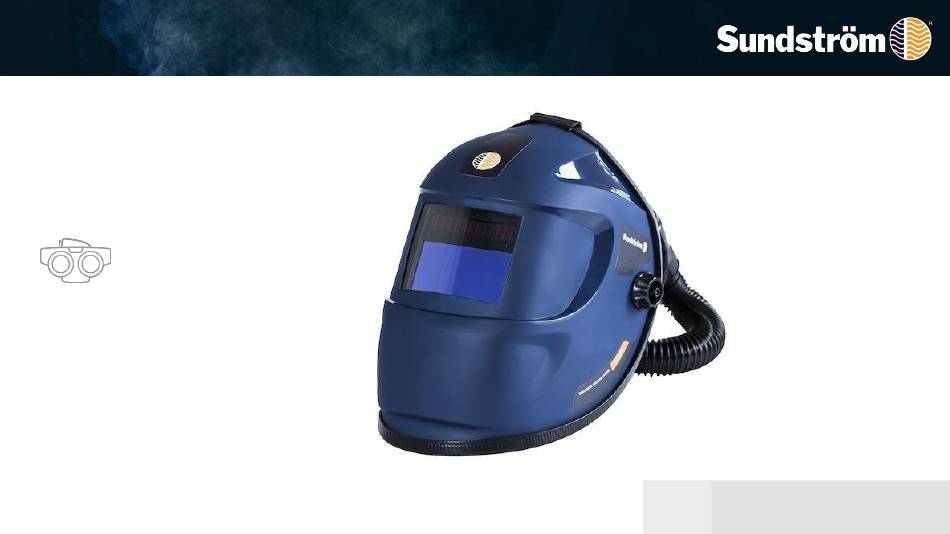

  • Page 1 Operation instruction SR 592 Welding shield Revision: 03 OI06H-4418 SR 592 2020-12-04...

  • Page 2: General Information

    Instructions for use for SR 592 should be read before use. Sundström welding shield SR 592 together with the fan unit SR 500/SR 700 and approved filters are included in the Sundstrom fan-assisted respiratory protective device system conforming to EN 12941/EN 12942:1998 When selecting the head-top, some of the factors that should be considered are as follows: •...
  • Page 3 Unpacking SR 592 Packing list: • Welding shield • Breathing hose • User instruction • Cleaning tissue OI06H-4418 SR 592 2020-05-07...
  • Page 4 1.1 Connect the hose to the 1.2 Connect the hose from welding shield and turn it anti- the welding shield to the fan clockwise about 1/8 of a turn. unit and turn it clockwise about 1/8 of a turn. OI06H-4418 SR 592 2020-05-07...
  • Page 5 2. Change the welding filter 2.1 Loosen the screw in the 2.3 Fit the welding filter. holder for the welding filter Fit the holder. Tighten the screw 2.2 Release the holder for the welding filter. OI06H-4418 SR 592 2020-05-07...
  • Page 6 3.3 Fit the new inner holder for the welding filter. protective lens on the inside of the welding filter. 3.2 Release the holder for the 3.4 Fit the protective lens. welding filter. Fit the holder. Tighten the screw. OI06H-4418 SR 592 2020-05-07...
  • Page 7 4.3 Fit the new correction holder for the welding filter. lens on the inside of the welding filter. 4.2 Release the holder for the 4.4 Fit the correction lens. welding filter. Fit the holder. Tighten the screw. OI06H-4418 SR 592 2020-05-07...
  • Page 8 The space to the shield. 5.2 Angle adjustment 5.4 Width adjustment of the between shield and head head harness. harness. Adjustment of the width of the The angle against the shield. head harness. OI06H-4418 SR 592 2020-05-07...

  • Page 9: Functional Check

    If the flow rate is below the minimum value, check that • The flow meter is vertical. • The float can move freely. • The air supply is not restricted by kinks or other restrictions in the hoses. OI06H-4418 SR 592 2020-12-04...
  • Page 10 7.2 Lower the visor unit by pulling the face seal down under your chin. OI06H-4418 SR 592 2020-05-07...
  • Page 11 7. Putting the welding shield on 7.2 Check and adjust so that 7.1 Adjust the comfort of the the breathing hose runs along face seal with the drawstring, your back and that it is not twisted. OI06H-4418 SR 592 2020-05-07...
  • Page 12 8.1 Loosen the screw in the 8.3 Release and remove the holder for the welding filter. outer protective lens 8.2 Release the holder for the 8.4 Fit the protective lens. welding filter. Fit the holder. Tighten the screw. OI06H-4418 SR 592 2020-05-07...
  • Page 13 9. Change the Sweatband 9.1 Remove the sweatband. 9.2 Fit the sweatband on the head harness. OI06H-4418 SR 592 2020-05-07...
  • Page 14 10.2 Release the air channel 10.4 Adjust the head harness from the head harness and according to the instructions remove the face seal. in section 5. OI06H-4418 SR 592 2020-05-07...
  • Page 15 11. Change the face seal 11.1 Release the air channel 11.3 Fit the new face seal. from the head harness. Mount the face seal on the air channel. 11.2 Remove the face seal. OI06H-4418 SR 592 2020-05-07...
  • Page 16 11. Change the face seal 11.4 Press the face seal all 11.6 Attach the air channel to around the welding shield. the head harness. 11.5 Attach the joint clamp over the joint of the face seal. OI06H-4418 SR 592 2020-05-07...
  • Page 17 If necessary, spray the face shield with 70 % ethanol or isopropanol scratching. solution for disinfection. Automatic welding filters are very sensitive to moisture. NOTE! Never use solvents for cleaning. Use only a dry polishing cloth. 12.1 Sundström cleaning tissues SR 5226 are recommended for daily care. OI06H-4418 SR 592 2020-05-07...

  • Page 18: Maintenance Schedule

    13. Maintenance schedule Before After Annually Visual inspection • • • Cleaning • • Change of o-ring • for breathing hose OI06H-4418 SR 592 2020-05-07...
