Sundstrom SR 591 Operating Instruction

Welding shield
Hide thumbs Also See for SR 591:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instruction
Welding Shield SR 591

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR 591 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sundstrom SR 591

Summary of Contents for Sundstrom SR 591

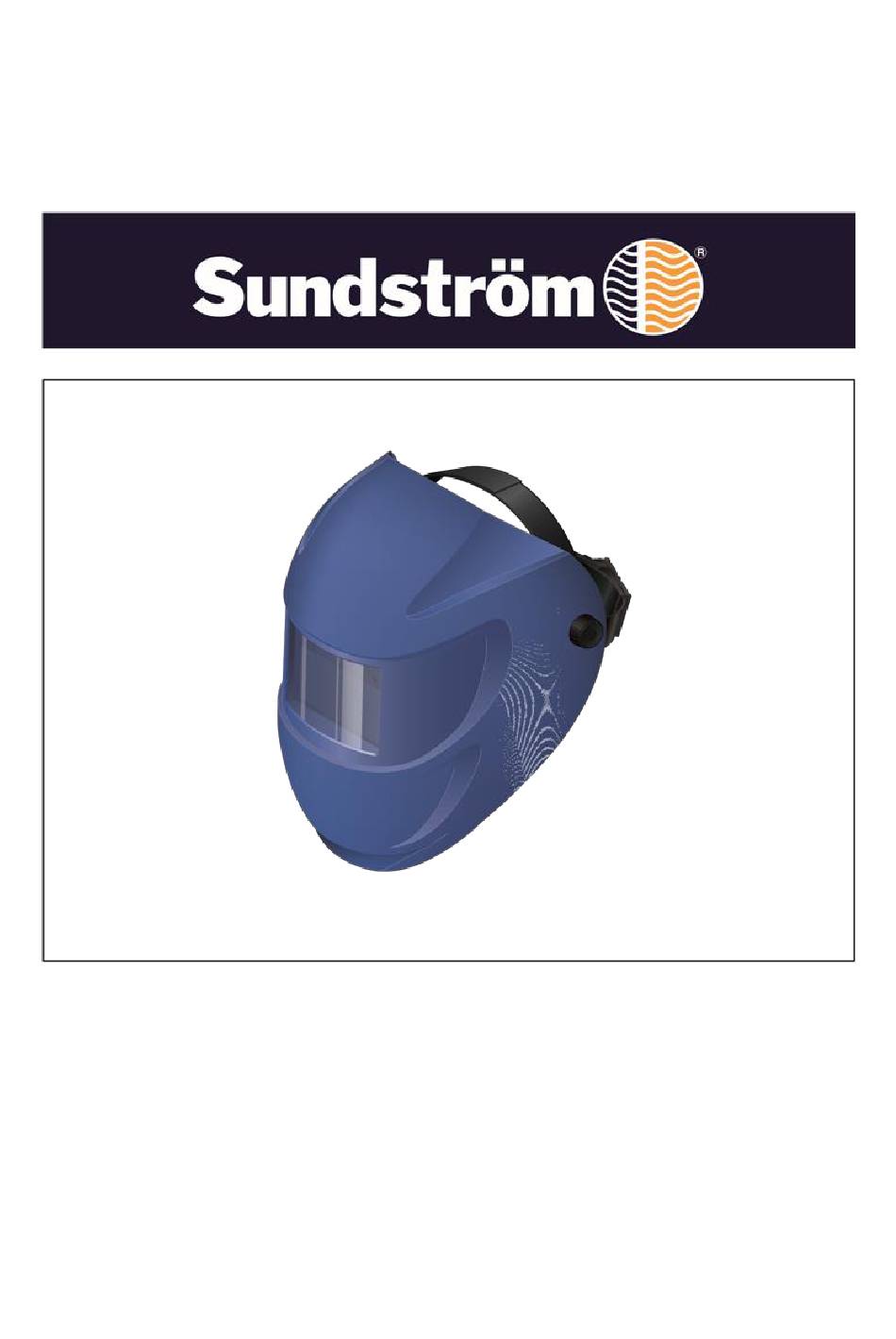

  • Page 1 Operating Instruction Welding Shield SR 591...

  • Page 2: Table Of Contents

    OI06H-4318 SR 591 Title Page Operating Instruction SR 591 1 (19) Drawn up by Revised Approved Edition Pontus Ahllwy Datum Datum Datum 2018-11-19 ÅÅÅÅ-MM-DD 2019-01-22 Index Introduction ........................2 Warnings/limitations ....................2 Delivery check ......................3 Accessories/Spare parts .................... 4 Use ............................

  • Page 3: Introduction

    Operating Instruction SR 591 2 (19) 1 Introduction The Sundström SR 591 welding shield is intended for use individually or together with the Sundström SR 900-system. For information about the SR 900-system, see the products user instructions. The welding shield is designed specifically for protection against radiation and spatter during welding, flame-cutting and similar work.

  • Page 4: Delivery Check

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 3 (19) 1.2 Delivery check Check that the equipment is complete in accordance with the packing list, and undamaged. Packing list Fig. 1 1) Welding shield, 2) User instructions, 3) Cleaning tissue...

  • Page 5: Accessories/Spare Parts

    Welding filter, EN 4/5-13 R06-4508 2. Head harness SR 591 R06-4303 Welding filter EN 4/9-13, SR 59007 T06-4009 3. Sweatband SR 591, 5- pack R06-4304 5. Outer protective lens SR 591 R06-4008 4. Welding filter EN 8, SR 59008 T06-4001 7.

  • Page 6: Use

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 5 (19) 2 Use 2.1 Installation See also user instructions for SR 900-system. 2.2 Welding filter Fit a welding filter. See section “To change the welding filter” 2.3 Putting the welding shield on and adjustment Raise the visor and put the welding shield on.
  • Page 7 OI06H-4318 SR 591 Title Page Operating instruction SR 591 6 (19) If necessary, adjust the head harness, see Fig. 4 Height adjustment A - how high the welding shield sits on the head. Angle adjustment between shield and head harness.

  • Page 8: Maintenance

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 7 (19) Lower the visor. Fig. 5. 3 Maintenance The person who is responsible for cleaning and maintenance of the equipment must have suitable training and be well acquainted with work of this type.

  • Page 9: Maintenance Schedule

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 8 (19) 3.3 Maintenance schedule Recommended minimum requirements on maintenance routines so you will be certain that the equipment will always be in usable condition Before use After use Annually •...
  • Page 10 OI06H-4318 SR 591 Title Page Operating instruction SR 591 9 (19) Release and remove the holder for the welding filter. Fig 7 Release and remove the outer protective lens. Fig. 8-9 Fit the new outer protective lens. Fig. 10-11...

  • Page 11: To Change The Welding Filter

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 10 (19) Fit the holder. Fig. 7 Tighten the screw. Fig. 12 3.4.2 To change the welding filter Loosen the screw in the holder for the welding filter. Fig. 6...
  • Page 12 OI06H-4318 SR 591 Title Page Operating instruction SR 591 11 (19) Release the holder for the welding filter. Fig. 7 Release and remove the welding filter. Fig. 18 Release and remove any inner protective lens. Fig. 19...
  • Page 13 OI06H-4318 SR 591 Title Page Operating instruction SR 591 12 (19) Fit any inner protective lens on the inside of the new welding filter. Fig. Fit the new welding filter. Fig. 21 Fit the holder. Fig. 7...

  • Page 14: To Change The Inner Protective Lens

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 13 (19) Tighten the screw. Fig. 12 3.4.3 To change the inner protective lens Loosen the screw in the holder for the welding filter. Fig. 6 Release the holder for the welding...
  • Page 15 OI06H-4318 SR 591 Title Page Operating instruction SR 591 14 (19) Release and remove the the welding filter. Fig. 18 Release and remove the inner protective lens. Fig. 19 Fit the new inner protective lens on the inside of the welding filter. Fig. 20...
  • Page 16 OI06H-4318 SR 591 Title Page Operating instruction SR 591 15 (19) Fit the welding filter. Fig. 21 Fit the holder. Fig. 7 Tighten the screw. Fig. 12...

  • Page 17: To Change The Correction Lens

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 16 (19) 3.4.4 To change the correction lens Release and remove the correction lens. Fig. 22 Fit the new correction lens on the inside of the welding filter. Fig. 23...

  • Page 18: To Change The Sweatband

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 17 (19) 3.4.5 To change the sweatband Remove the sweatband. Fig. 24 Fit the sweatband on the head harness. Fig. 25-28...

  • Page 19: To Change The Head Harness

    OI06H-4318 SR 591 Title Page Operating instruction SR 591 18 (19) 3.4.6 To change the head harness Remove the head harness from the welding shield by releasing the two fixing points. Fig. 29 Secure the two fixing points of the head harness.
  • Page 20 Notes _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________...
