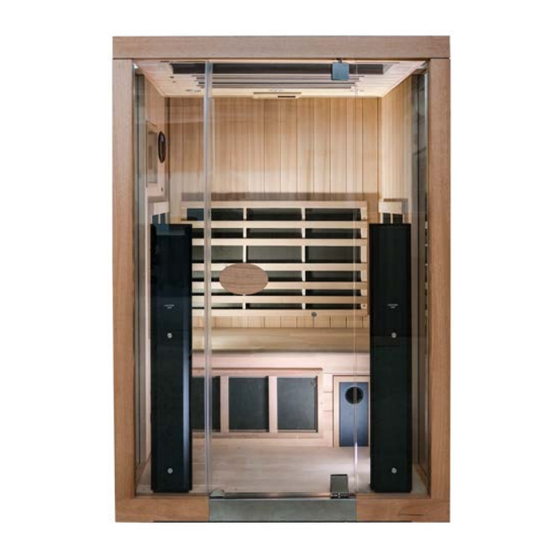

- Page 1 Jacuzzi JS models Service Reference Guide...
-
Page 2: Table Of Contents
Specifications: ● JS-1i …………………………………………………. Page 2 ● JS-2i .………………………………………………… Page 3 ● JS-3i .………………………………………………… Page 4 How to replace: ● Power supply ……………………………………. Page 5 ● Keypad ……………………………………………… Page 6 ● Ceiling light ………………………………………. Page 7 ● LED Strip ………………………………………….. -
Page 3: Js-1I

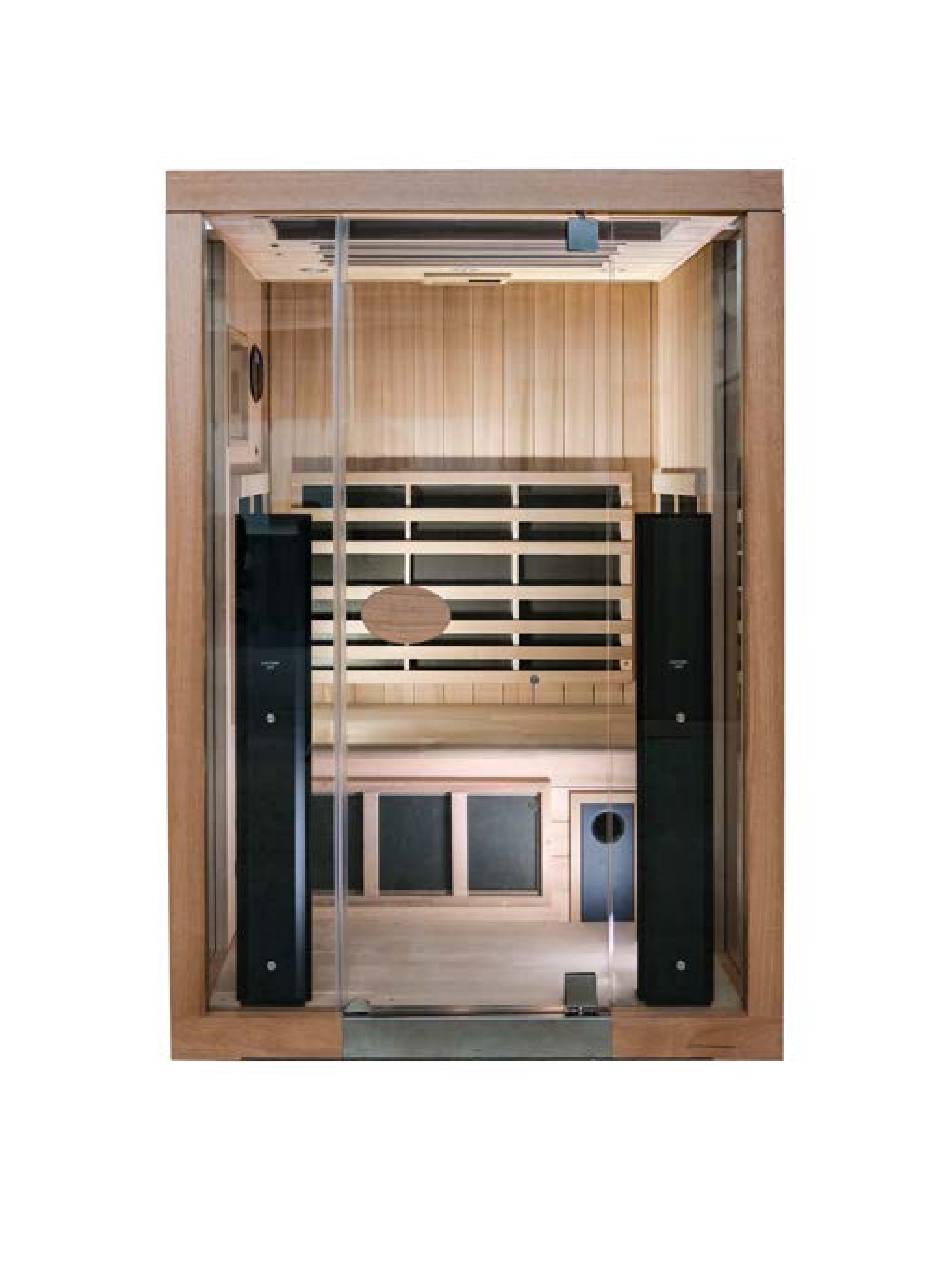

Jacuzzi JS-1i Sauna Dimensions: Shipping Dimensions: Exterior - 45 x 50 x 78 Box 1: 48.5 x 52.25 x 11.25 Interior - 42 x 47 x 75 Box 2: 75.20 x 41.75 x 11.75 Box 3: 75.20 x 41.75 x 10.00 Box 4: 78 x 3 x 3 Box 5: 47.25 x 12.25 x 15.50... -
Page 4: Js-2I
Jacuzzi JS-2i Sauna Dimensions: Shipping Dimensions: Exterior - 54 x 50 x 78 Box 1: 57.25 x 52.20 x 11.25 Interior - 51 x 47 x 75 Box 2: 75.25 x 51 x 11.75 Box 3: 75.25 x 51 x 10 Box 4: 78 x 3 x 3 Box 5: 47.25 x 12.25 x 11.25... -
Page 5: Js-3I
Jacuzzi JS-3i Sauna Dimensions: Shipping Dimensions: Exterior - 74 x 50 x 78 Box 1: 77.5 x 52.25 x 11.25 Interior - 71 x 47 x 75 Box 2: 75.25 x 41.75 x 11.85 Box 3: 75.25 x 71.10 x 9.85 Box 4: 78 x 3 x 3 Box 5: 47.25 x 12.25 x 11.65... -
Page 6: Power Supply
Power Supply Replacement What You will Need: • Phillip's Head Screwdriver Caution: *Unplug the sauna before handling any wiring or electrical components* Step 1: Remove the bench by sliding it out, to access the power supply unit. (optional: remove the bench support panel for easier access) Step 2: Disconnect the main power cord molex and all heater plugs from the front of the power supply unit. -
Page 7: Keypad
Keypad Replacement What You will Need: • Phillip's Head Screwdriver • Flathead Screwdriver or Pry Tool Caution: *Unplug the sauna before handling any wiring or electrical components* Step 1: To remove the keypad, first remove the trim ring around the keypad - this can be easily removed using a thin flathead screwdriver or pry tool (be careful not to damage the ring or the surrounding wood). -
Page 8: Ceiling Light
Ceiling Light Replacement Caution: *Unplug the sauna before handling any wiring or electrical components* IMPORTANT: LIGHT FIXTURES USE METAL SPRINGS TO BE HELD IN PLACE These springs act like a mouse trap, at times springing back with harmful force if not careful. Step 1: Gently pull down the fixture from the outer metal fixture ring. -
Page 9: Led Strip
LED Strip Replacement What You will Need: • Phillip's Head Screw Driver • Fastcaps Caution: *Unplug the sauna before handling any wiring or electrical components* Step 1: To replace the LED strip you must remove the corresponding heater guard. The heater guards are attached to the walls of the Sauna. -
Page 10: Red Light Therapy & Chromotherapy
Red Light & Chromotherapy Replacement What You will Need: • Phillip's Head Screw Driver Caution: *Unplug the sauna before handling any wiring or electrical components* Step 1: Remove the top cover from the roof by unscrewing each of the screws around the perimeter of the roof. -
Page 11: Speaker Bar
Speaker Bar Replacement What You will Need: • Phillip's Head Screw Driver Caution: *Unplug the sauna before handling any wiring or electrical components* Step 1: Remove the top cover from the roof by unscrewing each of the screws around the perimeter of the roof. -
Page 12: Temperature/Smoke Sensor
Temperature/Smoke Sensor Replacement What You will Need: • Phillip's Head Screw Driver Caution: *Unplug the sauna before handling any wiring or electrical components* Step 1: Remove the top cover from the roof by unscrewing each of the screws around the perimeter of the roof. -
Page 13: Bluetooth/Audio
Bluetooth/Audio Board Replacement What You will Need: • Phillip's Head Screw Driver Caution: *Unplug the sauna before handling any wiring or electrical components* Step 1: Remove the top cover from the roof by unscrewing each of the screws around the perimeter of the roof. -
Page 14: Full-Spectrum Heaters
Troubleshooting Full-Spectrum Heaters The front full-spectrum heaters will glow red and emit an intense heat when powered on. If one (or more) of the front full-spectrum heaters does not function, this may be due to an improper wiring connection, a faulty heater, or an issue with the power supply unit. Caution: *Make sure the heaters are cool before handling, as they will get VERY hot* *Unplug the sauna before handling any wiring or electrical components* Step 1: Inspect the heater(s) for any damages (loose/broken bulbs, damaged wiring, etc.). -
Page 15: Far-Infrared Heater Panels
Troubleshooting Far-Infrared Heater Panels Caution: *Unplug the sauna before handling any wiring or electrical components* The far-infrared (FIR) heater panels are the large black panels behind the mesh screens and wooden frames (along the walls and under the bench). These heaters will simply emit heat when functioning - these heaters do NOT glow red or display any other visual cues to indicate they are functioning. -
Page 16: Keypad
Troubleshooting Keypad Most keypad malfunctions can be easily remedied by performing a reset of the sauna - unplug the sauna (or shut off the breaker) for ~10 seconds before restoring power. If this fails to resolve the problem, proceed with the steps below. Caution: *Unplug the sauna before handling any wiring or electrical components* Step 1: Check the data cable connection to the power supply unit... -
Page 17: Door/Glass Alignment
Troubleshooting Door/Glass alignment Caution: *The door glass is very heavy and it is recommended to have two people perform these steps* Step 1: Make sure that the sauna is level. Check the base and top of the sauna with a level, then apply shims beneath the base to adjust accordingly. -
Page 18: Bluetooth/Audio
Troubleshooting Bluetooth/Speakers Caution: *Unplug the sauna before handling any wiring or electrical components* If the sauna’s Bluetooth audio connection is not working, proceed to steps 1-3 below. If the speakers are not functioning properly, proceed to step 4. Step 1:Make sure that there isn't another device connected to the sauna. The Bluetooth module in our saunas will only allow for 1 connected device at a time.
Need help?
Do you have a question about the JS and is the answer not in the manual?
Questions and answers
Is GFCI Protection required for the Jacuzzi JS-3I Sauna ? 240 vac/ 3690 Watts/ 15.38 Amperes. What size circuit breaker is required ?
