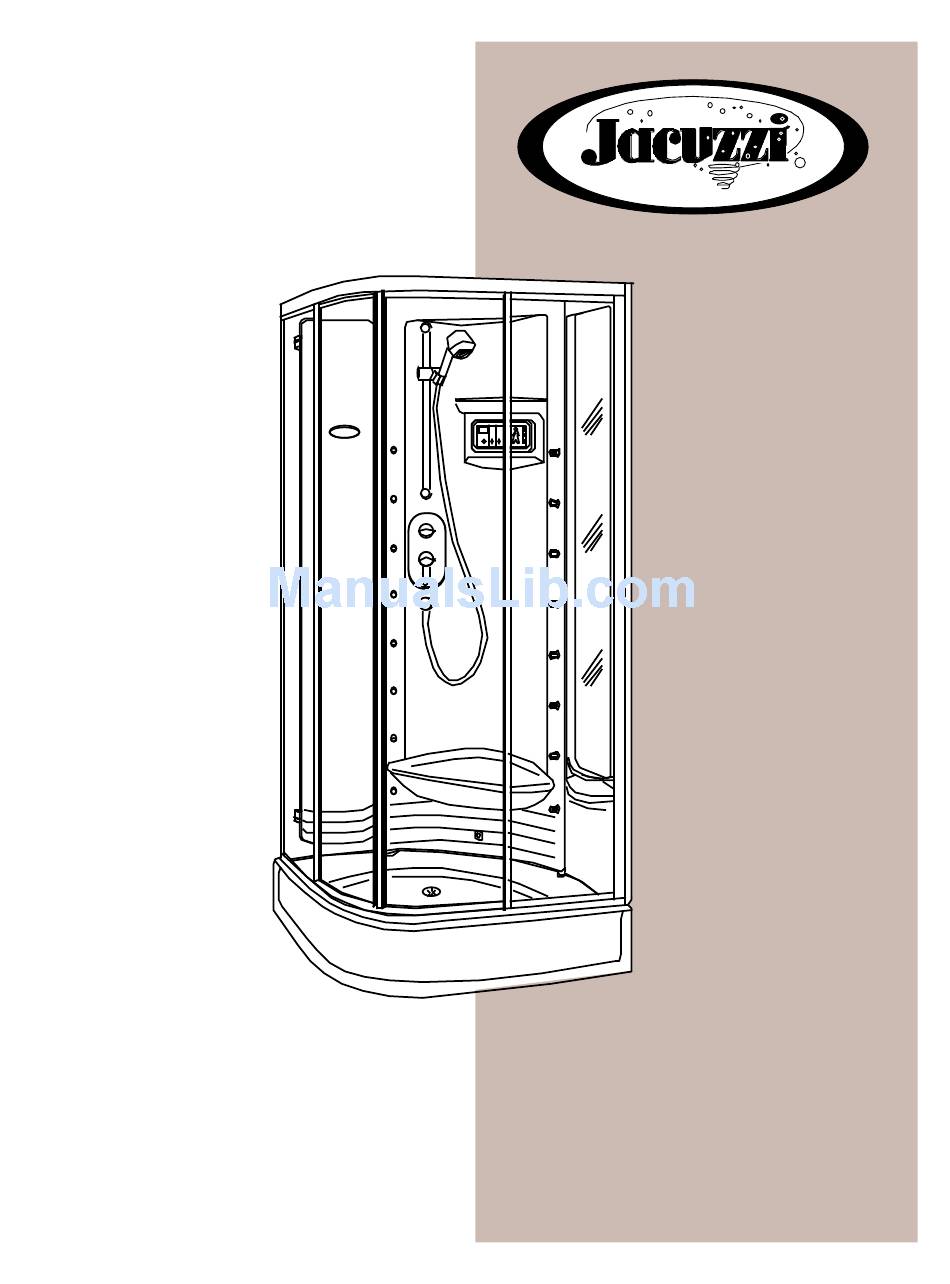

OWNER'S MANUAL
Installation & Operating
R
BATH
WHIRLPOOL
Instructions
´
TM
J-CARRE
Shower System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J-CARRE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jacuzzi J-CARRE

  • Page 1 OWNER’S MANUAL Installation & Operating BATH WHIRLPOOL Instructions ´ J-CARRE Shower System...
  • Page 2: Important Safety Information

    READ ALL INSTALLATION INSTRUCTIONS Jacuzzi Whirlpool Bath does not recommend prolonged periods of use of the steamer. Prolonged use of the steam system can raise the internal human body temperature excessively and impair the body's ability to regulate its internal temperature (resulting in hyperthermia).
  • Page 3 50.00 50.00 J-CARRE ´...
  • Page 4: Maintenance

    Providing natural or forced ventilation of the room will help maintain comfort and minimize moisture damage to the building. Jacuzzi Whirlpool Bath is not responsible for damages resulting from excess moisture or water spillage. Consult an architect or engineer for aid in designing your installation.
  • Page 5: Options Available

    Providing natural or forced ventilation of the room will help maintain comfort and minimize moisture damage to the building. Jacuzzi Whirlpool Bath is not responsible for damages resulting from excess moisture or water spillage. Consult an architect or engineer for aid in designing your interior structure. Do not install heat lamps directly above shower unit. The clear top will deform from excess heat.
  • Page 6 Installation & Operating Instructions Rough-in 16" WASHING BOILER MACHINE DRAIN OUTLET BOX VALVES (2) CONNECT #8 GAUGE (10mm 2 ) 1/2 " HOT MINIMUM SOLID COPPER BOND & COLD WI RE HOUS E WATER ELE CTRI CA L PANEL SUPPLY APPROVED LOCAL GROUND.
  • Page 7 Installation & Operating Instructions 1. Adjust the levelling screws in the base frame and lock them in position. 2. Connect bonding wire from line cord junction box to proper ground. (See bonding, page 8.) 3. Connect hot and cold water supply lines. 4.
  • Page 8: Equipment Access

    Installation & Operating Instructions Equipment Access REMOVE HARDWARE AND OPEN SERVICE PANEL FOR ACCESS LINE CORD JUNCTION BOX SOLENOID VALVES HOT AND COLD WATER SUPPLY LINES LEVELER AND DRAIN ACCESS DRAIN STEAM TANK STUB-OUT STEAM TANK DRAIN LINE...
  • Page 9: Drain Fitting

    Installation & Operating Instructions Drain Fitting (provided with unit) SHOWER DRAIN FITTING SHOWER PAN DRAIN ADAPTER COUPLING (PROVIDED) FOR 2" DWV PIPE Bonding LINE CORD JUNCTION BOX LINE CORD WITH PLUG (10mm 2 ) CONNECT #8 GAUGE MINIMUM SOLID COPPER BOND WIRE TO THE HOUSE ELECTRICAL PANEL OR APPROVED...
  • Page 10 Installation & Operating Instructions Anchoring the J-Carré to the Wall Anchor unit to the wall using the "S" brackets, hex bolts, hex nuts, washers, wall anchors and screws provided as shown below. This will also provide an adjustment for squaring the shower wall to the shower pan. HEX BOLT WASHER HEX NUTS "S"...
  • Page 11 Installation & Operating Instructions Sliding Door Adjustment The sliding doors have been factory adjusted for shipping purposes. It will probably be necessary to readjust the doors prior to use. With the sliding doors in the closed position, check to make sure that the magnetic strips on each door make contact with each other for the full length of the door.
  • Page 12 Operating Instuctions for J-Carré System control is provided by the electronic display located inside the shower cabin (see Fig. 2) The display is used to start up the four functions of the unit: the shower, the cascade, the hydromassage and the steam bath. The display is composed of four distinct areas with clear symbols which allow you to easily identify the four main functions.
  • Page 13: Starting The Hydromassage

    Starting the Hydromassage The J-Carré shower allows you to enjoy the benefits of a real hydromassage. The hydromassage is created by the combined action of 16 water jets (four sets of four) under the pressure of an electrically powered pump. The action of each group of four jets is alternated according to a programmed sequence which can be changed as desired.
  • Page 14: Ordinary Maintenance Operations

    If the steam bath is used frequently in a hard water area, particles of limestone may be deposited in the steam generator and reduce its performance. Jacuzzi Whirlpool Bath recommends the installation of a water softener unit, in order to eliminate or reduce limestone deposits.
  • Page 15: Electrical Diagram

    Electrical Diagram Cable to electric heating (220/240V) ELECTRIC CONTROL (12V) COMPUTER CABLE (12V) Cable to electric pump SOL. VALVE (220/240V) FOR DRAINAGE SOL. VALVE FILLING SOL. VALVE CABLE TO WATERFALL SOLENID Power supply cable VALVES (220/240V) SOL. VALVE SHOWER (12V) Cable to level probe (12V) SOL.
  • Page 16 USE INSTALLATION INSTRUCTIONS SUPPLIED WITH PRODUCT. Jacuzzi Whirlpool Bath has obtained applicable code (standards) listings generally available on a national basis for products of this type. It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of this product. Jacuzzi Whirlpool Bath makes no representation or warranty regarding, and will not be responsible for any code compliance.
