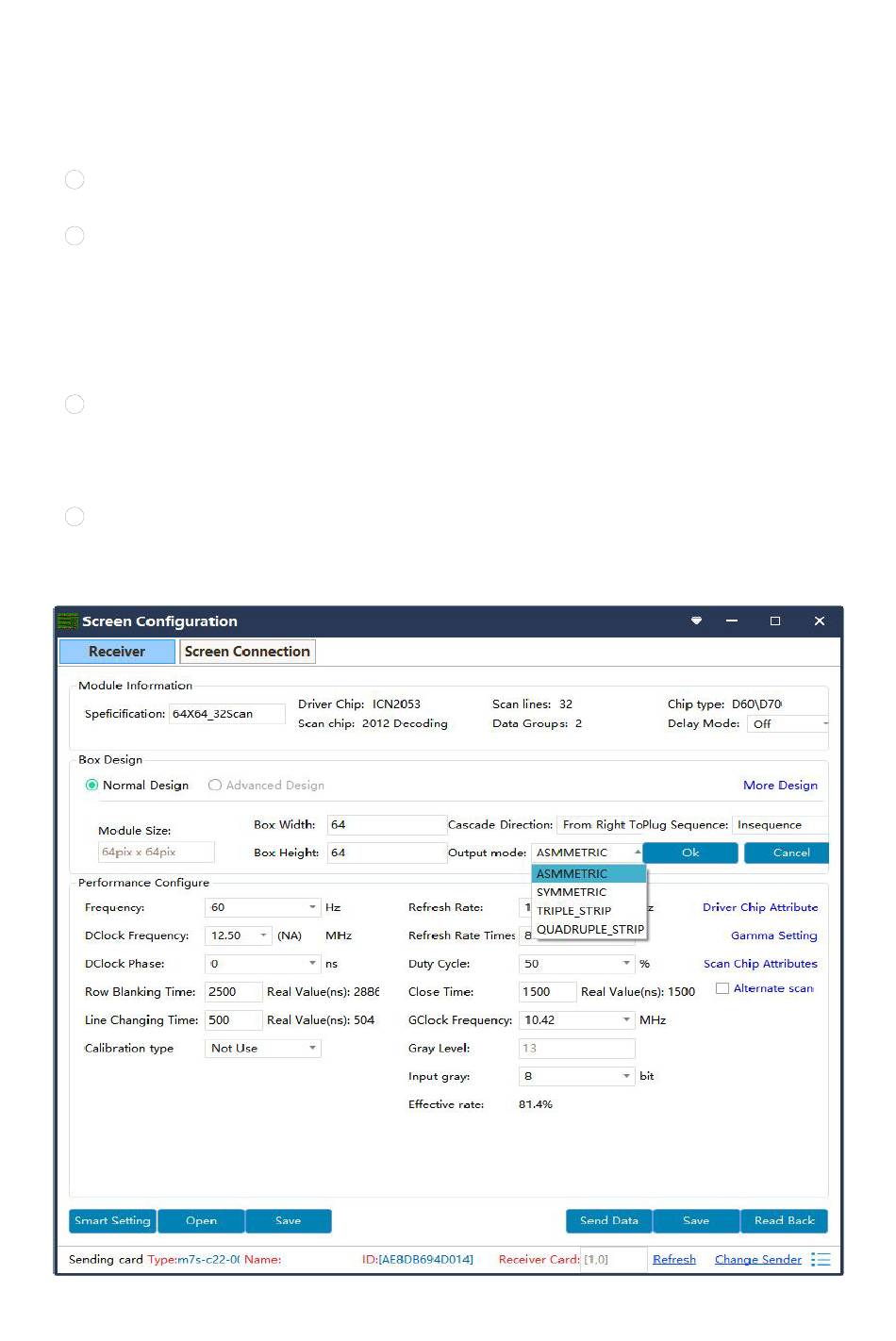

the receiving card performance to make the screen higher refresh rate according to actual
needs. For example(cascade way： from right to left).
Normal output： 1 to 24 sets of data are loaded from top to bottom.
2
Symmetrical：The data of the receiving card (1-12) group is equipped with the left
3
half lamp board，and the data of (12-24) group is equipped with the right half lamp board，
with the same width/height.
Triple strip mode：1-8，9-16，17-24，Each 8 sets of data are carried in three parts
4
horizontally with the same width and height
Quadruple strip： 1-6， 7-12， 13-18， 18-24， Each 6 sets of data are carried in four parts
5
horizontally with the same width and height.
www.sysolution.net
14
