SYSOLUTION M50B-D Instructions Manual page 16

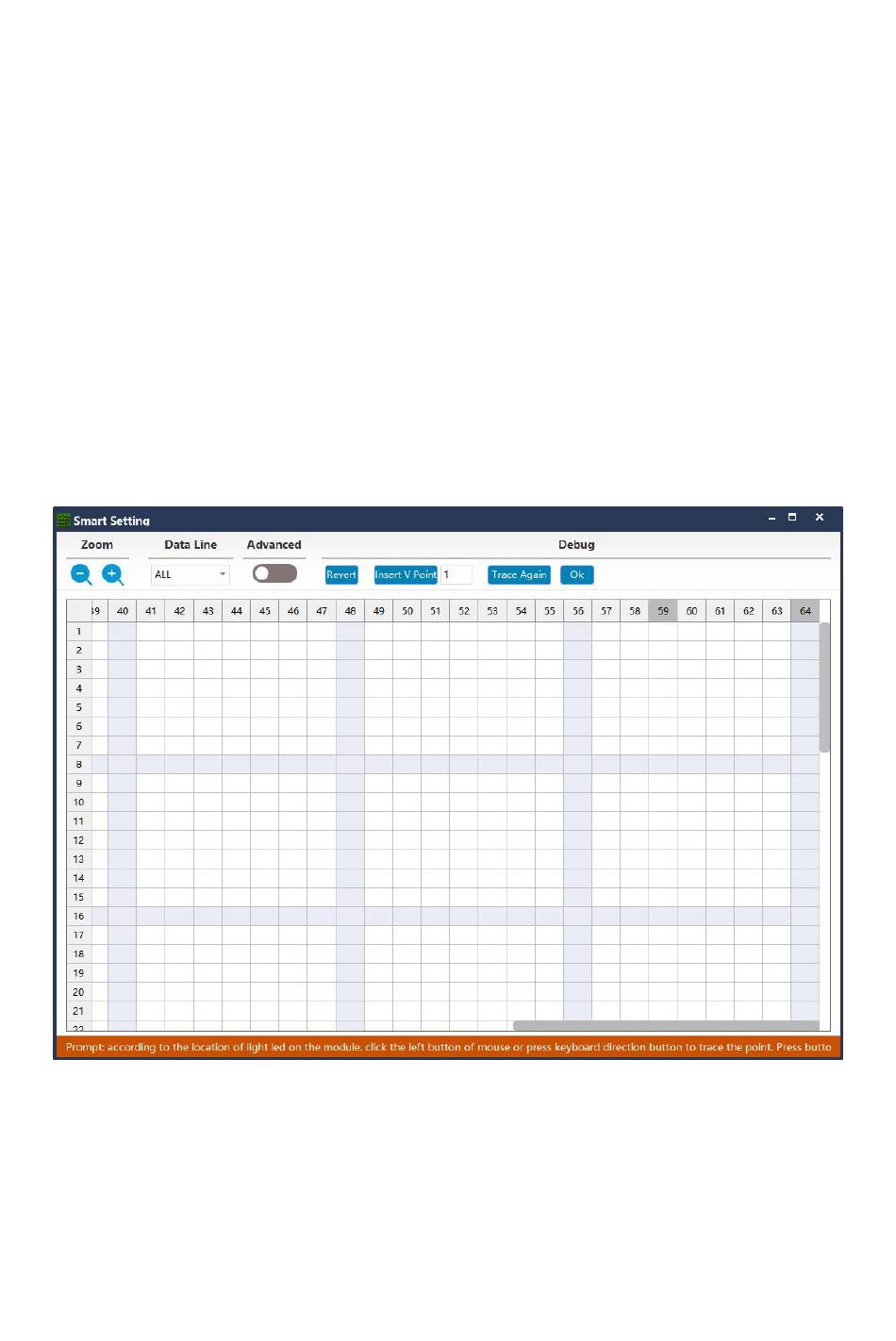

10. Click "Next step" to enter the "intelligent Settings" window and do the walk-points
according to the actual display of the module (If not have a blinking pixel，please connect
the LED module to the first data interface of the receiving card or change the data line to
all Interface，or try to insert points attempt)，when smart setting is completed， click
"finish" and send the data to the device.
Note： If the LED module has no pixel flashing， the first can connect the LED module to the first
group of data interface (JP1 port) of the receiving card; Second， you can select all the data line
options under the list; Third，you can try to insert virtual points.
11. Click Complete to finish the smart setup.
