MTX RZR-14-THUNDER5 User Manual

MTX RZR-14-THUNDER5 User Manual

For the polaris rzr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

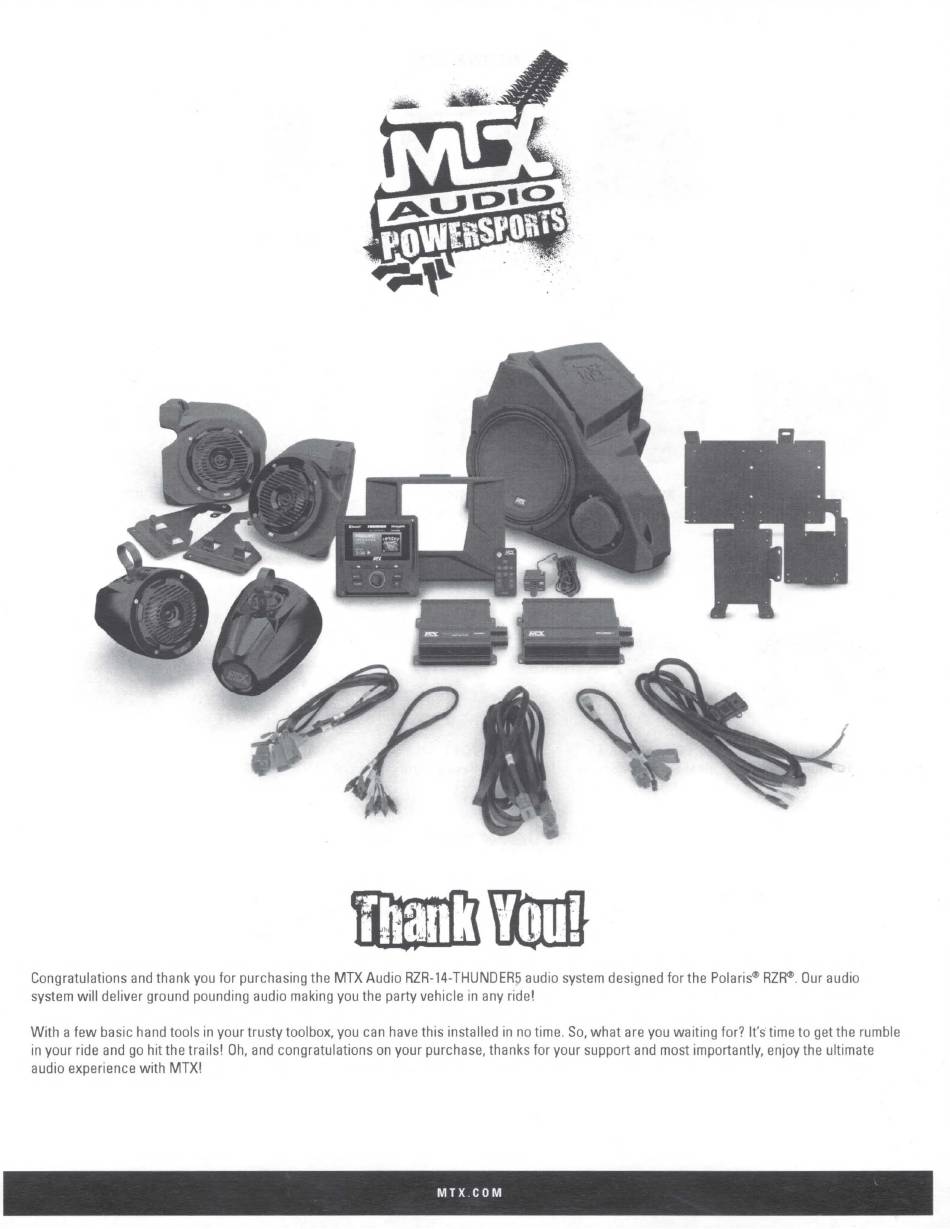

Congratulations and thank you for purchasing the MTX Audio RZR-14-THUNDER5 audio system designed tor the Polaris® RZR®. Our audio
system will deliver ground pounding audio making you the party vehicle in any
ride!
With a few basic hand tools in your trusty toolbox, you can have this installed in no time. So, what are you waiting for? It's time to get the rumble
in your ride and go hit the trails! Oh, and congratulations on your purchase, thanks for your support and most importantly, enjoy the ultimate
audio experience with MTX!
MTX
.
COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RZR-14-THUNDER5 and is the answer not in the manual?

Questions and answers

Related Manuals for MTX RZR-14-THUNDER5

Summary of Contents for MTX RZR-14-THUNDER5

  • Page 5 10 0 WAT T S x 4 RMS 4 CH A NNEL A MPL IF IER OWNER’S MANUAL MUD100.4 AMPLIFIER Use your smartphone to scan and learn more about all of the all-weather solutions available from MTX Audio. M T X . C O M...

  • Page 6: Control Functions

    Thank you for purchasing this MTX Audio Hi-Performance amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of enjoyment whether you are waking the neighbors or just out enjoying your tunes. Congratulations...
  • Page 7 PANEL LAYOUT INPUT SPE AKER OUTPUT FRONT FRONT WHITE: WHITE: L+ BRIDGE+ WHT/ BLK: L– RED: 12V+ WHT/ BLK: L– GREY: BLUE: REMOTE GREY: GREY/ BLK: R– BL ACK: GREY/ BLK: R– BRIDGE– INPUT SPE AKER OUTPUT FRONT RE AR FRONT RE AR GREEN:...

  • Page 8: Installation And Mounting

    If a suitable location is not available connect this terminal to the vehicle’s negative battery terminal. 6. Connect a Remote Turn-On wire from the source unit to the MTX amplifier’s (REM) wire. If the source unit does not have a dedicated Remote Turn-On lead, you may connect to the source unit’s Power Antenna lead.

  • Page 9: Installation

    INSTALLATION For proper performance and safety, MTX recommends installing an inline fuse per the owner’s manual instructions according to the following. MUD100.4 30A Fuse TROUBLESHOOTING Problem Cause Solution Head Unit Volume Set Too High Lower Head Unit Volume Output Distorted...

  • Page 10: Specifications

    SPECIFICATIONS Model MUD100.4 Description 50 W RMS/CH Stereo RMS Power at 14.4V 4Ω Bridged Load 200 W RMS 2Ω Load 100 W RMS 4Ω Load 50 W RMS Features Input Level 0.2 - 5V Low Level, 0.4 - 10V High Level Frequency Response 10Hz - 32 kHz Low Pass Filter (LPF) Rear Only...

  • Page 11: Wiring Diagram

    WIRING DIAGRAM 4Ω Stereo Signal Signal Remote Signal FUSE 4-Ohm Source Unit 4-Ohm 4-Ohm 4-Ohm M T X . C O M...
  • Page 12 WIRING DIAGRAM 2Ω Stereo Signal Signal Remote Signal FUSE 4-Ohm 4-Ohm Source Unit 4-Ohm 4-Ohm 4-Ohm 4-Ohm 4-Ohm 4-Ohm M T X . C O M...
  • Page 13 WIRING DIAGRAM Stereo 4Ω Front/4Ω Bridged Rear Signal Signal Remote Signal FUSE Source Unit 4-Ohm 4-Ohm 4-Ohm M T X . C O M...
  • Page 14 WIRING DIAGRAM 4Ω Bridged Subwoofers Signal Signal Remote Signal FUSE Source Unit 4-Ohm 4-Ohm M T X . C O M...
  • Page 15 © 2015 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice. MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A.
  • Page 16 BLUETOOTH 11:00PM Song Title Artist Album 23/25 3:08 MUTE MENU SOURCE AWMC3 ALL-WEATHER MEDIA CONTROLLER WITH 3" DISPLAY OWNER’S MANUAL M T X . C O M...

  • Page 17: Important Notice

    IMPORTANT NOTICE If you have any questions regarding wire routing in a vehicle, please contact MTX Technical Support at 1-800-225-5689. When connecting power and ground wires ensure that the red power wire is fused at the point where it is connected to the vehicle’s battery. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the product.

  • Page 18: Wire Connection

    WIRE CONNECTION Power / Speaker Connector (SiriusXM Connect Tuner Sold Separately) Black AUX In Grey Line Out (Front) Brown Line Out (Rear) Antenna POWER AND SPEAKER CONNECTION wer / Speaker Connector Pin # Wire Color Wire Definition usXM Connect Tuner Sold Separately) White / Black Front Left Speaker (-) White...
  • Page 19 INSTALLATION Mounting (Using Mounting Plate) To mount the unit, find a flat surface with adequate clearance behind it that provides enough room for the unit and all it’s necessary wiring. • Once a mounting location has been determined, cut a circular hole 3" (77mm) in diameter. • After the hole is cut, slide the unit and wiring through the hole. A piece of self adhesive EVA foam is supplied in order to create a water resistant seal.
  • Page 20 INSTALLATION Mounting (Using Optional Vehicle Specific Dash Mount Kit - Sold Separately) The unit will be mounted to each vehicle differently. Make sure to following the vehicle specific directions that were included with the dash kit. • Slide the two included speed clips onto the rear of the dash kit. • The dash kit may include additional space to mount rocker panel switches for accessories. On the rear of the dash kit, grooves will be provided to give proper location and size for mounting additional switches.
  • Page 21 CONTROLS BLUETOOTH 11:00PM Song Title Artist Album 23/25 3:08 BLUETOOTH 11:00PM MUTE MENU Song Title Artist Album SOURCE 23/25 3:08 MUTE MENU 1. Power Button ( ) - This push button (On / Off) supplies power to the head unit. SOURCE 2.

  • Page 22: General Operations

    GENERAL OPERATIONS MUTE MENU MUTE MENU Switching On and Off Press Power Button ( ) to turn the device On. Hold Power Button ( ) to turn the device Off. SOURCE SOURCE Operating Mode Press Source Button to switch between radio reception (AM / FM / WB / SXM), audio input (AUX), USB and Bluetooth audio streaming (BT MUSIC).

  • Page 23: Radio Functions

    RADIO FUNCTIONS Selecting Radio Band • Press Source Button and rotate VOL knob. • Press VOL knob to select radio band. • Select FM or AM band. BLUETOOTH 11:00PM BLUETOOTH 11:00PM Song Title Song Title Artist Artist BLUETOOTH 11:00PM BLUETOOTH 11:00PM Album Album...

  • Page 24: Siriusxm ® Operation

    RADIO FUNCTIONS Local • Press Menu Button to enter FM Settings. • Press VOL knob and rotate to select Local. • Press VOL knob and rotate to select Local ON / OFF. Note: Only stations with good reception quality will be played under the Local setting. Select USA / Europe Area Frequencies •...

  • Page 25: Operation

    SiriusXM OPERATION ® BLUETOOTH 11:00PM BLUETOOTH 11:00PM Selecting SiriusXM Song Title Song Title • Press the Source Button and rotate VOL knob. Artist Artist • Press VOL knob to select SXM mode. Album Album Note: If there is no SiriusXM Tuner connected this mode will be skipped.
  • Page 26 SiriusXM OPERATION ® Parental Control SiriusXM channels can be locked, and will need a pass code to access. The default code is “5220”. ® If the pass code is forgotten, simply run the SXM Factory Default to reset the pass code. GUIDE ON HOW TO ENTER THE CODE USING THE VOLUME BUTTON: When the first character is flashing, turn the rotary knob to select number 5 and press to enter. When the second character flashes, use the same operation to select the rest of the characters “2”,”2”,”0”.
  • Page 27 SiriusXM OPERATION ® Troubleshooting (cont) Subscription Updated The radio has detected a change in your SiriusXM subscription status. ® Press any button to clear the message. In the U.S.A., visit www.siriusxm.com or call 1- 866- 635- 2349 if you have questions about your subscription.

  • Page 28: Bluetooth ® Audio Streaming

    ® 1. Turn on the Bluetooth feature of the mobile device. Scan for available Bluetooth® devices within ® range. Select “MTX-MC3” . (Please refer to the mobile device’s instruction manual for Bluetooth Pairing). ® 2. After successfully pairing, connect the mobile device to the AWMC3 via Bluetooth ®...

  • Page 29: Specifications

    SPECIFICATIONS Tuner FM Frequency Range 87.5 - 107.9 MHz (America) 87.5 - 108 MHz (Europe) Channel Step 200 kHz (America) 50 kHz (Europe) Sensitivity 2.8 μV Stereo Separation 30dB Signal to Noise Ratio 50dB Tuner AM Frequency Range 530 - 1710 KHz (America) 522 - 1620 KHz (Europe) Usable Sensitivity 32dB...
  • Page 30 © 2017 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A. Apple and iPhone are registered trademarks of Apple Inc. Android is a trademark of Google Inc.
  • Page 31 MUD65PL CAGE MOUNT SPEAKER WITH RGB LEDS OWNER’S MANUAL M T X . C O M...

  • Page 32: Product Information

    • (2) M6 serrated flange lock nut stainless steel INTRODUCTION Thank you for purchasing this MTX Audio cage mount speaker pod. This high performance speaker features all-weather construction designed to deliver exceptional sound quality and volume for high output systems for those that love to hear their music wherever they are. Additionally, each speaker enclosure includes a RGB LED light kit that enables customization of the speaker lighting color on the grille.

  • Page 33: Installation

    Depending on the position of the speaker, only two (2) insertion points will be usable. 7. Attach the MTX badge to the rear recess of the enclosure with the included double stick tape. 8. Connect the speaker wires to your amplifier ensuring correct polarity Grey to positive and Black to negative.
  • Page 34 Figure 2 < 7" 2A Fuse (max) (sold separately) (17.5cm) +12V +12V – RGB Ground Color Combinations: Splice and combine the ground wires to yeild a different color. Green Green Blue Blue Red / Green Lime Green Red / Blue Magenta Green / Blue Aquamarine...
  • Page 35 The bracket base can rotate in any direction desired, a minimum of 2 bolts must be used, 1 on each side. M T X . C O M...
  • Page 36 © 2018 Mitek Corporation. All rights reserved. MTX, Mud Nation, and Let’s Do Something Dirty are trademarks of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
  • Page 37 MODE SPEED SPEED DEMO MODE MUDLEDC MUDLEDC LED REMOTE CONTROL OWNER’S MANUAL M T X . C O M...
  • Page 38 RGB LED equipped components like the MUD65PL. Up to 12 speakers can be connected to the MUDLEDC in parallel. For additional speakers, additional remotes will be required. Congratulations and enjoy the ultimate audio experience with MTX! SPECIFICATIONS Dynamic Modes: 19 Modes...

  • Page 39: General Operation

    GENERAL OPERATION 1. Power / Standby - Power on or switch to standby mode. 2. Speed Down - Press to decrease speed of flash. 3. Speed Up - Press to increase speed of flash. 4. Static Color - Cycle through static colors. 5. Static Color - Cycle through static colors. 6. Adjust Dynamic Mode - Cycle through dynamic modes. 7.
  • Page 40 © 2018 Mitek Corporation. All rights reserved. MTX, Mud Nation, and Let’s Do Something Dirty are trademarks of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
  • Page 41 *Optional EBC MUD600-1 MONO BLOCK AMPLIFIER OWNER’S MANUAL M T X . C O M...

  • Page 42: Panel Layout

    Thank you for purchasing this MTX Audio Hi-Performance amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of enjoyment whether you are waking the neighbors or just out enjoying your tunes. Congratulations...

  • Page 43: Wiring Diagram

    CONTROL FUNCTIONS 1. Wiring Harness - All wiring to the amplifier will run through the wiring harnesses. Speakers - Connect subwoofers to these terminals. Be sure to check wire for proper polarity. Never connect the speaker cables to the chassis ground. +BATT (+12 Volt Power) - Connect this terminal through a FUSE or CIRCUIT BREAKER to the positive terminal of the vehicle battery or the positive terminal of an isolated audio system battery.
  • Page 44 6. Connect a Remote Turn-On wire from the source unit to the MTX amplifier’s (REM) wire. If the source unit does not have a dedicated Remote Turn-On lead, you may connect to the source unit’s Power Antenna lead.
  • Page 45 Not Using MTX Subwoofers Buy MTX Subwoofers Excessive Output Levels Lower the Volume Blowing Fuses Amplifier Defective Return for Service For MTX technical support please call 1 (800) 225-5689 or chat with us online at mtx.com M T X . C O M...
  • Page 46 SPECIFICATIONS Model MUD600-1 Description Class D Mono Amplifier Primary Ratings* Primary Power 300 W RMS at 4Ω, 20-165Hz and ≤ 1% THD+N* Signal-to-Noise Ratio 85 dBA Secondary Ratings* 425 W at 4Ω, ≤ 1% THD+N Dynamic Power 650 W at 2Ω, ≤ 1% THD+N Features Input Level 0.2 - 5V Low Level, 0.4 - 10V High Level...
  • Page 47 WIRING DIAGRAM 4Ω MONO M T X . C O M...
  • Page 48 WIRING DIAGRAM 2Ω MONO M T X . C O M...
  • Page 49 © 2019 Mitek Corporation. All rights reserved. MTX, Mud Nation, and Let’s Do Something Dirty are trademarks of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
  • Page 50 RZR-14-SW POLARIS SUBWOOFER ENCLOSURE ® ® OWNER’S MANUAL M T X . C O M...
  • Page 51 MTX! WE’RE HERE TO HELP We’re here to help with any installation or technical support. Visit mtx.com to chat, call 1-800-225-5689 to speak with an MTX Technical Support representative, or visit youtube.com/user/MTXAudioUSA to view product videos.
  • Page 52 FEATURES • Can Be Used as a Ported or Sealed Enclosure • Includes an MTX 55 Series Subwoofer for its Deep Bass Reproduction Capabilities • QuIPS (Quick Install Port Seal) Technology • Mounts Behind Dashboard • Factory Matched Texture • Installer Friendly Design •...
  • Page 53 DISASSEMBLY - RZR MODELS 2019+ Step 1 - Release the two quick locks to remove the hood from the vehicle. Lift the hood and slide it towards the front of the vehicle Step 2 - Remove the four (4) T40 screws holding down the top dash cover. Driver Side Passenger Side M T X .
  • Page 54 Step 3 - Remove the retaining clips holding the center dash compartment in place. Remove the compartment. Step 4 - Remove the dash top panel. M T X . C O M...
  • Page 55 Step 5 - Remove the two (2) bolts in the center behind the dash. Note: For vehicles with Ride Command units, you may find two additional bolts on either side of the display. Remove these if present. Step 6 - Remove the T-handle and clip. Step 7 - Remove the Torx head screw from the dash pocket brace.
  • Page 56 Step 8 - Unplug the gauge and switches making sure not to damage the vehicle and ignition wiring. Make note to remember what connector is associated with each specific switch. Step 9 - Carefully lift the dash out of the vehicle. There are locking clips on the right and left side that hold it in place.
  • Page 57 Step 10 - Remove the retaining clips holding the passenger side dash compartment in place. Remove the compartment. Step 11 - Remove the two (2) 10mm bolts above the glove box. M T X . C O M...
  • Page 58 Step 12 - Remove the glove box. Step 13 - Remove one (1) T40 Torx screw located directly above left foot rest on passenger side. The vehicle disassembly process is now complete. Please turn to page 14 to continue with the product installation process.
  • Page 59 DISASSEMBLY - RZR MODELS 2014 - 2018 Step 1 - Release the two quick locks to remove the hood from the vehicle. Step 2 - Lift up the hood and slide towards the front of the vehicle. Step 3 - Remove the two (2) T40 screws holding down the top dash cover. M T X .
  • Page 60 Step 4 - Lift and pull back the top dash cover to release the clips holding it in place. Unplug the gauge and switches making sure not to damage the vehicle and ignition wiring. Make note to remember what connector is associated with each specific switch. Step 5 - Remove the Torx head screw from the dash pocket brace.
  • Page 61 Step 6 - Remove the two (2) T40 screws holding the dashboard in place. Step 7 - Pull the dashboard towards the back of the vehicle. There are locking clips on the right and left side that hold it in place. The dash will pop out. M T X .
  • Page 62 Step 8 - Carefully lift the dash out of the vehicle. If the locking clips have fallen off, place them back onto the locking tabs on the dash. These are needed to re-assemble the dashboard. Step 9 - Remove the two (2) 10mm hex bolts that are holding the glove box to the vehicle frame. When the screws are removed the glove box can be lowered down and out of the enclosure.
  • Page 63 INSTALLATION Step 1 - Install the large hardware bracket on the RZR-14-SW subwoofer enclosure using one 10mm bolt as pictured. Hand-tighten so the bracket is able to slide left to right. Step 2 - Hang the subwoofer enclosure from the T-handle mounting bar as shown by sliding the installed bracket over the bar.

  • Page 64: Warranty Period

    WARRANTY PERIOD At MTX Audio we engineer products that will stand up to the test of time. We also realize that from time to time a problem may occur. That’s why our products carry a 2-year limited warranty that begins at the time of sale to the end user.
  • Page 65 Like, Follow, & Subscribe © 2020 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
