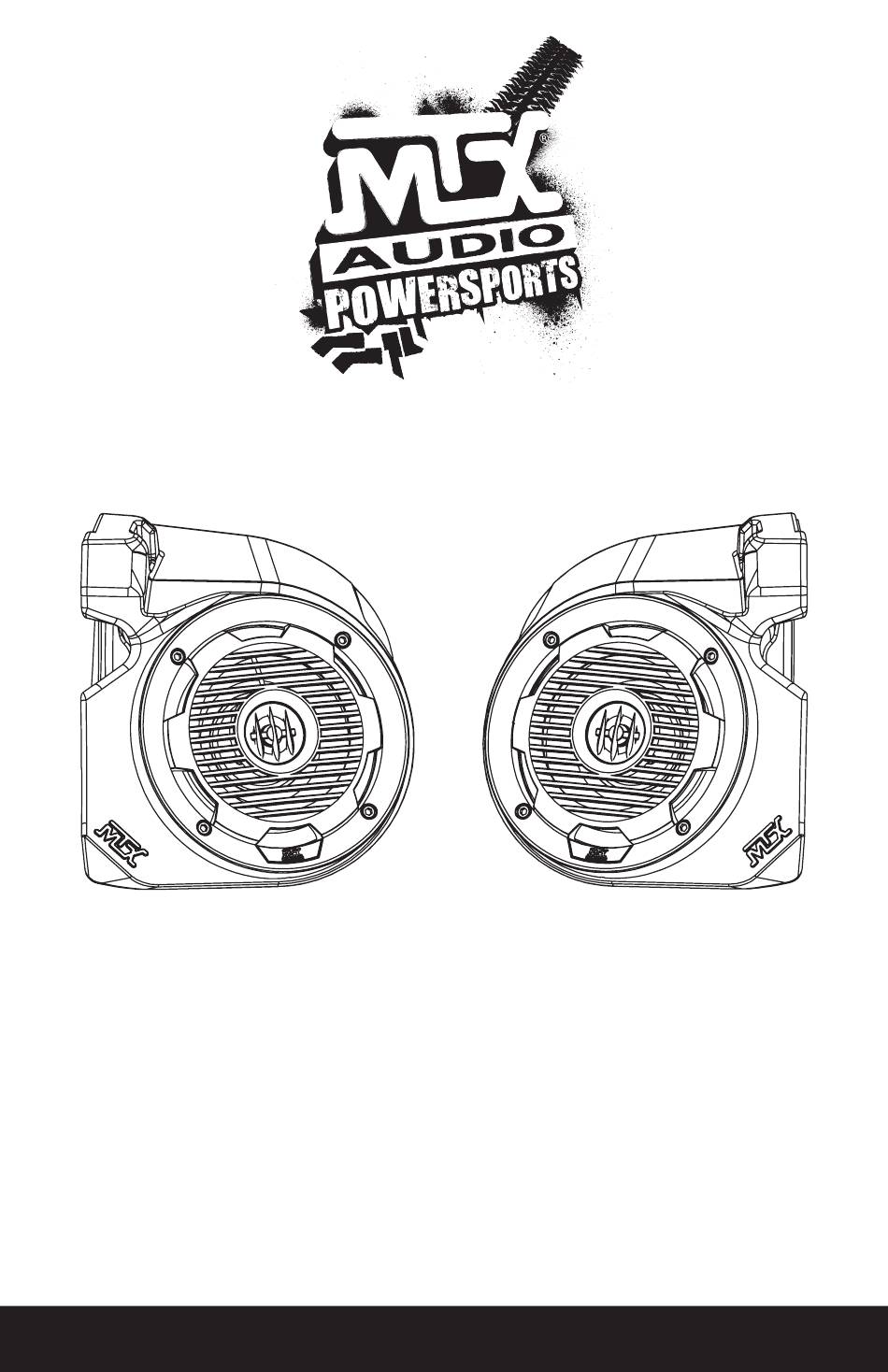

- Page 1 RZR-14-FS POLARIS FRONT SPEAKER PODS ® ® OWNER’S MANUAL M T X . C O M...
- Page 2 Dealer’s Name Date of Purchase MAKE SURE TO READ THIS If the RZR-14-FS kick panel speaker pods are being installed along with the RZR-14-SW subwoofer enclosure, the subwoofer MUST be installed first. IMPORTANT NOTICE Whenever working on the vehicle, it is recommended to disconnect the battery prior to starting work.
- Page 3 RZR XP 1000 Trails and Rocks ......................2019 - 2020 RZR XP 1000 High Lifter .........................2014 - 2020 RZR XP 4 1000 High Lifter ........................2014 - 2020 IN THE BOX • RZR-14-FS Kick Panel Speaker Pods (Left and Right Enclosures) • Mounting Hardware (2) Mounting Brackets (2) 10mm Screws...
- Page 4 INSTALLATION Step 1 - Remove the two (2) T40 screws at the bottom of the kick panel. Step 2 - Remove the top 13mm body bolt. Step 3 - Place the custom quick mount speaker bracket. M T X . C O M...
- Page 5 Step 4 - Reinstall the body bolt and two (2) T40 screws. Step 5 - Align the bottom of the RZR-14-FS speaker pod with the hooks on the custom quick mount speaker bracket. Tilt the top of the speaker pod toward the outer body until flush against the mounting bracket.
- Page 6 Step 7 - Feed wire into dash towards amplifier mounting location. Note: In the event these are not used with an MTX THUNDER SYSTEM, it will be necessary to cut off the connectors and hardwire directly to your equipment. Step 8 - Reassemble and go ride.
- Page 7 WARRANTY PERIOD At MTX Audio we engineer products that will stand up to the test of time. We also realize that from time to time a problem may occur. That’s why our products carry a 2-year limited warranty that begins at the time of sale to the end user.
- Page 8 Like, Follow, & Subscribe © 2020 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
