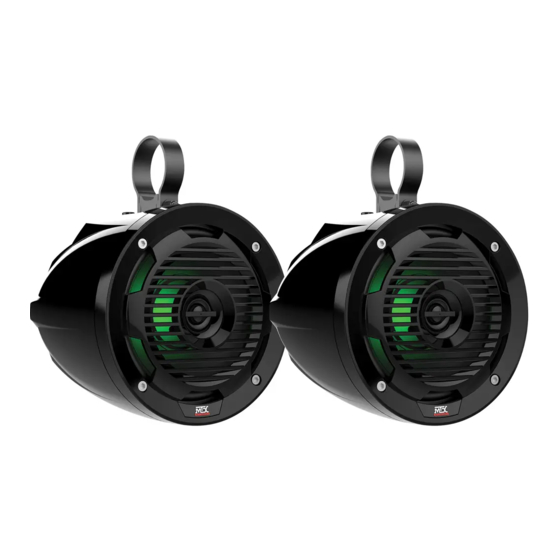

- Page 1 MUD65PL CAGE MOUNT SPEAKER WITH RGB LEDS OWNER’S MANUAL M T X . C O M...
- Page 2 • (2) M6 serrated flange lock nut stainless steel INTRODUCTION Thank you for purchasing this MTX Audio cage mount speaker pod. This high performance speaker features all-weather construction designed to deliver exceptional sound quality and volume for high output systems for those that love to hear their music wherever they are. Additionally, each speaker enclosure includes a RGB LED light kit that enables customization of the speaker lighting color on the grille.
- Page 3 Depending on the position of the speaker, only two (2) insertion points will be usable. 7. Attach the MTX badge to the rear recess of the enclosure with the included double stick tape. 8. Connect the speaker wires to your amplifier ensuring correct polarity Grey to positive and Black to negative.
- Page 4 Figure 2 < 7" 2A Fuse (max) (sold separately) (17.5cm) +12V +12V – RGB Ground Color Combinations: Splice and combine the ground wires to yeild a different color. Green Green Blue Blue Red / Green Lime Green Red / Blue Magenta Green / Blue Aquamarine...
- Page 5 The bracket base can rotate in any direction desired, a minimum of 2 bolts must be used, 1 on each side. M T X . C O M...
- Page 6 NOTES: M T X . C O M...
- Page 7 NOTES: M T X . C O M...
- Page 8 © 2018 Mitek Corporation. All rights reserved. MTX, Mud Nation, and Let’s Do Something Dirty are trademarks of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
