MTX Thunder Sports AWMC3 Owner's Manual
All-weather media controller with 3" display
Hide thumbs
Also See for Thunder Sports AWMC3:
- Owner's manual (34 pages) ,
- Manual (80 pages) ,
- User manual (66 pages)
Subscribe to Our Youtube Channel
Related Manuals for MTX Thunder Sports AWMC3
Summary of Contents for MTX Thunder Sports AWMC3

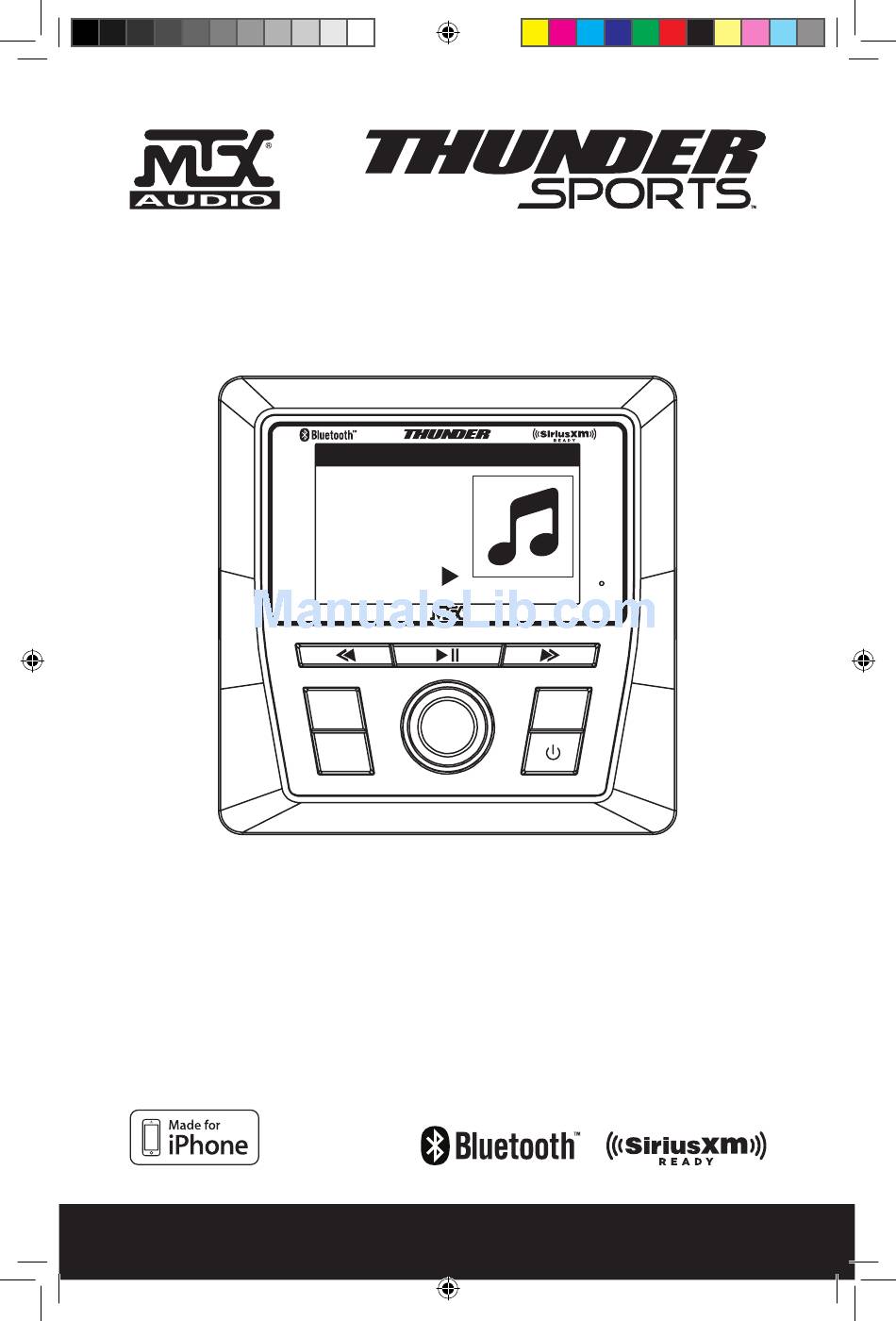

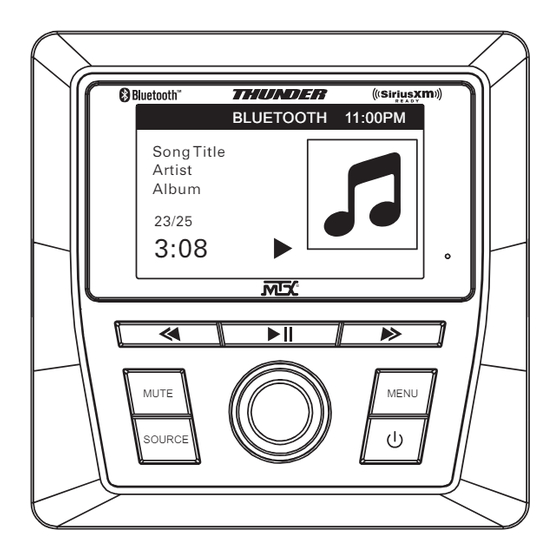

- Page 1 BLUETOOTH 11:00PM Song Title Artist Album 23/25 3:08 MUTE MENU SOURCE AWMC3 ALL-WEATHER MEDIA CONTROLLER WITH 3" DISPLAY OWNER’S MANUAL M T X . C O M MTX005460D AWMC3 Owners Manual.indd 1 3/30/17 1:45 PM...
-
Page 2: Important Notice
IMPORTANT NOTICE If you have any questions regarding wire routing in a vehicle, please contact MTX Technical Support at 1-800-225-5689. When connecting power and ground wires ensure that the red power wire is fused at the point where it is connected to the vehicle’s battery. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the product. -
Page 3: Wire Connection
WIRE CONNECTION Power / Speaker Connector (SiriusXM Connect Tuner Sold Separately) Black AUX In Grey Line Out (Front) Brown Line Out (Rear) Antenna POWER AND SPEAKER CONNECTION Power / Speaker Connector Pin # Wire Color Wire Definition (SiriusXM Connect Tuner Sold Separately) White / Black Front Left Speaker (-) White... -
Page 4: Installation
INSTALLATION Mounting (Using Mounting Plate) To mount the unit, find a flat surface with adequate clearance behind it that provides enough room for the unit and all it’s necessary wiring. • Once a mounting location has been determined, cut a circular hole 3" (77mm) in diameter. • After the hole is cut, slide the unit and wiring through the hole. A piece of self adhesive EVA foam is supplied in order to create a water resistant seal. - Page 5 INSTALLATION Mounting (Using Optional Vehicle Specific Dash Mount Kit - Sold Separately) The unit will be mounted to each vehicle differently. Make sure to following the vehicle specific directions that were included with the dash kit. • Slide the two included speed clips onto the rear of the dash kit. • The dash kit may include additional space to mount rocker panel switches for accessories. On the rear of the dash kit, grooves will be provided to give proper location and size for mounting additional switches.
- Page 6 CONTROLS BLUETOOTH 11:00PM Song Title Artist Album 23/25 3:08 BLUETOOTH 11:00PM MUTE MENU Song Title Artist Album SOURCE 23/25 3:08 MUTE MENU 1. Power Button ( ) - This push button (On / Off) supplies power to the head unit. SOURCE 2.
-
Page 7: General Operations
Artist Artist Album Album 23/25 23/25 3:08 3:08 GENERAL OPERATIONS MUTE MENU MUTE MENU Switching On and Off Press Power Button ( ) to turn the device On. Hold Power Button ( ) to turn the device Off. SOURCE SOURCE Operating Mode Press Source Button to switch between radio reception (AM / FM / WB / SXM), audio input (AUX), USB and Bluetooth audio streaming (BT MUSIC). -
Page 8: Radio Functions
RADIO FUNCTIONS Selecting Radio Band • Press Source Button and rotate VOL knob. • Press VOL knob to select radio band. • Select FM or AM band. BLUETOOTH 11:00PM BLUETOOTH 11:00PM Song Title Song Title Artist Artist BLUETOOTH 11:00PM BLUETOOTH 11:00PM Album Album... -
Page 9: Siriusxm ® Operation
RADIO FUNCTIONS Local • Press Menu Button to enter FM Settings. • Press VOL knob and rotate to select Local. • Press VOL knob and rotate to select Local ON / OFF. Note: Only stations with good reception quality will be played under the Local setting. Select USA / Europe Area Frequencies •... - Page 10 SiriusXM OPERATION ® BLUETOOTH 11:00PM BLUETOOTH 11:00PM Selecting SiriusXM Song Title Song Title • Press the Source Button and rotate VOL knob. Artist Artist • Press VOL knob to select SXM mode. Album Album Note: If there is no SiriusXM Tuner connected this mode will be skipped. Please connect your 23/25 23/25 BLUETOOTH...
- Page 11 SiriusXM OPERATION ® Parental Control SiriusXM channels can be locked, and will need a pass code to access. The default code is “5220”. If the pass code is forgotten, simply run the SXM Factory Default to reset the pass code. GUIDE ON HOW TO ENTER THE CODE USING THE VOLUME BUTTON: When the first character is flashing, turn the rotary knob to select number 5 and press to enter. When the second character flashes, use the same operation to select the rest of the characters “2”,”2”,”0”.
-
Page 12: Operation
SiriusXM OPERATION ® Troubleshooting (cont) Subscription Updated The radio has detected a change in your SiriusXM subscription status. Press any button to clear the message. In the U.S.A., visit www.siriusxm.com or call 1- 866- 635- 2349 if you have questions about your subscription. In Canada, visit www.siriusxm.ca or call 1- 877- 438- 9677 if you have questions about your subscription. -
Page 13: Bluetooth Audio Streaming
® 1. Turn on the Bluetooth feature of the mobile device. Scan for available Bluetooth devices within range. Select “MTX-MC3” . (Please refer to the mobile device’s instruction manual for Bluetooth Pairing). 2. After successfully pairing, connect the mobile device to the AWMC3 via Bluetooth. A Bluetooth logo will appear on the phone menu screen and show “CONNECT”... -
Page 14: Specifications
SPECIFICATIONS Tuner FM Frequency Range 87.5 - 107.9 MHz (America) 87.5 - 108 MHz (Europe) Channel Step 100 kHz (America) 50 kHz (Europe) Sensitivity 2.8 μV Stereo Separation 30dB Signal to Noise Ratio 50dB Tuner AM Frequency Range 530 - 1710 KHz (America) 522 - 1620 KHz (Europe) Usable Sensitivity 32dB... - Page 15 NOTES: M T X . C O M MTX005460D AWMC3 Owners Manual.indd 15 3/30/17 1:45 PM...
- Page 16 © 2017 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio, Inc.
