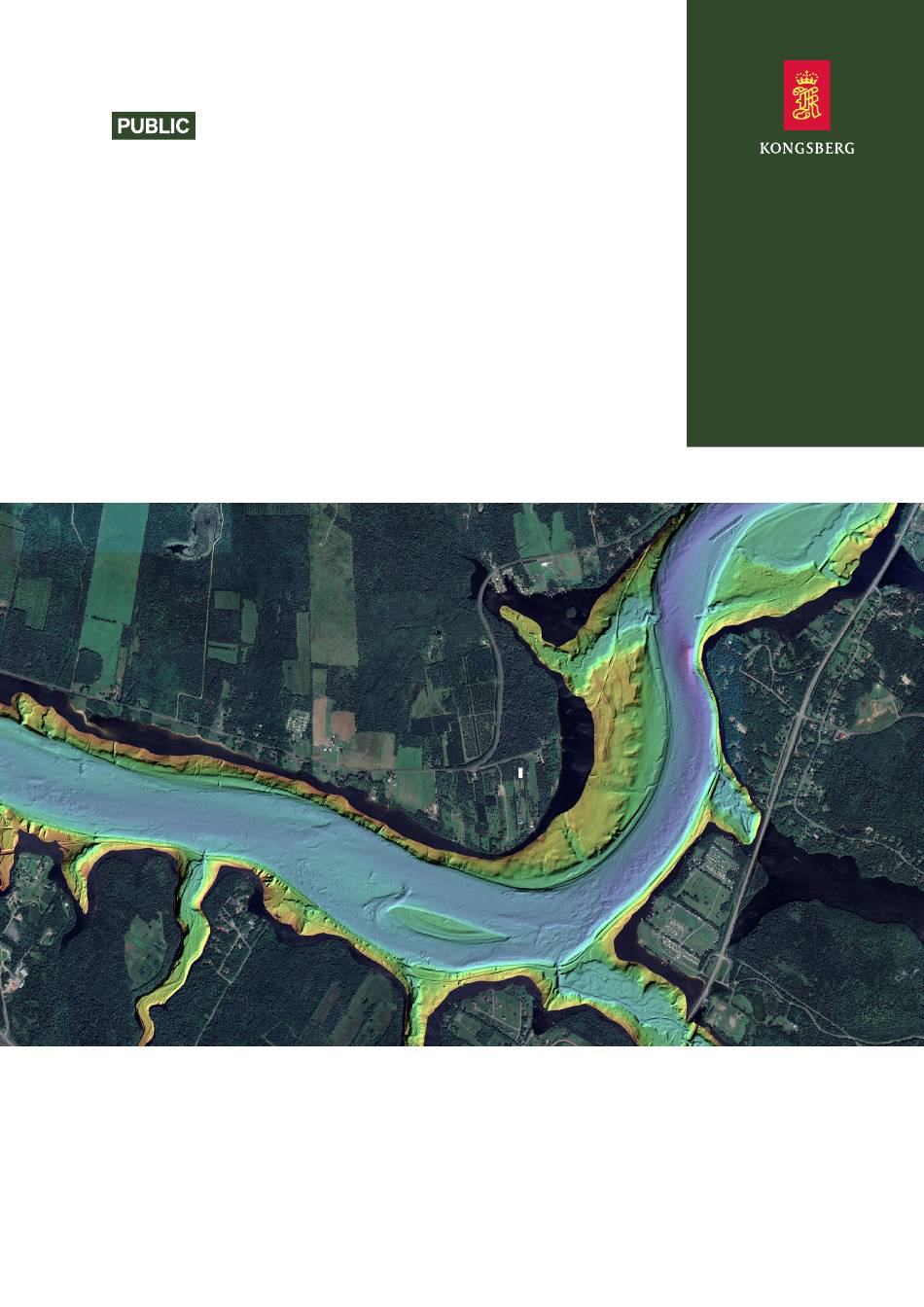

Installation Manual
M3 Sonar® PHS
Portable Hydrographic System
kongsberg.com/discovery
922-00037011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3 Sonar PHS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kongsberg M3 Sonar PHS

Summary of Contents for Kongsberg M3 Sonar PHS

  • Page 1 Installation Manual M3 Sonar® PHS Portable Hydrographic System kongsberg.com/discovery 922-00037011...
  • Page 3 Release 1.3 This manual provides you with the basic information required to install the Kongsberg M3 Sonar PHS. The information is intended for personnel with basic mechanical skills. For information about the practical use of the product, refer to the Kongsberg M3 Sonar PHS Operator manual.
  • Page 4 If you require maintenance or repair, contact your local dealer. You can contact us by phone at +1 604 464 8144, or by email at: support.vancouver@kd.kongsberg.com. If you need information about our other products, visit https://www.kongsberg.com/discovery/. On our website you will also find a list of our dealers and distributors.

  • Page 5: Table Of Contents

    Read this first ........................41 Cable plan ........................42 List of cables ........................43 Installing the M3 Sonar PHS cables ................44 Connecting the Seapath 130 sensor unit to the Interface Unit .......44 Connecting the underwater sensors to the Interface Unit........45 Connecting the Sonar Processor and power supply to the Interface Unit ....48 Cable drawings and specifications ...................50...
  • Page 6 SETTING TO WORK ..............52 Setting to work summary ....................53 Verifying that the M3 Sonar PHS system is ready for operational use......54 Turning on the M3 Sonar PHS system for the first time..........55 Configuring the M3 Sonar PHS system for normal operation.........57 Setting the Sonar Processor to High Performance ..........58...

  • Page 7: About This Manual

    We assume that you are familiar with the basic acoustic principles of sound in water. Familiarity with multibeam echo sounders and survey techniques is also recommended. License information The M3 software is included with the M3 Sonar PHS. Updates are available free of charge. Software version This M3 Sonar PHS Installation Manual complies with M3 software version 2.5.4.

  • Page 8: M3 Sonar Phs

    M3 Sonar PHS Installation Manual M3 Sonar PHS Topics System description, page 7 System diagram, page 8 System units, page 9 Scope of supply, page 13 General safety rules, page 15 Installation requirements, page 16 Support information, page 16 922-00037011/1.3...

  • Page 9: System Description

    M3 Sonar PHS System description The M3 Sonar PHS is a compact Portable Hydrographic System (PHS) for shallow-water survey. System components: • Laptop computer • M3 Sonar Head • Seapath 130 sensor and Motion Reference Unit (MRU) • Sound speed sensor •...

  • Page 10: System Diagram

    M3 Sonar PHS Installation Manual System diagram The system diagram identifies the main components of the M3 Sonar PHS. Seapath 130 sensor unit DGNSS Correction source M3 Sonar Interface Unit Motion Reference Unit (MRU) Sound speed sensor M3 Sonar Head...

  • Page 11: System Units

    M3 Sonar PHS System units Topics Sonar Processor, page 10 M3 Sonar Interface Unit, page 10 Seapath 130 sensor unit, page 10 Sonar Head, page 11 Motion Reference Unit, page 11 Sound speed sensor, page 12 Pole Mount, page 12...

  • Page 12: Sonar Processor

    In this publication, the computer can also be referred to as the Processor Unit, and vice versa. The Sonar Processor contains the operational software, and offers the user interface that allows you to control the M3 Sonar PHS. It is a vital part of the M3 Sonar PHS system.

  • Page 13: Sonar Head

    • Model number 922-20360000 (700-1400 kHz, with an integrated sound speed sensor) In the M3 Sonar PHS, the Sonar Head is attached to the bottom of the Pole Mount. The Sonar Head connects to the M3 Sonar Interface Unit through a head cable with 100Mbps Ethernet and 1PPS time synchronization.

  • Page 14: Sound Speed Sensor

    Sonar Head, a dedicated cable connected to the M3 Sonar Interface Unit is not required. Pole Mount The M3 Sonar PHS Pole Mount provides precise and easy bolt on/off of flanges for all the sensors. Key features: •...

  • Page 15: Scope Of Supply

    M3 Sonar PHS system for full operational functionality.Such items can be purchased from Kongsberg Discovery or obtained locally. Some items are optional. When you unpack the parts provided with the M3 Sonar PHS system delivery, make sure that the following items are included.
  • Page 16 Operating manual Note When you order the M3 Sonar PHS, several choices are available. For example, for the Motion Reference Unit, you can choose either an MRU-3 or MRU-H. For the Sonar Head, you can choose a model with an integrated sound speed sensor or a Sonar head plus an external sound speed sensor.

  • Page 17: Additional Required Items

    Additional items are available for the M3 Sonar PHS. Some are required for operation. These items must be added to the M3 Sonar PHS system for full operational functionality. The additional items can be provided by Kongsberg Discovery. You can order them with the other basic M3 Sonar PHS items.You can also purchase these items from your...

  • Page 18: Installation Requirements

    The Uninterruptible Power Supply (UPS) must have the capacity to independently maintain power to the M3 Sonar PHS system for a minimum of 10 minutes. This allows you to turn off the M3 Sonar PHS system in a controlled manner in the event of a power failure.

  • Page 19: Preparations

    Preparations Preparations Topics Installation summary, page 18 Tools and equipment required for installation, page 19 922-00037011/1.3...
  • Page 20 M3 Sonar PHS Installation Manual Installation summary Installation of the M3 Sonar PHS system requires a number of specific procedures and software settings. Two people are required for this installation. Context An overall installation procedure is provided. Note In order to obtain maximum safety and optimal performance, it is very important that the installation procedures in this manual are complied to.
  • Page 21 Specific fasteners and consumables you will need for the M3 Sonar PHS installation are included in the supplied accessory kits. The following tools and items are required for the M3 Sonar PHS installation and are not included in the standard delivery. You must purchase these items locally.

  • Page 22: Attaching The Pole Mount To The Vessel

    Attaching the Pole Mount to the vessel The M3 Sonar PHS is designed to be installed on a vessel of opportunity. However, we recognize that there are no two vessels exactly alike. Depending on the intended use, you may choose either a semi-permanent or a temporary mounting arrangement.
  • Page 23 Attaching the Pole Mount to the vessel – Welding rod or filler metal compatible with the vessel and Weld Down plate material Caution Welding is a dangerous process that can cause burns, eye damage, and exposure to harmful fumes. Always follow proper safety procedures and wear appropriate Personal Protective Equipment (PPE) including welding helmet, gloves, fire-resistant clothing, and respirator.
  • Page 24 M3 Sonar PHS Installation Manual Example of Pole Mount attached directly to the vessel: We recommend semi-permanent mounting as the most secure method. However, we understand modifications may not be possible on the available vessel of opportunity. In this case, temporary mounting methods are also possible. Temporary mounting methods include clamping or bolting a board to the vessel.
  • Page 25 Attaching the Pole Mount to the vessel Regardless of how you mount the M3 Sonar PHS, the most important task is to make sure the Pole Mount is secure so that it doesn’t fall off the vessel during use. Note There are many different ways to do this installation, and many vessels have established their own procedures and best practices for this task.
  • Page 26 M3 Sonar PHS Installation Manual If you wish to attach the Pole Mount directly to the vessel, secure the Base Plate to the vessel. Position the Pole Mount’s Base Plate in an appropriate location on the vessel, such as on the gunnel.
  • Page 27 Attaching the Pole Mount to the vessel Position the Weld Down plate in an appropriate location on the vessel, such as on the gunnel. Mark the exact location for welding, and make sure the plate is properly aligned with the Base Plate attachment points. Clamp the plate firmly in place to prevent movement during welding.

  • Page 28: Attaching The Sensors To The Pole Mount

    Unit is mounted on the MRU flange. The Sonar Head and sound speed sensor are mounted on the M3 Sonar flange. Prerequisites • To install the M3 Sonar PHS system, you must have basic mechanical skills. At least two persons must do the installation together. • Attach the Pole Mount to the vessel.
  • Page 29 Attaching the sensors to the Pole Mount If required, assemble the MRU flange using the provided fasteners. Attach the MRU flange to the Z-pole with the three provided fasteners (!). The provided fasteners include two small screws and one large locking screw. 922-00037011/1.3...
  • Page 30 M3 Sonar PHS Installation Manual Attach the Motion Reference Unit to the MRU flange with the four provided fasteners, including two washers for each fastener. Important Make sure that the MRU is oriented according to the mounting angles configured in the Seapath operator software. Use the X and Y arrow indications etched onto the MRU housing to correctly orient the device.
  • Page 31 Attaching the sensors to the Pole Mount If you are using a Sonar Head with an integrated sound speed sensor, attach the M3 Sonar flange without the sound speed sensor clamp. Attach the Sonar Head to the M3 Sonar flange with the four provided fasteners, including two washers for each fastener.
  • Page 32 M3 Sonar PHS Installation Manual If you are using a Sonar Head with an integrated sound speed sensor, underwater sensor installation is complete. If you are using a standalone Sonar Head (without an integrated sound speed sensor), attach the sound speed sensor to the M3 Sonar flange with four fasteners.
  • Page 33 Attaching the sensors to the Pole Mount Related topics MRU flange outline dimensions, page 85 M3 Sonar flange outline dimensions, page 87 922-00037011/1.3...
  • Page 34 Installing the Seapath 130 sensor unit The M3 Sonar PHS Pole Mount comes with a custom mounting bracket for the Seapath 130 sensor unit, called the Seapath sensor flange. The Seapath 130 sensor unit is mounted onto this flange, which is attached to the top of the GPS Mast.

  • Page 35: Installing The Seapath 130 Sensor Unit

    Installing the Seapath 130 sensor unit Procedure Lower the Pole Mount into a deployment position. Stabilize the Z-pole with a block and tackle set or by employing multiple people to hold the pole in place. Remove the hinge bracket (A) by unfastening the two long bolts and two short bolts securing the bracket in place.
  • Page 36 M3 Sonar PHS Installation Manual Attach the Seapath sensor flange (A) onto the GPS Mast (B) with the four provided fasteners (1/2"-13 screws). Attach the GPS Mast to the Seapath 130 sensor unit. Place the Seapath 130 sensor unit upside down on the deck.
  • Page 37 Installing the Seapath 130 sensor unit Attach the Seapath sensor mounting bracket (A) to the Seapath sensor flange (B) using the four provided fasteners (5/16"-18 screws with washers). Flip the GPS Mast assembly upside down and attach it onto the Seapath 130 sensor unit. Re-fasten the four bolts (!) attaching the mounting bracket to the sensor unit.
  • Page 38 M3 Sonar PHS Installation Manual Result The underwater sensors and Seapath 130 sensor unit have been installed on the Pole Mount. Related topics Seapath sensor flange outline dimensions, page 88 922-00037011/1.3...

  • Page 39: Installing The Sonar Processor

    Installing the Sonar Processor Installing the Sonar Processor The Sonar Processor is the computer that controls the M3 Sonar PHS. It is a vital part of the M3 Portable Hydrographic System (PHS). Prerequisites A suitable location for the computer must be defined prior to installation. This computer is intended to be installed inside in an area suitable for extended human habitation.
  • Page 40 Note Make sure that the chosen computer meets the M3 Sonar PHS requirements. The design and construction must allow for marine use, and the computer must be able to withstand the movements and vibrations normally experienced on a vessel. Verify that you have easy access to cables and connectors, and that the computer can be installed in a safe and secure way.
  • Page 41 When you connect the cables, make sure that they are all properly secured, and able to withstand the vibration and movements of the vessel. Result The M3 Sonar PHS Sonar Processor is set up in a suitable location with the power supply and mouse connected. 922-00037011/1.3...

  • Page 42: Cable Layout And Interconnections

    M3 Sonar PHS Installation Manual Cable layout and interconnections Topics Read this first, page 41 Cable plan, page 42 List of cables, page 43 Installing the M3 Sonar PHS cables, page 44 Cable drawings and specifications, page 50 922-00037011/1.3...

  • Page 43: Read This First

    Read this first Detailed information about cable specifications, termination and connectors is provided. Unless otherwise specified, all cables are supplied by Kongsberg Discovery as a part of the delivery. Kongsberg Discovery Canada Limited accepts no responsibility for damage to the system, or reduced operational performance, when this is caused by improper wiring.

  • Page 44: Cable Plan

    M3 Sonar PHS Installation Manual Cable plan Seapath 130 sensor unit Motion Reference Unit (MRU) M3 Sonar Head Sound speed sensor Pole Mount M3 Sonar Interface Unit M3 Sonar Processor to run M3 software and third-party acquisition software Breakout box for power and Ethernet telemetry...

  • Page 45: List Of Cables

    Cable layout and interconnections List of cables A set of cables is required to connect the system units to each other, and to the relevant power source(s). Type From Cable Fixed-length cable Seapath 130 sensor unit M3 Sonar Interface Unit 20-ft cable M3 Sonar Head M3 Sonar Interface Unit...

  • Page 46: Installing The M3 Sonar Phs Cables

    M3 Sonar PHS Installation Manual Installing the M3 Sonar PHS cables Topics Connecting the Seapath 130 sensor unit to the Interface Unit, page 44 Connecting the underwater sensors to the Interface Unit, page 45 Connecting the Sonar Processor and power supply to the Interface Unit, page 48...

  • Page 47: Connecting The Underwater Sensors To The Interface Unit

    Cable layout and interconnections Connect the six-metre cable to the port labelled Seapath Ant. on the Interface Unit (B). Attach the cable to the GPS Mast with electrical tape or a cable tie. Connecting the underwater sensors to the Interface Unit All underwater sensors, including the Sonar Head, Motion Reference Unit (MRU), and sound speed sensor connect to the M3 Sonar Interface Unit.
  • Page 48 M3 Sonar PHS Installation Manual Procedure Locate and unroll the cables that attach to the MRU, Sonar Head, and sound speed sensor. Note If you are using a Sonar Head with an integrated sound speed sensor, a cable for the sound speed sensor is not necessary.
  • Page 49 Cable layout and interconnections Mate and fully secure the locking ring so that it is hand tight. Hold the cable connector while tightening the engaging nut. Over-tightening may damage the connector. Install the dummy plug into the other connector on the MRU. Caution The Motion Reference Unit can be damaged if it is turned on without the dummy plug installed.

  • Page 50: Connecting The Sonar Processor And Power Supply To The Interface Unit

    M3 Sonar PHS Installation Manual You may also wish to tape down the cables at the bottom of the Pole Mount to minimize cable movement during the survey. Connecting the Sonar Processor and power supply to the Interface Unit The Sonar Processor and power supply connect to a breakout box. The breakout box connects to the M3 Sonar Interface Unit with a 50-foot deck cable.
  • Page 51 Cable layout and interconnections Connect the Ethernet cable to the Ethernet port (A) on the breakout box. Connect the other end of the Ethernet cable to the RJ45 network socket on your Sonar Processor. Connect the power supply cable to the port on the right side (B) of the breakout box. Note The port on the left side of the breakout box is reserved for other use.

  • Page 52: Cable Drawings And Specifications

    M3 Sonar PHS Installation Manual Cable drawings and specifications Topics Sonar Head - SEA CON MINK-10-CCPL:Power, Ethernet, 1PPS, and Sync, page 51 Motion Reference Unit - Seatex with 10m subsea bottle: Connector A, page 51 922-00037011/1.3...

  • Page 53: Sonar Head - Sea Con Mink-10-Ccpl:power, Ethernet, 1Pps, And Sync

    Cable layout and interconnections Sonar Head - SEA CON MINK-10-CCPL: Power, Ethernet, 1PPS, and Sync This rugged cable is intended for underwater use and includes both power and Ethernet telemetry connections for the Sonar Head. The underwater connector is a dry-mate style and must be mated or unmated at the surface.

  • Page 54: Setting To Work

    Topics Setting to work summary, page 53 Verifying that the M3 Sonar PHS system is ready for operational use, page 54 Turning on the M3 Sonar PHS system for the first time, page 55 Configuring the M3 Sonar PHS system for normal operation, page 57...

  • Page 55: Setting To Work Summary

    Setting to work summary Once all the hardware units have been installed, and all the cables have been connected, the M3 Sonar PHS system can be turned on for the first time and set to work. Prerequisites • The system units have all been installed according to the instructions provided..

  • Page 56: Verifying That The M3 Sonar Phs System Is Ready For Operational Use

    Verifying that the M3 Sonar PHS system is ready for operational use The M3 Sonar PHS system relies on communication between each unit, and between the M3 Sonar PHS system and external devices. It is very important that the hardware, cables, and software are properly installed. Prerequisites •...

  • Page 57: Turning On The M3 Sonar Phs System For The First Time

    Turning on the M3 Sonar PHS system for the first time Turn on the M3 Sonar PHS using the power switch on the M3 Sonar Interface Unit. Prerequisites • The M3 Sonar PHS units have all been installed according to the instructions provided in the M3 Sonar PHS Installation Manual.
  • Page 58 Note After the system is turned on, it will take up to 30 minutes for the MRU and the GPS to achieve full accuracy. Further requirements You are now ready to configure the M3 Sonar PHS for operational use. 922-00037011/1.3...

  • Page 59: Configuring The M3 Sonar Phs System For Normal Operation

    Setting to work Configuring the M3 Sonar PHS system for normal operation Topics Setting the Sonar Processor to High Performance, page 58 Restoring USB Driver Functionality in Windows 10, page 59 Defining the IP address on the computer's network adapter, page 60...

  • Page 60: Setting The Sonar Processor To High Performance

    M3 Sonar PHS Installation Manual Setting the Sonar Processor to High Performance To avoid slowdowns or disruptions while running the sonar, ensure your Sonar Processor is using all of its processing power and does not go to sleep. Prerequisites ®...

  • Page 61: Restoring Usb Driver Functionality In Windows 10

    Setting to work Restoring USB Driver Functionality in Windows 10 If you are using Windows 10, a new security feature may cause your system installation to fail, especially if you are using a USB port in your system. For example, a USB port is used to interface with a security key inserted into the USB port, or an Interface Unit connected via the USB port.

  • Page 62: Defining The Ip Address On The Computer's Network Adapter

    64-bit Windows 10 operating system. Context If purchased from Kongsberg Discovery, the M3 Sonar PHS Sonar Processor is configured at the factory prior to delivery. If you are using your own computer, you will only need to do this procedure once.

  • Page 63: Installing The M3 Software

    We recommended installing the latest M3 software on your Sonar Processor. Prerequisites • You can find the software on the Kongsberg USB drive included with the system, or you can contact your local dealer or distributor to have the latest software version installed.

  • Page 64: Configuring The M3 Software

    M3 Sonar PHS Installation Manual Configuring the M3 software If purchased from Kongsberg Discovery, the M3 Sonar PHS Sonar Processor is configured at the factory prior to delivery. If you are using your own computer, you will only need to do this procedure once.
  • Page 65 Setting to work Enter the following values in the section. UDP Data Export Port for .ALL format: 20002 This UDP port must match the port set in the Hypack software. Remote IP Address: 127.0.0.1 127.0.0.1 is a loopback address (localhost). The Remote IP Address shown here assumes Hypack is running on the same computer as the M3 software.
  • Page 66 M3 Sonar PHS Installation Manual → → → Click Setup System Configuration Devices Sensors Setup Click , then set the Protocol GGA (GPS position) for the Seapath Add Device 130 sensor unit with the following device properties. Name: Seapath Position...
  • Page 67 Setting to work Click , then set the Protocol TSS (heave, roll, and pitch) for the Add Device Motion Reference Unit (MRU) with the following device properties. Name: Protocol: Port Location: PC UDP Port#: 31301 If you have a standalone sound speed sensor, click , then set the Add Device Protocol Valeport MiniSVS for the sound speed sensor with the following...
  • Page 68 Setup System Configuration Deployment Mounting Offsets Make sure that the X, Y, and Z offsets are all zero. Note In the M3 Sonar PHS, the X (Starboard), Y (Forward), and Z (Vertical) offsets are entered into the Hypack software. 922-00037011/1.3...
  • Page 69 Setting to work Select for the parameter. Downward Orientation Rotate the sonar view. → Click Display Sector Orientation Select 180. 922-00037011/1.3...

  • Page 70: Creating A Backup With The M3 Configuration And Software Installation

    Creating a backup with the M3 configuration and software installation If the M3 software is pre-configured at the factory, you will lose all the M3 Sonar PHS settings if you re-install the software. We recommend creating a backup in case you need to restore your settings at a later time.

  • Page 71: Turning Off The M3 Sonar Phs System

    Setting to work Turning off the M3 Sonar PHS system Turn off the M3 Sonar PHS using the power switch on the M3 Sonar Interface Unit. Context When you do not use the M3 Sonar PHS system, turn it off.

  • Page 72: Drawing File

    Drawing file About the drawings in the drawing file Relevant drawings related to the installation and/or maintenance of the M3 Sonar PHS are provided for information purposes only. The drawings are not to scale. Unless otherwise specified, all measurements are in inches.

  • Page 73: Seapath 130 Sensor Unit Outline Dimensions

    Drawing file Seapath 130 sensor unit outline dimensions 922-00037011/1.3...

  • Page 74: Motion Reference Unit Outline Dimensions

    M3 Sonar PHS Installation Manual Motion Reference Unit outline dimensions 922-00037011/1.3...

  • Page 75: 500 M Sonar Head Outline Dimensions

    Drawing file 500 m Sonar Head outline dimensions 922-00037011/1.3...
  • Page 76 M3 Sonar PHS Installation Manual 922-00037011/1.3...
  • Page 77 Drawing file 922-00037011/1.3...

  • Page 78: High Frequency Sonar Head Outline Dimensions

    M3 Sonar PHS Installation Manual High Frequency Sonar Head outline dimensions 922-00037011/1.3...
  • Page 79 Drawing file 922-00037011/1.3...

  • Page 80: Sonar Head With Integrated Sound Speed Sensor Outline Dimensions

    M3 Sonar PHS Installation Manual Sonar Head with integrated sound speed sensor outline dimensions 922-00037011/1.3...
  • Page 81 Drawing file 922-00037011/1.3...
  • Page 82 M3 Sonar PHS Installation Manual 922-00037011/1.3...

  • Page 83: High Frequency Sonar Head With Integrated Sound Speed Sensor Outline Dimensions

    Drawing file High Frequency Sonar Head with integrated sound speed sensor outline dimensions 922-00037011/1.3...
  • Page 84 M3 Sonar PHS Installation Manual 922-00037011/1.3...
  • Page 85 Drawing file Sound speed sensor outline dimensions 922-00037011/1.3...

  • Page 86: M3 Sonar Interface Unit Outline Dimensions

    M3 Sonar PHS Installation Manual M3 Sonar Interface Unit outline dimensions 922-00037011/1.3...

  • Page 87: Mru Flange Outline Dimensions

    Drawing file MRU flange outline dimensions 922-00037011/1.3...
  • Page 88 M3 Sonar PHS Installation Manual Related topics Attaching the sensors to the Pole Mount, page 26 922-00037011/1.3...

  • Page 89: M3 Sonar Flange Outline Dimensions

    Drawing file M3 Sonar flange outline dimensions Related topics Attaching the sensors to the Pole Mount, page 26 922-00037011/1.3...

  • Page 90: Seapath Sensor Flange Outline Dimensions

    M3 Sonar PHS Installation Manual Seapath sensor flange outline dimensions Related topics Installing the Seapath 130 sensor unit, page 32 922-00037011/1.3...

  • Page 91: Technical Specifications

    Technical specifications Technical specifications Topics Introduction to technical specifications, page 90 Performance specifications, page 90 Mechanical specifications, page 92 Power requirements, page 94 Environmental requirements, page 94 Minimum computer requirements, page 96 922-00037011/1.3...

  • Page 92: Introduction To Technical Specifications

    M3 Sonar PHS Installation Manual Introduction to technical specifications These technical specifications summarize the main functional and operational characteristics of the M3 Sonar PHS Portable Hydrographic System (PHS). They also provide information related to power requirements, physical properties and environmental conditions.
  • Page 93 Technical specifications 922-20300000 M3 Sonar HF • : 0.2 to 100 m Depth • : 5 x Depth / 140°, 1.5 x Depth / 75°, 0.8 x Depth / 45° Coverage • : 1 cm Range resolution • : 700 kHz, 950 kHz, 1200 kHz, 1400 kHz Frequencies •...

  • Page 94: Mechanical Specifications

    : Sound velocity is in mm/s. Pressure data is in dBar. Temperature Data String Format data is in °C. AML SVT Xchange sound speed sensor A Sonar Head with an integrated AML sound speed sensor is available from Kongsberg Discovery. • : 1375 - 1625 m/s Range •...
  • Page 95 Technical specifications • : 3.3 kg (7.3 lb) Weight • : Aluminium Materials 922-20220000 M3 Sonar • : 500 m Depth rating • Dimensions – : 185 mm (7.28”) Diameter – : 126 mm (4.95”) Depth • : 4.4 kg (air), 1.8 kg (water) Weight •...

  • Page 96: Power Requirements

    : Carbon Composite Sensor Legs • : Titanium Reflector Plate AML SVT Xchange sound speed sensor A Sonar Head with an integrated AML sound speed sensor is available from Kongsberg Discovery. • : 11000 m Depth rating • : 120 g Weight •...
  • Page 97 : Resistant to corrosion; virtually zero coefficient of thermal Sensor spacer rods expansion AML SVT Xchange sound speed sensor A Sonar Head with an integrated AML sound speed sensor is available from Kongsberg Discovery. • : -20 to 60 °C Storage temperature •...

  • Page 98: Minimum Computer Requirements

    Windows 7 are not supported. Display recommendations A display is a required part of the M3 Sonar PHS system. For best readability, the display must be protected from glare and have the correct height and angle. The design...
  • Page 99 Technical specifications and construction must allow for marine use, and the display must be able to withstand the movements and vibrations normally experienced on a vessel. • : We recommend that you use a large display with resolution 1920 x Resolution 1080.
  • Page 100 M3 Sonar PHS Installation Manual Index Motion Reference Unit (MRU) outline dimensions drawing........72 about MRU flange outline dimensions drawing..... 85 comments ..........5 Seapath 130 sensor unit outline dimensions constructive criticism........5 drawing ..........71 drawings........... 70 Seapath sensor flange outline dimensions feedback............
  • Page 101 Turning off the M3 Sonar PHS system ....69 interconnection cables........43 Turning on the M3 Sonar PHS system....55 shipyard cables ........... 43 verify the M3 Sonar PHS is ready for use .... 54 system cables ..........43 humidity requirements ..........94 M3 Sonar flange outline dimensions drawing ......
  • Page 102 Turning off the M3 Sonar PHS system ....69 outline dimensions drawing ....73, 76, 78, 81 Turning on the M3 Sonar PHS system....55 overview ..........11 verifying the M3 Sonar PHS is ready for use ..54 purpose ............ 11 procedures Sonar Processor cables ..........
  • Page 103 ............5 purpose ............. 5 target audience ..........5 tools installation of system units ......19 Turning off the M3 Sonar PHS system ....69 Turning on the M3 Sonar PHS system....55 uninterruptible power supply installation requirements........ 16 units standard tools for installation ......
