STANDARD OPERATING PROCEDURES
Operating the DJI INSPIRE™ 2 Drone
General
I.
This standard operating procedure references the user manual provided by DJI manufacturer in
terms of the operating procedure of the DJI INSPIRE™ 2. The INSPIRE™ 2 is a filmmaking drone
that integrates an HD video transmission system and 360° rotating gimbal. The drone weighs 7.58
lbs (3440 g, including two batteries, without gimbal and camera), and the maximum takeoff weight
is 9.37 lbs (4250 g). The camera unit is independent from the image processor, and a Zenmuse
X5S™ camera is used to capture RAW videos for the data collection task. The drone has a dual
battery system that prolongs the flight time to a maximum of 25 minutes, and its operating
temperature should be within the range of -4° to 104° F (-20° to 40° C). Figure 1 shows the front
and overhead views of a DJI INSPIRE™ 2 drone.

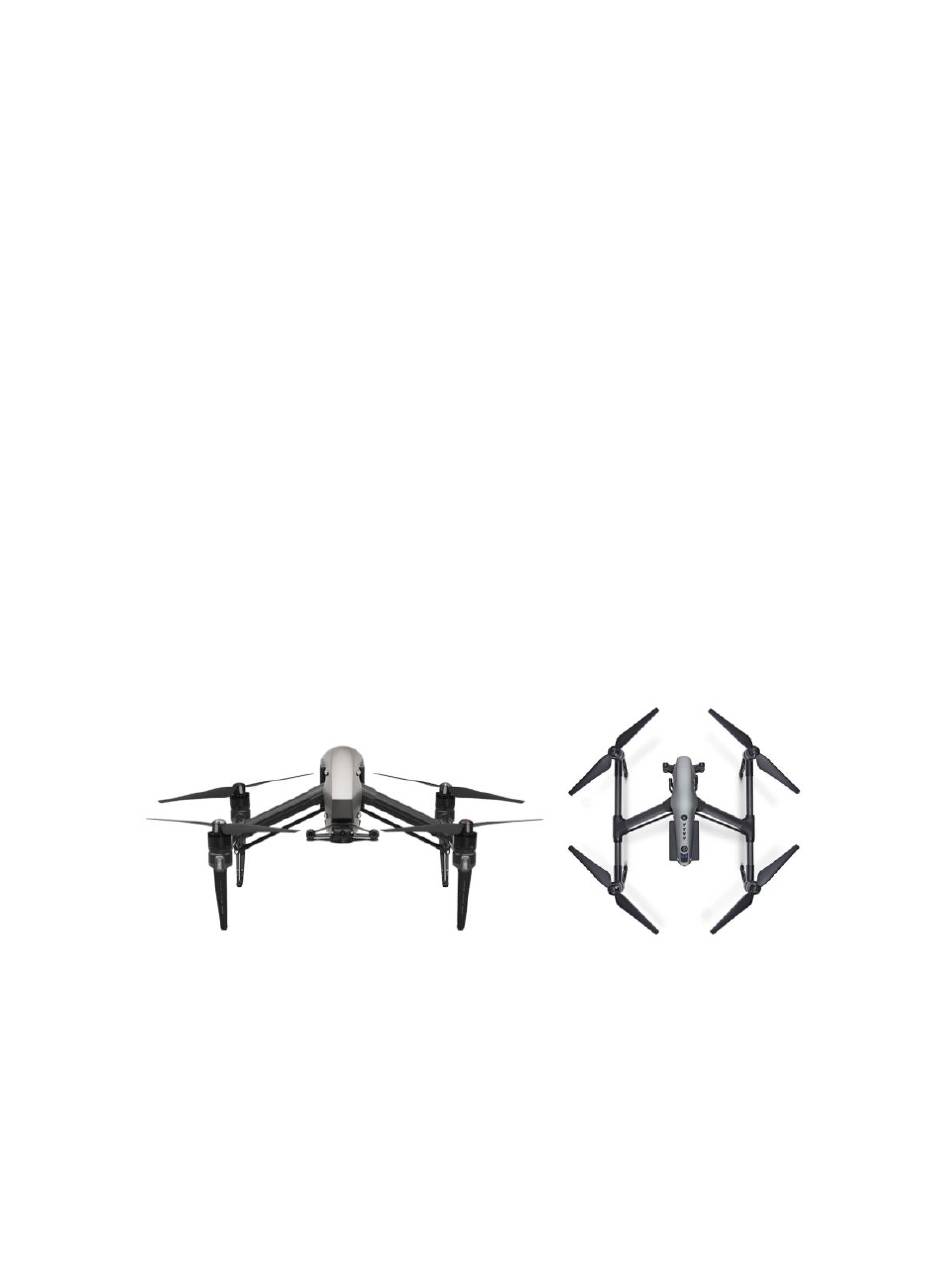

Figure 1. DJI INSPIRE™ 2 Drone
