Power Team SPX PE-NUT Operating Instructions And Parts List Manual

Hydraulic power pump
Hide thumbs

Advertisement

Table of Contents

SPX Hydraulic Technologies
5885 11th Street
Rockford, IL 61109-3699 USA
powerteam.com
TOTAL WEIGHT:
28 lbs. with oil (12.7 kg with oil)
HYDRAULIC LINES:
Hydraulic lines rated for a minimum of 10,000 psi working
pressure must be used.
Litho in USA
Tech Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031

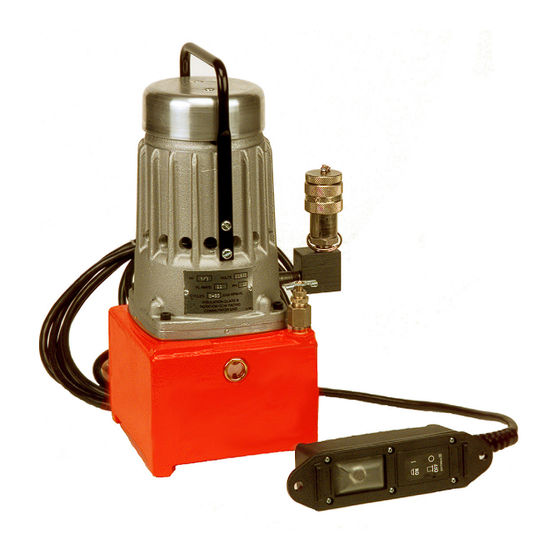

MODEL PE-NUT
HYDRAULIC POWER PUMP
Operating Instructions and Parts List for:
INTRODUCTION
The PE-NUT Hydraulic Power Pump is designed for spring-
returned remote tools.
SPECIFICATIONS
MOTOR:
5/8 HP (.47 kw), 115 volts or 230 volts AC with 11 amps
current draw
PUMPING CAPACITY:
160 cu. in. per minute at 100 PSI (2.62liters per minute at
700 kPA/7 BAR)
30 cu. in. per minute at 10,000 PSI (.491 liters per minute at
70,000 kPA/700 BAR)
RESERVOIR VOLUME:
1.6 quarts total (1.51 liters total)
OIL TYPE
Petroleum based fluids, 180 SSU minimum at 100 degree F,
50 SSU at
210 degree F, minimum for best performance.
VALVE SETTINGS:
Low pressure relief valve, 150 PSI (1,050 kPA/10 BAR).
High pressure relief valve, 10,000 PSI (70,000 kPA/ 700 BAR)
MOTOR CONTROL:
Pendant switch
CONTROL VALVE:
Internal pressure-operated release valve
OVERALL DIMENSIONS:
6-1/2 x 8-1/4 x 14-3/8 inches high.
(16.51 x 20.95 x 36.51 cm high
Sheet No.
Rev. 3 Date: 4 October 2013
Form No. 1000017
PE-NUT
PE-NUTC
1 of 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPX PE-NUT and is the answer not in the manual?

Questions and answers

Related Manuals for Power Team SPX PE-NUT

Summary of Contents for Power Team SPX PE-NUT

  • Page 1 Form No. 1000017 Operating Instructions and Parts List for: SPX Hydraulic Technologies Tech Services: (800) 477-8326 5885 11th Street Fax: (800) 765-8326 Rockford, IL 61109-3699 USA Order Entry: (800) 541-1418 PE-NUT powerteam.com Fax: (800) 288-7031 PE-NUTC MODEL PE-NUT HYDRAULIC POWER PUMP INTRODUCTION The PE-NUT Hydraulic Power Pump is designed for spring- returned remote tools.

  • Page 2: Important Safety Information

    Operating Instructions and Parts List, Form No. 1000017 IMPORTANT SAFETY INFORMATION This is the safety alert symbol. WARNING To help prevent personal injury, It is used to alert you to potential personal injury hazards. • Always wear eye protection whenever Obey all safety messages that follow this symbol to avoid operating hydraulic equipment.

  • Page 3: Servicing Instructions

    Operating Instructions and Parts List, Form No. 1000017 OPERATING INSTRUCTIONS BE SURE THAT EQUIPMENT CONNECTED TO THIS PUMP IS RATED FOR 10,000 PSI WARNING OPERATION. • Quick coupler connection: • Remove dust covers from couplers • Push male and female halves together at each connection and spin the threaded sleeve of the female half securely onto the threaded portion of the male half.
  • Page 4 Operating Instructions and Parts List, Form No. 1000017 POWER SUPPLY (continued) • If the power cord is damaged or wiring is exposed, replace or repair immediately. • Changing the voltage on this unit is an involved, and if improperly performed, hazardous procedure. Consult the manufacturer for specific information before attempting any rewiring.

  • Page 5: Preventive Maintenance

    Operating Instructions and Parts List Form No. 1000017 PREVENTIVE MAINTENANCE WARNING To help prevent personal injury, • Disconnect the pump from the power supply before performing maintenance or repair procedures. • Repairs and maintenance are to be performed in a dust-free area by a qualified technician. IMPORTANT Maintenance Cleaning Never use a high pressure washer to clean hydraulic components!
  • Page 6 Operating Instructions and Parts List Form No. 1000017 TROUBLE-SHOOTING GUIDE (continued) 1. Fluid level too low. 1. Fill reservoir according to Pump is not delivering fluid or directions “Adding Oil”under delivers only enough fluid to advance “Servicing Instruction” section cylinder(s) partially or erratically. Cold fluid or fluid too viscous.
  • Page 7 5-0815 Screw, (10-32 x 1/2 P.H.M.) 360085 Control, Hand 4-0967 Label, Rykon MV Oil 3-2719 Elbow, Hi-Pressure 202173 Decal, Tradename Power Team 10016 Screw, 200188 Decal, Warning Important (1/4-20 x 1 S.H.C.) 11013 Screw (5/16-18 x 1 S.H.C.) 9797 Plug, Dust...
  • Page 8 Operating Instructions and Parts List Form No. 1000017 MOTOR ASSEMBLY NO. 3-0102 Note: Item 16 (2 pieces 3-3/8 inches long) 4 17 21 13 12 2 1 11 2 1 Black field lead White Green Black brush lead Red brush lead SECTION A-A ELECTRICAL SCHEMATIC SECTION B-B...

  • Page 9: Plan View

    Operating Instructions and Parts List Form No. 1000017 Adhere Magnet in this corner 2 & 3 (.02 RESERVOIR ASSEMBLY 4 & 3 (.02 oz.) No. 3-0108-0R9 PLAN VIEW ELEVATION Item Part Item Part Req’d Description Req’d Description 3-03190R9 Reservoir, 1 Quart 5-0313 .04oz.
  • Page 10 Operating Instructions and Parts List Form No. 1000017 HOUSING ASSEMBLY, INTAKE No. 3-2569 Item Part Item Part Req’d Description Req’d Description 3-2567 Screen, Intake 3-6687 Housing, Intake PISTON ASSEMBLY P.O. No. 3-2576 Item Part Item Part Req’d Description Req’d Description 3-6036 Piston, Valve 5-2836...
  • Page 11 Operating Instructions and Parts List Form No. 1000017 "A" "A" (4 PLACES) "B" (SEAT LIGHTLY IN HOLE.) (TORQUE TO 20-25 FT. LBS.) (SEE NOTE 2.) "B" (4 PLACES) (SEE NOTE 1) 2007928 (DO NOT SEAT.) (4 PLACES) (TORQUE TO 45 IN. LBS.) (R.V.
  • Page 12 Operating Instructions and Parts List Form No. 1000017 RELIEF VALVE ASSEMBLY No. 3-2716 (10,000 PSI Setting) Item Part Item Part Req’d Description Req’d Description 3-0654 Plunger, Valve 3-1233 Washer 3-1091 Screw, Valve Adjusting 3-1234 Spring, Compression 3-1232 Body, Valve 5-1264 Screw, 8-32 x 7/64 Set PLUG ASSEMBLY VENT...
  • Page 13 Operating Instructions and Parts List Form No. 1000017 Use SPX tool #T-228 to space and align brush holder END BELL ASSEMBLY No. 3-1630 Item Part Item Part Req’d Description Req’d Description 3-0282 End Bell 5-0425 Screw, 1-32 x 1/4 Cup Pt 3-0283 Holder, Brush .125...
  • Page 14 Operating Instructions and Parts List Form No. 1000017 Recp-2 Brown Wire Note: cut to 2.0" long Silver (Wide) Terminal (Blue Wire) Recp-1 5 Torque to 30/35 In. Lbs. Brass (Narrow) Blue Wire Terminal Strip Jacket 2-1/2" (Brown Wire) Trim off unused Green wire 1/4"...
