Power Team D Operating & Maintenance Instructions

TANDEM, TWO-STAGE, WITH CONTROL VALVE OR MANIFOLD
•
Carefully inspect the pump upon arrival. The carrier, not the manufacturer, is responsible for any damage
resulting from shipment.
•
These instructions should be read and carefully followed. Most problems with new equipment are caused
by improper operation or installation.
•
This instruction sheet is a condensed version intended for end-user application needs. A detailed parts
list for service repair can be obtained (if not already supplied) by calling our Technical Services
Department at 1-800-477-8326.
W RNING
•
All WARNING statements must be carefully observed to help prevent personal injury.
Hydraulic Hose
•
Before operating the pump, Tighten all hose connections using the proper tools. Do not overtighten the
connections. Connections need only be tightened securely and leak-free. Overtightening may cause
premature thread failure or high pressure fittings to split at pressures lower than their rated capacities.
•
Should a hydraulic hose ever burst, rupture, or need to be disconnected, immediately shut off the pump.
Never attempt to grasp a leaking hose under pressure with your hands. The force of the escaping
hydraulic fluid could cause serious injury.
•
Do not subject the hose to potential hazard such as fire, extreme heat or cold, sharp surfaces, or heavy
impact. Do not allow the hose to kink, twist, curl or bend so tightly that the fluid flow within the hose is
blocked or reduced. Periodically inspect the hose for signs of wear because any of these conditions can
damage the hose and may result in personal injury.
•
Do not use the hose to move attached equipment. Stress may damage the hose and cause personal injury.
•
Hose material and coupler seals must be compatible with the hydraulic fluid used. Hoses also must not
come in contact with corrosive materials such as creosote-impregnated objects and some paints. Consult
the manufacturer before painting a hose. Never paint the couplers. Hose deterioration due to corrosive
materials may result in personal injury.
Pump
•
Do not exceed the PSI hydraulic pressure rating noted on the pump nameplate or tamper with the internal
high relief valve. Creating pressure beyond rated capacities may result in personal injury.
•
Before replenishing the fluid level, retract all cylinders to prevent overfilling the pump reservoir. An
overfill may cause personal injury due to excess reservoir pressure created when cylinders are retracted.
Cylinder
•
Do not exceed rated capacities of the cylinders. Excess pressure may result in personal injury.
•
Do not set poorly-balanced or off-center loads on a cylinder. The load may tip and cause personal injury.
Air Supply
•
Shut off and disconnect the air supply when the pump is not in use or
before breaking any connection in the system.
Litho in USA
MODEL D

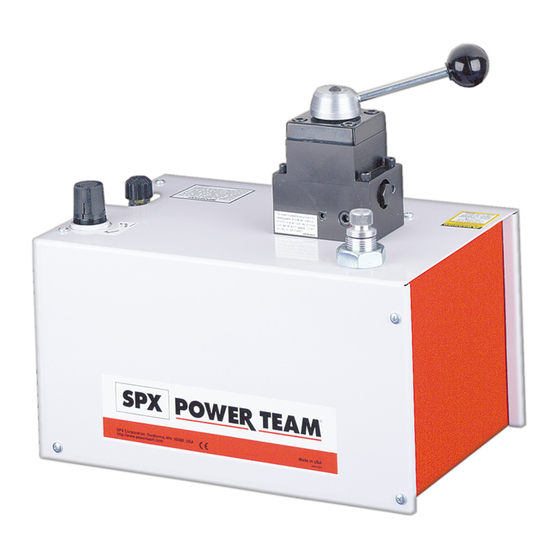

AIR HYDRAULIC PUMP
Rated Capacity: 10,000 PSI at 100 PSI Air

SAFETY PRECAUTIONS

Form No. 105006
Operating & Maintenance
Instructions for:
Sheet No.
Rev. 2
PA60
PA64
1 of 3
Date: 28 May 2012
