Barrier Gas System Connection (Optional); Filling Oil - BUSCH COBRA NX 0450 A Instruction Manual

5 | Installation​
5.2.4

Barrier Gas System Connection (Optional)

Description
BGC
MAN
● Connect the barrier gas connection (BGC) to the gas supply.
Connection size:
– G1/4", ISO 228-1
● Make sure that the gas complies with the following requirements:
Gas type
Gas temperature
Maximum gas pressure
Recommended pressure setting at the pres-
sure regulating valve (PRV)
Filtration
Recommended flow rate
Air quality (only for air)
5.3

Filling Oil

Use of an inappropriate oil.
Risk of premature failure!
Loss of efficiency!
● Only use an oil type which has previously been approved and recommended by Busch.
14 | 40

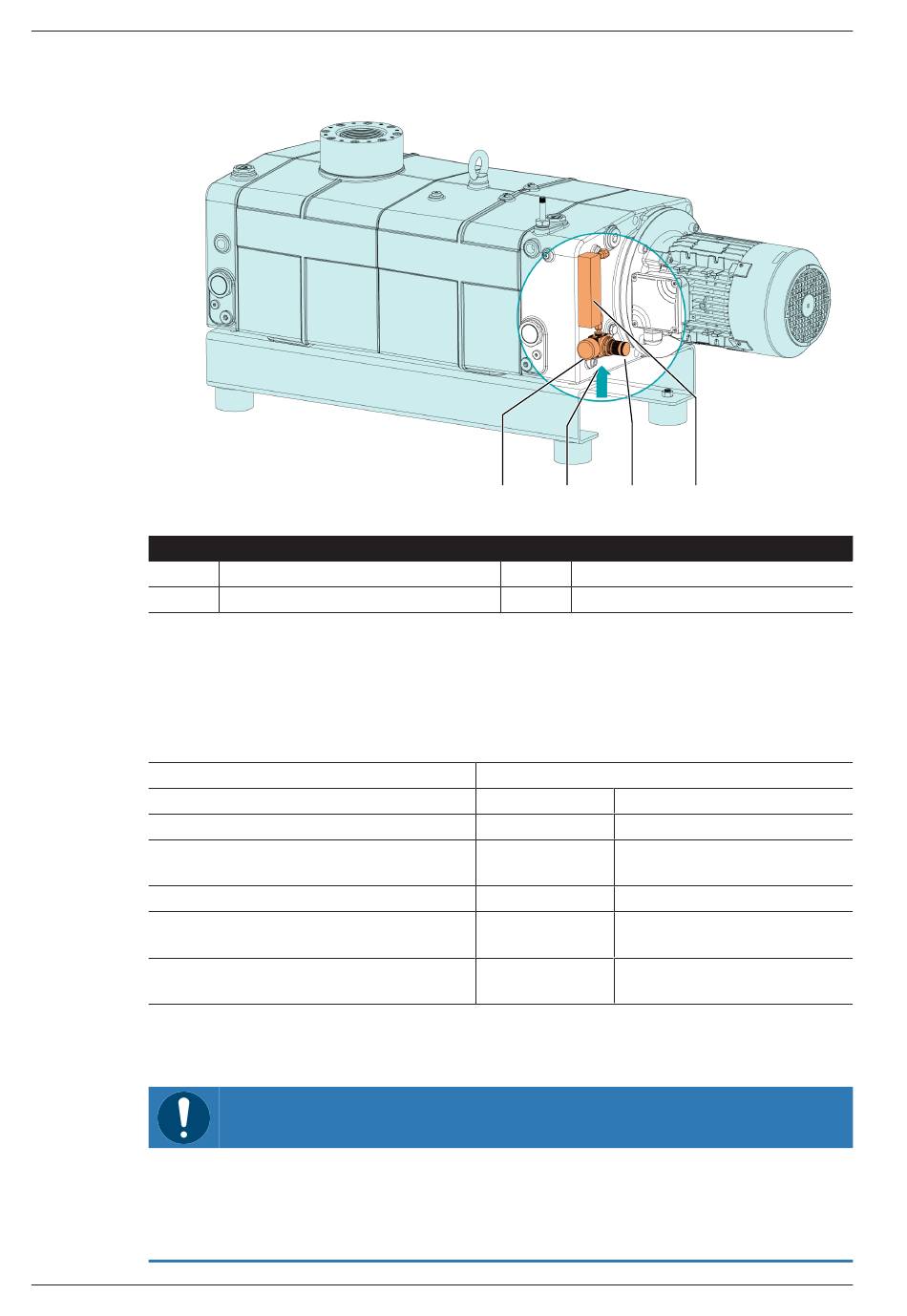

Barrier gas connection
Manometer
NOTICE
MAN BGC PRV
FME Flow meter
PRV Pressure regulating valve
Dry nitrogen or air
°C 0 ... 60
bar (g) 13
bar (g) 3
µm 5
SLM (standard li- NX 0450 A: 10 ... 15 - NX 0650 A:
ter per minute) 15 ... 20
Acc. to ISO Class 5.4.4.
8573-1
Instruction Manual COBRA NX 0450-0650 A WCV_EN_en
