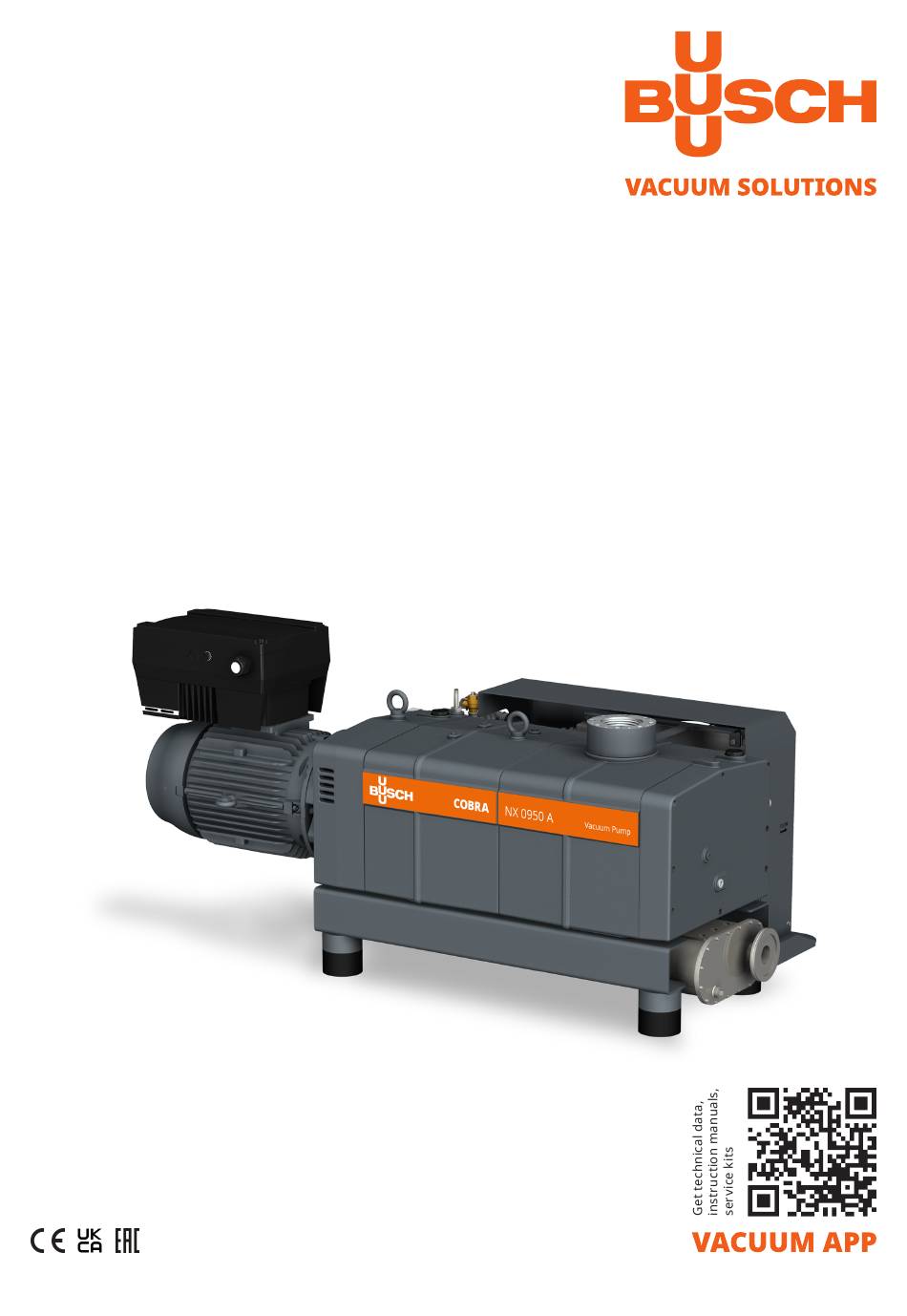

- Page 1 COBRA Dry Screw Vacuum Pumps NX 0950 A Air-Cooled Version (ACV) Instruction Manual 0870222517 | -0003_en-US | Original instructions 10/27/2022...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety..................................Product Description ............................. Operating Principle ............................. Intended Use ............................... Start Controls ............................... Standard Features............................... 2.4.1 Air Cooling ............................. 2.4.2 Temperature Switch ..........................2.4.3 Sealing Systems............................. Optional Accessories............................2.5.1 Gas Ballast Valve ........................... 2.5.2 Silencer .............................. - Page 3 Table of Contents Decommissioning..............................10.1 Dismantling and Disposal ..........................Spare Parts................................Troubleshooting..............................Technical Data ..............................Cooling Liquid............................... Oil ................................... EU Declaration of Conformity..........................UK Declaration of Conformity ..........................Instruction Manual COBRA NX 0950 A ACV_EN_en 3 | 48...
-
Page 4: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 5: Product Description
Product Description | 2 Product Description IN, IS CLV1 CLV2 Description Suction connection (Inlet) Discharge connection (Outlet) Air-water heat exchanger Axial fan Barrier gas connection Barrier gas flow meter Barrier gas manometer Barrier gas pressure regulator Condensate drain Cooling liquid drain plug Cooling liquid fill plug CLV1 Cooling liquid vent valve (heat exchanger) -
Page 6: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is capable of maintaining ultimate pressure, see Technical Data. -
Page 7: Start Controls
● Check if the process gases are compatible with those following materials: - Cast iron - Steel - Fluoroelastomer (FKM/FPM) ● In doubt, please contact your Busch representative. Start Controls The machine is equipped with a variable speed drive. Standard Features 2.4.1... -
Page 8: Sealing Systems
2 | Product Description 2.4.3 Sealing Systems The machine is equipped with labyrinth seals on the motor side and suction side. Sealing systems prevent the process gas going to the bearings chambers. Depending on the application, the sealing systems efficiency can be improved with a barrier gas sys- tem, see Barrier Gas System [➔ 8]. -
Page 9: Inlet Check Valve
In order to avoid reverse rotation after switching off, the machine can be equipped with an inlet check valve. The inlet check valve also prevents fast venting of the connected vacuum system. The inlet check valve can also be equipped with a pressure sensor (please contact your local Busch representative for further information). Description... -
Page 10: Transport
3 | Transport Transport WARNING Suspended load. Risk of severe injury! ● Do not walk, stand or work under suspended loads. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! ● Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown. NOTICE In case the machine is already filled with oil. - Page 11 Transport | 3 Description Minimum length: 400 mm Minimum length: 400 mm ● Check the machine for transport damage. If the machine is secured to a base plate: ● Remove the machine from the base plate. Instruction Manual COBRA NX 0950 A ACV_EN_en 11 | 48...
-
Page 12: Storage
4 | Storage Storage ● Seal all apertures with adhesive tape or reuse provided caps. NOTICE Long storage time. Risk of damage to the machine! ● Due to a long storage time the capacitors of the variable speed drive can lose efficiency because of electrochemical processes. -
Page 13: Installation
● Check the cooling liquid level, see Cooling Liquid Level Inspection [➔ 31]. If the machine is installed at an altitude greater than 1000 meters above sea level: ● Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 14: Connecting Lines / Pipes
– G3 – ISO DN100, DIN 28404 If the machine is used as part of a vacuum system: ● Busch recommends the installation of an isolation valve in order to prevent the machine from turning backwards. 14 | 48 Instruction Manual COBRA NX 0950 A ACV_EN_en... -
Page 15: Discharge Connection
Installation | 5 5.2.2 Discharge Connection Description Discharge variants (without silencer) NOTICE Discharge gas flow obstructed. Risk of damage to the machine! ● Make sure that the discharged gas will flow without obstruction. Do not shut off or throttle the discharge line or use it as a pressurized air source. -
Page 16: Barrier Gas System Connection (Optional)
Filling Oil NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. 16 | 48 Instruction Manual COBRA NX 0950 A ACV_EN_en... - Page 17 Installation | 5 For oil type and oil capacity see Technical Data and Oil [➔ 45]. When the oil filling is achieved: ● Write down the oil change date on the sticker. Last oil change __ / __ / ____ Oil type see nameplate Change interval see instruction manual Instruction Manual COBRA NX 0950 A ACV_EN_en...
-
Page 18: Cooling System Cover Removal
5 | Installation If there is no sticker (part no. 0565 568 959) on the machine: ● Order it from your Busch representative. Cooling System Cover Removal NOTE Before filling or changing the cooling liquid and electrically connecting the cooling system. - Page 19 Installation | 5 Description Step 4: Open the cooling liquid vent Step 6: Switch on the cooling liquid valves (CLV1, CLV2) pump (CLP) Step 7: Vent air from the cooling sys- Step 8: Close the cooling liquid vent valve (CLV2) when the cooling liquid is spilling out Step 9: Resume cooling liquid filling Step 10: Close the cooling liquid vent...
-
Page 20: Electrical Connection
● Make sure that the motor of the machine will not be affected by electric or electro- magnetic dis- turbance from the mains, if necessary seek advice from Busch. ● Make sure that the EMC of the machine is compliant with the requirements of your supply net- work system, if necessary provide further interference suppression (EMC of the machine, see EU Declaration of Conformity [➔ 46] or UK Declaration of Conformity [➔ 47]). -
Page 21: Machine Delivered With A Variable Speed Drive
● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation. -
Page 22: Electrical Connection Of The Variable Speed Drive
● Make sure that the motor of the machine will not be affected by electric or electromagnetic dis- turbance from the mains; if necessary seek advice from Busch. ● Remove the cover from the variable speed drive. The cover is connected to the PE terminals with a PE cable. -
Page 23: Wiring Diagram Variable Speed Drive (Vsd)
Electrical Connection | 6 Wiring Diagram Variable Speed Drive (VSD) CAUTION The machine can start immediately when power is supplied. Risk of inadvertent start-up! ● Make sure that a start-up will not lead to a dangerous situation. Description Motor already wired Connect PE Connect L1, L2, L3 Instruction Manual COBRA NX 0950 A ACV_EN_en... -
Page 24: Start / Stop Connection
EMC cable fittings if required. ● These parameters can be changed according to the specific document “Pump Control Instruc- tions, art. no.: 0870208958”. Contact your local Busch agency or your Busch representative to check if your machine is a custom or a standard one. -
Page 25: Electrical Connection Of The Monitoring Devices
● Switch any two of the motor phase wires. Electrical Connection of the Monitoring Devices NOTE In order to prevent potential nuisance alarms, Busch recommends that the control system is configured with a time delay of at least 20 seconds. 6.6.1... -
Page 26: Wiring Diagram Cooling System
6 | Electrical Connection NOTE In operation, the fan only starts as soon as a certain operating temperature is reached. ● Make sure that the air flow blows in the right direction according to the following illustration. If the rotation of the motor must be changed: ●... -
Page 27: Commissioning
Commissioning | 7 Commissioning CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. Risk of burns! ● Avoid contact with the machine during and directly after operation. CAUTION Noise of running machine. Risk of damage to hearing! If persons are present in the vicinity of a non noise insulated machine over extended periods: ●... -
Page 28: Conveying Condensable Vapors
(e.g. "dead leg") with drain. ● Water vapor within the gas flow is tolerated within certain limits. The conveyance of other vapors shall be agreed upon with Busch. 28 | 48 Instruction Manual COBRA NX 0950 A ACV_EN_en... -
Page 29: Maintenance
Maintenance | 8 Maintenance DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. DANGER Maintenance work without disconnecting the variable speed drive. Risk of electrical shock. ● Disconnect and isolate the variable speed drive before attempting any work on it. High voltages are present at the terminals and within the variable speed drive for up to 10 min- utes after disconnection of the electrical supply. -
Page 30: Maintenance Schedule
Risk of injuries! Risk of premature failure and loss of efficiency! ● Maintenance work must only be executed by qualified personnel. ● Respect the maintenance intervals or ask your Busch representative for service. NOTICE Using inappropriate cleaners. Risk of removing safety stickers and protective paint! ●... -
Page 31: Oil Level Inspection
● Change the cooling liquid, see Cooling Liquid Change [➔ 36]. ● Clean the magnetic plugs (MP). Every 25000 hours or after 4 ● Have a major overhaul on the machine (contact Busch). years Oil Level Inspection ● Shut down the machine. -
Page 32: Cleaning The Inlet Screen
8 | Maintenance Cleaning the Inlet Screen Description Use a hexagonal key Use compressed air and wear protec- tive eyewear and mask Cleaning the Gas Ballast Filter (Optional) Description Use a 36 mm wrench Use compressed air and wear protec- tive eyewear and mask 32 | 48 Instruction Manual COBRA NX 0950 A ACV_EN_en... -
Page 33: Oil Change
NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. Description Magnetic plug Instruction Manual COBRA NX 0950 A ACV_EN_en 33 | 48... - Page 34 8 | Maintenance Description Magnetic plug For oil type and oil capacity see Technical Data and Oil [➔ 45]. 34 | 48 Instruction Manual COBRA NX 0950 A ACV_EN_en...
- Page 35 __ / __ / ____ Oil type see nameplate Change interval see instruction manual If there is no sticker (part no. 0565 568 959) on the machine: ● Order it from your Busch representative. Instruction Manual COBRA NX 0950 A ACV_EN_en 35 | 48...
-
Page 36: Cooling Liquid Change
8 | Maintenance Cooling Liquid Change For cooling liquid type and cooling liquid capacity see Technical Data and Cooling Liquid [➔ 44]. 36 | 48 Instruction Manual COBRA NX 0950 A ACV_EN_en... - Page 37 Maintenance | 8 Description Step 4: Open the cooling liquid vent Step 6: Switch on the cooling liquid valves (CLV1, CLV2) pump (CLP) Step 7: Vent air from the cooling sys- Step 8: Close the cooling liquid vent valve (CLV2) when the cooling liquid is spilling out Step 9: Resume cooling liquid filling Step 10: Close the cooling liquid vent...
-
Page 38: Overhaul
● Decontaminate the machine as much as possible and state the contamination status in a ‘Dec- laration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 39: Decommissioning
Decommissioning | 10 Decommissioning DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. ●... -
Page 40: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! ● The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare parts available:... -
Page 41: Troubleshooting
Solid foreign matter has en- ● Remove the solid foreign tered the machine. matter or repair the ma- chine (contact Busch). ● Check the inlet screen (IS) at the suction connection. The temperature switch (TS) ● Let the machine cool down. - Page 42 Oil Change [➔ 33]. The machine runs too hot. ● See problem "The machine runs too hot". For the solution of problems not mentioned in the troubleshooting chart contact your Busch repre- sentative. 42 | 48 Instruction Manual COBRA NX 0950 A ACV_EN_en...
-
Page 43: Technical Data
Technical Data | 13 Technical Data NX 0950 A ACV Pumping speed (72Hz) m³/h ACFM Ultimate pressure hPa (mbar) abs. ≤0.01 (without gas ballast) TORR ≤0.0075 Ultimate pressure hPa (mbar) abs. ≤0.05 (with gas ballast) TORR ≤0.0375 Nominal motor rating 18.5 Nominal motor speed (72Hz) 4320... -
Page 44: Cooling Liquid
14 | Cooling Liquid Cooling Liquid Zitrec M-25 (ready-to-use) Part number 5 L packaging 0831 563 469 Part number 20 L packaging 0831 238 761 The cooling liquid Zitrec M-25 is ready-to-use and does not require additional water. For further information, consult the website www.arteco-coolants.com. 44 | 48 Instruction Manual COBRA NX 0950 A ACV_EN_en... -
Page 45: Oil
Oil | 15 VSC 100 ISO-VG Part number 1 L packaging 0831 168 356 Part number 5 L packaging 0831 168 357 Instruction Manual COBRA NX 0950 A ACV_EN_en 45 | 48... -
