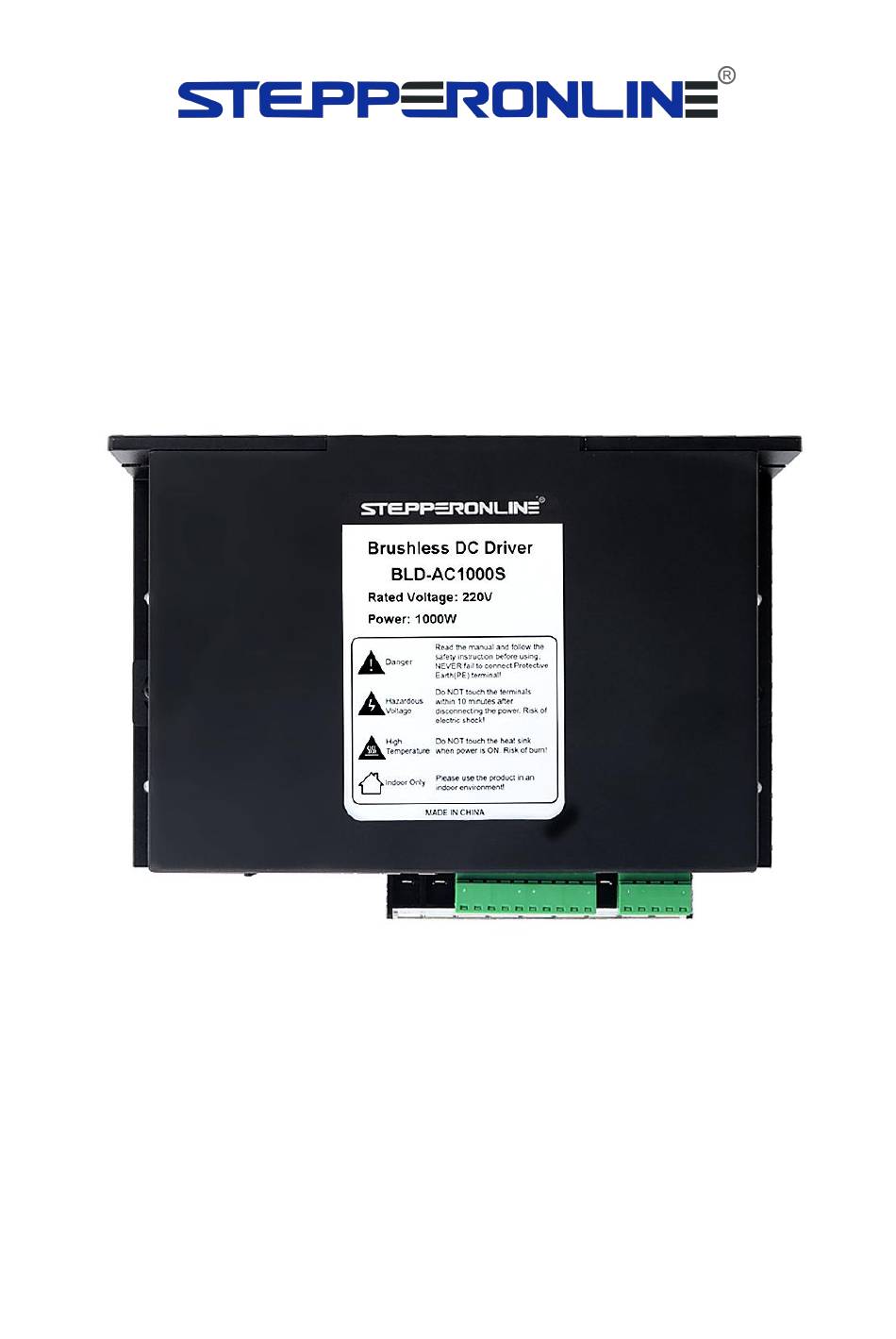

- Page 1 User Manual BLD-AC1000S BLDC DRIVERS 1000W High Voltage Brushless Driver ©2023 All Rights Reserved Address: 15-4, #799 Hushan Road, Jiangning, Nanjing, China Tel: 0086-2587156578 Web: www.omc-stepperonline.com Sales: sales@stepperonline.com Support: technical@stepperonline.com Read the operating instructions carefully before putting the driver into operation with power...
- Page 2 Brushless Driver Summary BLD-AC1000S BLDC motor driver is designed by OMC Corporation Limited independence which is assorted with the advanced motion control industrial. It is suitable for BLDC motor with the power under 1000W. The driver adopts the latest high performance digital logic chips specialized for brushless motors.
- Page 3 BLD-AC1000S Brushless Driver 3. Mounting Dimension: 190x80x130mm 4. Terminal and Signal...
- Page 4 BLD-AC1000S Brushless Driver Power connection Terminal Name Description 220VAC 220VAC Ground line External release resistor(reserve) External release resistor(reserve) Brushless motor winding U phase(A) Brushless motor winding V phase(B) Brushless motor winding W phase(C) For the ground Hall Signal Terminal Name...
- Page 5 BLD-AC1000S Brushless Driver 5. Function and Usage Speed adjust method The drive provides the following three speed regulation modes, the user can choose one of them: Panel speed regulation: During panel control, acceleration and deceleration can be achieved by pressing +/- buttons.
- Page 6 BLD-AC1000S Brushless Driver Speed signal output(PG) Speed pulse output, the number of output pulses per motor revolution is 3 x N, where N is the number of pole pairs of the motor. Example: 2 pairs of poles (that is, 4-pole motor) have 6 pulses per revolution, when the motor speed is 500 rpm, the output pulse of terminal PG is 3000.
- Page 7 BLD-AC1000S Brushless Driver 4. Press“△”or “▽” to the value demanded. 5. Press “ENTER” to save the changes and press “SET” to return to standby mode. Note: At setting mode, it will return to speed display interface if there is no press within one minute.
- Page 8 BLD-AC1000S Brushless Driver Panel running 0~rated speed ⭕ 2000 P004 ( only valid for panel mode) speed ⭕ 0~255 0.1s P005 Start time Brake force ⭕ 0~950 Decimal P006 setting Open /closed 00 Open loop ⭕ 01 closed-loop P007 01 Closed loop...
- Page 9 BLD-AC1000S Brushless Driver 7. System Usage Connect on the wires of the motor and driver (motor winding wires, Hall sensor, and power supply) strictly as request. It can not achieve the CW and CCW through changing the wires connection like the asynchronous motor. The motor will run abnormality with the wrong wires connection, like brushless motor will shake much or heat quickly (the temperature will up to 80 degrees in seconds to 2 min.), and will damage the motor and driver.
- Page 10 BLD-AC1000S Brushless Driver address name Setting range Default Unit $8000 First byte: control bit state First byte: Bit0: EN Second byte: Hall angle and motor Bit1: FR pole(pair) Bit2: BK Bit3: NW Bit4: null Bit5: SENS Bit6: HR60 Bit7: KH...
- Page 11 BLD-AC1000S Brushless Driver 8000: first byte: EN: when NW=0, 0: external EN low level effective 1: external EN high level effective when NW=1, 0: EN ineffective 1: EN effective FR: when NW=0, 0: FR low level effective 1: external FR high level effective...
