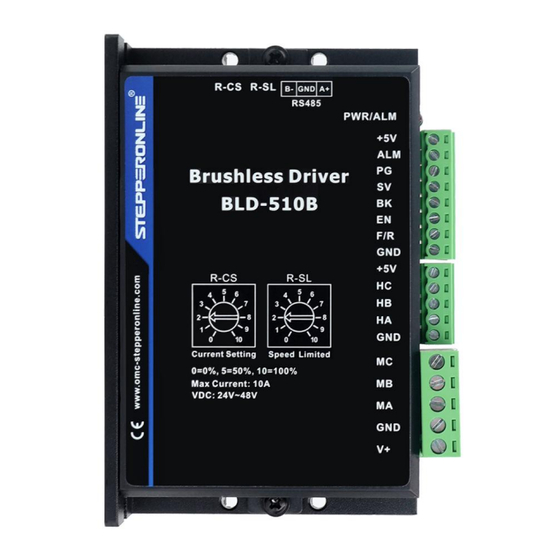

User Manual
BLD-510B
Brushless DC Motor Driver
©2024 All Rights Reserved
Address: 15-4, #799 Hushan Road, Jiangning, Nanjing, China
Tel: 0086-2587156578
Web: www.omc-stepperonline.com
Sales: sales@stepperonline.com
Support: technical@stepperonline.com
Read the operating instructions carefully before putting the driver into operation with power
Advertisement
Table of Contents
Related Manuals for StepperOnline BLD-510B
Summary of Contents for StepperOnline BLD-510B

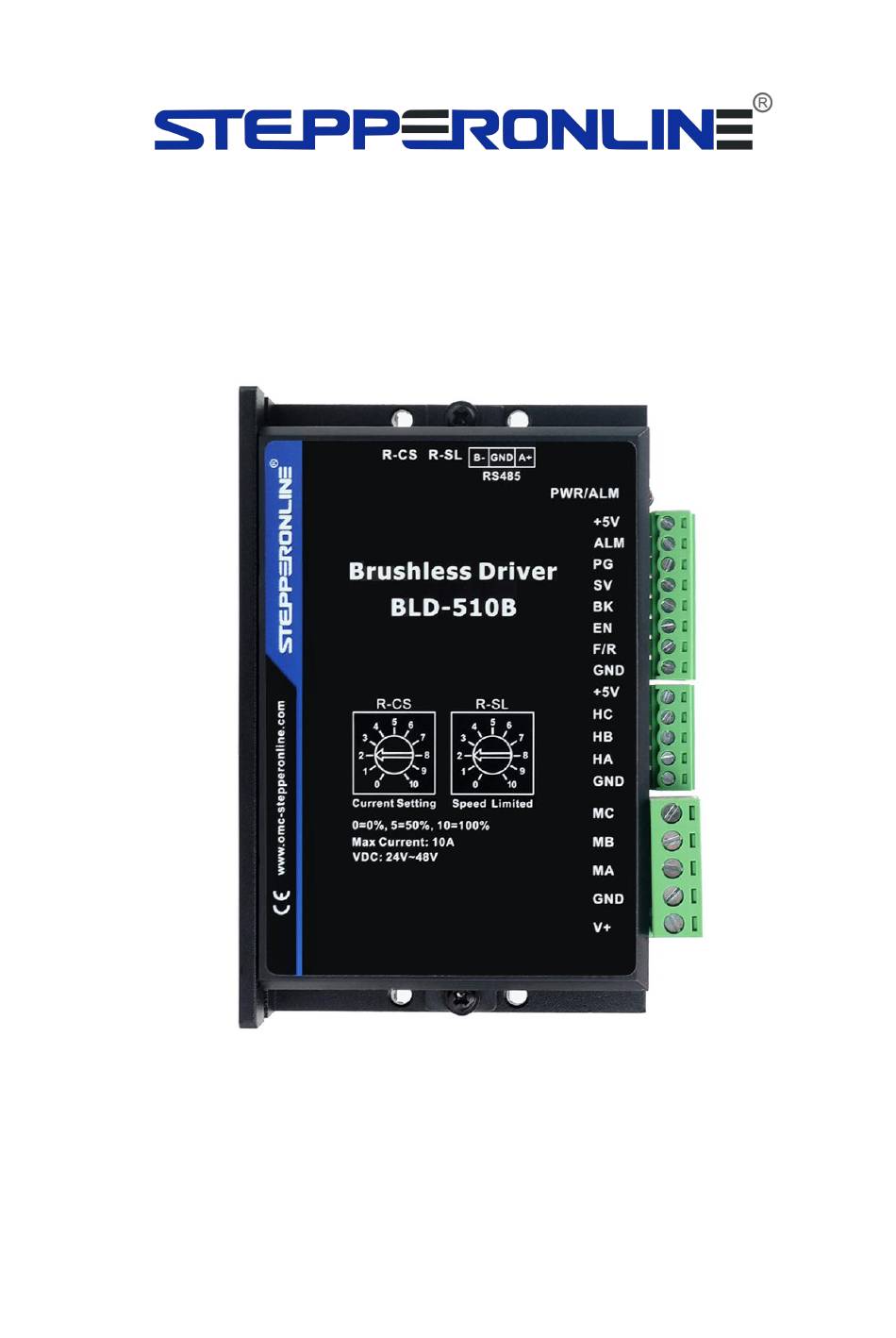

- Page 1 User Manual BLD-510B Brushless DC Motor Driver ©2024 All Rights Reserved Address: 15-4, #799 Hushan Road, Jiangning, Nanjing, China Tel: 0086-2587156578 Web: www.omc-stepperonline.com Sales: sales@stepperonline.com Support: technical@stepperonline.com Read the operating instructions carefully before putting the driver into operation with power...
-
Page 2: Specifications
In appearance and performance, the BLD- 510B and BLD-510S are almost identical. Therefore, the BLD-510B is a low-power brushless driver with a higher cost performance. - Page 3 BLD-510B BLDC Brushless Driver 2.3 Mechanical Specification (Unit: mm [1inch=25.4mm]) Dimension: 118x75.5x34mm 2.4 Safety Precautions Do not measure or touch any components without housing while operating This product is powered by a DC power supply. Please confirm that the positive and negative poles of the power supply are correct before powering on.
-
Page 4: Terminal Connection
BLD-510B BLDC Brushless Driver 3. Terminal Connection 3.1 Power Input Terminal Name Description 24VDC~48VDC input GND input 3.2 Motor Input Terminal Name Description Motor A phase Motor B phase Motor C phase Hall signal A phase input Hall signal B phase input... -
Page 5: Function And Usage
BLD-510B BLDC Brushless Driver 4. Function and Usage 4.1 Speed Adjustment Method The driver offers the following three speed adjustment methods, one of which can be selected by the user as follows: Inner potentiometer speed adjustment: turn the potentiometer on the drive panel counterclockwise to reduce the motor speed and clockwise to increase it. - Page 6 BLD-510B BLDC Brushless Driver 4.3 Motor run/stop control (EN) The motor can be controlled to run and stop by controlling the switch-on and switch-off of the terminal EN in relation to GND. Currently the driver has 2 versions, V2.0 and V2.4. For V2.0 Version, motor runs when the terminal is switched on and conversely the motor stops.
- Page 7 Sensorless control mode 4.10 STEPPERONLINE drivers can be used for sensorless brushless motors. But it should be noted that since our brushless driver is mainly used for our brushless motor with sensors, its built-in program is also used for motors with sensors.
-
Page 8: Communication Method
BLD-510B BLDC Brushless Driver 5. Communication Method The communication mode uses the standard Modbus protocol. It uses a dual-line serial communication based on RS485, and the physical interface adopts a conventional 3-pin 2.54 wiring terminal (A+, GND, B-) which is easy to connect in series. - Page 9 BLD-510B BLDC Brushless Driver Addres Name Setting Range Default Unit First byte: Bit0: EN Bit1: FR First byte: control bit Bit2: BK state Bit3: NW NW=1: 485 control start stop speed $8000H regulation, Second byte: number of NW=0: External IO control...
- Page 10 BLD-510B BLDC Brushless Driver Address: 8000H-8017H are read and write registers Address: 8018H-801FH are read-only registers Other addresses are illegal 8000: First byte: EN: At NW=0, 0: external EN low valid 1: external EN high valid At NW=1, 0: EN not valid...
