Dacor Preference Gas Cooktops Planning Manual

Revised
07/18/08
Vertical
combustible
surface
Rear
wall
3 1/8"
(79mm)
2 1/4"
(57mm) Min.
19 7/8" (505mm)
25" (635mm)
Minimum
Rear
wall
Vertical
combustible
surface
3 1/8"
(79mm)
2 1/4"
(57mm) Min.
19 7/8" (505mm)
25" (635mm)
Minimum
(51mm) Min.
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
SGM304, SGM365, SGM466
30", 36", 46" Wide,

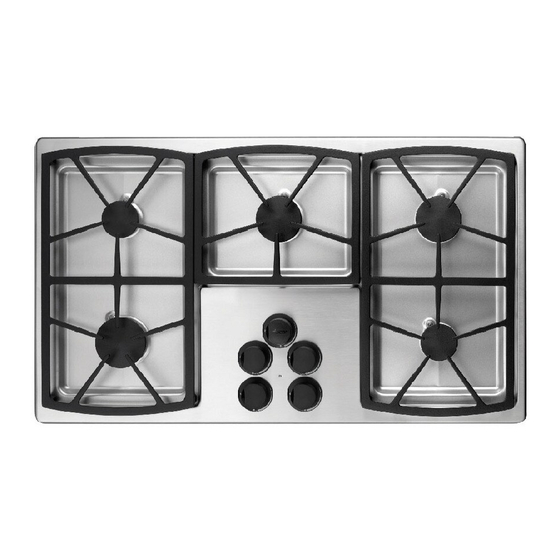

Preference™ Gas Cooktops
(533mm)
30"
(762mm)
27 1/2"
(699mm)
Cutout Dimensions for
Model SGM304
2"
(51mm) Min.
46"
(1168mm)
44 1/2"
(1130mm)
Cutout Dimensions for
Model SGM466
2"
4" (102mm)
21"
Chassis height All tolerances +1/16" -0 (+1.6 mm, 0) unless otherwise noted.
1/4" (6mm) Min.
to combustibles
below chassis
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
(914mm)
Vertical
combustible
surface
Rear
wall
3 1/8"
(79mm)
2 1/4"
(57mm) Min.
19 7/8"
(505mm)
25" (635mm)
Minimum
(51mm) Min.
4" (102mm)
21"
(533mm)
1/4" (6mm) Min.
to combustibles
below chassis
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
1.
2.
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
1/2
(533mm)
36"
33 3/4"
(857mm)
Cutout Dimensions for
2"
Model SGM365
WARNING
Observe all governing codes and ordinances
during planning and installation. Contact
your local building department for further
information.
This appliance must be installed in accordance
with the accompanying installation
instructions.
GUIDE
4" (102mm)
21" Chassis height
1/4" (6mm) Min.
to combustibles
below chassis
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
4.9
