Document # PG04-004
All tolerances ±1/16" (±1.6 mm), unless otherwise noted.
(76.2 cm)
19 1/2" *
21"
(49.5 cm)
(53.3 cm)
* including embosses/screws in side of chassis
All specifications subject to change without notice.
SGM304, SGM365, SGM466
Classic 30", 36" and 46" Wide,
Drop-in Gas Cooktops
30"
(70.2 cm)
36"
(91.4 cm)
19 1/2" *
21"
(49.5 cm)
(53.3 cm)
* including embosses in side of chassis
1 5/8" (4.1 cm)
bottom of base
to cooking surface
•
Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
•
This appliance must be installed in accordance with the
accompanying installation instructions.
1 5/8" (4.1 cm)
bottom of base
to cooking surface
4" (10.2 cm)
chassis height

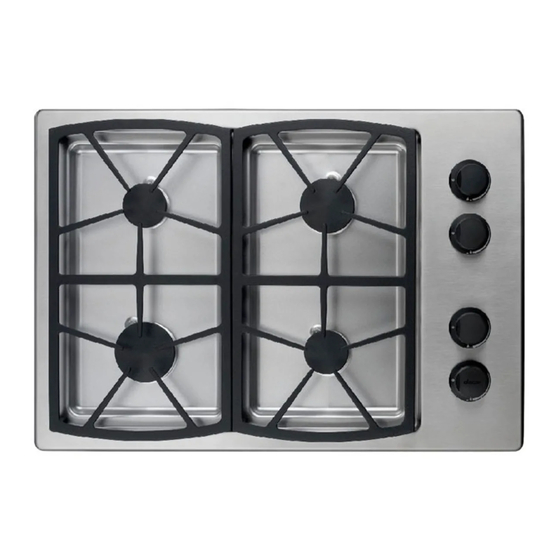

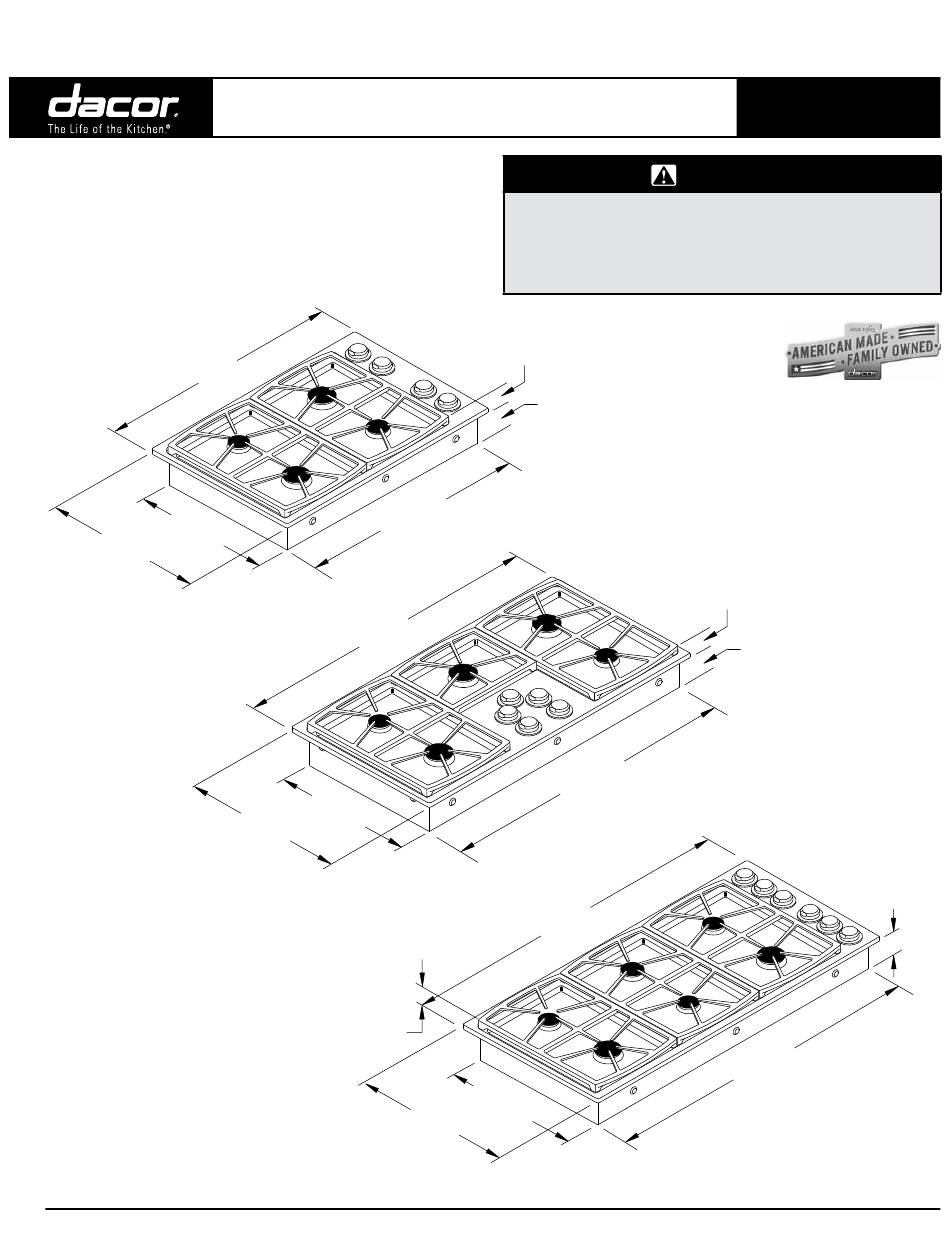

ProDUCt DIMENSIoNS -
MoDEL SGM304
27 5/8" *
33 1/2" *
(85.1 cm)
46"
(116.8 cm)
19 1/2" *
21"
(49.5 cm)
(53.3 cm)
* including embosses/screws in side of chassis
www.dacor.com
Revised 10/04/12 Page 1/5
PLANNING
GUIDE
warning
1 5/8" (4.1 cm)
bottom of base
to cooking surface
4" (10.2 cm)
chassis height
ProDUCt DIMENSIoNS -
MoDEL SGM365
4" (10.2 cm)
chassis height
44 5/8" *
(113.3 cm)
ProDUCt DIMENSIoNS -
MoDEL SGM466
Phone: (800) 793-0093
