Prestige APS901Z Instruction Manual

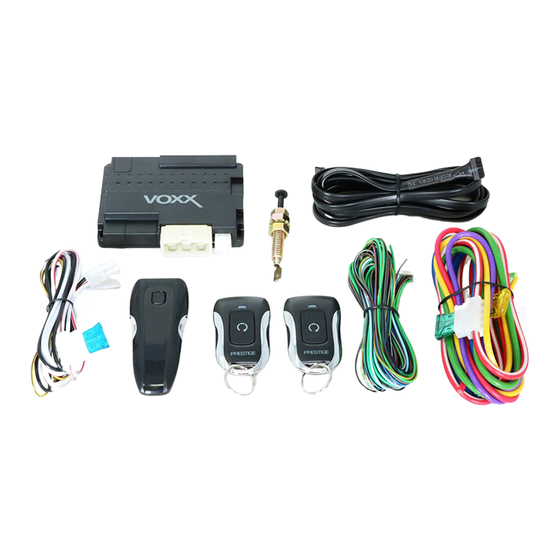

APS 901 Z
Remote Start

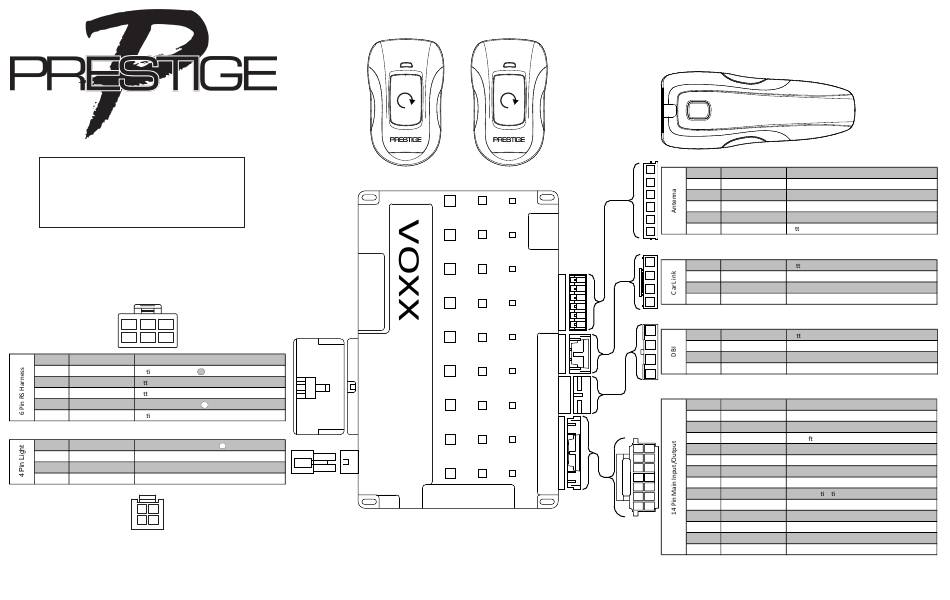

System Layout
Important Update
The default Data Port Protocol of this system is ADS. If using
an FLCAN or other external integration module be sure to
choose iDatalink 2-Way when flashing.
This system will also support DBI. This will require
programming Feature Bank 2, Feature 18 to DBI.
1 3 5
2 4 6
1 Yellow
Starter Output (+)
2 Green Igni on 2 Output (+)
3 Red Ba ery 12V Input (+)
4 Red/White Ba ery 12V Input (+)
5 Purple
Accessory Output (+)
6 Blue
Igni on Input / Output (+)
Replacement Part #4120467
1 White
Parking Light (30) Output
2 White/Red
Parking Light (87) Input
3 Yellow/Black Ignition Output For Alarm (+)
4 Black Ground Input (-)
Replacement Part #4120463
1 3
2 4
For Complete Installation Guide and Technical Support Visit www.voxxuniversity.com. Or Call 1-800-225-6074
P
P
P
Replacement Part #181BP
Replacement Part #4360841
Replacement Part #4180070
6
6 Empty Empty
5
5 Blue LED (-)
4
4 Red
Valet Switch
3 Black
3 Ground (-)
2 Green
Data RX
2
1 Pink
Ba ery 12V (+)
1
4
4 Red
Ba ery 12V (+)
3 3 Blue
Data TX
2 Black Ground (-)
2
1 White Data RX
1
4
4 Red
Ba ery 12V (+)
3
3 Blue
Data TX
2
Black Ground (-)
2
1
White Data RX
1
14
Green/Orange Tach Input
13 Black/Yellow
Pulse During Crank Output (-)
12 Green/Yellow Glow Plug Input (+)
11 Black/Red Pulse A er Shutdown Output (-)
13 14
10 Empty
Empty
11 12
9 Black/Blue
Factory Disarm Output (-)
9 10
8 Brown/Black
Brake Input (+)
7 8
7 Black/Lt. Green
Factory Arm Output (-)
5 6
6 Dk. Blue/Black
External Ac va on Input (-)
3 4
1 2 5 Lt. Blue Remote Start Status Output (-)
4 Green Unlock Output (-)
3 Gray/Black Hood Input (-)
2 Empty
Empty
1 Black/White
Horn Output (-)
