ProLine RGB+W
Color LED Controller
With RF Remote Control
Model # 713425
Introduction
This LED controller is designed to work with constant voltage
RGB+White LED products such as LED tape light or LED fixtures in
a voltage range of 12–24 volts DC. The receiver works with the RF
wireless remote control, which allows the user to choose between
multiple colors, adjust the LED brightness, and select dynamic effects.

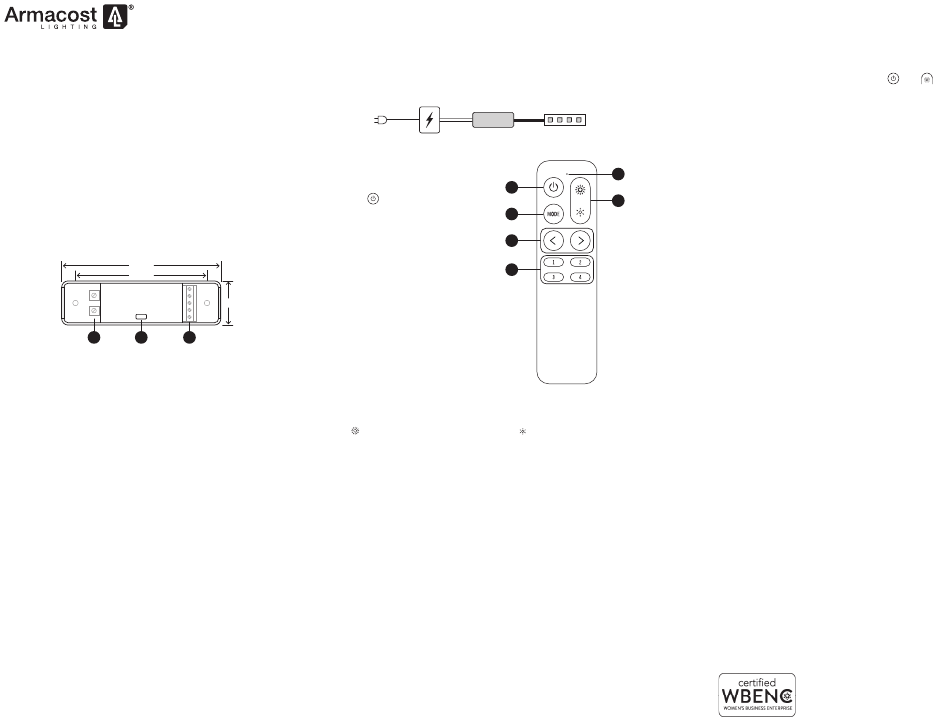

Receiver & wiring
87mm
72mm
1 3
1. Input – from power supply
The controller input and output voltage range is 12–24 volts DC.
Make sure the LED lighting voltage is within this range and below
the rated wattage of the power supply. Connect input wires
from the power supply to the controller as indicated by the
polarity markings on the controller (+ to + and – to –).
2. Output – to LED lighting
Observe polarity indicated on the controller when connecting to
LED lighting (+ to +, G to G, R to R, B to B, and W to W).
Make sure the voltage of the LED lighting is the same as the power
supply and the maximum load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause permanent damage
to controller. Make sure cables are well insulated from each other.
3. Controller status indicator
This light shows the controller status as follows:
Steady green: Normal working mode
Single green blink: Command received
Long single green blink: Mode or color cycle limit reached
Long single yellow blink: Brightness or speed limit reached
Red flash: Overload protection
Yellow flash: Overheat protection
Green flash 3 times: New remote control paired
4. Wiring diagram
Connect the power supply to the controller input and the controller
output to the LED lighting. The output voltage of the power supply
must be the same as the voltage of the LED lighting. Make sure all
power cables are conected securely and insulated before powering on.
100/230V
AC Power
Remote Control
5. On / Off
Press the
on or off. The controller will
remember the controller state when
powered off, and will return to that
state when powered back on.
6. Mode selection
Press to switch between RGB,
white and effects modes.
24mm
7. Color selection
When in RGB mode, scroll through
available colors. In effects mode, scroll
2
through effects.
8. Favorites
When on a selected color press and
hold to set that color to one of the
four buttons.
9. Brightness control
Press to increase LED brightness and press
10. Remote indicator
When pressing keys, the indicator blinks if the remote is working
properly. If the indicator flashes slowly when pressing keys, battery power
is low and it needs to be replaced. Replace with a CR2032 battery.
Remote control operation
11. Using the remote control
Pull out plastic battery insulation tab before use.
The RF wireless remote will work through walls and
doors. Do not install in a metal enclosure.
12–24V DC
Output LED LED
Power Supply Controller Lighting
12–24V DC 12–24V DC
5
key to turn controller
6
7
8
to decrease it.
12. Pairing with a new remote control
The remote control and receiver are already paired,
but up to five remotes can be paired to one receiver.
To pair a new remote:
1. Unplug power to receiver and wait five seconds.
2. Reconnect power and within ten seconds press the
keys simultaneously until the remote indicator flashes quickly.
13. De-pairing remotes
To de-pair a remote control, pair the remote you wish to continue using
with the controller and any other paired remotes will be de-paired.
Safety Protection
The controller has a function to prevent it from being damaged
10
by mis-wiring, output short circuit, overloading, or overheating.
It will automatically shut down under these extreme conditions
9
until safe operating conditions are restored. To avoid shutdowns,
make sure the installed LED lighting is compatible with constant
voltage, is in the rated range of the controller, and the cables
are well connected and insulated. Also, install the controller
with proper ventilation and heat dissipation in mind.
Specifications
Output mode ................................................................... PWM constant voltage
Working voltage .............................................................................. 12–24V DC
Rated output current ............................................................. 4x3A (11.5A max)
Static colors ................................................................................................30
White brightness levels .................................................................................10
Color brightness levels ...................................................................................5
Dynamic effects...........................................................................................34
Dynamic speed levels ...................................................................................10
PWM frequency .......................................................................................1KHz
PWM physical grade ........................................................................ 4000 steps
Overheat protection .....................................................................................Yes
Remote frequency .......................................................................... 433.92MHz
Remote control range .......................................... up to 50 ft./15m in open areas
Controller dimensions .......................... 3.43 X 0.95 X 0.59 in./87 X 24 X 15mm
Remote dimensions ............................. 5.27 X 1.4 X 0.38 in./134 X 36 X 95mm
