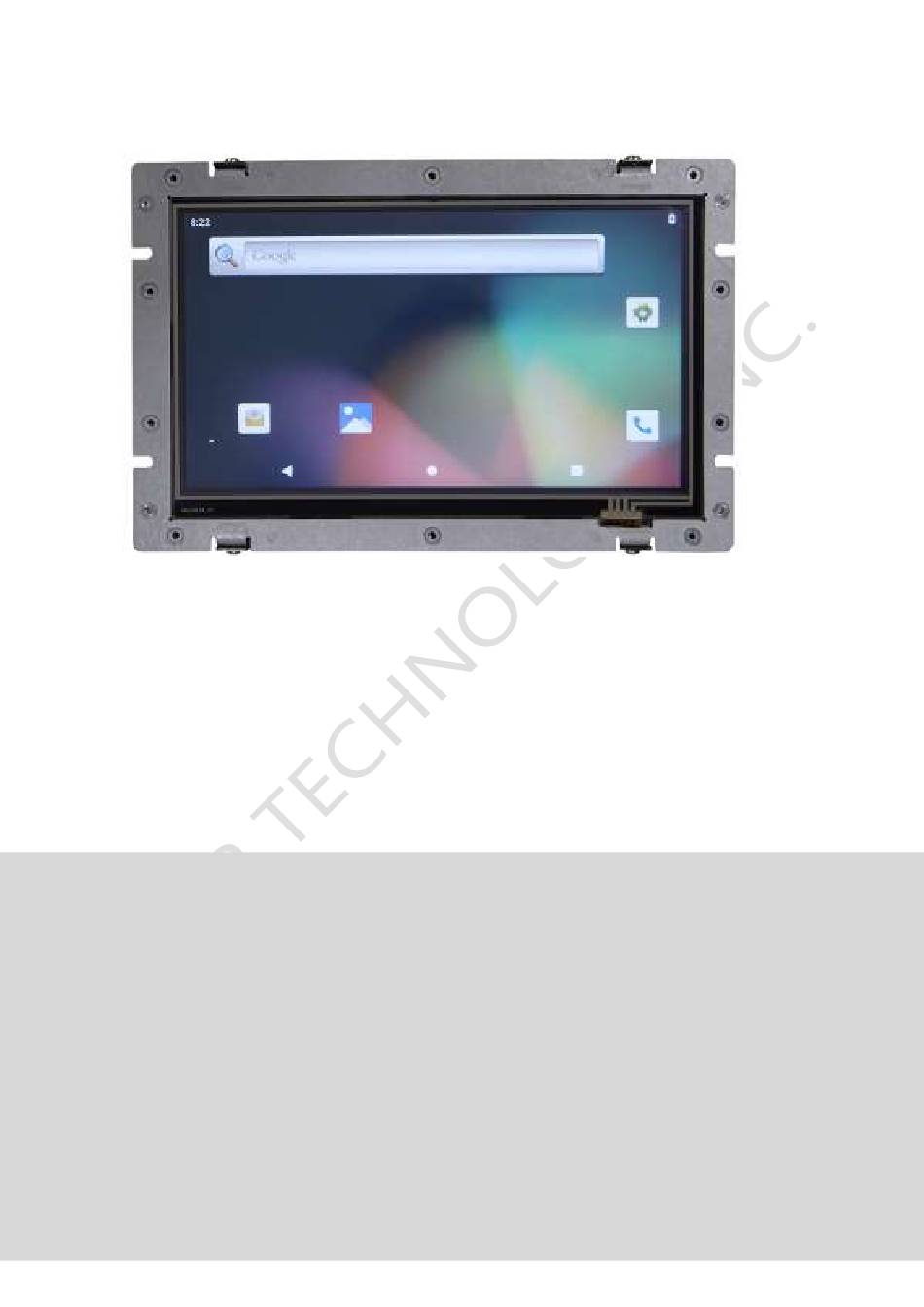

- Page 1 User’s Manual VOX-070-TS-N8M NXP i.MX 8M Mini Open Frame Panel PC with 7” TFT LCD and Touch Panels (Revision V1.0) VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024...
- Page 2 REVISION DATE VERSION DESCRIPTION 2024/08/01 Version 1.0 New Release VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024...
- Page 3 All names mentioned herewith are served for identification purpose only. For more detailed information or if you are interested in other ICOP products, please visit our official websites at: Global: www.icop.com.tw ...
- Page 4 Input voltage rated +12 ~ 36 VDC Operating temperature between 0~60°C / -20~+70°C (Option). Keep VOX-070-TS-N8M away from humidity. Never touch un-insulated terminals or wire unless your power adaptor is disconnected. Locate your Open Frame Panel PC as close as possible to the socket outline for easy access and to avoid force caused by entangling of your arms with surrounding cables from the Open Frame Panel PC.
-
Page 5: Table Of Contents
2.3 Connector Pin Assignments .................. 13 2.4 Boot Mode Settings ....................15 2.5 External I/O Overview ................... 16 Ch. 3 Software Resource ....................17 3.1 ICOP Wiki ......................18 Warranty ......................... 19 VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 6: 1 General Information
General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Ordering Information VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 7: Product Description
1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new open frame Panel PC, which offers fanless design and low power consumption. The VOX-070-TS-N8M is powered by NXP i.MX 8M Mini, the Quad-Core Cortex-A53 of ARM based processor, and 2GB/4GB LPDDR4 chipset that handles processing more efficiently and provides faster performance. -
Page 8: Product Specifications
Power Requirement +12 ~ 36VDC Input Power Consumption 8Watt (Typical) Operating Temperature 0~60°C / -20~+70°C (Option) Storage Temperature -30~+80°C Operating Humidity 0% ~ 90% Relative Humidity, Non-Condensing 186 x 121.05 x 38.15mm Dimensions VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... - Page 9 1024(W) x 600(H) Brightness (cd/m 500 nits Contrast Ratio 800 : 1 Display Color 16.7M Pixel Pitch (mm) 0.1506 (H) x 0.1432 (V) Viewing Angle Vertical 170 , Horizontal 170 Backlight Lifetime 50,000 hrs VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024...
-
Page 10: Inspection Standard For Tft-Lcd Panel
(1) One pixel consists of 3 sub-pixels, including R, G, and B dot. (Sub-pixel = Dot) (2) Little bright Dot acceptitable under 6% ND-Filter. (3) If require G0 grand (Total dot N≦0), please contact region sales. VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... - Page 11 [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024...
- Page 12 The defects that are not defined above and considered to be problem shall be reviewed and discussed by both parties. Defects on the Black Matrix, out of Display area, are not considered as a defect or counted. VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024...
-
Page 13: Product Dimensions
1.4 Product Dimensions VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 14: Ordering Information
7” OP w/iMX8M Mini /4GB DRAM /64GB eMMC VOX-070-TS-N8M-B6HMI Onboard /2U /1S /GLAN /MiniPCIe /MicroSD /-20 ℃ to /Line-out /WLAN&BT /+12~36V Input (Build To Order) +70℃ Software Programming Cable CABLE-MINIDIN8P-30 for VOX-070-TS-N8M Series VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 15: 2 System Installation
System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 Boot Mode And Pin Mux Settings 2.5 External I/O Overview VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 16: Cpu Board Outline
2.1 CPU Board Outline CPU Board VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 17: Connector Summary
Mini DIN Socket 8-pin (Reserved) SW1 Power Switch (8A) 2.54mm 2-pin wafer 2-pin SW2 Power Switch (5A) 2.54mm 2-pin wafer 2-pin Power Connector (5A) Mini DIN Socket 3-pin Power Connector (8A) Power Plug 2-pin VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 18: Connector Pin Assignments
(For USB Touch Controller or Reserved) J9: Audio Mic-in (Reserved) Pin # Signal Name Pin # Signal Name Pin # Signal Name Pin # Signal Name USBD6- MIC_IN GND_AUD USBD6+ GND_AUD MIC_IN FGND VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... - Page 19 Mechanical Key Pin # Signal Name W_DISABLE PE0_RST PE0_RX- +3.3V PE0_RX+ +1.5V PWR: Power Connector (8A) Pin # Signal Name PE0_TX- +12 ~ 36V PE0_TX+ PE0_USB- PE0_USB+ +3.3V +3.3V LED_WWAN# VCC1.5 +3.3V VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024...
-
Page 20: Boot Mode Settings
2.4 Boot Mode Settings Two switches setting for Normal mode, internal flash booting. Two switches setting for Developer mode, which allow user to write the image in the eMMC. VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 21: External I/O Overview
MiniPCIe Socket supports PCIe and USB signals. Micro SIM Card Holder is only for MiniPCI slot. The RS232/485 function of COM1 is selected by J6 headers. (Please refer the section 2.2 and 2.3.) VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 22: 3 Software Resource
Software Resource 3.1 ICOP Wiki VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024... -
Page 23: Icop Wiki
3.1 ICOP Wiki ICOP Technology has a wiki site which provides all of the software support for VOX-070-TS-N8m such as demo image, recipe, and testing method. Please contact info@icop.com.tw or your ICOP sales representative. VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0... -
Page 24: Warranty
All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. © ICOP Technology Inc. 2024 VOX-070-TS-N8M User’s Manual IUMVOX-070-TS-N8M Ver. 1.0 Aug, 2024...
