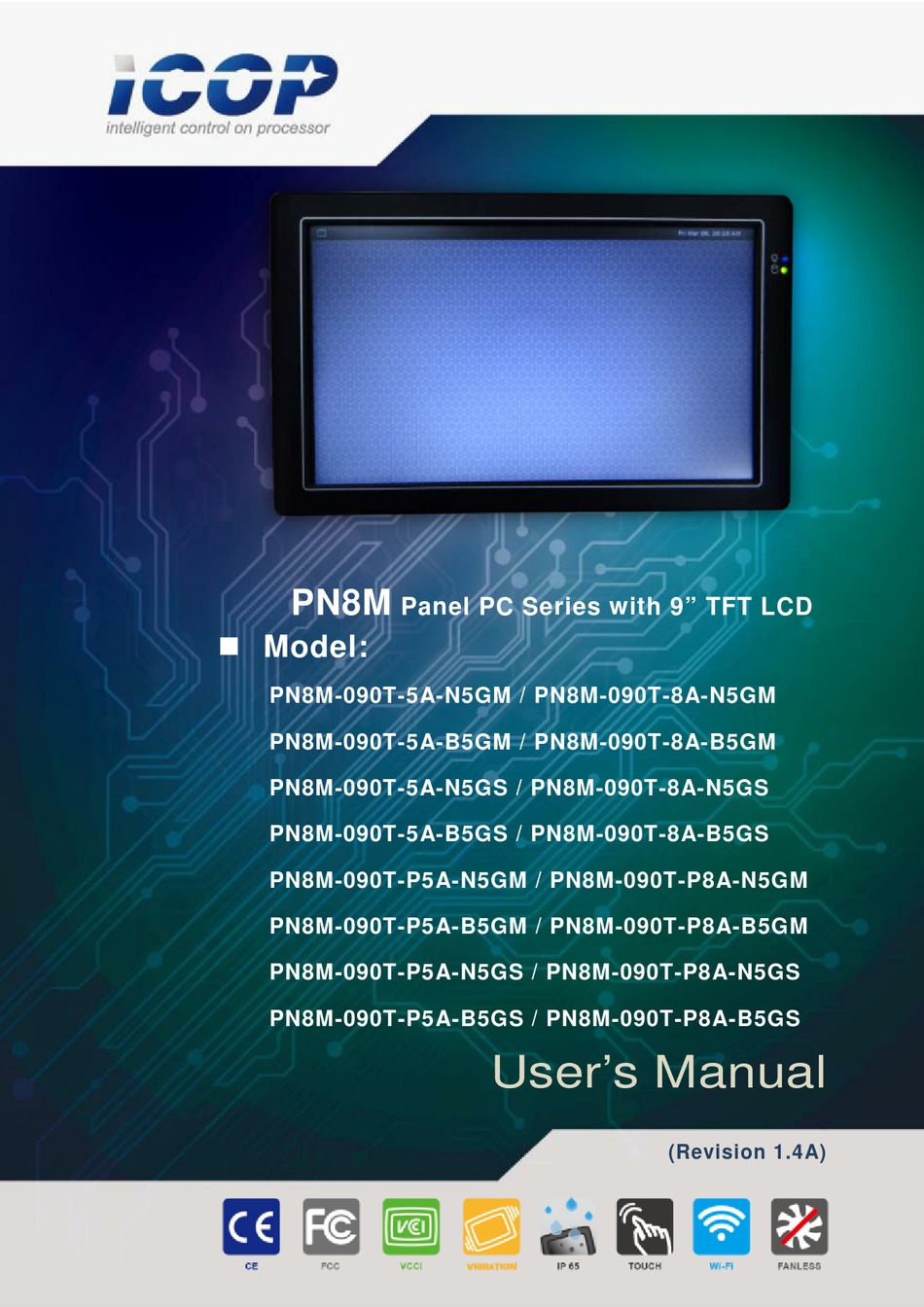

User's Manual
(Revision 1.4A)
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PN8M-090T-P5A-N5GM and is the answer not in the manual?

Questions and answers

Related Manuals for Icop PN8M-090T-P5A-N5GM

Summary of Contents for Icop PN8M-090T-P5A-N5GM

  • Page 1 PN8M Panel PC Series with 9” TFT LCD  Model: PN8M-090T-5A-N5GM / PN8M-090T-8A-N5GM PN8M-090T-5A-B5GM / PN8M-090T-8A-B5GM PN8M-090T-5A-N5GS / PN8M-090T-8A-N5GS PN8M-090T-5A-B5GS / PN8M-090T-8A-B5GS PN8M-090T-P5A-N5GM / PN8M-090T-P8A-N5GM PN8M-090T-P5A-B5GM / PN8M-090T-P8A-B5GM PN8M-090T-P5A-N5GS / PN8M-090T-P8A-N5GS PN8M-090T-P5A-B5GS / PN8M-090T-P8A-B5GS User’s Manual (Revision 1.4A)
  • Page 2 Revision Date Version Description 2020/07/24 Version 1.0A Initial Release 2020/08/04 Version 1.1A Correct section 2.5, System Status LED section Yocto operating 2021/02/01 Version 1.2A instructions At section 2.4, remove the CF/MicroSD 2021/03/08 Version 1.3A cover as default Projected Capacitive Touch 2021/09/15 Version 1.4A Solution...
  • Page 3 Manual No. IUMPN8M090-01 Ver.1.4A Sep, 2021 Trademarks Acknowledgment PN8M is the registered trademark of ICOP Technology Inc. Other brand names or product names appearing in this document are the properties and registered trademarks of their respective owners. All names mentioned herewith are served for identification purpose only.

  • Page 4: Table Of Contents

    Table of Contents Table of Contents ......................iii General Information ..................1 Product Description ............... 1 Product Specification ..............2 Inspection standard for TFT-LCD Panel .......... 4 Product Dimension ................ 9 Panel Mounting Instruction ............11 Ordering Information ..............13 Packing List ...................

  • Page 5: General Information

    General Information 1.1 Product Description PN8M-090T is an ultra-compact platform for the present demanding embedded and productive applications. It has NXP i.MX8M Mini Cortex-A53 ARM Quad Core which consumes only minimum power requirement when running at 1.6GHz, and up 4GB LPDDR4 memory provides faster data transfer rate. By using 9” TFT LCD, PN8M-090T becomes the perfect choice for a limited budget.

  • Page 6: Product Specification

    1.2 Product Specification Table 1-1 Product Specification CPU Board Specifications i.MX8M Mini-1.6GHz Cortex-A53 ARM Quad-Core Cache L2: 512KB Cache Memory 1GB/2GB/4GB LPDDR4 onboard Watchdog Timer Support 3 Watchdog Timer Integrated Gigabit Ethernet Audio High Definition Audio 8GB / 16GB / 32GB / 64GB of eMMC onboard Internal Drives Micro SD slot (Like a card reader only) RS-232 x 1...
  • Page 7 Front Panel IP 65 Protection Certification CE / FCC / VCCI / Vibration / Shock LCD Specifications Display Type 9” TFT LCD Backlight Unit Display Resolution 1024(W) x 600(H) Brightness (cd/m 300 nits Contrast Ratio 500 : 1 Display Color 262, 144 Active Area (mm) 196.61 (W) x 114.15 (H)

  • Page 8: Inspection Standard For Tft-Lcd Panel

    1.3 Inspection standard for TFT-LCD Panel Table 1-2 Inspection Standard DEFECT TYPE LIMIT Note φ＜0.15mm Ignore 0.15mm≦φ≦0.5mm N≦4 SPOT Note1 0.5mm＜φ 0.03mm<W≦0.1mm, L≦ N≦3 Note1 FIBER VISUAL INTER 1.0mm＜W, 1.5mm＜L DEFECT φ＜0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ Mura It’...
  • Page 9 [Note 1] W : Width[mm], L : Length[mm], N : Number, φ: Average Diameter. White / Black Spot Polarizer Bubble Fig 1-1 Fig 1-2 [Note 2] Bright dot is defined through 6% transmission ND Filter as following. Fig 1-3 PN8M-090T PN8M Panel PC Series with 9”...
  • Page 10 [Note 3] C Area: Center of display area O Area: Outer of display area [Note 4] Judge defect dot and adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dart adjacent dot. And they will be counted 2 defect dots in total quantity.
  • Page 11 LCD display if the static image is kept for a period of time without any change. ICOP will suggest customers not to have static image on LCD for over 4 hours without any image movement and also enable screensaver to avoid image sticking issue if LCD displays need to be kept on for a long time.
  • Page 12 3. After 5 mins, the mura must be disappeared completely. PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...

  • Page 13: Product Dimension

    1.4 Product Dimension PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...
  • Page 14 Fig 1-4 Product Dimension PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...

  • Page 15: Panel Mounting Instruction

    1.5 Panel Mounting Instruction Cut a mounting hole in the panel. (Refer to PN8M-090T Dimensions on page 7) (Note 1) Check and remove the twelve M3 screws in a diagonal pattern as image below if necessary. Place PN8M-090T face-down on a clean, flat surface. Slide the panel cutout around the back of PN8M-090T, until the panel rests directly on the gasket.
  • Page 16 Note 1: It is strongly recommended that a professional machine shop cut the mounting hole in the panel. Note 2: The length for all twelve M3 screws will be according to the thickness of mounting panel. For example: The length of standard M3 screws for PN8M-090T is 6mm.

  • Page 17: Ordering Information

    1.6 Ordering Information Product eMMC DC-Input Type BT&WLAN DRAM eMMC Type Wide Temp. Code Size Capacity PN8M 090T N (No BT&WLAN) 4 (1GB) F (8GB) M (MLC) I (Wide Temp.) B (With BT&WLAN) 5 (2GB) G (16GB) S (SLC) 6 (4GB) H (32GB) J (64GB) 1.
  • Page 18 16GB eMMC MLC and DC+5V PN8M-090T-P5A-B5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4, 16GB eMMC MLC, PCAP, Wifi&BT and DC+5V PN8M-090T-P5A-N5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4, 16GB eMMC MLC, PCAP and DC+5V...

  • Page 19: Packing List

    WIRELESS-ANTENNA-157 PN8M-090T-P8A-N5GM PN8M-090T-P8A-N5GM PN8M-090T-8A-B4FM PN8M-090T-8A-B4FM WIRELESS-ANTENNA-157 PN8M-090T-5A-N4FM PN8M-090T-5A-N4FM Power-20W-3PIN-X & PowerHead-US/EU PN8M-090T-5A-B5GM PN8M-090T-5A-B5GM WIRELESS-ANTENNA-157 PN8M-090T-5A-N5GM PN8M-090T-5A-N5GM Power-20W-3PIN-X & PowerHead-US/EU Power-20W-3PIN-X & PowerHead-US/EU PN8M-090T-P5A-B5GM PN8M-090T-P5A-B5GM WIRELESS-ANTENNA-157 PN8M-090T-P5A-N5GM PN8M-090T-P5A-N5GM Power-20W-3PIN-X & PowerHead-US/EU PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...

  • Page 20: System Installation

    System Installation 2.1 CPU Board Outline Fig 2-1 PN8M CPU Board PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...

  • Page 21: Connector Summary

    2.2 Connector Summary Table 2-1 Summary Table Description Type of Connections Pin nbrs. Ethernet External RJ45 Connector 8-pin Micro SD Card Socket Micro SD Socket 9-pin Enable RS232/RS485 2.54mm 2-pin Header 2-pin Audio Line-Out 1.25mm Phone Jack 5-pin (Reserved) Audio Mic-in 1.25mm 4-pin Wafer 4-pin USB 2.0...

  • Page 22: Connector Pin Assignments

    J2: RJ45 2.3 Connector Pin Assignments J9: Audio Mic-in (Reserved) Pin # Signal Name Pin # Signal Name Pin # Signal Name Pin # Signal Name BI_DA+ BI_DA- MIC_IN GND_AUD BI_DB+ BI_DC+ GND_AUD MIC_IN J10: USB 2.0 BI_DC- BI_DB- BI_DD+ BI_DD- J4: Micro SD Card Socket Pin # Signal Name Pin # Signal Name...
  • Page 23 J14: I2C (For External Gamma J22: Software Programming Firmware Programming) Port (Reserved) Pin # Signal Name Pin # Signal Name Pin # Signal Name Pin # Signal Name USBD1- I2C_SCL USBD1+ USBD1_ID I2C_SDA J16: USB 2.0 (For Touch Controller) TXD2 RXD2 PWR: Power Connector (5A) Pin # Signal Name Pin # Signal Name...

  • Page 24: External I/O Overview

    { PN8M-090T-8A } 2.4 External I/O Overview { PN8M-090T-5A } Fig 2-2 PN8M-090T-8A I/O overview Fig 2-3 PN8M-090T-5A I/O overview {Note} 1. WLAN is optional 2. COM1 can be RS232/RS485 signals by jumper, J6 3. MicroSD Socket likes a reader for data wrting/reading only 4.

  • Page 25: External I/O Pin Assignment

    Power Switch USB 2.0 Port 2.5 External I/O Pin Assignment Pin # Status Pin # Signal Name USB0- Power Connector (5A) USB0+ Pin # Signal Name GGND GGND Micro SD Card Socket (Like Card Reader Only) Power Connector (8A) Pin # Signal Name Pin # Signal Name DAT2...
  • Page 26 COM1 RS232 Pin # Signal Name Pin # Signal Name RXD1 TXD1 N/C or RS485+ N/C or RS485- RTS1 CTS1 RJ45 Pin # Signal Name Pin # Signal Name BI_DA+ BI_DA- BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- Software Programming Port (Reserved) Pin # Signal Name...
  • Page 27 Power LED LED Color State Blue Power On System Status LED LED Color State System Status LED when system is active Green (LED on => System running) (LED off => System execute “poweroff”) PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...

  • Page 28: The Settings For Normal And Developer Modes

    Settings Normal Developer Modes 1. There are two modes, Normal and Develop Modes as below. Two switches setting for Normal mode, internal flash booting. Two switches setting for Developer mode, which allow user to write the image in the eMMC. PN8M-090T PN8M Panel PC Series with 9”...
  • Page 29 2. The software programming cable for Developer Mode. Ordering Part Number: CABLE-MINIDIN8P-30 (1) Please order this cable from ICOP. (2) Refer section 3.2 to set two switches to be developer mode. (3) Plug 8-pin male terminal. (4) Connect USB and serial console cables to your developer PC, and power on the system for system restore.

  • Page 30: Yocto Operating Instructions

    Yocto operating instructions 4.1 Check storages contents (1) Boot up the unit and enter Yocto desktop, click upper-left icon to use weston-terminal. (2) To check the storages status, execute “df”. Under /dev/ directory, we found mmcblk1p1, mmcblk2p1 and sda1 three different storages. PN8M-090T PN8M Panel PC Series with 9”...
  • Page 31 (3) To check the files, execute command ls with Mounted on directory ls /run/media/mmcblk2p1 ls /run/media/mmcblk1p1 ls /run/media/sda1 After files checked, we found storage codes: mmcblk1p1 = eMMC onboard with Yocto image mmcblk2p1 = MicroSD card sda1 = USB mass storage PN8M-090T PN8M Panel PC Series with 9”...

  • Page 32: Set The Default Time Zone

    4.2 Set the default time zone (1) Boot up the unit and enter Yocto desktop, click upper-left icon to use weston-terminal. (2) Input below command to get code list of default time zone in Yocto. ls /usr/share/zoneinfo (3) To change the time zone, execute command: timedatectl set-timezone Note: can be code in sub folder or main folder, for example:...

  • Page 33: Open Chromium Browser

    4.3 Open Chromium browser (1) Boot up the unit and enter Yocto desktop, click upper-left icon to use weston-terminal. (2) Execute chromium --no-sandbox. (3) Set volume of sound. *In Chromium, NXP i.MX8M Mini processor doesn’t support hardware decoder of video playback. Thus, suggest user to play the Full HD 1080P video by internal Yocto Player.

  • Page 34: Setup Volume Of Sound

    4.4 Setup volume of sound (1) Boot up the unit and enter Yocto desktop, click upper-left icon to use weston-terminal. (2) Execute alsamixer. (3) Set volume of sound. PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...

  • Page 35: Play Mp4 Video Or Mp3 Music

    4.5 Play MP4 video or MP3 music (1) Boot up the unit and enter Yocto desktop, click upper-left icon to use weston-terminal. (2) To play a MP4 video or MP3 music, execute command: gst-launch-1.0 playbin uri=file:///run/media/XXX/XX.mp4 audio-sink=alsasink gst-launch-1.0 playbin uri=file:///run/media/XXX/XX.mp3 audio-sink=alsasink Note: is file direction, for example:...
  • Page 36 (B) Play 01.mp3 from a USB mass storage. gst-launch-1.0 playbin uri=file:///run/media/sda1/01.mp3 audio-sink=alsasink PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...

  • Page 37: Yocto Image Restore And Recipe

    4.6 Yocto Image Restore and Recipe Please contact your region sales or ICOP Technology Inc. to get the detail instructions, image restore and recipe download. User can use ICOP’s recipe to make custom embedded Linux, Yocto Project image. For Android environment, ICOP also has Android image for customer applications.

  • Page 38: Warranty

    Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. ©ICOP Technology Inc. 2021 PN8M-090T PN8M Panel PC Series with 9” WSVGA TFT LCD...
