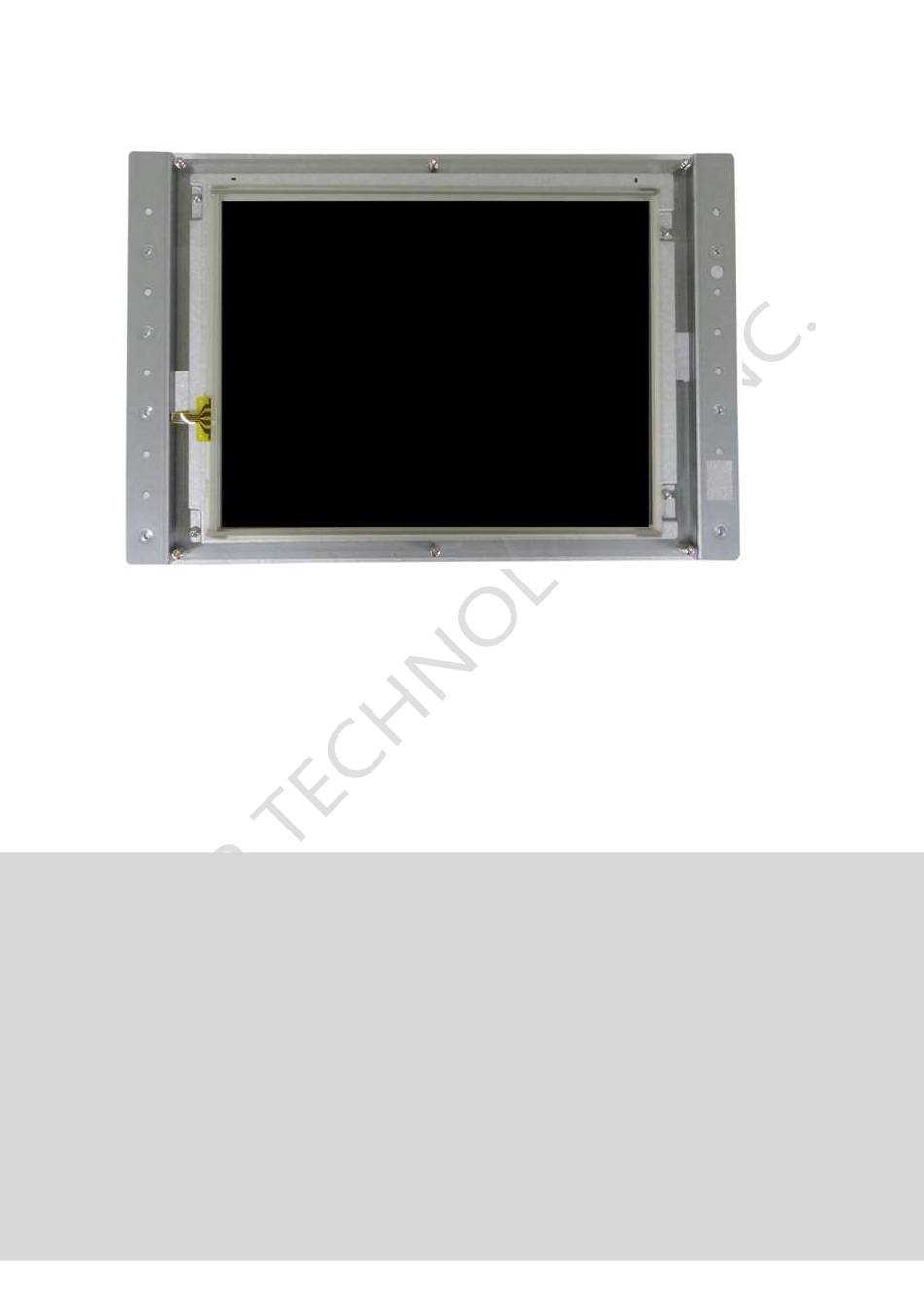

- Page 1 User’s Manual VOX-104-TS-N8M NXP i.MX 8M Mini Open Frame Panel PC with 10.4” TFT LCD and Touch Panels (Revision V1.0) VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
- Page 2 REVISION DATE VERSION DESCRIPTION 2024/06/28 Version 1.0 New Release VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
- Page 3 All names mentioned herewith are served for identification purpose only. For more detailed information or if you are interested in other ICOP products, please visit our official websites at: Global: www.icop.com.tw ...
- Page 4 Input voltage rated +12 ~ 24 VDC Operating temperature between 0~60°C / -20~+70°C (Option). Keep VOX-104-TS-N8M away from humidity. Never touch un-insulated terminals or wire unless your power adaptor is disconnected. Locate your Open Frame Panel PC as close as possible to the socket outline for easy access and to avoid force caused by entangling of your arms with surrounding cables from the Open Frame Panel PC.
-
Page 5: Table Of Contents
2.3 Connector Pin Assignments .................. 14 2.4 Boot Mode and Pin Mux Settings ................18 2.5 External I/O Overview ................... 20 Ch. 3 Software Resource ....................21 3.1 ICOP Wiki ......................22 Warranty ......................... 23 VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0... -
Page 6: 1 General Information
General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Ordering Information VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... -
Page 7: Product Description
1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new open frame Panel PC, which offers fanless design and low power consumption. The VOX-104-TS-N8M is powered by NXP i.MX 8M Mini, the Quad-Core Cortex-A53 of ARM based processor, and 2GB/4GB LPDDR4 chipset that handles processing more efficiently and provides faster performance. -
Page 8: Product Specifications
C Interface x1 Audio Line-out x1 Audio Mic-in x1 WLAN & BT x1 MECHANICAL & ENVIRONMENT Power Requirement +12 ~ 24VDC Input Power Consumption 8Watt (Typical) Operating Temperature 0~60°C / -20~+70°C (Option) VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... - Page 9 800(W) x 600(H) Brightness (cd/m 400 nits Contrast Ratio 700 : 1 Display Color 16.7M Pixel Pitch (mm) 0.264 (H) x 0.264 (V) Viewing Angle Vertical 130 , Horizontal 160 Backlight Lifetime 50,000 hrs VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
-
Page 10: Inspection Standard For Tft-Lcd Panel
(1) One pixel consists of 3 sub-pixels, including R, G, and B dot. (Sub-pixel = Dot) (2) Little bright Dot acceptitable under 6% ND-Filter. (3) If require G0 grand (Total dot N≦0), please contact region sales. VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... - Page 11 [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
- Page 12 The defects that are not defined above and considered to be problem shall be reviewed and discussed by both parties. Defects on the Black Matrix, out of Display area, are not considered as a defect or counted. VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
-
Page 13: Product Dimensions
1.4 Product Dimensions VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... -
Page 14: Ordering Information
(Build To Order) Input 10.4” OP w/iMX8M Mini /4GB DRAM /64GB eMMC VOX-104-TS-N8M-B6HMI Onboard /4U /3S /2GLAN /MiniPCIe /MicroSD /HD Audio /I C /15-bit GPIO /WLAN&BT /+12~24V (Build To Order) Input /-20℃ to +70℃ VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... -
Page 15: 2 System Installation
System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 Boot Mode And Pin Mux Settings 2.5 External I/O Overview VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... -
Page 16: Cpu Board Outline
2.1 CPU Board Outline CPU Board VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... -
Page 17: Connector Summary
2.0mm 10-pin box header 10-pin COM4 D-Sub 9-pin connector 9-pin COM3 2.0mm 10-pin box header 10-pin +12 to 24VDC power input 2-pin green terminal 2-pin J30~34 Jumper for LVDS 2.0mm 6-pin header 6-pin VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... - Page 18 LED Backlight 2.0mm 5-pin wafer 5-pin LVDS 2.0mm 20-pin header 20-pin Touch 1.25mm 4-pin wafer 4-pin LCD voltage select 2.54mm 3-pin header 3-pin RS232/RS485 jumper for 2.54mm 2-pin header 2-pin COM1&4 VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
-
Page 19: Connector Pin Assignments
(Reserved and N/C because the pin mux is used for COM3 already.) J5: Reset Pin # Signal Name Pin # Signal Name Pin # Signal Name Pin # Signal Name SPI1_CLK SPI1_MOSI- RST_CORE SPI1_MISO SPI_CS VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... - Page 20 GPE1_USB- CSI_D0+ GPE1_USB+ CSI_D1- CSI_D1+ +3.3V CSI_CLK- +3.3V CSI_CLK+ CSI_IO_3V3 CAMERA_SCL CAMERA_SDA +3.3V +3.3V J20: GLAN1 Pin # Signal Name Pin # Signal Name GTX1+ GTX1- GRX1+ GTXC1+ GTXC1- GRX1- GRXD1+ GRXD1- VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
- Page 21 Pin # Signal Name (VCC option) +12V or +5V J25: COM4 (RS232 or RS485) (Setting on J38) Backlight Brightness Pin # Signal Name Pin # Signal Name (On/Off) (PWM) RXD4 TXD4 RS485+_4 RS485-_4 VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
- Page 22 (For J35’s Pin1 power voltage supply) Function Jumper setting +12V Pin1 & 2 closed Pin2 & 3 closed J39: RS232/RS485 jumper for COM1&4 Function Jumper setting RS232 Pin1 & 2 opened RS485 Pin1 & 2 closed VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
-
Page 23: Boot Mode And Pin Mux Settings
Function Mode0 Mode1 Set to “1” position Set to “7” position Internal Boot Mode Serial Download Mode Set to “8” position Set to “2” position (For writing image by Micro USB only) VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... - Page 24 There are 4 resistors, RS3, RS4, RS6 and RS8 that need to be changed for COM1 function, but BT will be no function. (Please contact ICOP sales representative for detail component positions.) (2) COM3 or SPI function (Choose either one only) The same pins are used for COM3 or SPI function.
-
Page 25: External I/O Overview
MiniPCIe Socket supports USB signals only. Micro SIM Card Holder is only for MiniPCI slot. The RS232/485 functions of COM1 and COM4 are selected by J39 headers. (Please refer the section 2.1 and 2.3.) VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... -
Page 26: 3 Software Resource
Software Resource 3.1 ICOP Wiki VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024... -
Page 27: Icop Wiki
3.1 ICOP Wiki ICOP Technology has a wiki site which provides all of the software support for VOX-104-TS-N8m’s Mainboard, NX8MM-35 such as demo image, recipe, and testing method. Please check the following link: https://wiki.icop.com.tw/product/index.php/NX8MM-35 If you did not find the resources you need on the wiki site, please contact info@icop.com.tw... -
Page 28: Warranty
All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. © ICOP Technology Inc. 2024 VOX-104-TS-N8M User’s Manual IUMVOX-104-TS-N8M Ver. 1.0 Jun, 2024...
