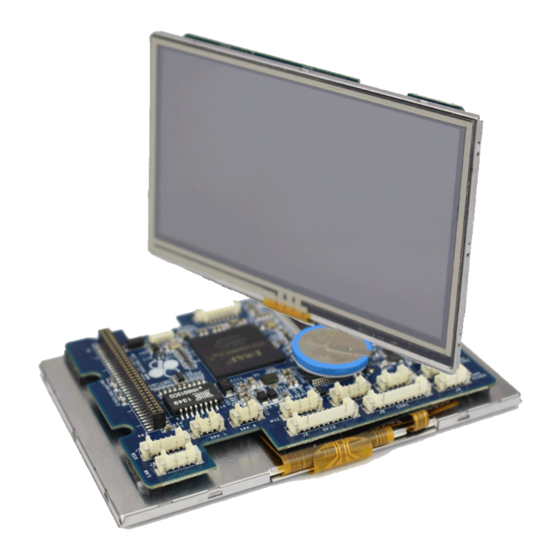

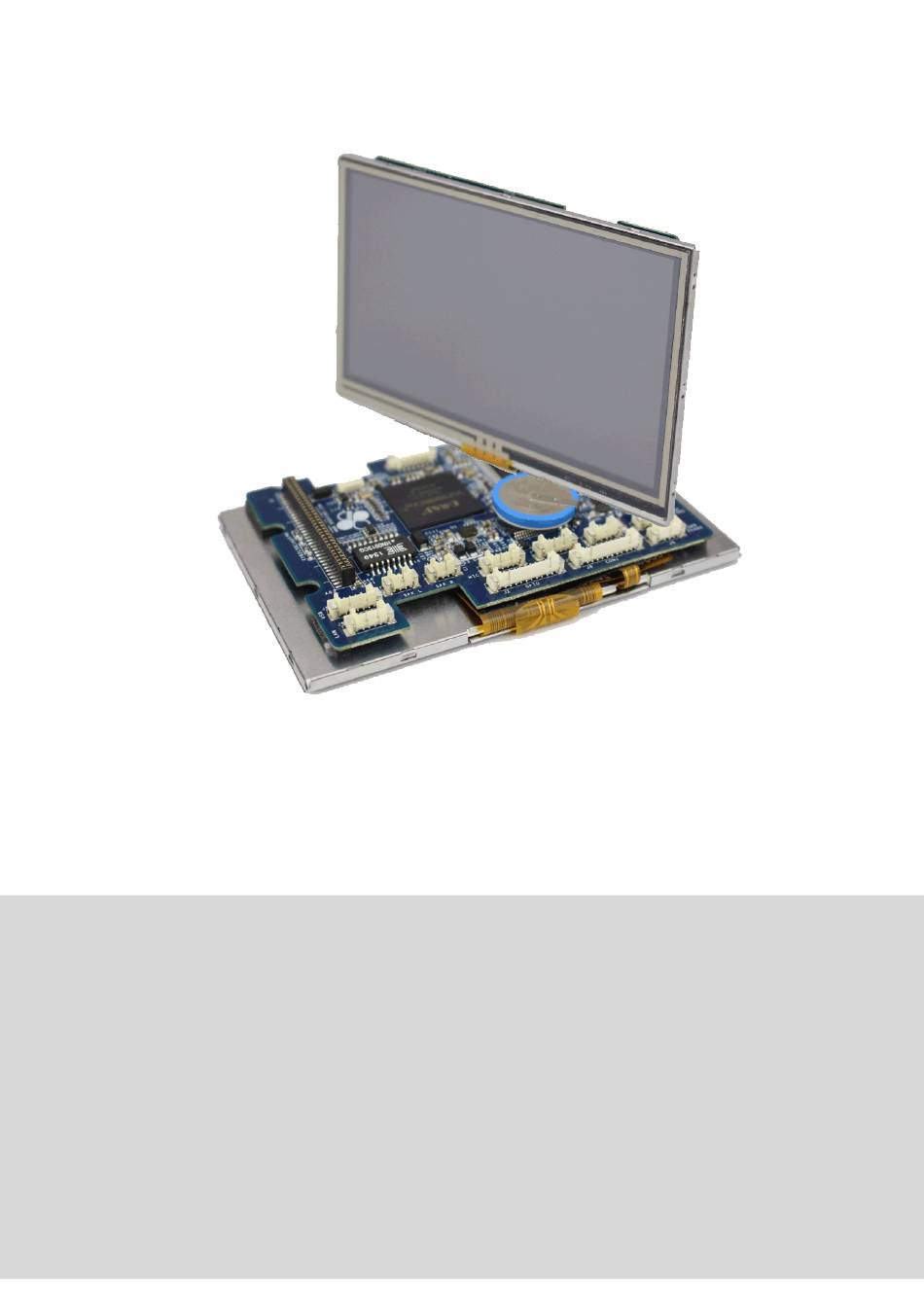

- Page 1 User’s Manual HMI-043T Open Frame DMP Vortex86 EXm Processor Compact Panel PC with 4.3” Touchscreen HMI-043T-EM41N-O HMI-043T-EM41B-O HMI-043T-EM42N-O HMI-043T-EM42B-O (Version 1.6A) HMI-043T User’s Manual IUMHMI043T-01 Ver.1.0A Jul, 2014...
- Page 2 REVISION DATE VERSION DESCRIPTION 2014/07/31 Version 1.0A New Release 2015/01/02 Version 1.1A Update GPIO Function Pin 2015/12/11 Version 1.2A Update GPIO Function Pin 1. Correct LED luminance 2016/01/27 Version 1.3A 2. Add ordering part numbers 1. Correct the website Section 3.1 2016/09/09 Version 1.4A 2.
- Page 3 All names mentioned herewith are served for identification purpose only. For more detailed information or if you are interested in other ICOP products, please visit our official websites at: Global: www.icop.com.tw ...
- Page 4 SAFETY INFORMATION Read these Safety instructions carefully. Please carry the unit with both hands, handle carefully. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. Do not expose your Panel PC to rain or moisture in order to prevent shock and fire hazard.
-
Page 5: Table Of Contents
Content Content ..........................iv Ch. 1 General Information ....................1 1.1 Product Description ....................2 1.2 Product Specifications ..................... 3 1.3 Inspection standard for TFT-LCD Panel ..............5 1.4 Product Dimensions ....................7 1.5 Ordering Information ....................8 Ch. 2 System Installation ....................10 2.1 CPU Board Outline .................... -
Page 6: 1 General Information
General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Odering Information HMI-043T User’s Manual IUMHMI043T-01 Ver.1.6A Apr, 2017... -
Page 7: Product Description
1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new HMI, which offers fanless design, low power consumption, and IP65 front panel. The HMI-043T is powered by DMP Vortex86Exm SoC, the new generation SoC of Vortex86 family, which is included 128MB/256MB memory and eMMC Flash memory. -
Page 8: Product Specifications
1.2 Product Specifications CPU BOARD SPECIFICATIONS DMP Vortex86EXm 400MHz BIOS Coreboot BIOS L1:16KB I-Cache, 16KB D-Cache Cache L2: 4-way, 128KB L2 Cache Memory Integrated 128MB / 256MB DDRIII Nand-Flash 512MB/4GB eMMC onboard (Optional) Network Integrated 10/100Mbps Ethernet HD Audio-Realtek ALC262 CODEC Audio Mic-in x 1 SPK-L , SPK-R (connector) x 1... - Page 9 LCD SPECIFICATIONS Display Type 4.3” WQVGA TFT LCD Backlight life 20,000 hrs Display Resolution 480(W) x 272(H)\ Luminance (cd/m 280 cd/m Contrast Ratio 450 : 1 Display Color 16.7M Pixel Configuration R.G.B Vertical Stripe Viewing Direction 6 o’clock Viewing Angle Vertical 120 , Horizontal 140 TOUCHSCREEN...
-
Page 10: Inspection Standard For Tft-Lcd Panel
1.3 Inspection standard for TFT-LCD Panel DEFECT TYPE LIMIT Note φ＜0.15mm Ignore 0.15mm≦φ≦0.5mm N≦4 Note1 SPOT 0.5mm＜φ 0.03mm<W≦0.1mm, L≦5mm N≦3 FIBER Note1 VISUAL 1.0mm＜W, 1.5mm＜L INTERNAL DEFECT φ＜0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ Mura It’ OK if mura is slight visible through 6%ND filter A Grade B Grade BRIGHT DOT... - Page 11 [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area [ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dark adjacent dot.
-
Page 12: Product Dimensions
1.4 Product Dimensions HMI-043T User’s Manual IUMHMI043T-01 Ver.1.6A Apr, 2017... -
Page 13: Ordering Information
1.5 Ordering Information Product CPU Type CPU Clock Flash Code Size onboard 043T EM(EXm) 3 (300MHz) 1 (128MB) N (No Flash) O (Open Frame) 4 (400MHz) 2 (256MB) B (512MB) B (O type + Case) E (4GB) B01 (B type + I/O board with case) B02 (B type + PoE I/O board with case) BC1(B type + CAN I/O board with case) BF (O type + Case + RFID) - Page 14 HMI-043T-EM42N-O 4.3” HMI OP w/256MB/8MBSPI/2U/1S/485/GPIO/SPK/CAN 4.3” HMI OP w/256MB/512MBeMMC/8MBSPI/2U/1S/485 HMI-043T-EM42B-O /GPIO/SPK/CAN CABLE-265OP-SET HMI-043T Open Frame cable set PACKING LIST PART NUMBER PACKAGE HMI-043T-EM41N-O HMI-043T-EM41N-O *1 HMI-043T-EM41B-O HMI-043T-EM41B-O *1 HMI-043T-EM42N-O HMI-043T-EM42N-O *1 HMI-043T-EM42B-O HMI-043T-EM42B-O *1 CABLE-265OP-SET CABLE-265OP-485-15 x 3 . CABLE-265OP-COM-15 x 1 .
-
Page 15: 2 System Installation
System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 Connector I/O Overview HMI-043T User’s Manual IUMHMI043T-01 Ver.1.6A Apr, 2017... -
Page 16: Cpu Board Outline
2.1 CPU Board Outline HMI-043T CPU Board HMI-043T User’s Manual IUMHMI043T-01 Ver.1.6A Apr, 2017... -
Page 17: Connector Summary
2.2 Connector Summary Description Type of Connections Pin # Expansion slot 1.27mm 32x2-pin female box header 64-pin Expansion slot 1.27mm 32x2-pin female box header 64-pin GPIO 1.25mm 10-pin wafer 10-pin JTAG (Debug USE) 1.25mm 6-pin wafer 6-pin 0.8mm 5-pin wafer 5-pin 1.25mm 5-pin wafer 5-pin... -
Page 18: Connector Pin Assignments
2.3 Connector Pin Assignments J1A/J1B: Expansion Slot J1A1 J1A2 J1B1 J1B2 Pin# Signal Name Pin# Signal Name Pin# Signal Name Pin# Signal Name RSTDRV VCC_IN VCC_IN GP00 GP01 GP70 GP71 GP02 GP03 GP72 GP73 GP04 GP05 GP74 GP75 GP06 GP07 GP76 GP77 GP90... - Page 19 HMI-043T User’s Manual IUMHMI043T-01 Ver.1.6A Apr, 2017...
- Page 20 J2: GPIO J10: RS-485 Pin # Signal Name Pin # Signal Name Pin # Signal Name Pin # Signal Name GP70 RS485+ RS485- GP71 GP72 GP73 GP74 J11: TOUCH GP75 GP76 Pin # Signal Name Pin # Signal Name GP77 J4: USB Pin # Signal Name...
-
Page 21: Connector I/O Overview
2.4 Connector I/O Overview Expansion Slot Expansion Slot USB 2.0 PORT TOUCH RS-485 USB 2.0 PORT SPK-L SPK-R GPIO COM/VCC-IN MIC-IN 10/100Mbps Ethernet HMI-043T User’s Manual IUMHMI043T-01 Ver.1.6A Apr, 2017... -
Page 22: 3 Driver Installation
Driver Installation 3.1 HMI-043T Development Note HMI-043T User’s Manual IUMHMI043T-01 Ver.1.6A Apr, 2017... - Page 23 PC sound quality closer to consumer electronic devices. OPERATING SYSTEM SUPPORT The HMI-043T provides the VGA and LAN drivers for DOS, Linux, and Windows CE, Please get the drivers from ICOP technical support URL: tech.icop.com.tw HMI-043T is an open-source embedded platform based on Vortex86EXm SoC, easy-to-use hardware and software integrated.
-
Page 24: Hmi-043T Development Note
< WINDOWS DEVELOPMENT GUIDE > Windows Embedded CE 6.0 BSP and Windows Embedded Compact 7 BSP with development notes, please visit technical website to get more information at http://tech.icop.com.tw/. < LINUX INSTALLATION NOTE> Please visit Linux technical website to get more information at ftp://vxdx:gc301@ftp.dmp.com.tw/Linux_DEMO/Vortex86_Linux_Support... -
Page 25: Warranty
(RMA) number. Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. ©ICOP Technology Inc. 2016 HMI-043T User’s Manual IUMHMI043T-01 Ver.1.6A Apr, 2017...
