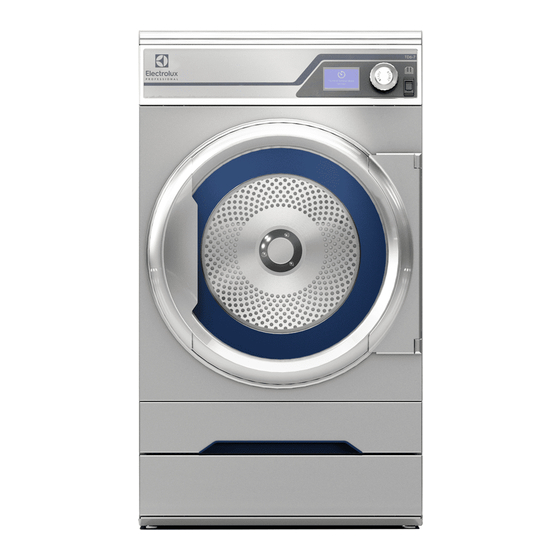

- Page 1 User Manual Tumble dryer DE-6100, DE-6135 Type N4... 438917994/US Original instructions 2023.12.13...
- Page 3 Safety WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS: Do not try to light any appliance.
- Page 4 Safety WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
- Page 5 Safety WARNING: The dryer is intended for use only with fabrics that have been washed with water. WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similarly textured rubberlike materials. WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR MACHINE.
- Page 6 Safety NOTICE TO: OWNERS, OPERATORS AND DEALERS IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS. Prior to operation of the machine, check to make certain that all operating instructions and warning signs are affixed to the machine and legible.
- Page 7 Safety NOTICE TO INSTALLER Improper installation of this machine: • May cause serious damage to the machine. • May result in other property damage. • May cause personal injury. • Will void the manufacturer's warranty. Connection to line Voltage or over-current protection devices other than those specified on the data plate may result in severe damage to machine components, and will void the manufacturer's warranty.
- Page 8 Safety Electrical Information It is your responsibility to have ALL electrical connections (including grounding) made by a properly licensed and competent electrician to assure that the electrical installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL electrical connections, material, and workmanship must conform to the applicable requirements of the NATIONAL ELECTRIC CODE ANSI/NFPA NO.
- Page 9 Safety Gas Information It is your responsibility to have ALL plumbing connections made by a qualified professional to insure that the installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL plumbing connections, material, and workmanship must conform to the applicable requirements of the National Fuel Gas Code ANSI Z223.1 or the CAN/CGA-B149, INSTALLATION CODES - both the latest edition.
- Page 10 Safety Natural Gas If the pressure is too low, ignition failure and/or slow drying times may result. Excessively high supply pressure will result in erratic operation of the gas valves internal pressure regulator. Further information in section: Gas connection. Propane Gas Dryers made for use with propane gas have the gas valve pressure regulator blocked open, so that the gas pressure must be regulated upstream of the dryer.
-
Page 11: Table Of Contents
Contents Contents 1 Safety Precautions ..........................13 Additional safety precautions for gas heated tumble dryer ............14 General safety information......................14 Commercial use only........................14 Copyright ..........................14 Ergonomics certification ......................14 Symbols..........................15 2 Warranty terms and exclusions......................16 3 Operating panel ..........................17 Options ...........................18 4 Program description ..........................19 General...........................19 Program description .........................19 5 Handling ............................22... -
Page 13: Safety Precautions
III, means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. • The openings in the base, shall not be obstructed by a carpet. • Maximum mass of dry cloth: DE-6100: 50 kg / 110 lbs, DE-6135: 67 kg / 148 lbs. -
Page 14: Additional Safety Precautions For Gas Heated Tumble Dryer
1.4 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional AB company. 1.5 Ergonomics certification The human body is designed for movement and activity but physical stress injuries as a result of static and repetitive movements or unfavorable working postures may occur. -
Page 15: Symbols
User Manual In case several machines are managed by the same operator the repetitive movements will increase and as a conse- quence of this the related biomechanical risk will increase exponentially. Follow the below recommendations to avoid, as much as possible, operators acquiring bodily injury. •... -
Page 16: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 17: Operating Panel
User Manual 3 Operating panel Standard models Sliding door models Display Up- and down arrows that are used to scroll up and down through the menus on the display. Start- and pause button... -
Page 18: Options
User Manual 3.1 Options The machine can be equipped with several combinations of options. The following tables explains the function of each knob/button. Drum rotation speed knob Use the knob to adjust the rotation speed of the drum. Use the following table as a guide to set the optimum drum speed. Optimum drum speed Too fast drum speed Too slow drum speed... -
Page 19: Program Description
User Manual 4 Program description 4.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different markets use different programs. The following program description is a short description of some exam- ples of programs that can be used. - Page 20 User Manual Automatic programs Description High Temp Extra Dry Denim and terry The program will stop when set dryness is achieved Extra Dry Denim and terry Medium Temp The program will stop when set dryness is achieved Extra Dry Viscose and polycotton Low Temp The program will stop when set dryness is achieved High Temp...
- Page 21 User Manual Automatic programs Description Low Temp Large Textiles The program will stop automatically when the fabric is dry. This program is suitable when drying large fabrics such as bed sheets, table cloths, curtains etc. The program is built to prevent the fabric from tangling together. Time programs Description Dries set time...
-
Page 22: Handling
Metal objects might cause damage to the drum. Make sure the filter is clean. Load the goods into the machine and close the door. Recommended maximum load DE-6100 45 kg / 99 lbs DE-6135 60 kg / 132 lbs fig.X02438... -
Page 23: How To Start The Machine
User Manual 5.2 How to start the machine Automatic programs Select program with the up- and down arrows. Start the machine by pressing Time programs Select program with the up- and down arrows. Start the machine by pressing After start it is possible to change the time for the selected program: •... -
Page 24: Additional Functions
User Manual 5.3 Additional functions There is a menu with additional functions available for selection after start. When pressing the menu will ap- pear on the display. Select from the menu with the up- and down arrows and press to activate. Note! Some of the functions may not be available or active on your machine. -
Page 25: Tilting Operation For Easy Unloading
User Manual 5.4.1 Tilting operation for easy unloading When program has ended open the sliding door. fig.X02439 Start tilting by turning the knob all the way to right position. The machine will start tilting forward and it will be easier to unload. -
Page 26: Clean The Filter Compartment
User Manual 5.4.3 Clean the filter compartment Check the filter compartment. Clean if necessary. It is unnecessary to remove the lint filter for cleaning. The air system of the machine ensures that lint and dust settle automatically at the bottom of the filter compartment. Standard machine Machine with sliding door When opening the filter door, first place one hand at the edge/end of... -
Page 27: Error Codes
User Manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH MB The MB system (Moisture balance) in the machine indicates that the garment is not dry... -
Page 28: Maintenance
User Manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. - Page 29 User Manual Standard machine Machine with sliding door When opening the filter door, first place one hand at the edge/end of Use both hands positioned according to the illustration when opening the railing (near the magnet that holds the door) and pull until the door the filter door.
-
Page 30: Machines With Moisture Balance (Mb)
User Manual For machines with sliding door Check the door packing (B) and clean if necessary (use a moist cloth). fig.X02451 7.4 Machines with Moisture Balance (MB) At regular basis, wipe off/clean drum and lifters with citric acid (Acidum citricum). If soap/softener residue remains, it is recommended also to use a coarse sponge. -
Page 31: Disposal Information
User Manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 34 www.electroluxprofessional.com...
