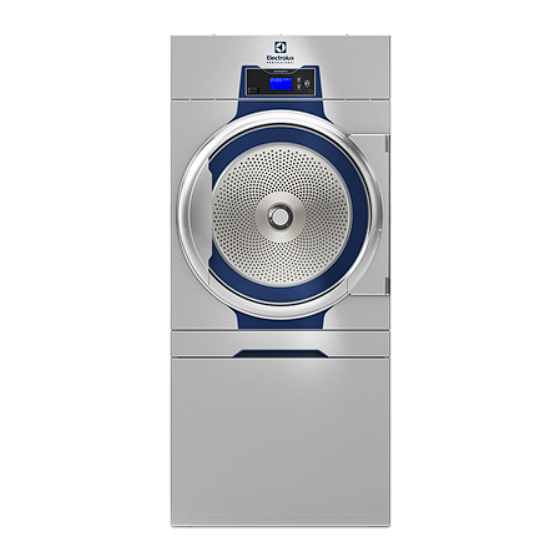

- Page 1 User Manual DE-645 Type N2... 438909999/US Original instructions 2024.02.22...
- Page 3 Safety WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS: Do not try to light any appliance.
- Page 4 Safety WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
- Page 5 Safety WARNING: The dryer is intended for use only with fabrics that have been washed with water. WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similarly textured rubberlike materials. WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR MACHINE.
- Page 6 Safety NOTICE TO: OWNERS, OPERATORS AND DEALERS IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS. Prior to operation of the machine, check to make certain that all operating instructions and warning signs are affixed to the machine and legible.
- Page 7 Refer to complete installation instructions provided in manuals accompanying the machine. Contact Electrolux Professional Technical Support with any questions BEFORE installing this machine. Damage resulting from inadequate installation materials or improper installation...
- Page 8 Safety Electrical Information It is your responsibility to have ALL electrical connections (including grounding) made by a properly licensed and competent electrician to assure that the electrical installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL electrical connections, material, and workmanship must conform to the applicable requirements of the NATIONAL ELECTRIC CODE ANSI/NFPA NO.
- Page 9 Safety Gas Information It is your responsibility to have ALL plumbing connections made by a qualified professional to insure that the installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL plumbing connections, material, and workmanship must conform to the applicable requirements of National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1 - both the latest edition.
- Page 10 Safety Natural Gas If the pressure is too low, ignition failure and/or slow drying times may result. Excessively high supply pressure will result in erratic operation of the gas valves internal pressure regulator. Further information in section: Gas connection. Propane Gas Dryers made for use with propane gas have the gas valve pressure regulator blocked open, so that the gas pressure must be regulated upstream of the dryer.
-
Page 11: Table Of Contents
Contents Contents 1 Safety Precautions ..........................13 Additional safety precautions for gas heated tumble dryer ............15 General information .........................15 Commercial use only........................15 Copyright ..........................15 Ergonomics certification ......................15 Symbols..........................16 2 Warranty terms and exclusions......................17 3 Operating panel ..........................18 4 Program description ..........................19 General...........................19 Program description .........................19 Automatic fan control .......................21... -
Page 13: Safety Precautions
User Manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... - Page 14 User Manual • A-weighted emission sound pressure level at working stations: 70 dB(A).
-
Page 15: Additional Safety Precautions For Gas Heated Tumble Dryer
1.4 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional AB company. 1.5 Ergonomics certification The human body is designed for movement and activity but physical stress injuries as a result of static and repetitive movements or unfavorable working postures may occur. -
Page 16: Symbols
User Manual In case several machines are managed by the same operator the repetitive movements will increase and as a conse- quence of this the related biomechanical risk will increase exponentially. The possible postural risks are the interaction with the user interface, display and buttons. Follow the below recommendations to avoid, as much as possible, operators acquiring bodily injury. -
Page 17: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 18: Operating Panel
User Manual 3 Operating panel fig.X00727 Display Up- and down arrows that are used to scroll up and down through the menus on the display. Start- and pause button... -
Page 19: Program Description
User Manual 4 Program description 4.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different markets use different programs. The following program description is a short description of some exam- ples of programs that can be used. - Page 20 User Manual Automatic programs Description High Temp Extra Dry Denim and terry The program will stop when set dryness is achieved Extra Dry Denim and terry Medium Temp The program will stop when set dryness is achieved Extra Dry Viscose and polycotton Low Temp The program will stop when set dryness is achieved High Temp...
-
Page 21: Automatic Fan Control
User Manual Automatic programs Description Low Temp Large Textiles The program will stop automatically when the fabric is dry. This program is suitable when drying large fabrics such as bed sheets, table cloths, curtains etc. The program is built to prevent the fabric from tangling together. The following table shows some examples of available time programs and a short description of those. - Page 22 User Manual Make sure the filter is clean. fig.X00724 Load the goods into the machine and close the door. The recommended maximum load is 20 kg / 44 lbs. fig.X00735...
-
Page 23: How To Start The Machine
User Manual 5.2 How to start the machine Automatic programs Select program with the up- and down arrows. Example of programs MEDIUM Start the machine by pressing Time programs Select program with the up- and down arrows. Example of programs MEDIUM NO HEATING Start the machine by pressing... -
Page 24: When Program Has Ended
User Manual End a program It is possible to end a program after start. Select END PROGRAM and activate. When pressing the program will be ended. Status Select STATUS MENU and activate. The status menu shows the status for inlet air temp, outlet air temp, RMC and if the heat is on or off in the machine. Change drum speed (only on machines with DCS) Select CHANGE DRUM SPEED and activate. - Page 25 User Manual Clean the filter The filter must be cleaned after each drying cycle. fig.X00725A Leave the door open when ready. This is to prevent that moisture stays in the machine and develop bacteria and mould.
-
Page 26: Error Codes
User Manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH RMC The RMC system (Residual moisture system) in the machine indicates that the garment is not... -
Page 27: Maintenance
User Manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Check the “Maintenance manual” for a complete guide on the maintenance to be performed by the owner of the ma- chine/the laundry manager and also by qualified service personnel. - Page 28 User Manual Clean the filter and filter drawer. Check that the parts are not damaged. fig.X00725A Remove any lint and dust around the machine.
-
Page 29: Machines With Heat Pump
User Manual 7.4 Machines with heat pump 7.4.1 Second lint filter There are two warning messages indicating that the second filter shall be cleaned: 1. “CLEAN FIRST AND SECOND FILTER.” 2. “CLEAN FIRST AND SECOND FILTER. IF NOTICE REMAINS, CONTACT RESPONSIBLE FOR CHANGING THE SPECIAL FILTER.”... -
Page 30: Disposal Information
User Manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 32 www.electroluxprofessional.com...
