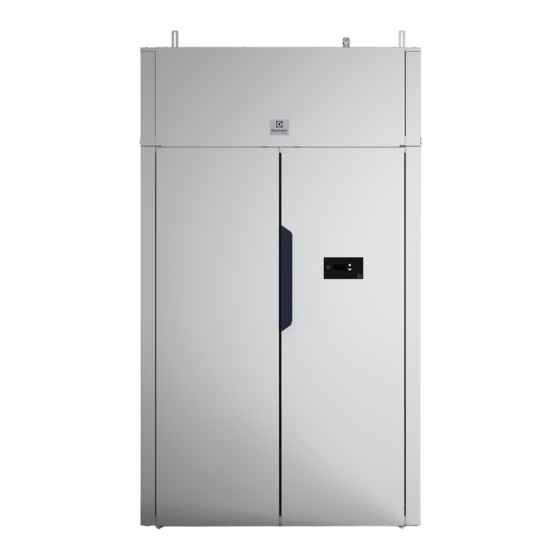

- Page 1 User manual Drying Cabinet DC6-8HP_Q 427001228/EN Original instructions 2022.05.25...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................5 Symbols............................5 2 Warranty terms and exclusions......................6 3 Appliance layout..........................7 Components..........................7 Drying principle..........................7 Air flow............................9 4 First start ............................10 Language setting ........................10 5 Operation ............................11 Advice and tips for using the drying cabinet with dehumidifier ............11 Operation .......................... -
Page 5: Safety Precautions
User manual 1 Safety Precautions This appliance can be used in public areas. Remove all objects from pockets such as lighters and matches. WARNING. This appliance is intended only for drying textiles washed in water. DO NOT MODIFY THIS APPLIANCE. Servicing shall be carried out only by authorized personnel. -
Page 6: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 7: Appliance Layout
User manual 3 Appliance layout 3.1 Components fig.W01380A The figure shows the cabinet in the left version Wall bracket Heat pump component Folding flat drying frame Glove hangers Expandable hanger. The lower hanger section contains curtain coils that can be used to fasten items. Adjustable feet Shoe rack 3.2 Drying principle... - Page 8 User manual Conventional drying cabinet Energy consumption approx. 0.7 kWh/kg of laundry fig.W01331 Air from room Heating battery Hot air Hot, humid air that is led away Drying cabinet with heat pump Energy consumption approx. 0.35 kWh/kg of laundry fig.W01332 Hot, humid air Cooling battery Condensation / water drops.
-
Page 9: Air Flow
User manual 3.3 Air flow fig.W01391A Inlet for hot, dry air Outlet for humid air. A lint filter is located in front of the air intake. Circulating hot air Lint filter... -
Page 10: First Start
User manual 4 First start Read the safety precautions on page 5 before using the cabinet. Read this User Manual before beginning to use the drying cabinet. • Make sure that the cabinet is secured to the wall. See the Installation Manual. •... -
Page 11: Operation
User manual 5 Operation 5.1 Advice and tips for using the drying cabinet with dehumidifier • Always run the laundry through the spin cycle • Do not hang the garments too close together as it will prolong the drying time •... -
Page 12: Loads
User manual 5.4 Loads For optimum energy efficient drying, operate with a full load and do not open either door until the appliance has stop- ped. If the door is opened during drying, the drying time will increase. The drying cabinet has an expandable hanger unit. The lower section contains curtain coils that can be used to fas- ten items. -
Page 13: Maintenance
Failure to follow these instructions may result in unnecessary wear on the heat pump, which could shorten the appli- ance’s service life. Failure to follow these instructions will also void the warranty. The lint filter can be purchased from your nearest Electrolux Professional dealer or service partner. -
Page 14: Servicing
User manual 7 Servicing Before contacting the service department, you should find out the name, article number and serial number of the drying cabinet. This is found on the identification plate. fig.X01393A fig.W01394 7.1 Dehumidifier unit identification plate The identification plate is located in the ceiling inside the cabinet. -
Page 15: Cabinet Identification Plate
User manual 7.2 Cabinet identification plate This identification plate applies in combination with the identification in the upper part. -
Page 16: Troubleshooting
User manual 8 Troubleshooting 8.1 Common questions Problem What you can do The drying cabinet does not work 1. Check the mains connection and that the cabinet is receiving power. 2. Check that no fuse has been tripped. 3. Did you press the program selection button? 4. -
Page 17: Disposal Information
User manual 9 Disposal information 9.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 20 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
