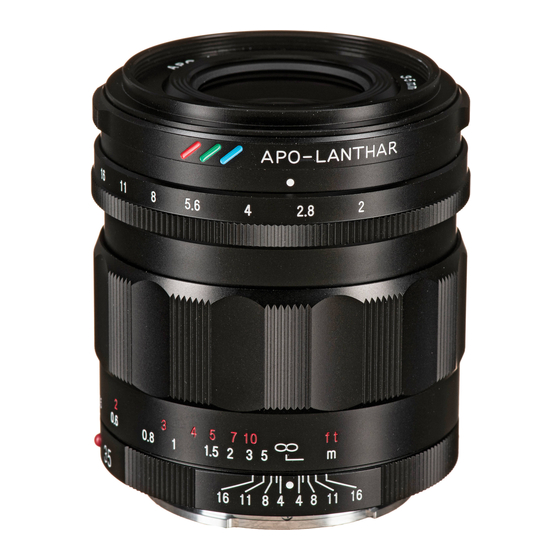

- Page 1 APO-LANTHAR 35mm F2 Aspherical E-mount INSTRUCTION MANUAL COSINA CO., LTD. Apr 2021, Ver 1.0...
- Page 2 Voigtländer E-mount lenses are designed for use on E-mount camera bodies. The Lens covers the full frame format. They are manually controlled lenses so the user sets focus and aperture - the built-in CPU will transmit the information to the camera body to give the user Exif- data, Depending on the specification of the camera it willl also give data for Auto-lens-correction, 5 axis-Image Stabilization as well as Manual- Focus Assist.
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning and uses the equipment the wrong way, serious injuries and even death might be the WARNING result.
- Page 4 Description of Parts ① Lens Hood ② Filter Ring ① ③ Aperture Control Ring ④ Aperture Ring ⑤ Focus Ring ⑨ ② ⑥ Distance Scale ③ ⑩ ⑦ Mount Index ④ ⑧ Mount ⑤ ⑨ Aperture Index ⑩ Aperture Scale ⑪...
- Page 5 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach or detach the lens to or from the camera mount. * Please make sure to set the power of the camera to “OFF”. Please hold Depth of Field Ring ⑬...
- Page 6 ● Selective Aperture Control System You may choose two modes – with or without Click Stops - on the Aperture Control Ring. 1. Push the Aperture Control Ring ③ towards the Aperture Ring ④ . 2. Turn the Aperture Control Ring ③ 180 degrees. 3.
- Page 7 How CPU/Contact works 1. Exif Data Picture can store the Exif data of lens. (For example, if you use Voigtländer 35mm F2 E-mount) Lens Voigtlander APO-LANTHAR 35mm F2 Aspherical * Description may be changed depending on camera's firmware version or other factors.
- Page 8 * Please set “MF Mode” to use this function. * On some camera bodies, you can not use this function. 5. 5-Axis Image Stabilization The APO-LANTHAR 35mm F2 Aspherical E-mount lens is compatible with E-mount cameras with built-in multi-axis Image Stabilization.
- Page 9 ● Specifications Product Name APO-LANTHAR 35mm F2 Aspherical Focal Length 35mm Maximum Aperture Minimum Aperture Lens Construction 9 groups 11 elements Angle of View 62.2° Aperture Blade Minimum Focus 0.35m Macro Ratio 1:6.46 Filter Size Ø49mm Maximum Diameter Approx. Ø62.6mm Length Approx.
- Page 10 ● Specifications 5-Axis Image Stabilization Possible * only on camera body with 5-Axis Image Stabilization Others Selective Aperture Control System Supplied Accessory Front Cap, Rear Cap, Lens Hood, Hood Cap * Specification and information is subject to change without prior notice.
