- Page 1 DP300 INSTALLATION AND OPERATION MANUAL USER MANUAL DIRECTIVE 2011/65/Eu Model: DP300 EMSW24052880...
-
Page 2: Table Of Contents
TABLE OF CONTENT WARNING ..1. PRODUCT INTRODUCTION 2. SPECIFICATIONS ..2.1 DIMENSION (MM) 2.2 ACCESSORIES 3. INSTALLATION & OPERATION ..3.1 INSTALLATION .1 PROBE INSTRUCTION: (DP300-X, DP300-ORP, DP300-PH) 3.1 .2 ELECTRICAL TERMINALS (DP300-X ONLY) 3.2 FUNCTION AND MENU .. -
Page 3: Warning

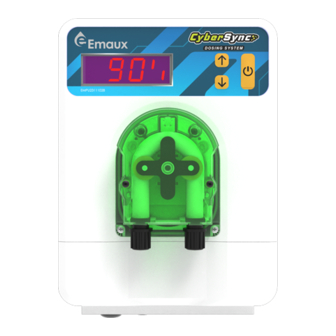

10) The unit installation position should be at least 1.5m away from the swimming pool. 1. PRODUCT INTRODUCTION The Emaux "CyberSync" Peristaltic Dosing Pump series is indeed a groundbreaking addition to pool maintenance technology. Designed for swimming pools ranging from 30m² to 150m², it offers three versions: Core-Pro, Core-Plus, and Core, with five different models to cater to various needs. -
Page 4: Specifications
The Emaux CyberSync Core is indeed a versatile dosing solution designed for ease of use. It allows users to effortlessly adjust the dosing rate, ensuring precise control over chemical levels. -
Page 5: Dimension(Mm)
2. 1 DIMENSION(mm) 108.2 2. 2 ACCESSORIES Product Parameter DP300-X-ORP DP300-X-PH DP300-ORP DP300-PH DP300 name Pressure: 7 bar Material: epoxy ORP probe Range: 300-900mV (w/ 3m signal line) Electrode body dia.: 12mm Pressure: 7 bar Material: epoxy PH probe Range: 0-14 (w/ 3m signal line) Electrode body dia.: 12mm Probe holder... -
Page 6: Installation & Operation
3. INSTALLATION & OPERATION 3.1 Installation: Install Position: Position the pump according to the guidelines illustrated in Figure 3. Take note that the pump can be installed either below or above the liquid level to be dosed. However, ensure that the vertical distance between the pump and the liquid does not exceed 2 meters. -
Page 7: Probe Instruction: (Dp300-X, Dp300-Orp, Dp300-Ph)
3.1 1 Probe instruction: (DP300-X, DP300-ORP, DP300-PH) It is essential that the probe holder place on the main pipe after all pool accessories (heating. Etc.) and before injection valve (should be separated to probes minimum 10cm) and cell of salt chlorinator. -
Page 8: Electrical Terminals (Dp300-X Only)
3.1 2 Electrical terminals (DP300-X only) Carefully adhere to the electrical installation regulations in effect within the various countries (Fig.below). If the supply cable lacks a plug, the equipment should be connected to the power mains using a single-pole circuit breaker with a minimum contact gap of 3 mm. Ensure all supply circuits are disconnected before accessing any electrical components. -
Page 9: Function And Menu
3.2 Function and menu 3.2.1 Key feature: Function Type Power switch (rocker switch at the bottom) Power on/ off the pump Confirm selection Menu / confirm Press and hold to enter Basic menu Start/ stop the pump function on / off Press and hold to enter Auto threshold setting menu Display Display and show the status of the pump... - Page 10 DP300-ORP: Reading, unit mV (probe value) DP300-PH: Reading, unit pH (probe value) DP300-ORP/ DP300-PH operating screen DP300 operation screen Dosing type: When the dosing liquid is dispensed, the probe value will increase. When the dosing liquid is dispensed, the probe value will decrease. Probe value: Real-time measurement ready by the probe.
-
Page 11: Probe Calibration
3.2.3 Probe Calibration DP300-X Probe calibration Prepare buffer solution: pH 7 and pH 4. Use distilled water to clear the probe before calibrate. Make sure the correct probe (PH/ ORP) is connected to the pump. Press and hold ESC for 3 seconds to enter to calibration mode (press ESC to exit without saving). - Page 12 ORP calibration DP300-PH Probe calibration Prepare buffer solution: pH 7 and pH 4. Use distilled water to clean the probe before calibrate. Make sure the correct pH probe is connected to the pump. Press and hold ESC for 3 seconds to enter to calibration mode (press ESC to exit without saving).
-
Page 13: Setup Menu
DP300-ORP Probe calibration Prepare buffer solution: 256mV. Use distilled water to clean the probe before calibrate. Make sure the correct ORP probe is connected to the pump. Press and hold ESC for 3 seconds to enter to calibration mode (press ESC to exit without saving). Follow instructions on screen to complete the calibration procedure. -
Page 14: Full Menu
DP300-ORP/ DP300-PH Basic menu 3.3.2 Full menu Press and hold for 3 seconds will enter to full menu. Full menu allow for you to setup all functions of DP-X. Press ESC any time to exist and go back to operating mode without save. DP300-X full menu P13 INSTALLATION &... - Page 15 DP300-ORP/ DP300-PH Basic menu LANGUGE Language selection on display DOSING MODE To select between pH or ORP, it will change the measurement. DOSING TYPE If dosing mode is PH, the menu is allowed for you to choose either dosing acid or alkaline. In operating mode, arrow on screen will show the type by (alkaline) or (acid).
- Page 16 LEVEL SENSOR To enable LEVEL SENSOR function, user can select different type of level probe: open type or close type. Emaux level probe is close operation type. It is electrical terminals LEV control. MEASURE OFFSET Adjustment of the displayed value offset, Use to compensate offset of PH or REDOX probe reading.
-
Page 17: Operation
3.4 Operation Priming Model Power up delay Auto Dosing DP300-X DP300-ORP DP300-PH DP300 3.4.1 Power up delay During power up, the pump will delay to dosing 90 sec for probe system stable before start dosing. Screen will show WAIT on screen. DP300-ORP/ DP300-PH DP300-X 3.4.2 Priming... - Page 18 Set-point type: oxidant Set the dosing pump to Auto mode, then follow the procedure to setup: 1) Adjust parameters to control auto mode: Dosing type, Setpoint, proportional band and alarm band. 2) Run the recirculation pump with both sensor in line at least 30 minutes to stabilize the sensor readings. 3) After 30 minutes, test the pH/ORP of the water, adjust the proportional band or setpoint if necessary.
-
Page 19: Dosing Mode
3.4.4 Dosing mode Set the dosing pump to dosing mode, then following the procedure to setup: 1. Calculation the required dosing rate for your application. 2. Press power to switch the pump to run for an hour, 3. Stop the pump and check the parameter change whether same as your expected, adjust the dosing rate if necessary. - Page 20 Rinse with fresh water and reinstall the sensor. SENSOR REPLACEMENT For optimum controller performance, always use Emaux replacement sensors. For preventive maintenance, it is also recommended to replace the sensors on an annual basis or as their performance diminishes.
-
Page 21: Troubleshooting
4. TROUBLESHOOTING Issue POSSIBLE CAUSE SOLUTION Tubing but 1. Check the integrity of the peristaltic pump tubing 1. Tubing is swollen additive is s not 2. Check for clogging of the filter 2. Tube is blocked being injected 3. Verify that the injection valve is not blocked 3. -
Page 22: Spare Parts List
5. SPARE PARTS LIST DP300-X 11 12 13 14 1. 1 1. 2 ORP probe PH probe P21 SPARE PARTS LIST... - Page 23 Key No. Part No. Description Piece(s) Required E130101 Pump body kit E130102 Hose kit E130103 Drive bracket kit 4205916005 Wiring cover for DP 5100510338 Face cover for DP 111040097 O-Ring for Wiring cover 1062610401 BNC connect 106234778 Cable lock code PGB9 111040100 plug D19x9.6x6 106234332...
- Page 24 DP300-ORP 10 11 12 13 1. 1 ORP probe Key No. Part No. Description Piece(s) Required E130101 Pump body kit E130102 Hose kit E130103 Drive bracket kit 4205916005 Wiring cover for DP 5100510338 Face cover for DP 111040097 O-Ring for Wiring cover 1062610401 BNC connect 106234778...
- Page 25 DP300-PH 10 11 12 13 1. 1 PH probe Key No. Part No. Description Piece(s) Required E130101 Pump body kit E130102 Hose kit E130103 Drive bracket kit 4205916005 Wiring cover for DP 5100510338 Face cover for DP 111040097 O-Ring for Wiring cover 1062610401 BNC connect 106234778...
- Page 26 DP300 10 11 12 13 1. 1 Key No. Part No. Description Piece(s) Required E130101 Pump body kit E130102 Hose kit E130103 Drive bracket kit 4205916005 Wiring cover for DP 5100510338 Face cover for DP 111040097 O-Ring for Wiring cover 111040102 O-Ring for BNC 106234778...
-
Page 27: Terms Of The Warranty
It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. - Page 28 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
