Summary of Contents for emaux SPV150

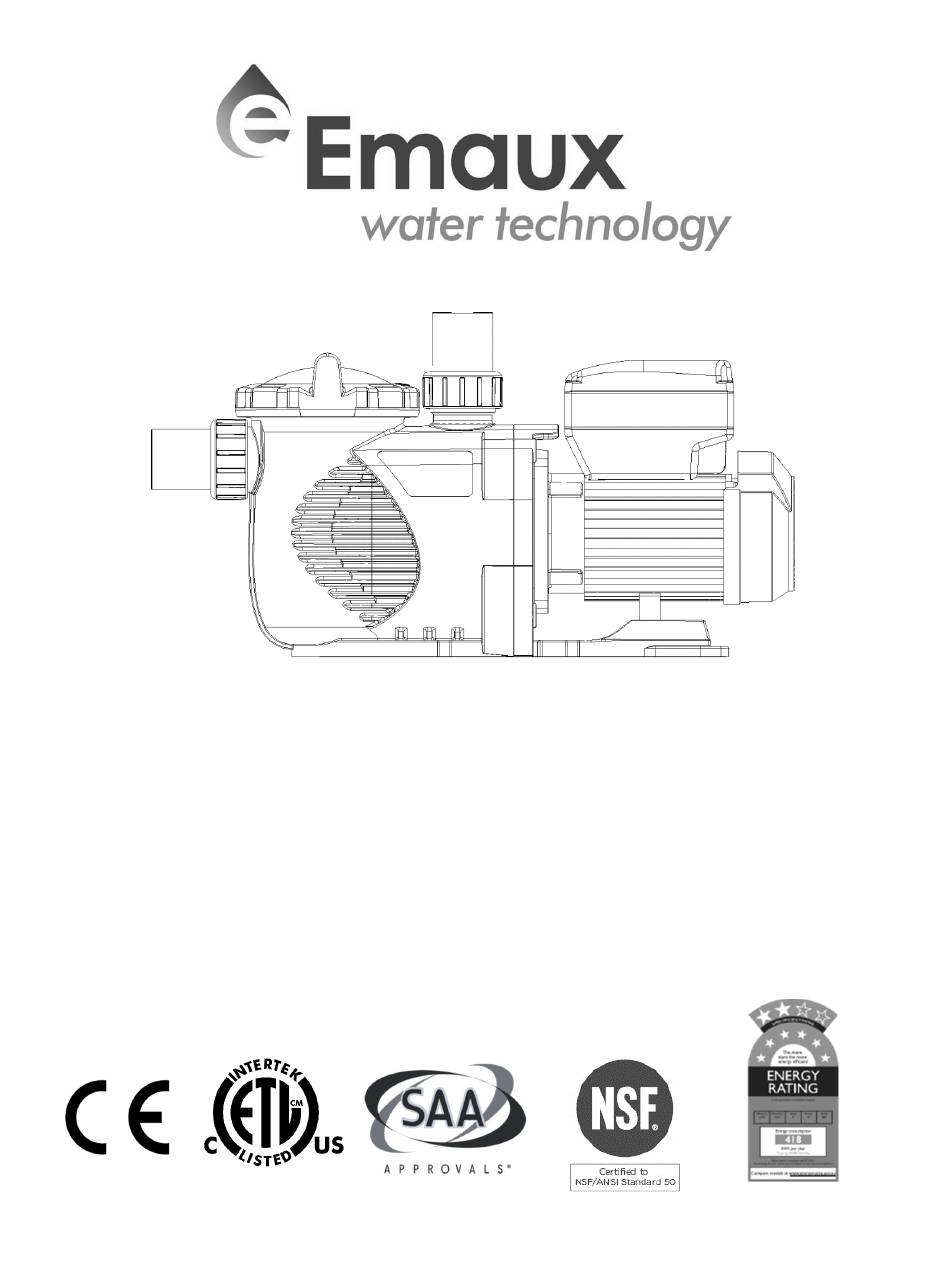

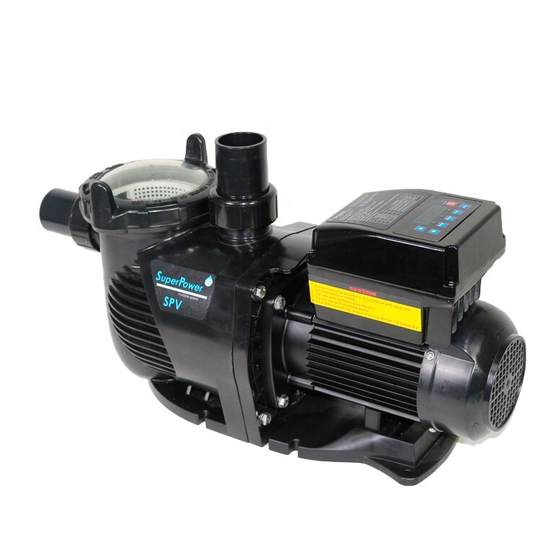

- Page 1 SUPER-POWER With Wi-Fi and MODBUS Swimming Pool Variable Speed Pump USER MANUAL NSF only apply for NSF version...
-
Page 2: Table Of Contents
Table of Contents Page WARNINGS AND SAFETY INSTRUCTIONS SPV150 VARIABLE SPEED PUMP OVERVIEW PRODUCT INFORMATION IMPORTANT SAFETY INSTRUCTIONS INSTALLATION PIPING Electrical Wiring START UP ROUTINE MAINTENANCE WINTERIZING CONTROL AND DISPLAY PANEL OVERVIEW PROGRAM FLOW CHART OPERATION PROCEDURE POWER UP CLOCK SETTING... -
Page 3: Warnings And Safety Instructions
WARNINGS AND SAFETY INSTRUCTIONS GENERAL WARNING This instruction contain general caution information for use in Pool and SPA pump installation application. Specified Pump model function should be refer to particular manual. Components such as the filtration system, pumps and heater must be positioned so as to prevent their being used as means of access to the pool by young children. - Page 4 SUCTION ENTRAPMENT HAZARD This pump produces high levels of suction and creates a strong vacuum at the main drain at the bottom of your pool and spa. This suction is so strong that it can trap adults or children under water if they come in close proximity to a pool or spa drain or a loose or broken drain cover or grate.
-
Page 5: Spv150 Variable Speed Pump Overview
Traditional single speed pump runs at maximum load continuously. It is inefficient and leads to a higher running cost compare to Emaux Super-Power Variable Speed Pump. Reduced speeds (rpm) provide a slower water circulation rate that put less strain on the complete installation such as filtration, sanitization, and plumbing. -
Page 6: Product Information
2. PRODUCT INFORMATION Voltage/ Connection Max Load Input Horse Code Model ID/OD Frequenc Current Power power 88029807 SPV150 220-240V 800-3400 1.5’’/2” 5.9-5.4A 9023302 SPV150-RS485 1.30 (kW) 1.5 hp 50/60 Hz 50mm/63mm 9032203 SPV150-WIFI+RS485 Dimensions Performance Curve P a g e... -
Page 7: Important Safety Instructions
3. IMPORTANT SAFETY INSTRUCTIONS Warning: The user guide you are holding includes essential information on the safety measures to be implemented for installation and start-up. Therefore, the installer as well as the user must read the instructions before beginning installation and start-up. Keep this manual for future reference. -
Page 8: Electrical Wiring
4.2 ELECTRICAL WIRING Warning: This power pump demand licensed or certified electrician or qualified pool installer to ensure there is adequate protection between the pump motor and mains power supply according to individual countries safety code. The pump has power cord with plug attached on the plug, plug it to a power socket with circuit breaker to isolate the motor from the mains power for over load protection. - Page 9 4.2 Electical WIRING It is a 220-240Vac 50/60Hz electric power operate variable speed pump. Unscrews the four corners screw of the variable sped driver box to open it. There are three terminals labelled as L, N and GROUND. Connect the power wires to these terminals according to the electrical code.
-
Page 10: Start Up
5. START UP Verify the pump shaft turn freely. • Check the mains voltage, current and frequency are accordingly to the name plate. • Never run pump dry! Running pump dry may cause damage to the mechanical seal causing leakage and •... -
Page 11: Routine Maintenance
6. ROUTINE MAINTENANCE The pump mechanical seal requires no lubrication and service. The only routine maintenance needed is the inspection and cleaning of the pre-filter basket. Debris or trash collected in the basket will choke off the water flow through the pump. Follow the instructions below in order to clean the pre-filter basket: Turn off the pump, close the gate valve in suction and discharge, and release all pressure from the system before proceeding. -
Page 12: Control And Display Panel
CONTROL AND DISPLAY PANEL OVERVIEW The panel include the below display or control function to monitor and control the pump running status. a) Clock: Real Time Clock display b) Running Status: Running speed and power rating display c) Pre-set Speed: 3 pre-set running speeds. Function settings: Real time clock, 3 pre-set speeds, 2 schedule settings, NO flow, self- priming settings, SVRS and Freeze protection... -
Page 13: Program Flow Chart
8.2 PROGRAM FLOW CHART Self-Checking Interface Default: “SP:1000” Speed Display Unit: RPM 3 sec Power Consumption Display Display: “P: 0” Monitor Interface Unit: Watt Press “Mode” Time Display Press and Hold to switch Press and hold Display: “CL: 0:00” “Mode” for 2 second 2 sec Enter Time Setting Interface... -
Page 14: Operation Procedure
OPERATION PROCEDURE POWER UP Plug in power and the pump will do self-diagnostic checking. • If there is error, it will display as below, call you installer or dealer to fix the problem. • Normal display is as below and press “ ” or “▼” buttons to adjust the speed (SP) in RPM. •... -
Page 15: Preset Speed
PRESET SPEED 1-3 There are three preset speed, press Speed 1, Speed 2 and Speed 3 to change the pump speed. • Speed 1 = 1500 RPM Speed 2 = 2400 RPM Speed 3 = 3400 RPM CHANGE PRESET SPEED 1-3 •... - Page 16 Press “ ” or “ ▼ ” to set START TIME (1o:00:00). Default is 00:00 • • Press “Speed 1 “and “Speed 2” to shift between Hour and Minute. The adjustable value digital is flashing. • Press “ ” or “ ▼ ” to adjust the value. Press “Mode”...
-
Page 17: Schedule Policy
9.6 Schedule Policy a) Programmed Schedule Priority Schedule 1 > Schedule 2 b) If more than 1 schedule is enables within the same time period, the controller will operate only with the highest priority schedule and speed. The corresponding indication light will turn on. c) If all schedules are completed according to their pre-set times, the controller will return to the condition before setting the schedule. -
Page 18: Svrs （ S Afety Vacuum Release Systems
11. SVRS （ （ （ （ S AFETY VACUUM RELEASE SYSTEMS ） ） ） ） S ETTING It is used to prevent suction entrapment when there is someone’s body to something block the drain of the pool. It will slow down the pump speed in order to reduce the suction pressure, then release the entrapment. -
Page 19: Baud Rate
BAUD RATE 12.2 Press “ ” to access Baud rate Setting. Default is 9600 bps • • Press “ ” or “ ▼ ” to adjust the value. • Press “Mode” to save setting or press “Speed 3” for cancel. •... -
Page 20: System Reset To Factory Default Setting
16. SYSTEM RESET TO FACTORY DEFAULT SETTING Short press “ ” to access system “RESET” function • Press “Mode” to confirm reset to factory default setting • AUTO-RECOVERY When there is an Overcurrent, Overvoltage, Under-voltage or Overheating error, the system will recover itself automatically. -
Page 21: Error Menu
60 seconds before reconnecting. If the error continues, contact your Emaux technical service. 19.2 OPERATION ERRORS When the controller is not working, an error code will be shown on the controller display. E.g. “Er: OV”. -
Page 22: Wi-Fi Connection (For Wifi Version)
Touch the SETTING icon to enter setting page • Touch “English” next to Emaux logo to select language. The control page support languages in English, French, German, Italian, Spanish, Russian and Chinese. Touch the “SYNC” to set the pump clock, the pump will follow the clock of your Wi-Fi device. - Page 23 Page 1 Page 2 P a g e | 23...
-
Page 24: Change Ssid And Password
PC. Refer to your router manual if necessary. The variable speed pump Wi-Fi can be set to connect to Home Network Router to extend the control distance and easy access. Access Emaux-WIFI, Type IP address 192.168.8.1:8088 to access the Wi-Fi network setting. Select • Station configuration. -
Page 25: Connectivity Specification
The same User Interface will be display and operation function remain the same. • 20.6 Connectivity Specification Wi-Fi : Compliant to IEEE 802.11b/g/n 1T1R 2.4GHz with support for a 150Mbps PHY data rate Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI AP and STA mode 25m distance transmission Build in antenna... -
Page 26: After-Sales Service
Base 02010211 Arch Cushion for Base 01031027 01321032 Fan Cover 89023901 Programmable Controller for SPV150 (without plug) E023803 Programmable Controller for SPV150-RS485 (without plug) E023804 Programmable Controller for SPV150-RS485-WiFi (without plug) 01041061 Transparent Lid for Programmable Controller P a g e... -
Page 27: Trouble Shooting
24. TROUBLE SHOOTING Problem description Possible causes Motor does not start Disconnect switch or circuit breaker in off position • • Fuses blown or thermal overload open Locked motor shaft • Motor windings burned out • Defective starting switch inside single phase motor •... -
Page 28: Warranty Policy
Damage caused by water freezing inside the product. viii. Accident damage, fire, natural disaster or other circumstances outside the control of Emaux. Items repaired or altered in any way by any person that is not authorized by Emaux. Wear & tear parts. 25.2... -
Page 29: Warranty Obligation
Emaux warrants any of above items from workmanship and/or material(s). Should a defect become evident during the term of warranty, Emaux will, at its option, repair or replace such item or part at its own cost and expense. Customer will need to follow the warranty claim procedures from Emaux in order to obtain the benefit on this warranty.
