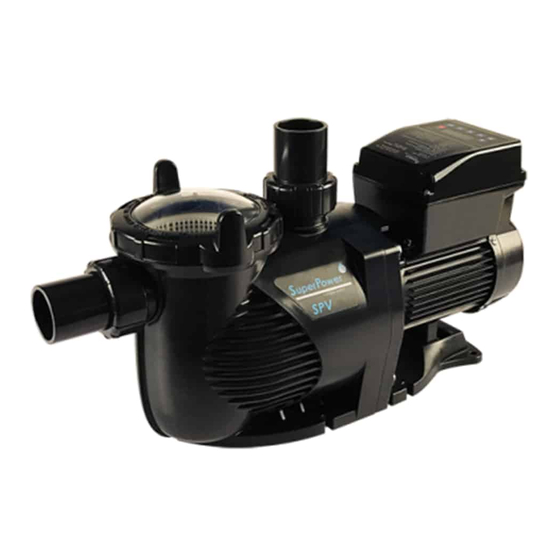

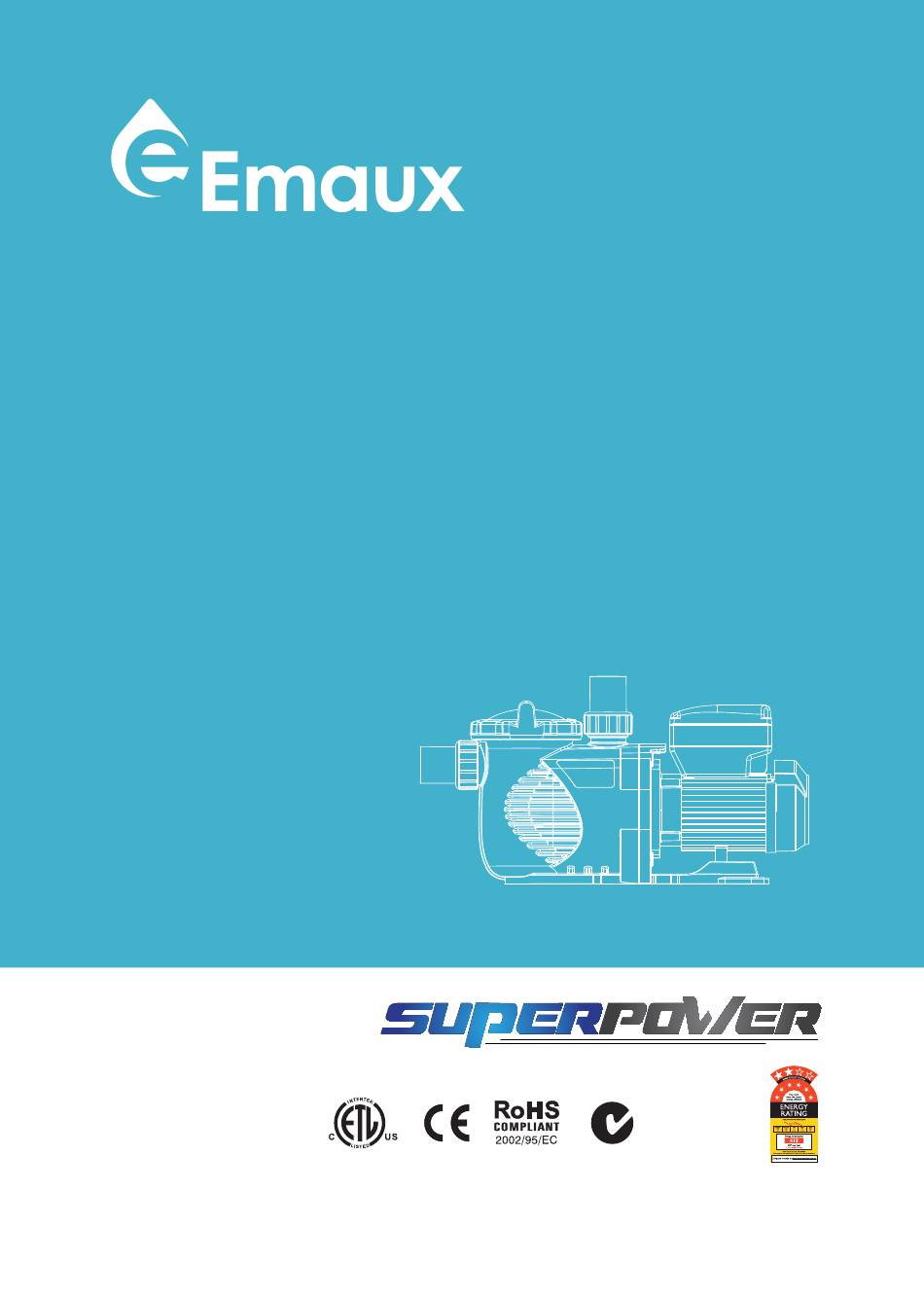

- Page 1 SUPER POWER VARIABLE SPEED PUMP With Wi-Fi AND MODBUS OPTIONS * NSF only apply for NSF version USER MANUAL Model: SPV Series EMPU23091380...
-
Page 2: Table Of Contents
TABLE OF CONTENT ..WARNINGS AND SAFETY INSTRUCTIONS ..1. IMPORTANT SAFETY INSTRUCTIONS 2. INSTALLATION ..3. CONTROL AND DISPLAY PANEL ..4. OPERATION PROCEDURE 5. PRIMING SETTING ..6. RS485 SETTING ..7. WI-FI SETTING ..FREEZE PROTECTION SETTING .. -
Page 3: Warnings And Safety Instructions
WARNINGS AND SAFETY INSTRUCTIONS GENERAL WARNING This instruction contain general caution information for use in Pool and SPA pump installation application. Specified Pump model function should be refer to particular manual. Components such as the filtration system, pumps and heater must be positioned so as to prevent their being used as means of access to the pool by young children. - Page 4 SUCTION ENTRAPMENT HAZARD This pump produces high levels of suction and creates a strong vacuum at the main drain at the bottom of your pool and spa. This suction is so strong that it can trap adults or children under water if they come in close proximity to a pool or spa drain or a loose or broken drain cover or grate.
-
Page 5: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS The user guide you are holding includes essential information on the safety measures to be implemented for installation and start-up. Therefore, the installer as well as the user must read the instructions before beginning installation and start-up. Keep this manual for future reference. The pump should be installed according to your local electrical installation ordinances and regulations. -
Page 6: Control And Display Panel
2.1 ELECTRICAL WIRING For wiring sizes and general guidelines for proper electrical installation, please follow the specifications defined in the National Electric Code and any local codes as required. We supply versions with standard cable with plug for your local code or without cable. Please contact your local distributor for technical and order inquires. - Page 7 3.2 CONTROLLER 3.3 PROGRAM FLOW CHART * Emaux has upgrade to 4 schedule from on Y2023. Version before Y2023 Schedule setting interface contains 3 speed with 2 time schedule. ** Wi-Fi version only CONTROL AND DISPLAY PANEL...
-
Page 8: Operation Procedure
4. OPERATION PROCEDURE 4.1 POWER UP Self Checking Interference: Once power up, the will go to Self-Checking Interference. If error is found, the pump will show “Er----“. call you installer or dealer to fix the problem. Monitoring Interface When Self-Checking Interface is pass, the pump will go to Monitoring Interface. Short Press “MODE” will toggle between Speed Display (SP:1000”, indicate in speed RPM 1000), Power Consumption Display (“P :1000”, Power consumption 1000W) and Time Display (“CL:12:01”, time 12:01). - Page 9 Setting Interface When the pump under “Speed Display” or “Power consumption display”, Press and hold key “MODE” for more than 3 ▲ ▼ seconds, to enter Setting Interface. You can choose different function by press “ “, “ “ and enter to the function setting by press “MODE”...
-
Page 10: Priming Setting
Remark: 1) Schedule 4 Speed does not have an external switch on key panel. Schedule Policy 1.Programmed Schedule Priority Schedule 1 > Schedule 2 2.If more than 1 schedule is enables within the same time period, the controller will operate only with the highest priority schedule and speed. -
Page 11: Wi-Fi Setting
7. Wi-Fi SETTING ( Wi-Fi version only SPV has Wi-Fi connection feature that you can connect PC/ mobile with the pump and remote control it. There are two parameters can be set. Parameters: - WIFI Enable/ Disable (e.g. Fl:on): Enable/ Disable WIFI feature - WIFI Reset (e.g. -
Page 12: Error
Communication error (“Er ---“) which is related to connection to power source is unstable. When “Er ---“ is shown on the screen, check the plug connection. Disconnect the power by unplug to power source and with for at least 60 seconds. Then, reconnect the power source and try again. If the error continues, contact your Emaux technical service. -
Page 13: Wi-Fi Setting
12. WI-FI SETTING 12.1 Wi-Fi Direct CONNECTION SPV Wi-Fi function is a ONE To ONE control solution without access to Home Network. It is just like a private controller which can be connected and control by mobile phone, tablet PC, laptop top or any Wi-Fi enable devices which has Wi-Fi connectivity with common web browser. - Page 14 12.2 APPLICATION INTERFACE The user interface can do all the EPV/ SPV setting and programming as the control panel on the pump, along with status display. It easy and comprehensive to use. ” Run/Stop” button to switch the pump ON/OFF. Input SPEED number directly to control the pump speed.
- Page 15 The SPV variable speed pump Wi-Fi can be set to connect to Home Network to extend the control distance and easy access. 1. Access Emaux-WIFI Type IP address 192.168.8.1:88 (Pump version before year 2022, IP address is 192.168.8.1:8 or 192.168.8.1:8088) to access the web page and select “WiFi Route Connecting”.
-
Page 16: Routine Maintenance
2. Press “Scan AP” and wait for the pump to search network. 3. Select your home network and input “Password” + “Repeat Password”, then press “Submit” to input. The pump will connect to the network automatically. Remark: the connectivity which is router related, some router in the market may not be connected successfully. Consult you router manufacturer for connection trouble shooting. -
Page 17: Dimensions
15. DIMENSIONS [8.46] [8.62] [5.00] [5.25] 126.90 133.43 [22.37] 568.20 [9.33] DIMENSIONS... -
Page 18: Replacement Parts
16. REPLACEMENT PARTS 9 10 11 12 13 14 Key No. Part No. Description 01021143 Nut for lid 01041057 Transparent Lid 02010253 O-Ring for Lid 01112080 Basket 89023801 1.5" Union 01021144 Pump Body 89021307 Drain Plug with O-ring 02010245 O-Ring for Diffuser 01112081 Diffuser 89020719... -
Page 19: Specification And Pump Curve
17. SPECIFICATION AND PUMP CURVE Voltage/ Max Load Connection Input Horse Code Model Frequency Current ID/OD Power power 9023302 SPV150 RS485 220-240V 1.5''/2” 800-3400 1.30 (kW) 1.5 hp 5.9-5.4A 50mm/63mm 50Hz/60 Hz 9023303 SPV150WR WIFI + RS485 U.S.g.p.m H(ft) H(m) 3400rpm 1700rpm 800rpm... -
Page 20: Warranty Policy
19. WARRANTY POLICY Emaux manufactures its products with the highest standard of workman ship, using the best materials available through state of the art process. Emaux proudly warrants its products as follows: EXTENDED WARRAN TY FOR SPECIFIC PRODUCTS (OFFERED FROM DATE OF INVOICE). - Page 21 Emaux warrants any of above items from workmanship and/or material(s). Should a defect become evident during the term of warranty, Emaux will, at its option, repair or replace such item or part at its own cost and expense. Customer will need to follow the warranty claim procedures from Emaux in order to obtain the benefit on this warranty.
- Page 22 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
