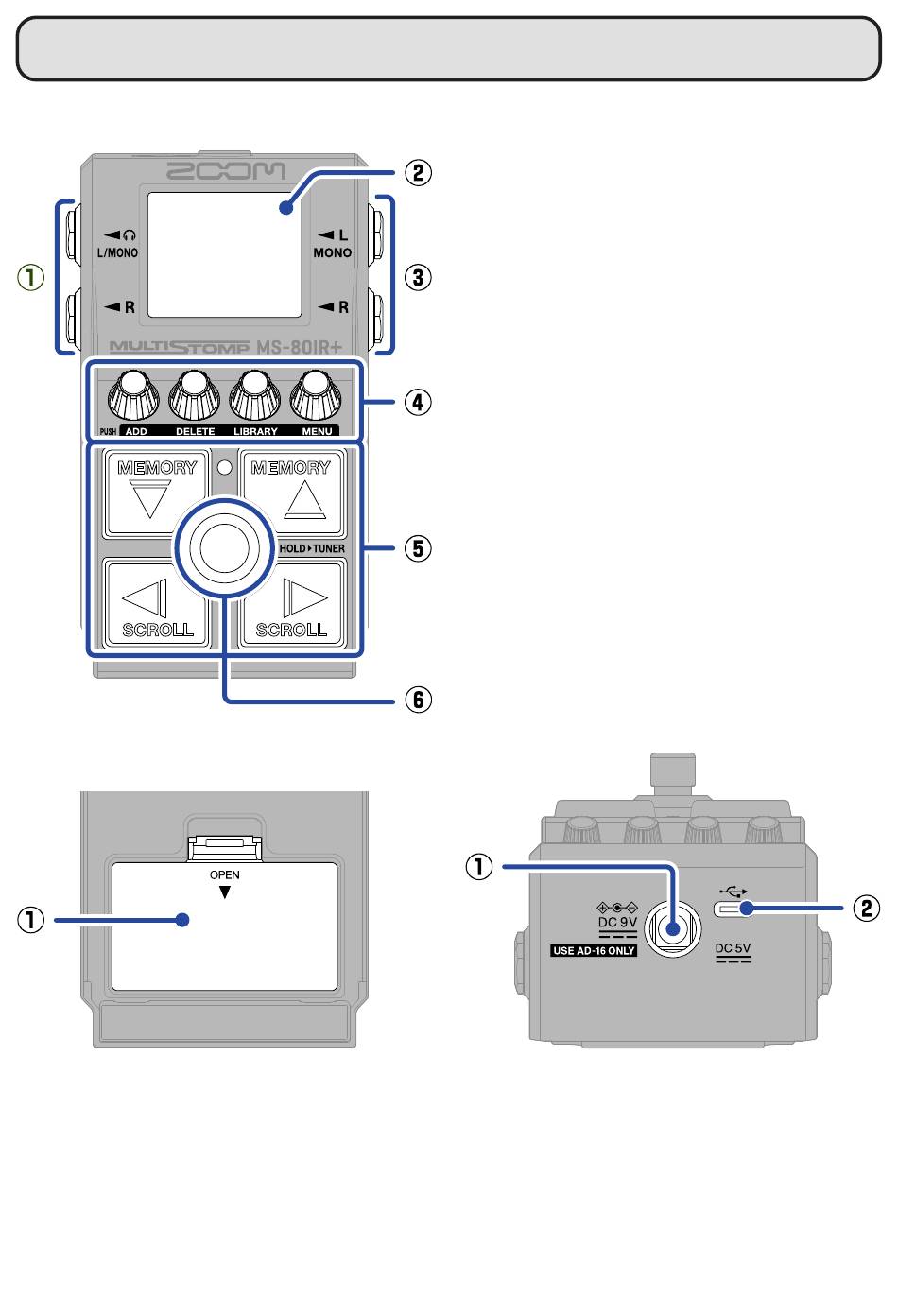

Functions of parts

■ Top
■ Bottom
① Battery cover
Open this when installing or removing
AA batteries.
① Output jacks
Connect powered monitors or head-
phones here.
② Display
This shows the selected patch memory
and its effects, along with their parameter
setting values, and other information.
③ Input jack
Connect a guitar here.
④ Parameter knobs
Use these to adjust effect parameters
and make various settings.
⑤ Direction buttons
Use these to select patch memories and
effects, for example.
They can be operated by foot.
⑥ Footswitch
This turns the effect on/off.
Press and hold this to switch to the
tuner.
■ Back
① DC 9V AC adapter connector
Connect the dedicated AC adapter
(ZOOM AD-16) here.
② USB (Type-C) port
Connect this to a computer, iPhone or
iPad. This supports operation on USB
bus power.
