Functions of parts

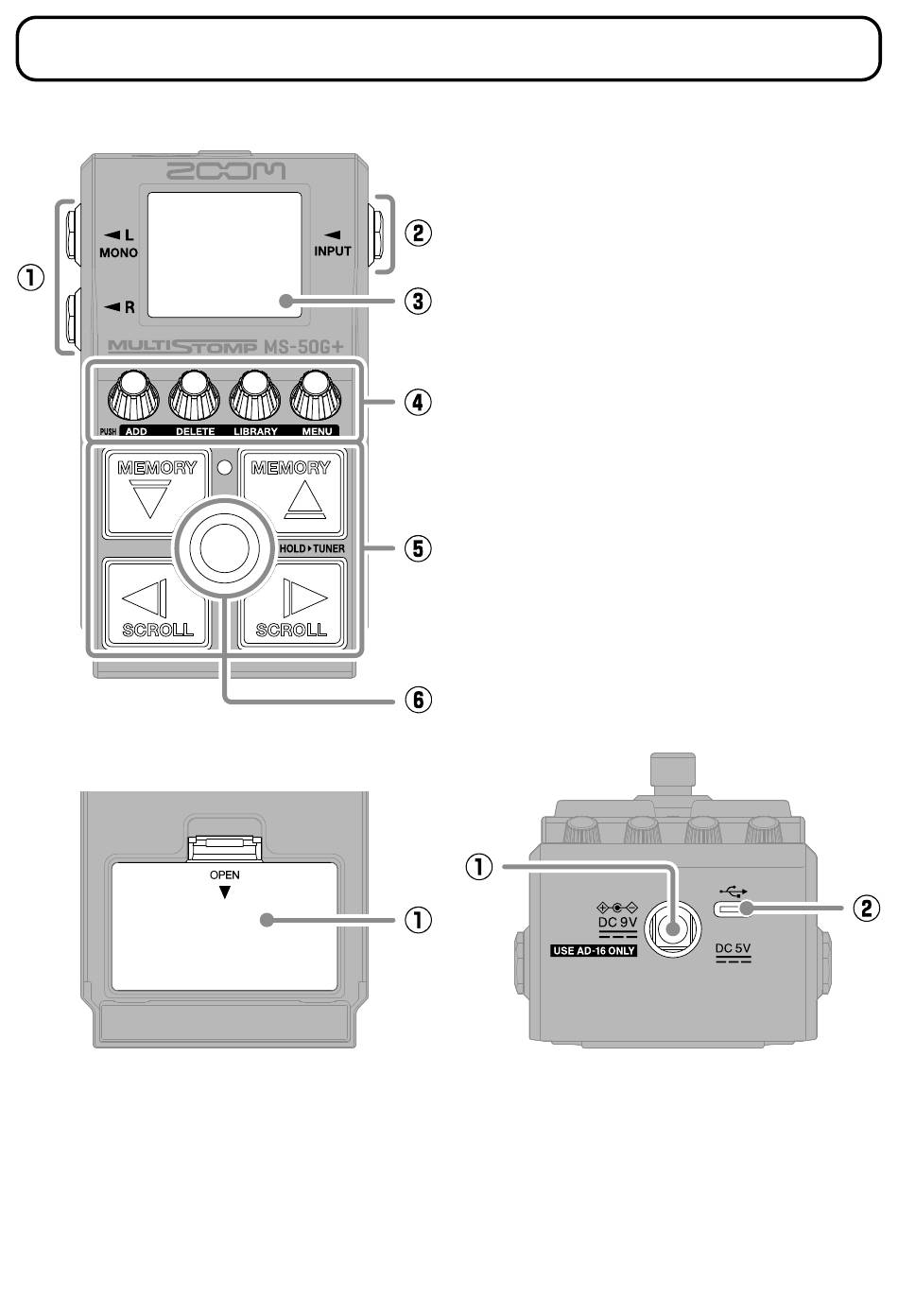

■ Top
■ Bottom
① Battery cover
Open this when installing or removing
AA batteries.
① Output jacks
Connect a guitar amp or another effect
here.
② Input jack
Connect a guitar here.
③ Display
This shows the selected patch memory
and its effects, along with their parameter
setting values, and other information.
④ Parameter knobs
Use these to adjust effect parameters
and make various settings.
⑤ Direction buttons
Use these to select patch memories and
effects, for example.
They can be operated by foot.
⑥ Footswitch
This turns the effect on/off.
Press and hold this to switch to the
tuner.
■ Back
① DC 9V AC adapter connector
Connect the dedicated AC adapter
(ZOOM AD-16) here.
② USB (Type-C) port
Use this to connect to a computer or an
iOS/iPadOS device. This supports opera-
tion on USB bus power.
