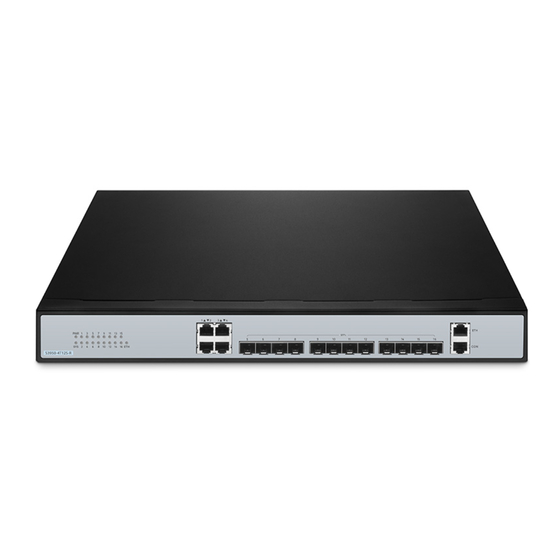

Model: S3950-4T12S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3950-4T12S and is the answer not in the manual?

Questions and answers

Summary of Contents for FS S3950-4T12S

  • Page 1 S3950-4T12S Switch Reset and Recovery System Configuration Guide Model: S3950-4T12S...
  • Page 2: Table Of Contents

    S3950-4T12S SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE Contents 1. Configuration Considerations ............................1 2. Network Topology ................................1 3. Operation Steps ................................1 3.1 Connection Equipment....................................1 3.2 Download Configuration Software................................1 3.3 Switch on and Use Login Software................................1 3.4 Restoration System ......................................
  • Page 3: Configuration Considerations

    S3950-4T12S SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE 1. Configuration Considerations Table 1 products and versions for example. Series Product S3950 S3950-4T12S 2. Network Topology 3. Operation Steps 3.1 Connection Equipment #According to the way of networking topo to connect PC and switch to network cable and Console. One end of the RJ-45 network cable is connected to the PC NIC, and the other end is connected to the SW's network port.
  • Page 4: Restoration System

    S3950-4T12S SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE NOTE: COM Number can be viewed through device manager. (right click on my computer.>manage>device manager>port (COM and LPT). If it displays an unrecognized USB device, please download and install the corresponding driver.
  • Page 5 S3950-4T12S SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE *Then prepare tftp *After the connection is completed, power the switch (or power off and restart). During startup, when a countdown prompt appears to enter Uboot mode (as shown in Figure 2), press "Ctrl + B" to enter Uboot mode.
  • Page 6: Switch To Factory Reset

    S3950-4T12S SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE Switch> enable Switch# NOTE: Attention should be paid to the following issues when loading images through TFTP servers :  Ensure that you are properly configured as a TFTP server;  Ensure that Switch routes to TFTP servers are accessible. If there is no router for routing communication between subnetworks, switches and TFTP servers must be in the same network;...
  • Page 7 S3910 SERIES SWITCHES DATASHEET www.fs.com...
