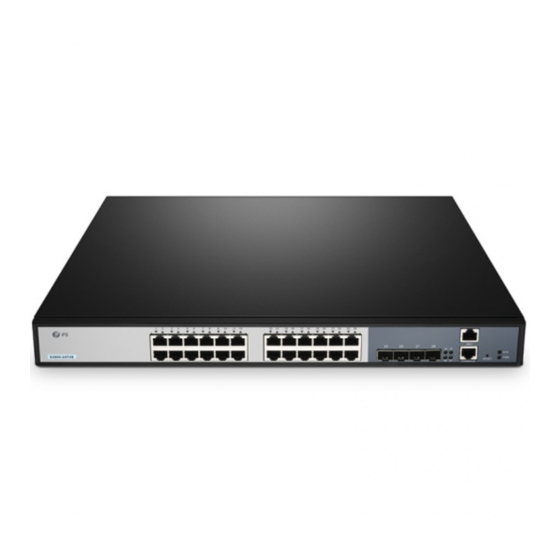

FS S3900 Series Stacking Configuration Manual
Hide thumbs
Also See for S3900 Series:
- Quick start manual ,
- Configuration manual (5 pages) ,
- Quick start manual (63 pages)
Related Manuals for FS S3900 Series
Summary of Contents for FS S3900 Series
- Page 1 S3900 SERIES SWITCHES STACKING CONFIGURATION GUIDE S3900 Series Switches Stacking Configuration Guide Models: S3900-48T4S; S3900-24T4S; S3900-24F4S www.fs.com...
- Page 2 S3900 SERIES SWITCHES STACKING CONFIGURATION GUIDE Contents 1. Introduction ..................................1 2. Topology ................................... 1 3. Configuration Steps ................................ 1 3.1 Connect the Device ..................................... 1 3.2 Download the Configuration Software..............................1 3.3 Open the Switch and Use the Login Software ............................1 3.4 Log in to the Switch....................................
- Page 3 IP address. Set up as a single entity, stackable switches have not only optimized scalability and flexibility but also simplified network configuration and administration. FS S3900 series stackable switches, which are designed for the campus network, SMB, and home network, have the ability to stack as well.
- Page 4 S3900 SERIES SWITCHES STACKING CONFIGURATION GUIDE NOTE: You can view the COM Number via Device Manager (right-click My Computer > Administration > Device Manager > Ports (COM and LPT). If an unrecognized USB device is displayed, download and install the corresponding driver.
- Page 5 S3900 SERIES SWITCHES STACKING CONFIGURATION GUIDE Check the interface information, the switch will show all the interface, the four ports for stacking will not show in the port list. Switch#show interfaces brief Interface Type Admin Link-Status Negotiation Speed/Duplex Group -------------------------------------------------------------------------------------------------------------------------------------------------------...
- Page 6 S3900 SERIES SWITCHES STACKING CONFIGURATION GUIDE Eth 2/15 1000BASE-T Down Auto None Eth 2/16 1000BASE-T Down Auto None Eth 2/17 1000BASE-T Down Auto None Eth 2/18 1000BASE-T Down Auto None Eth 2/19 1000BASE-T Down Auto None Eth 2/20 1000BASE-T Down...
- Page 7 3.6 Matters Needing Attention It should be noted that the FS S3900 needs to use the last two 10G SFP + ports for stacking. The stacking ports are hidden during stacking, but all the hidden ports can be seen on the main device. The maximum support is 6 stacks. For multiple stack connections, please refer to The following figure.
- Page 8 Copyright © 2009-2020 FS.COM AII Rights Reserved.
