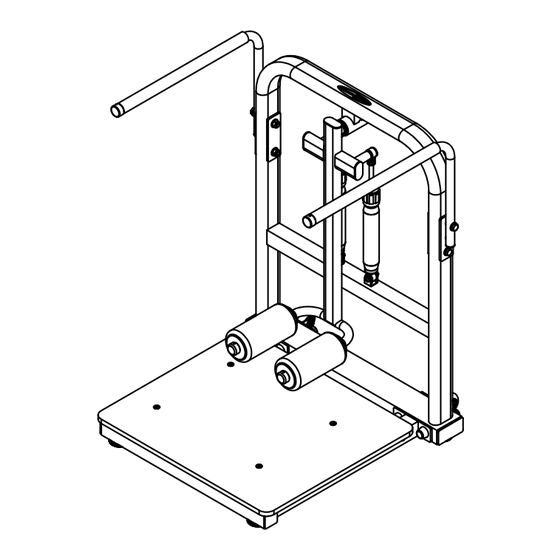

CMH-1400
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES:
1.Inspect equipment before each workout. Check that all nuts, bolts, screws and
pop pins are in place and fully tightened. Also, before use, check cylinders for leaking.
Replace all worn parts immediately. Never use machine if any parts are
damaged or missing. Fallure to follow these rules may result in serious injury.
2.Keep clear of the cylinder and all moving parts when the machine is in use.
3.Exercise with care. Perform your exercises at a smooth moderate pace; never
perform jerky or uncoordinated movements that may cause injury.
4.It is recommended that you should workout with a training partner.
5.Do not allow children or minors to play on or around this equipment.
6.If unsure of proper use of equipment, call your local distributor.
7.WARNING: Consult your physician before starting your exercise program. For your
own safety do not begin any exercise program without proper instruction.
OWNER'S MANUAL
The Surgeon General
has determined that lack
of physical activity is
detrimental to your health.
TM
Trademark of United States Fitness Produots Council

Advertisement

loading
Need help?

Need help?

Do you have a question about the CMH-1400 and is the answer not in the manual?

Questions and answers

Summary of Contents for SteelFlex CMH-1400

  • Page 1 5.Do not allow children or minors to play on or around this equipment. 6.If unsure of proper use of equipment, call your local distributor. 7.WARNING: Consult your physician before starting your exercise program. For your own safety do not begin any exercise program without proper instruction. CMH-1400 OWNER'S MANUAL...
  • Page 2 CMH-1400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT M12X130L PARTIAL QTY.4 (A2)HEX BOLT M12X95L PARTIAL QTY.2 (A3)HEX BOLT M12X70L PARTIAL QTY.2 (A4)ROUND INNER HEX SCREW M8X45L PARTIAL QTY.2 (A5)ROUND INNER HEX SCREW M8X40L PARTIAL QTY.2 CMH1400-062017 Page...
  • Page 3 CMH-1400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)M8X30L SOCKER FLAT SCREW QTY.4 (A7)BOLT CAP(9212-024) QTY.8 (A8)ROUND INNER HEX SCREW M5X4L QTY.4 (A9)BUCKLE E-Ø12 QTY.2 CMH1400-062017 Page...
  • Page 4 ASSEMBLY INSTRUCTIONS CMH-1400 HARDWARE ILLUSTRATION (B1) M8 NYLON LOCK NUT QTY.4 (C4)1/2" ROUND END CAP WASHER QTY.8 (B2)M12 NYLON LOCK NUT QTY.8 (C1)M8(I.D.)FLAT WASHER Ø18 QTY.4 (C2)M8(I.D.)FLAT WASHER Ø24 QTY.4 (C3)M12(I.D.)FLAT WASHER Ø25 QTY.8 CMH1400-062017 Page...
  • Page 5 CMH-1400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION ------------------------[2PCS] (D1)Ø16.1XØ8X22.5L STEEL BUSHING(8110-150) -------------------------------------------[1PCS] (D2)Ø50X10 END COVER(8130-131) -------------------------------------------------------[1PCS] (D3)CU WASHER(8520-007) -------------------------------[2PCS] (D4)Ø35X26X19L STEEL BUSHING(8890-079) -------------------------------------------------------[2PCS] (D5)Ø64 PULLEY(9213-023) --------------------------------------------[4PCS] (D6) 3" NYLON WASHER(9214-008) -------------------------------------[4PCS] (D7)Ø60X42H DECK BUFFER(9214-037) CMH1400-092017 Page...
  • Page 6 ASSEMBLY INSTRUCTIONS CMH-1400 PARTS ILLUSTRATION SHEET A[1SET] B[1SET] C[1SET] D[1SET] E[1SET] F[2SET] G[1PCS] H[2PCS] I[2PCS] 9710-020 8830-018 8312-062 K[2PCS] 9161-077 CMH1400-062017 Page...
  • Page 7 CMH-1400 ASSEMBLY INSTRUCTIONS Above shows STEP1 assembled and completed A7X4 A1X4 B1X2 C2X2 C4X4 D5X2 C2X2 A4X2 C4X4 B2X4 A7X4 CMH1400-062017 Page...
  • Page 8 CMH-1400 ASSEMBLY INSTRUCTIONS Above shows STEP2 assembled and completed B2X2 C3X2 A6X4 C3X2 C3X2 C3X2 B2X2 CMH1400-062017 Page...
  • Page 9 CMH-1400 ASSEMBLY INSTRUCTIONS Above shows STEP3 assembled and completed M10X25L Cone Bolt D6X2 D6X2 A8X2 A8X2 D4X2 CMH1400-092017 Page...
  • Page 10 CMH-1400 ASSEMBLY INSTRUCTIONS Above shows STEP4 assembled and completed A9X2 D1X2 B1X2 C1X2 C1X2 A5X2 CMH1400-062017 Page...
