You should now see the DPH-10U in the Windows System Tray as shown
below.
You are now ready to use the DPH-10U VoIP USB Phone.

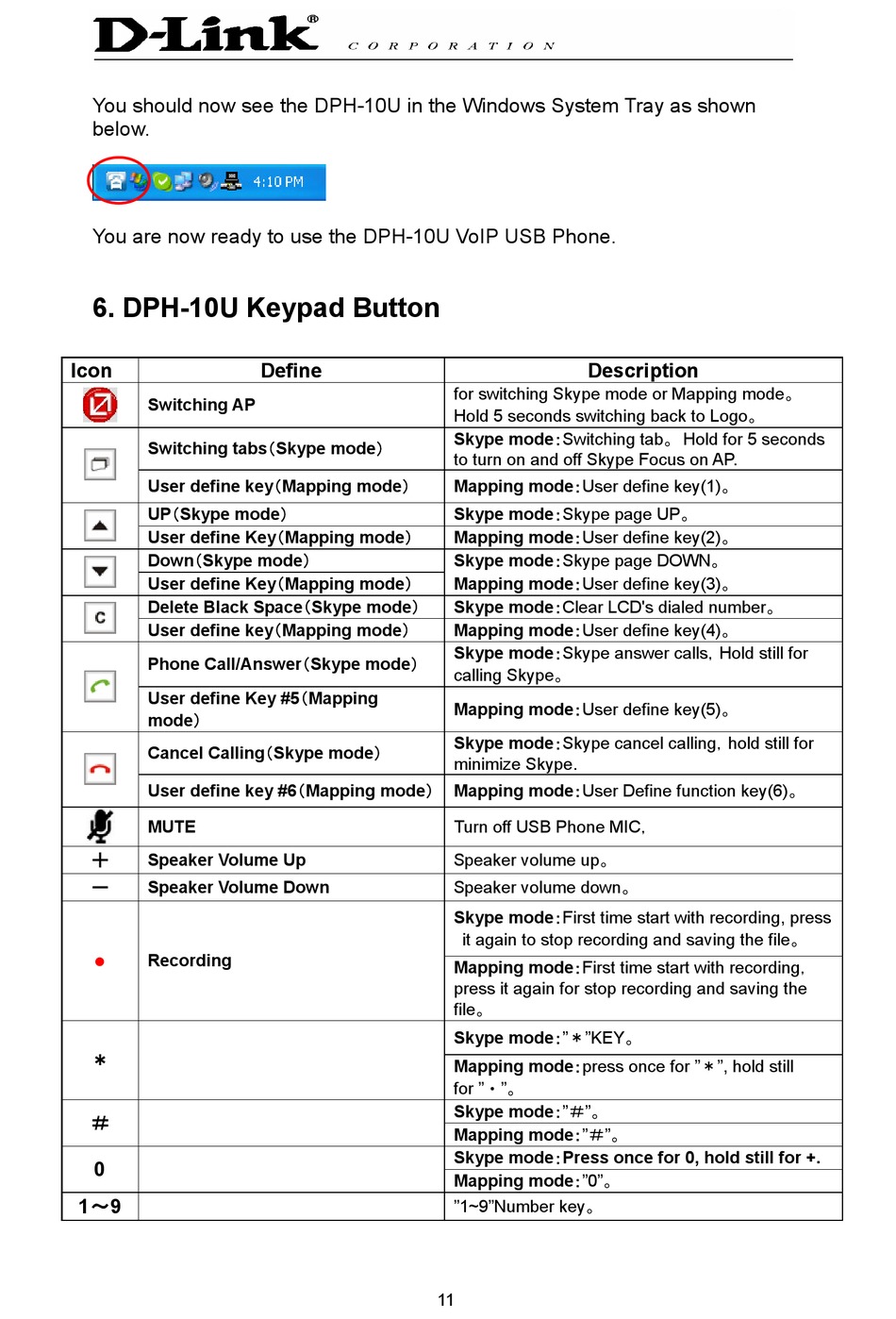

6. DPH-10U Keypad Button

Icon
Switching AP
Switching tabs(Skype mode)
User define key(Mapping mode)
UP(Skype mode)
User define Key(Mapping mode)
Down(Skype mode)
User define Key(Mapping mode)
Delete Black Space(Skype mode)
User define key(Mapping mode)
Phone Call/Answer(Skype mode)
User define Key #5(Mapping
mode)
Cancel Calling(Skype mode)
User define key #6(Mapping mode)
MUTE
Speaker Volume Up
Speaker Volume Down
Recording
0
1~9
Define
Description
for switching Skype mode or Mapping mode。
Hold 5 seconds switching back to Logo。
Skype mode:Switching tab。 Hold for 5 seconds
to turn on and off Skype Focus on AP.
Mapping mode:User define key(1)。
Skype mode:Skype page UP。
Mapping mode:User define key(2)。
Skype mode:Skype page DOWN。
Mapping mode:User define key(3)。
Skype mode:Clear LCD's dialed number。
Mapping mode:User define key(4)。
Skype mode:Skype answer calls,Hold still for
calling Skype。
Mapping mode:User define key(5)。
Skype mode:Skype cancel calling,hold still for
minimize Skype.
Mapping mode:User Define function key(6)。
Turn off USB Phone MIC,
Speaker volume up。
Speaker volume down。
Skype mode:First time start with recording, press
it again to stop recording and saving the file。
Mapping mode:First time start with recording,
press it again for stop recording and saving the
file。
Skype mode:"*"KEY。
Mapping mode:press once for "*", hold still
for " "
• 。
Skype mode:"#"。
Mapping mode:"#"。
Skype mode:Press once for 0, hold still for +.
Mapping mode:"0"。
"1~9"Number key。
11
