EVBUM2623/D
RSL10 Solar Cell
Multi-Sensor Platform
User's Guide
Introduction
T h e
R S L 1 0
S o l a r
(RSL10−SOLARSENS−GEVK) is a comprehensive development
platform for battery−free IoT applications for smart building, smart
home, and Industry 4.0 verticals. Based on the industry's lowest power
®
Bluetooth
Low Energy radio (RSL10), the board features sensors for
environmental and motion sensing (BMA400−a smart 3−axis
accelerometer, BME280− a smart environmental sensor, and the
NCT203
wide−range digital temperature sensor).
The board also features a low weight, low profile 47 mF storage
capacitor of; a programming and debug interface; and a connected
solar cell.
Since the device harvests energy from a low current source, it is
important to minimize leakage of the overall system during operation
and standby. Along with other energy efficient devices, an ultra−low
quiescent current LDO (NCP170) on the board significantly minimize
leakage.
© Semiconductor Components Industries, LLC, 2019
March, 2020 − Rev. 3
C e l l
M u l t i −S e n s o r

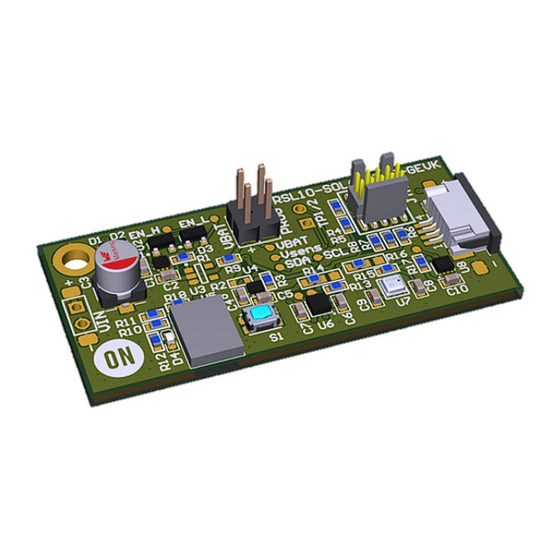

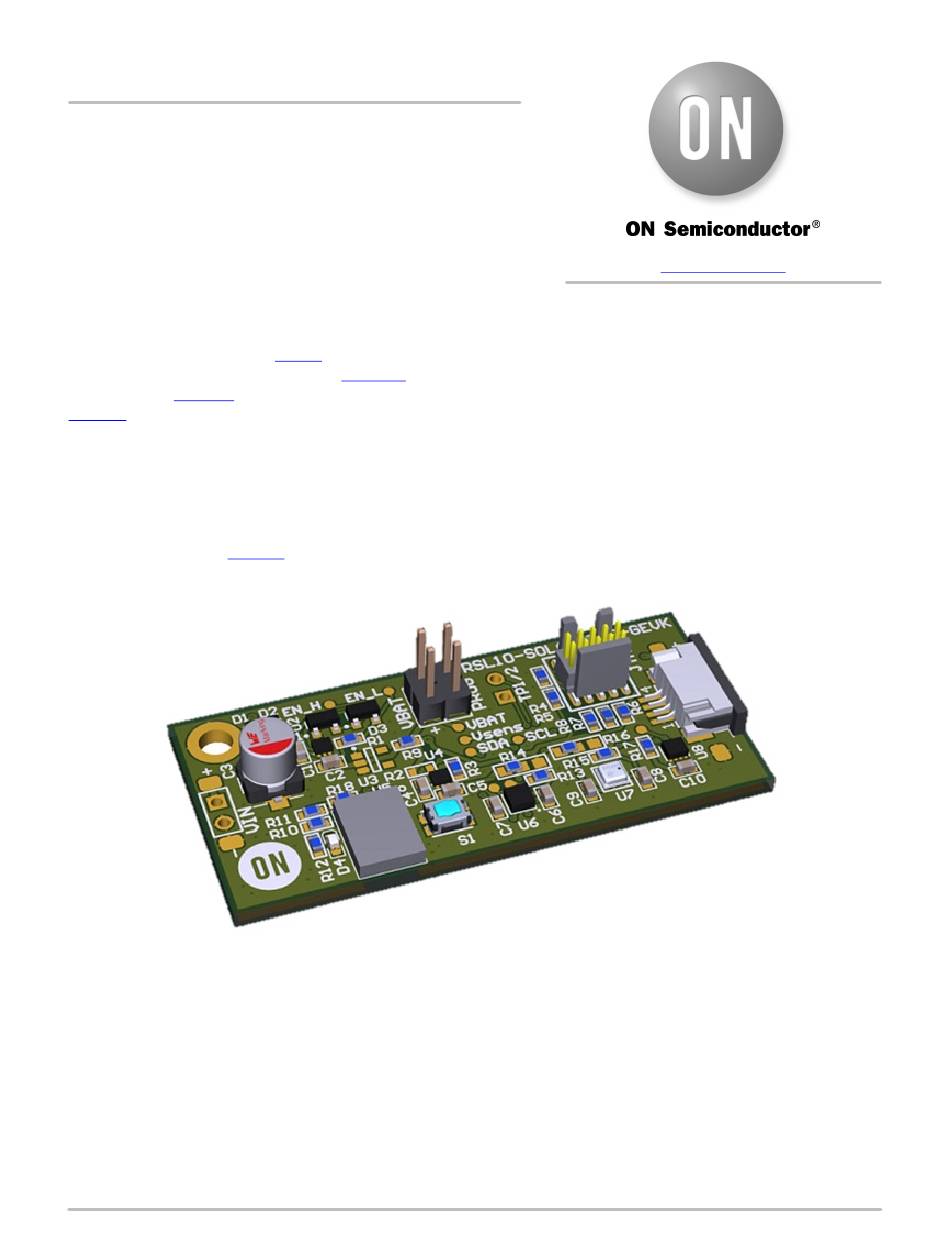

Figure 1. RSL10 Solar Cell Multi−Sensor Platform
P l a t f o r m
EVAL BOARD USER'S MANUAL
1
www.onsemi.com
Publication Order Number:
EVBUM2623/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVBUM2623/D and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor EVBUM2623/D

  • Page 1 EVBUM2623/D RSL10 Solar Cell Multi-Sensor Platform User's Guide Introduction www.onsemi.com T h e R S L 1 0 S o l a r C e l l M u l t i −S e n s o r P l a t f o r m (RSL10−SOLARSENS−GEVK) is a comprehensive development...
  • Page 2 1.6 V. following sensors are present on the board. For more information about the power regulation section, • BMA400, 3−Axis Smart Accelerometer refer to Continuous Harvesters and ON Semiconductor’s • BME280, Environmental Sensor (temperature, Low−Power Technology...
  • Page 3: Normal Operations

    EVBUM2623/D Figure 3. Connecting Cables to the Solder Pads Normal Operations In normal lighting conditions, the LED will blink faster Every transmission is signed with a LED pulse (LED D4 than once per second. located just at the Left of RSL10).
  • Page 4 (select • Acceleration in 3−axis J−Link software and documentation pack) • Advertised packages count 3. Download and install “ON Semiconductor IDE • Installer” from Time since up−time https://www.onsemi.com/PowerSolutions/product. Aside from displaying the real−time values of these do?id=RSL10 variables, the app plots as well the values over time in a.) Download the “RSL10 SDK Getting Started...
  • Page 5 EVBUM2623/D Importing the CMSIS−Packs 2. Refer to Chapter 3 of RSL10 SDK Getting Started 1. Launch the RSL10 ON Semiconductor IDE Guide (step 3a) for step−by−step instruction on importing the CMSIS packs. NOTE: Please import the RSL10 CMSIS pack first as 3.
  • Page 6 EVBUM2623/D Since the board does not provide a debugging probe, a connected to VBAT header for the purpose of detailed power compatible standalone debugging probe is required. This consumption analysis of RSL10 and associated sensors. can be any SEGGER J−Jink debug probe with 10−pin Example setup for debugging is shown in Figure 9 where ®...
  • Page 7 EVBUM2623/D Release project. This header can be opened by using CMSIS This configuration should be used for power consumption Configuration wizard editor as shown in Figure 10. The measurements and production builds. Configuration Wizard allows some predefined program • parameters to be changed without changing the code Optimized for speed, no debug symbols ( -O2 ).
  • Page 8 EVBUM2623/D Figure 12 shows the current consumption of the board advertise the results. If sensor measurement is not scheduled during a sensor measurement event, followed by and the board only advertises, the energy consumption is reduced to 20 mJ. advertisement of measured data. During this event, a total of 60 mJ of energy was used to both measure sensor data and Figure 12.
