EVBUM2565/D
RSL10 SIP Evaluation and
Development Board
User's Manual
INTRODUCTION
Purpose
This manual provides detailed information about the
configuration and use of the RSL10 SIP Evaluation and
Development
Board
(RSL10−SIP−001GEVB).
Evaluation and Development Board is designed to be used
with the software development tools to evaluate the
performance and capabilities of the RSL10 SIP radio.
Manual Organization
The Evaluation and Development Board Manual contains
the following chapters and appendices:
Chapter 1: Introduction describes the purpose of this
manual, describes the target reader, explains how the
book is organized, and provides a list of suggested
reading for more information.
Chapter 2: Overview provides an overview of the
Evaluation and Development Board described in this
manual.
Chapter 3: Evaluation and Development Board
provides the details of the Evaluation and Development
Board. The chapter is divided into the following topics:
Development Board Setup
Development Board Design
Power Supply
Level Translators
LED Circuitry
RSL10 SIP
Measuring the Current Consumption
SWJ−DP Debug Port
Digital Input/Output (DIO)
Power Supply and Test Points
Appendix A: Connectors provides a complete list of
the connectors and jumpers on the Evaluation and
Development Board.
Appendix B: Schematics contains the schematics for
the Evaluation and Development Board.
Appendix C: Bill of Materials contains a list of the
parts that are used to manufacture the Evaluation and
Development Board.
Further Reading
For more information, refer to the following documents:
Getting Started with RSL10
RSL10 Firmware Reference
© Semiconductor Components Industries, LLC, 2018
June, 2018 − Rev. 0
EVAL BOARD USER'S MANUAL
The
RSL10 Hardware Reference
RSL10 SIP Datasheet
OVERVIEW
Introduction
The RSL10 SIP Evaluation and Development Board is
used for evaluating the RSL10 SIP and for application
development. The board provides access to all input and
output connections via 0.1" standard headers. The on-board
communication interface circuit provides communication to
the board from a host PC. The communication interface
translates RSL10 SIP SWJ−DP debug port signals to the
USB of the host PC. There is also an on-board 4-bit level
shifter for debugging; it translates the I/O signal level of the
RSL10 SIP to the 3.3 V digital logic level. It is not enabled
by default; you enable it when it is needed.
Evaluation and Development Board Features
The Evaluation and Development Board enables
developers to evaluate the performance and capabilities of
the RSL10 SIP in addition to developing, demonstrating and
debugging applications.
Key features of the board include:
J−Link onboard solution provides a SWJ−DP
(serial-wire and/or JTAG) interface that enables you to
debug the board via a USB connection with the PC
Alternate onboard SWJ−DP (serial-wire and/or JTAG)
interface for Arm
Access to all RSL10 SIP peripherals via standard 0.1"
headers
Onboard 4-bit level translator to translate the LPDSP32
debug interface at low voltage to a 3.3 V JTAG
debugger
Integrated antenna (included as part of the RSL10 SIP)
Compliance with the Arduino form factor
1
www.onsemi.com
®
®
Cortex
−M3 processor debugging
Publication Order Number:
EVBUM2565/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVBUM2565/D and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor EVBUM2565/D

  • Page 1 EVBUM2565/D RSL10 SIP Evaluation and Development Board User's Manual INTRODUCTION www.onsemi.com Purpose This manual provides detailed information about the EVAL BOARD USER’S MANUAL configuration and use of the RSL10 SIP Evaluation and Development Board (RSL10−SIP−001GEVB). Evaluation and Development Board is designed to be used with the software development tools to evaluate the performance and capabilities of the RSL10 SIP radio.
  • Page 2 EVBUM2565/D EVALUATION AND DEVELOPMENT BOARD Evaluation and Development Board Setup development board configuration are discussed later in this This section is an overview of how to configure the manual. Evaluation and Development Board. Details of the Figure 1 represents an overview of the board setup.
  • Page 3 EVBUM2565/D Figure 3. Circuit Location Block Diagram (Top View) Figure 4. Circuit Location Block Diagram (Bottom View) www.onsemi.com...

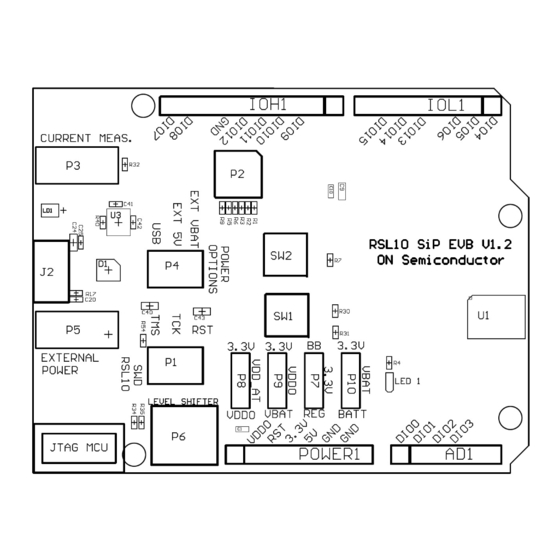

  • Page 4 EVBUM2565/D Figure 5. Three-Dimensional Line Drawing of the Board (Top View) Figure 6. Three-Dimensional Line Drawing of the Board (Bottom View) www.onsemi.com...
  • Page 5 EVBUM2565/D • Power Supply External power supply connector (P5) without The Evaluation and Development Board can be powered regulator by one of the following: • Use the jumpers on pin headers P4, P7 and P10 to select Micro USB port with regulator a power supply option as show in Table 1.
  • Page 6 EVBUM2565/D SWJ−DP DEBUG Port For more information about the DIO multiplexed signals, The J−Link adapters are typically used to communicate refer to the RSL10 Hardware Reference. with RSL10 SIP using the standard Coresight SWJ−DP The board provides access to any of the DIOs or their debug port in a JTAG/SW communication protocol.
  • Page 7: Appendix A − Connectors

    EVBUM2565/D APPENDIX A − CONNECTORS Overview This appendix lists all connectors on the Evaluation and Development Board. The sections that follow provide descriptions for: • Jumpers and their possible configurations • Headers • Switches and their possible configurations • Connectors Configuration Header Jumpers Table 3.
  • Page 8: Appendix B − Schematics

    EVBUM2565/D APPENDIX B − SCHEMATICS This appendix contains schematics for the Evaluation and Development Board, version 1.3: • The Top-level (Arduino interface) schematic • The RSL10 SIP schematic • The Interface MCU schematic • The Power Supply schematic RESET TRESin...
  • Page 9 EVBUM2565/D VBAT VDDO Figure 8. RSL10 SIP Schematic www.onsemi.com...
  • Page 10 EVBUM2565/D DHSDP XIN32 DHSD_P DHSDM XOUT32 DHSD_N JTAGSEL NRSTB VDDUTMI GNDBU DFSDM DFSD_N DFSDP VDDBU DFSD_P TEST GNDUTMI ERASE VDDCORE TK/PWMH0/PA28 FWUP RK/PWMH1/PA29 PA12/UTXD/PWMFI1 PA11/URXD/PWMFI0 RF/TIOB2/PA31 PA10/TWCK0/PWML3 VDDCORE VDDIO PA9/TWD0/PWML2 PA8/MCDA3/PWML1 VDDIO PWMH0/A2/PB0 PWMH1/A3/PB1 PWMH2/A4/PB2 VDDCORE D2/DCD0/PB11 PA7/MCDA2/PWML0 PA6/MCDA1/PWMH2 D3/RI0/PB12...
  • Page 11 EVBUM2565/D Figure 10. Power Supply Schematic www.onsemi.com...
  • Page 12: Appendix C − Bill Of Materials

    EVBUM2565/D APPENDIX C − BILL OF MATERIALS Table 7. BILL OF MATERIALS FOR RSL10 SIP EVALUATION AND DEVELOPMENT BOARD VERSION Designator Description Footprint Doc Arduino Stackable Header 6-pin C9, C40, C43 CAP CER 4.7 mF 10 V X5R 0603, CAP CER 4.7 mF 25 V X5R...
  • Page 13 See Installation HEX STANDOFF 4−40 NYLON 3/8″ NOTE: ON Semiconductor reserves the right to substitute materials for equivalent or similar parts. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Arm and Cortex are registered trademarks of Arm Limited. www.onsemi.com...
