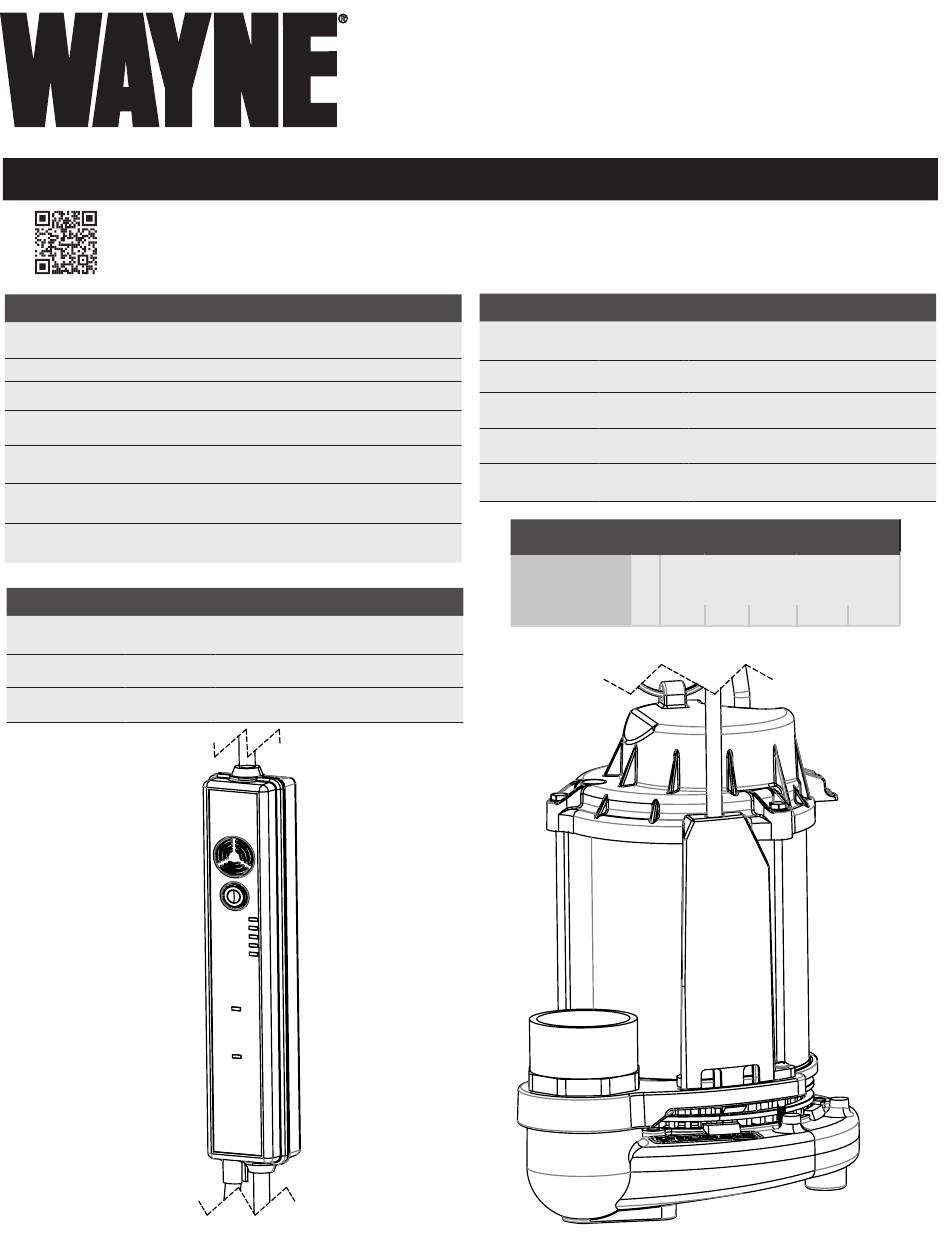

Installation Manual
Scan the QR code or visit www.waynepumps.com for the full manual in English and Español. If you are having trouble scanning the
QR code, type the following URL into your internet browser to access the manual, www.waynepumps.com/wayne-operating-manuals/
PUMP SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENTS
DIMENSIONS
ON LEVEL (FACTORY SET)
OFF LEVEL (FACTORY SET)
CONTROLLER SPECIFICATIONS
SWITCH
CONNECTIVITY
AIR TUBE
© 2024, WAYNE/Scott Fetzer Company
120 V, 60 Hz
Single Phase, Dielectric Oil Filled
1/2 HP
15 A (minimum)
11-1/2 in. high x 9-3/4 in. base
Approximately 9 in
Approximately 4 in.
Solid State Air Switch
Wi-Fi + BLE
PVC

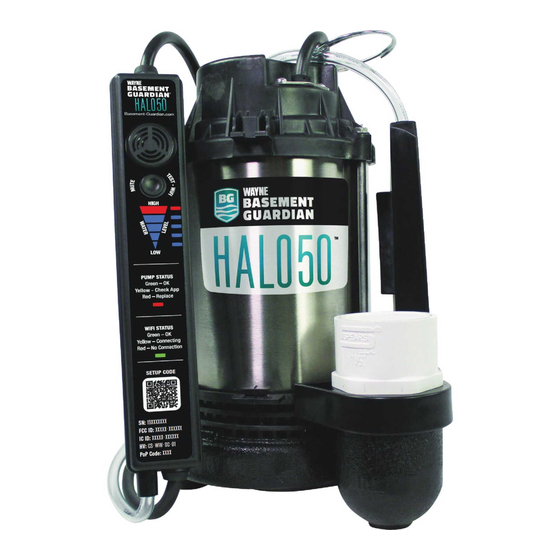

Smart Submersible Sump Pump
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
MOTOR HOUSING
VOLUTE
IMPELLER
SHAFT
DISCHARGE
Model
HALO50
www.waynepumps.com
Basement Guardian Halo™
CONSTRUCTION
Stainless Steel
Cast Iron
Glass Reinforced Thermoplastic
Steel
1-1/2 in. NPT
PERFORMANCE GAL/HR
Discharge Head (Lift Distance)
HP
0 ft
5 ft
10 ft
1/2
5100
4500
3840
600013-001 B 06/24
15 ft
20 ft
3060
2040
Advertisement
Related Manuals for Wayne Basement Guardian Halo
Summary of Contents for Wayne Basement Guardian Halo
- Page 1 Basement Guardian Halo™ Scan the QR code or visit www.waynepumps.com for the full manual in English and Español. If you are having trouble scanning the QR code, type the following URL into your internet browser to access the manual, www.waynepumps.com/wayne-operating-manuals/ CONSTRUCTION...
-
Page 2: Safety Signal Words
INSTALLATION MANUAL SUMP PUMP DESCRIPTION Sump pumps are automatic pumps used to remove ground water from sump pits. The most common application is for basement drainage to prevent flooding in residential buildings. These pumps are designed to pump clear water only. With the innovative and reliable Air Switch, your This pump is not designed to handle salt water, brine, laundry pump is no longer limited by the mechanical cycles of traditional float switch discharge, water softener, sewage, grey water, or any other... - Page 3 INSTALLATION MANUAL FCC INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION These limits are designed to provide reasonable protection against WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR MODERATE harmful interference in a residential installation.
- Page 4 INSTALLATION MANUAL 6. Install a check valve (required) to prevent back-flow. The Wayne check valve (57028-001) may be positioned just above the basin to allow easy removal of the pump for cleaning and service. 7. Install a gate valve or ball valve if required by local, regional or state code.
- Page 5 INSTALLATION MANUAL LED LIGHT DISPLAY (CHECK YOUR APP FOR SPECIFIC REAL TIME PUMP INFORMATION) Color Symptom/Possible Cause(s) Suggested Remedies Green 1. Good 1. Your pump is good, there is nothing needed Yellow 1. A clogged pump inlet 1. Open your sump pit and inspect the pump. Make sure the inlet screen is free of debris and there is nothing blocking the flow of water into the pump.
- Page 6 4. Select Launch to add skill to your Alexa Device, and then settings to link your Halo controller App to your Alexa device. 5. After receiving notice - “Wayne has been successfully linked,” close the notice page and start using your Alexa with the Wayne Skill.
-
Page 7: Troubleshooting Warnings
INSTALLATION MANUAL TROUBLESHOOTING WARNINGS ALWAYS DISCONNECT THE PUMP FROM POWER SUPPLY before installing, servicing or making any adjustments. LET PUMP COOL FOR A MINIMUM OF 2 HOURS BEFORE ATTEMPTING TO SERVICE. Submersible pumps contain oil that become pressurized and hot under normal operating conditions. 1. -
Page 8: Troubleshooting Chart
INSTALLATION MANUAL TROUBLESHOOTING CHART (CONTINUED) Symptoms Possible Cause(s) Suggested Remedies Pump trips GFCI 1. Bad GFCI 1. Contact an electrician to replace GFCI 2. Bad pump 2. Replace pump Pump operates 1. Worn bearings 1. Replace pump noisily or vibrates 2. - Page 9 INSTALLATION MANUAL USING YOUR DIGITAL CONTROLLER MUTE ALARM: Will silence alarm for 12 hours. For custom mute times, open the companion app while the alarm is active and press the alarm icon next to the alert pop-up. SYSTEM TEST: While your pump will automatically run periodic system tests; you can always force a system test via the controller or the companion app.
- Page 10 This Limited Warranty can also be found online at www.waynepumps.com and in the documentation we provide with the Product. WHAT DOES THIS WARRANTY COVER? This Limited Warranty covers defects in materials and workmanship of Wayne sump pump model HALO50 (a “Product”) manufactured by Wayne/ Scott Fetzer Company (“we”) for the Warranty Period as defined below.
- Page 11 ALEXA SKILLS USER GUIDE HALO PRODUCTS ALEXA SKILLS USER GUIDE Alexa Skills are available for your Halo pump using an iOS or Android mobile device. To connect a Halo pump to an Alexa device, you will need your connected Halo pump credentials, the Alexa App loaded on your mobile device, and an Alexa device such as an Echo.
- Page 12 6. On the Discover Alexa screen, search for Wayne Halo. 7. On the Search Results screen, select Wayne Skill. 8. On the Wayne Screen, tap the Launch button to add the skill to your Alexa-enabled devices. 9. Return to the Wayne Screen and tap the Settings button. To use this skill, you must log into your Wayne Account, click on settings, and then click on Link Account.
