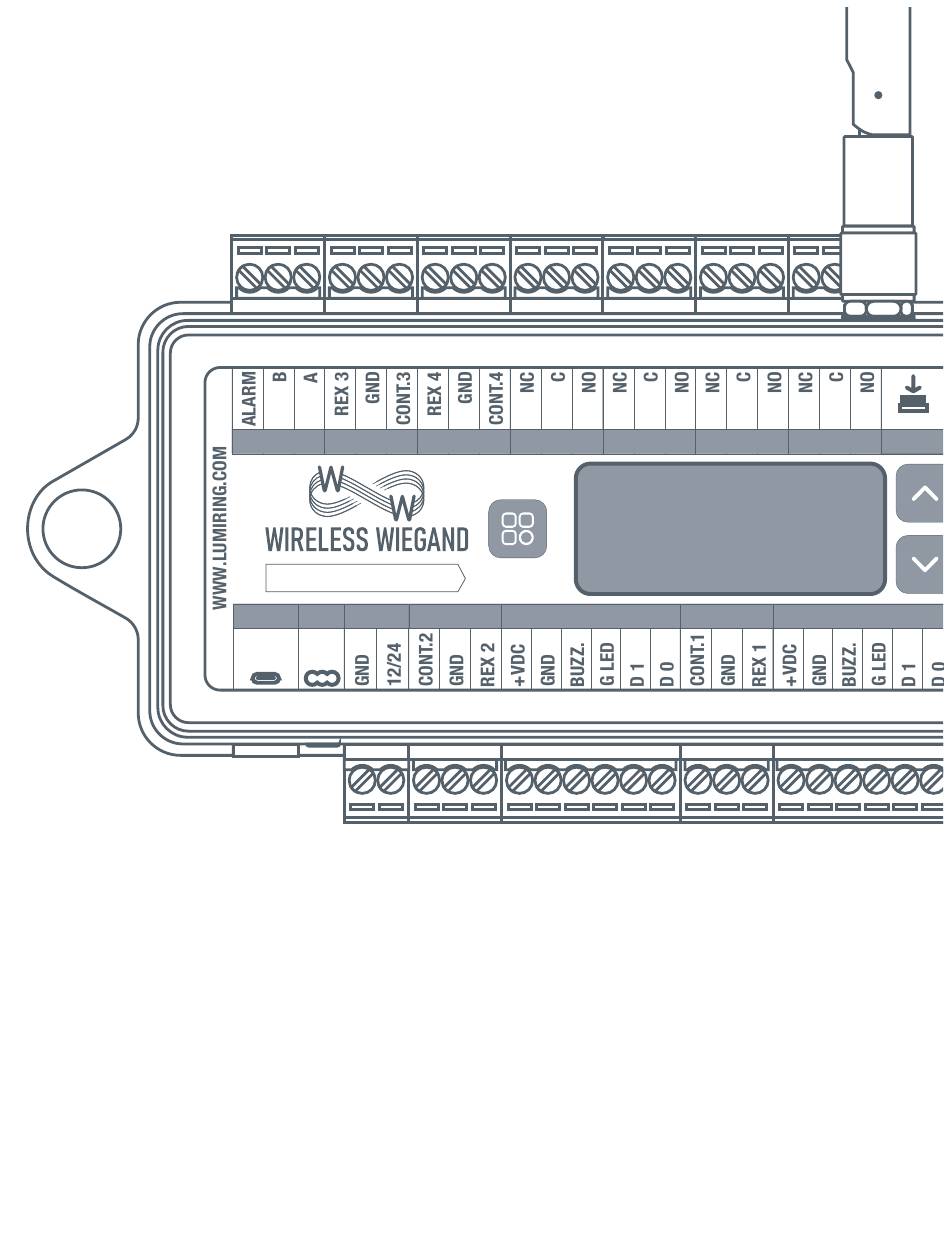

- Page 1 2024-08-27 V 1.8 MANUAL OSDP DOOR 3 DOOR 4 LOCK 1 LOCK 2 LOCK 3 LOCK 4 BUTTON SLAVE DEVICE POWER DOOR 2 WIEGAND 2 DOOR 1 WIEGAND 1 TYPE-C STATUS WIRELESS WIEGAND...
- Page 2 CONTENTS & LED Indica on Supported Reader Models Notes...
- Page 3 Introduction This document provides detailed information on the structure of the Wireless Wiegand Master-Slave Device radio transmitter kit and instructions for installation and connection. It also includes instructions that identify potential risks and methods for troubleshooting common problems. This guide is for informational purposes only, and in the event of any discrepancies, the actual product takes precedence.
- Page 4 Device Specifications Voltage: • Two (2) Wiegand ports from 4 to 80 bits • 12 or 24 VDC operation • RS-485 (OSDP) • The voltage at the outputs is determined by the • USB port (Type-C) for firmware update power supply. Range: •...
- Page 5 Device Demension 5.31" 5.9" 1.38" RFID CARD 125, 65535 3.375"...
- Page 6 Slave Device Connection Terminals RS-485/Alarm USB Service Port Alarm IN Type-C RS-485 B- RS-485 A+ LED Indication Door 3 IN Green WWW.LUMIRING.COM Request to Exit Blue ALARM Contact 3 Power IN REX 3 Door 4 IN +VDC Request to Exit 12/24 CONT.3...
- Page 7 Master Device Connection Terminals RS-485 USB Service Port Type-C RS-485 B- RS-485 A+ LED Indication Door 3 OUT Green WWW.LUMIRING.COM Request to Exit 3 Blue Contact 3 Power IN REX 3 Door 4 OUT +VDC Request to Exit 4 12/24 CONT.3...
- Page 8 Display The information display is designed for the 5. Displaying card codes read from connected following functions: readers. 1. Displaying the current status of the device. This display provides operational data for: 2. Providing information about the communication • Optimization of device placement. quality.
- Page 9 Display Device information • Indicates the strength of the signal as a percentage ratio. • Percentage of packet loss in the last 60 seconds. • Percentage of packet loss in the last 10 minutes. • Percentage of packet loss in the last 24 hours. Packet Loss graph: Packet loss 10 •...
- Page 10 Installation Recommendations Connecting the Antenna Extension Cord (optional accessory) The wave impedance of the cable is 50 ohms. Antenna cable: Length: 33 ft (10 m) MAX. Input connector: RPSMA-Female (jack). Output connector: RPSMA-Male (plug). Antenna RPSMA-Female (jack): Operating frequency 868-915MHz. Placement and Wiring •...
- Page 11 Installation Recommendations Recommendations for Connection • Make all connections only when the power is off. • The wires are only connected to the removable terminal blocks. • Be sure to check the correct connection before switching on the unit. Pairing Connect the master sevice to a power source.
- Page 12 Slave Device: Wiegand Readers Connection Diagram WWW.LUMIRING.CO 12/24 CONT.2 REX 2 +VDC BUZZ. G LED Green Data 0 White Data 1 CONT.1 Orange Green LED Brown/Yellow Red LED/Beeper REX 1 Black +VDC +VDC BUZZ. G LED • Before you start building cable networks for Wiegand readers, read the interface specifications.
- Page 13 Slave Device: Wiegand Readers Connection Diagram WWW.LUMIRING.CO 12/24 CONT.2 REX 2 +VDC BUZZ. G LED Green Data 0 White Data 1 CONT.1 Orange Green LED Brown/Yellow Red LED/Beeper REX 1 Black +VDC +VDC BUZZ. G LED • Before you start building cable networks for Wiegand readers, read the interface specifications.
- Page 14 Slave Device: Door Sensor and Exit Button Connection Diagram WWW.LUMIRING.CO 12/24 CONT.2 REX 2 +VDC BUZZ. G LED CONT.1 REX 1 +VDC BUZZ. G LED • Specify the "Open" condition in the Сontroller settings when a door sensor is connected.
- Page 15 Slave Device: AIR-Button V 2.0 Connection Diagram AIR-B WWW.LUMIRING.CO (V 2.0 Four-Wire) 12/24 CONT.2 REX 2 +VDC OPEN BUZZ. G LED +VDC Black Blue CONT.1 Green Green LED REX 1 +VDC BUZZ. G LED • Connecting to the “DOOR 2,” “DOOR 3,” and “DOOR 4"...
- Page 16 Slave Device: AIR-Button V 3.0 Connection Diagram AIR-B WWW.LUMIRING.CO (V 3.0 Five-Wire) 12/24 CONT.2 REX 2 +VDC BUZZ. G LED +VDC Black Yellow CONT.1 Green (reserved) Blue Green LED REX 1 +VDC BUZZ. G LED • Connecting to the “DOOR 2,” “DOOR 3,” and “DOOR 4"...
- Page 17 Slave Device: Request to Exit PIR Motion Sensor Connection Diagram WWW.LUMIRING.CO Motion Sensor 12/24 CONT.2 REX 2 +VDC BUZZ. G LED CONT.1 REX 1 +VDC BUZZ. G LED • Connecting to the “DOOR 2,” “DOOR 3,” and “DOOR 4" connectors is done in the same way.
- Page 18 Slave Device: Request to Exit PIR Motion Sensor Connection Diagram WWW.LUMIRING.CO Motion Sensor 12/24 CONT.2 REX 2 +VDC BUZZ. G LED CONT.1 REX 1 +VDC BUZZ. G LED • Connecting to the “DOOR 2,” “DOOR 3,” and “DOOR 4" connectors is done in the same way.
- Page 19 Specify the “Impulse” control type in the controller settings when a strike lock is connected. • Specify the “Trigger” control type in the controller settings when a magnetic lock is connected. Strike Lock WW.LUMIRING.COM ALARM REX 3 CONT.3 Warning REX 4...
- Page 20 Master Device: Wiegand Outputs Connection Diagram to the ICON-Pro Controller OSDP DOOR 3 DOOR 4 LOCK 1 LOCK 2 LOCK 3 LOCK 4 BUTTON MASTER DEVICE POWER DOOR 2 WIEGAND 2 DOOR 1 WIEGAND 1 TYPE-C STATUS PoWeR OSDP DOOR 3 DOOR 4 RELAY 1 RELAY 2...
- Page 21 Master Device: REX Outputs, Contact Outputs Connection Diagram to the ICON-Pro Controller OSDP DOOR 3 DOOR 4 LOCK 1 LOCK 2 LOCK 3 LOCK 4 BUTTON MASTER DEVICE POWER DOOR 2 WIEGAND 2 DOOR 1 WIEGAND 1 TYPE-C STATUS PoWeR OSDP DOOR 3 DOOR 4...
- Page 22 Master Device: Relay Inputs Connection Diagram to the ICON-Pro Controller OSDP DOOR 3 DOOR 4 LOCK 1 LOCK 2 LOCK 3 LOCK 4 BUTTON MASTER DEVICE POWER DOOR 2 WIEGAND 2 DOOR 1 WIEGAND 1 TYPE-C STATUS PoWeR OSDP DOOR 3 DOOR 4 RELAY 1 RELAY 2...
- Page 23 Coming Soon! Master Device: OSDP Output Connection Diagram to the ICON-Pro Controller OSDP OSDP DOOR 3 DOOR 4 LOCK 1 LOCK 2 LOCK 3 LOCK 4 BUTTON MASTER DEVICE POWER DOOR 2 WIEGAND 2 DOOR 1 WIEGAND 1 TYPE-C STATUS PoWeR OSDP OSDP...
- Page 24 Login Connecting to a Wi-Fi Access Point Connecting to the built-in web server Step 1. Connect the device to the +12 VDC power supply. Wait for the device to start up. Step 2. Quickly press the button near the antenna and then release it to turn on the Wi-Fi hotspot. Step 3.
- Page 25 System The System section displays the current status of the device, advanced network connection information, and device version information. The Current Status column contains the: • Gateway. • Status of the connection with the pairing device. • Domain Name System (DNS). •...
- Page 26 Network The Network section provides the ability to configure the built-in Wi-Fi hotspot, including connecting to the Internet, changing the Wi-Fi network name, and setting a password. Network • To connect to the device when it is in hidden mode, you need to know its name and enter it •...
- Page 27 Maintenance The Firmware section displays the current interruption during the update may cause a version of the unit's firmware. firmware update application error. Note: It is recommended to upgrade the device If this happens, disconnect power from the to the latest firmware version before use. device for 10 seconds and reconnect.
- Page 28 Firmware Update via Cloud Server Device features: • Search for Wi-Fi networks on your mobile device and connect to the device's AP. While • The Wi-Fi receiving module supports connection connecting, check the box to connect to networks operating on 2.4 GHz only. automatically.
- Page 29 Hardware Reset OSDP DOOR 3 DOOR 4 LOCK 1 LOCK 2 LOCK 3 LOCK 4 BUTTON MASTER DEVICE POWER DOOR 2 WIEGAND 2 DOOR 1 WIEGAND 1 TYPE-C STATUS Hardware Reset 1. Hold the button down for 10 seconds. 2. Wait for yellow-blue flashing and a long beep. 3.
- Page 30 Glossary • +VDC - Positive voltage direct current. • Account ID - A unique identifier associated with an individual or entity's account, used for authentication and access to services. • ACU - Access control unit. The device and its software that establishes the access mode and provides reception and processing of information from readers, control of executive devices, display and logging of information.
- Page 31 Glossary • LED - Light emitting diode. • Loop sensor - A device that detects the presence or passage of traffic in a certain area by means of a closed electrical loop. Used in barriers or gates. • Magnetic Lock - A locking mechanism that uses electromagnetic force to secure doors, gates, or access points.
- Page 32 Supported Reader Models...
- Page 33 For Notes...
